Description

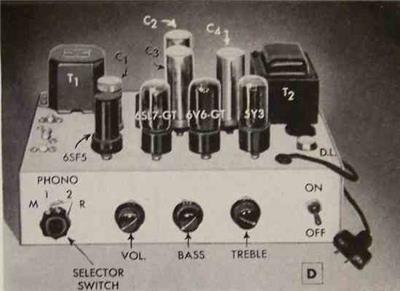

Plans for a Tube powered Hi-Fi Amplifier. This versatile amplifier can be used with Microphone, Phonograph, and Radio or TV. Puts out 4.5 watts of power.

  • Tubes required - 6SL7 - 5Y3 - 6SF5 - 6V6-GT.

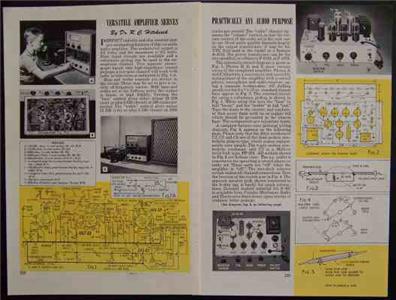

This is an original 3 page magazine article from 1952.
Pages measure 6 1/2” x 9”
We do not photocopy these.

Article Includes

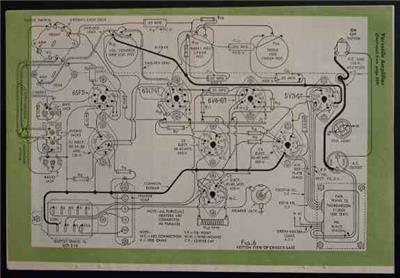

  • Schematic Drawings and Photos
  • Instructions
