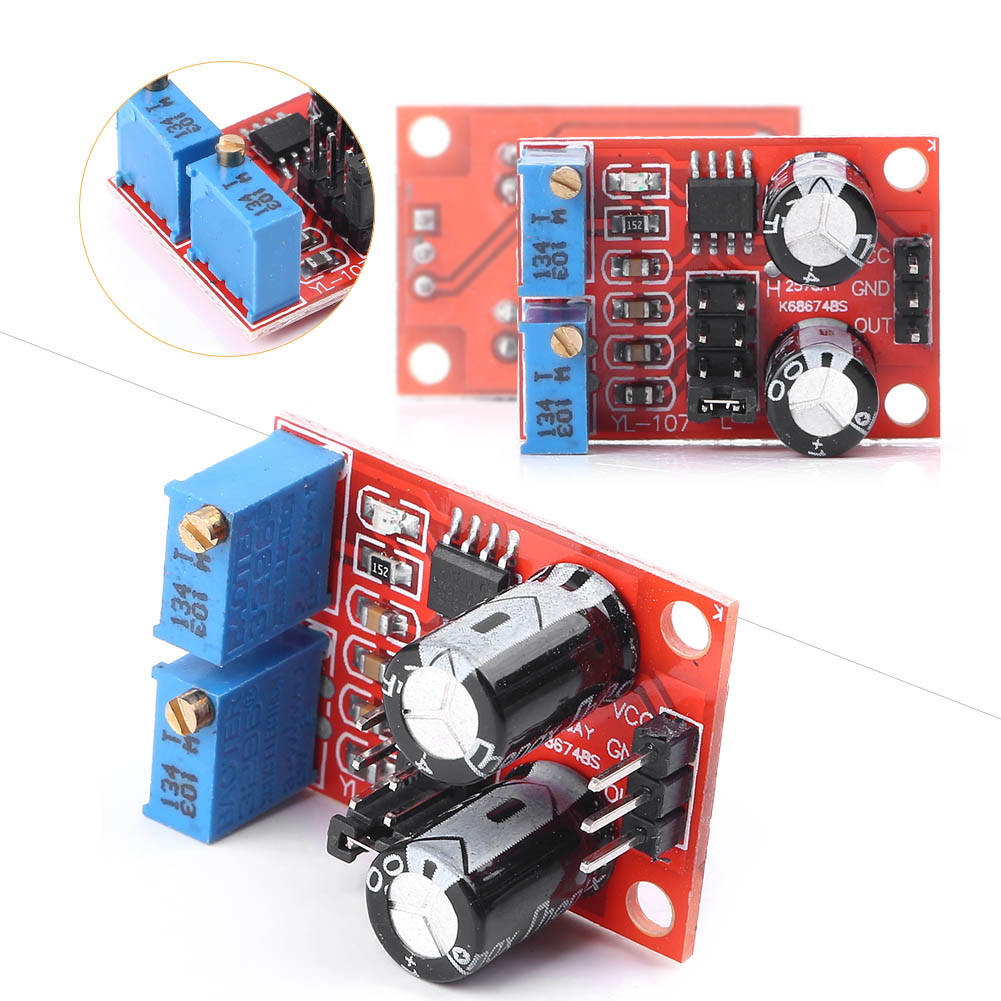

Frequenz Welle Schrittmotor Treiber Einstellbares Modul Duty Cycle Square

Features:
Als Rechtecksignalgenerator erzeugt er ein Rechtecksignal, das für die experimentelle Entwicklung verwendet wird.
Wird verwendet, um einen Schrittmotor zum Erzeugen eines Rechteckwellen-Ansteuersignals anzusteuern.
Erzeugen Sie einen einstellbaren Impuls für die MCU.
Erzeuge einstellbaren Impuls, um die damit verbundene Schaltung zu steuern.

Spezifikation:
Bedingung: Nagelneu mit Qualität
Eingangsspannung: 5V-15VDC.
Wenn die Stromversorgung 5 V beträgt, kann der Ausgangsstrom 15MA betragen;
wenn 12V-Stromversorgung, kann der Ausgangsstrom 35MA herum;
Eingangsstrom:> = 100MA
Ausgangsamplitude: 4,2 V V-PP bis 11,4 V V-PP. (Unterschiedliche Eingangsspannung, die Ausgangsamplitude wird anders sein)
Maximaler Ausgangsstrom:> = 15MA (wenn 5V Stromversorgung, V-PP größer als 50%),
> = 35MA (wenn 12V Netzteil, V-PP größer als 50%)
Ausgang mit LED-Anzeige (Low-Pegel, LED leuchtet; High-Pegel, LED ist aus; niedrige Frequenz, die LED blinkt);
Größe: Approx.3.1 * 2.4cm / 1.22 * 0.94inch;

Lieferinhalt: 1pc NE555 Frequenz Schrittmotortreiber


English description:
Features:
 As a square wave signal generator,generates a square wave signal used for experimental development.
Used to drive a stepper motor for generating a square wave drive signal.
Generate adjustable pulse for MCU.
Generate adjustable pulse,to control circuitry associated.

Specification:
Condition:Brand new with high quality
Input Voltage: 5V-15VDC.
When power supply is 5V , the output current can be 15MA around;
when 12V power supply, the output current can 35MA around;
Input current: >=100MA
Output amplitude: 4.2V V-PP to 11.4V V-PP. (Different input voltage, the output amplitude will be different)
Maximum output current: >=15MA (when 5V power supply, V-PP greater than 50%),
>=35MA (when 12V power supply, V-PP greater than 50%)
Output with LED indication (low level ,LED will on; high level, LED will off; low frequency, the LED flashes);
Size: Approx.3.1 * 2.4cm/1.22 * 0.94inch;

Package Included:1pc NE555 Frequency Wave Stepper Motor Driver
