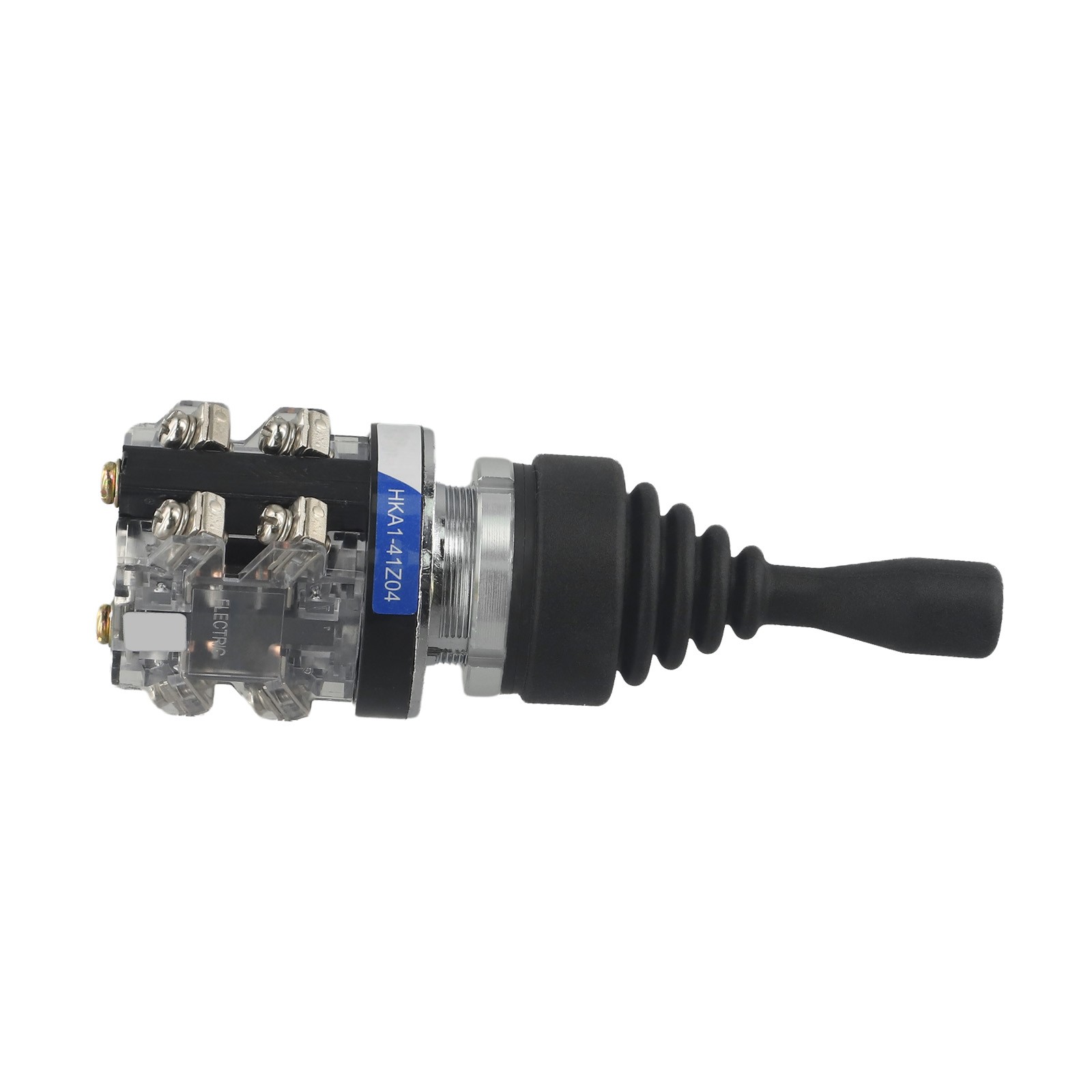

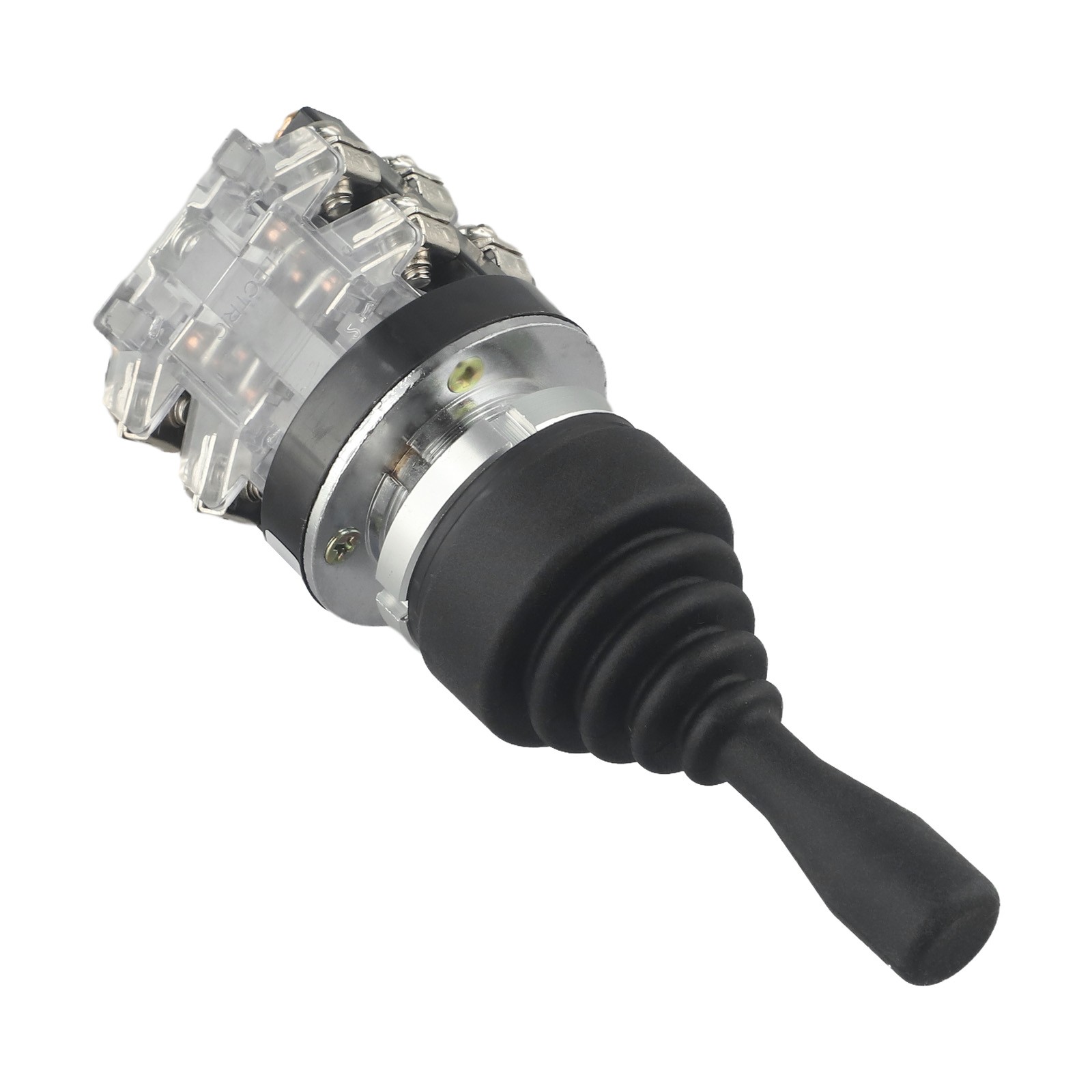

Joystick Switch with Water Oil Dust Resistant Cover for Industrial Use

DESCRIPTION

Features:

*Wide Applications: The joystick switch features a rubber sleeve cover that is resistant to water, oil, and , making it suitable for various industrial control applications, including both AC 50 Hz and DC circuits.

*Functionality: This joystick switch is designed to control starters, contactors, relays, and other electrical circuits, providing versatility in its use.

*Momentary : The 2NO joystick switch functions as a momentary switch, equipped with two normally open contacts. When released, the joystick returns to its position.

*Construction: With an electrical life of up to 1 million operations, this switch ensures reliable long-term performance in demanding environments.

*Specifications: The joystick switch has dimensions of 145 x 49mm (5.71 x 1.93 inches), and features a mounting hole diameter of 30mm, facilitating easy installation into various systems.

Specifications:

Part Name: Joystick Switch Controller

Material: Plastic,Metal

Size: Standard

Color: Black

Model: for HKA1-41Z04

Rated Voltage: 150V / 250V / 600V

Rated Current: 15A / 10A / 5A

Action Type: Momentary

Positions: 4

Contacts Type: 1 NO Per Direction

Terminals Type: Screw Clamps Terminals

Panel Mounting Diameter: 30mm / 1-17/94"

Overall Size: 145 x 49mm / 5.71" x 1.93" (L*D)

Joystick Length: 78mm / 3.07"

Package Content:

1 x Joystick Switch Controller

Note:

1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
