1030w Rms 1-Ch Mono Amplifier 1-Ohm Class D High Power Sub For HELIX M ONE X

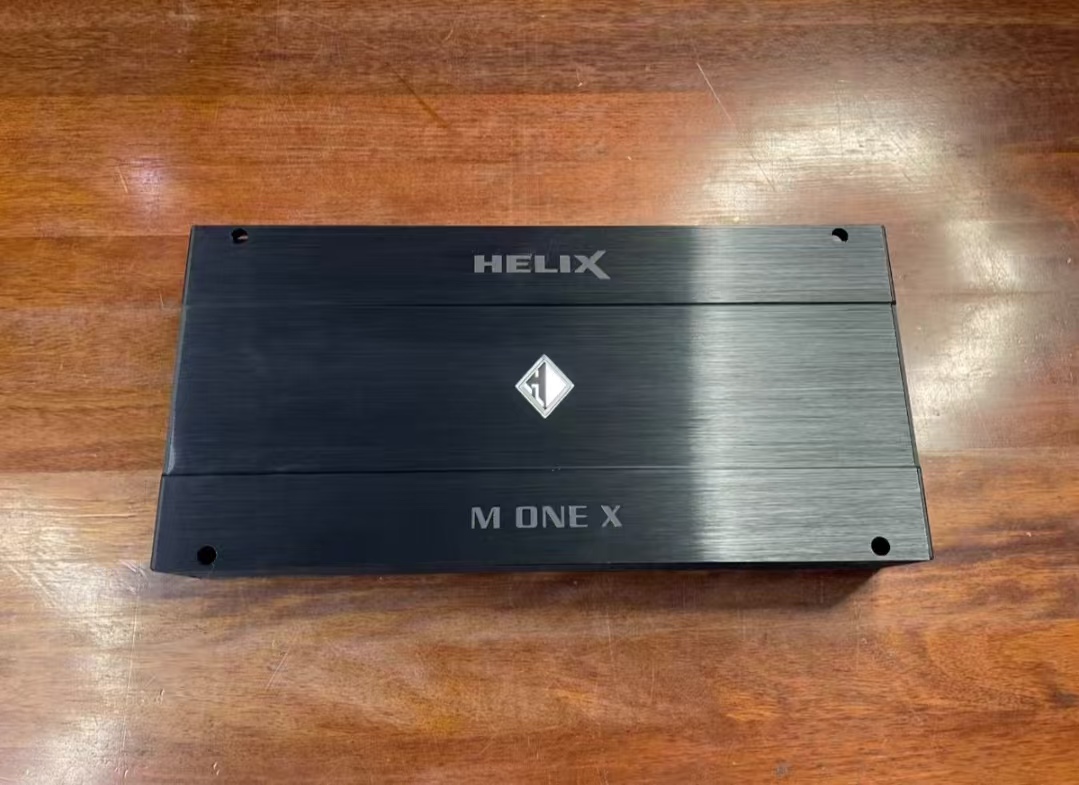

HELIX M ONE X
Small, efficient and uncompromisingly stable - the M ONE X is a highly compact monoblock for subwoofer applications. Designed from latest Class D technology this tiny amp can easily control speakers with 1 Ohm impedance. Its current capability makes the M ONE X a perfect partner for 2 x 2 Ohms subwoofers, where both voice coils are connected in parallel. And for even more output power, two M ONE X amplifiers can be combined to one single powerhouse – thanks to the TwinPower Link.
In addition a comprehensive and stunningly practical feature set leaves nothing to be desired. Last but not least installation will be a no-brainer due to the minimal dimensions.
Features
- Small footprint Class D amplifier with up to 1,180 Watts RMS output power @ 1 Ohm for easiest combination with all 2 x 2 Ohms subwoofers connected in parallel
- Start-Stop capability down to 6V supply voltage
- Smart highlevel input with ADEP circuit and Auto Turn-On function
- Integrated, active crossover with lowpass, bass boost, subsonic and phase control
- TwinPower Link for connecting two amplifiers in bridged mode
- Bass remote control for volume adjustment
- Low heat dissipation thanks to extraordinary efficiency
Special features
Smart highlevel input
The latest generation of OE car radios incorporates sophisticated possibilities of diagnosing the connected speakers. If a common amplifier will be hooked up failure messages and loss of specific features (e.g. fader function) quite often appear - but not with the M ONE X.
The new ADEP circuit (Advanced Diagnostics Error Protection) avoids all these problems without loading the speaker outputs of the OE radio during high volumes unnecessarily.
Start-Stop capability
The switched power supply of the HELIX M ONE X assures operation even if the battery’s voltage drops down to 6 Volts during engine crank.
Technical data
| Power RMS ≤ 1% THD+N | Normal operation (One amplifier) |
TwinPower Link (Two amplifiers) |
| - @ 4 Ohms | 1 x 400 Watts | 1 x 1,400 Watts |
| - @ 2 Ohms | 1 x 700 Watts | 1 x 2,060 Watts |
| - @ 1 Ohm | 1 x 1,030 Watts | - |
| - bridged @ 4 Ohms | - | - |
| - bridged @ 2 Ohms | - | - |
| Max. output power per channel*: | Up to 1,180 Watts RMS @ 1 Ohm | |
| Amplifier technology | Class D | |

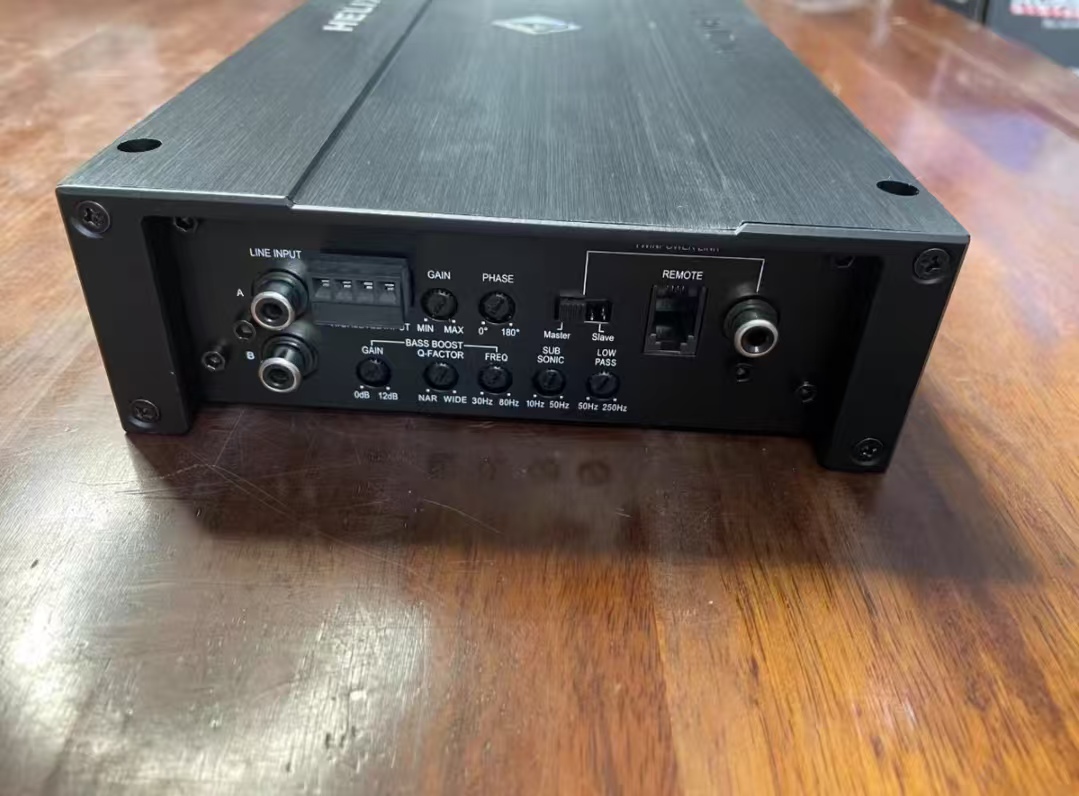

| Inputs | 2 x RCA / Cinch 2 x Highlevel speaker input 1 x Remote In 1 x Remote control input |
|
| Input sensitivity | RCA / Cinch 0.5 - 6 Volts Highlevel 1.1 - 13 Volts |
|
| Input impedance RCA / Cinch | 20 kOhms | |
| Input impedance highlevel | 9 - 33 Ohms | |
| Outputs | 1 x Speaker output | |
| Output voltage RCA / Cinch | - | |
| Signal converter for digital input | - | |
| Frequency response | 10 Hz - 250 Hz | |
| Bass boost | 0 - 12 dB / 30 - 80 Hz | |
| Highpass | - | |
| Lowpass | 50 Hz - 250 Hz adjustable | |
| Bandpass | 10 Hz - 250 Hz adjustable | |
| Subsonic | 10 Hz - 50 Hz adjustable | |
| Phase | 0 - 180° adjustable | |
| Slope high- / lowpass | - | |
| Slope subsonic / lowpass | 12 / 24 dB/Oct. | |
| Signal-to-noise ratio digital input | - | |
| Signal-to-noise ratio analog input | 95 dB (A-weighted) | |
| Distortion (THD) | 0.20 % | |
| Damping factor | 150 | |
| Operating voltage | 10.5 - 16 Volts (max. 5 sec. down to 6 Volts) | |
| Idle current | 800 mA | |
| Operating temperature range | -40 °C to +70 °C | |

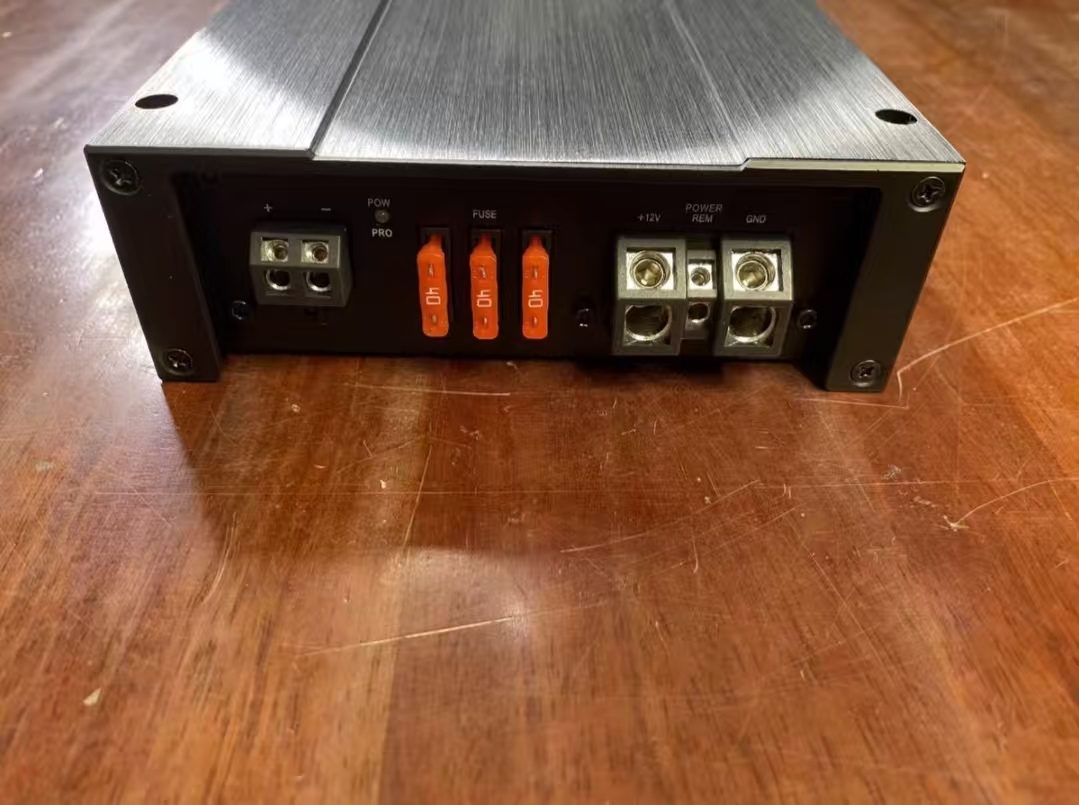

| Fuse | 3 x 40 A Maxi-fuse (APX) | |
| Power rating | DC 12 V ⎓ 106 A max. | |
| Additional features | Active, adjustable crossover, bass boost, phase shift, Start-Stop capability, highlevel input with automatic turn on function and Advanced Diagnostics Error Protection (ADEP), bass volume cable remote control | |
| Dimensions (H x W x D) | 50 x 320 x 154 mm / 2.00 x 12.60 x 6.06” |
|
* In typical applications as subwoofer amplifier

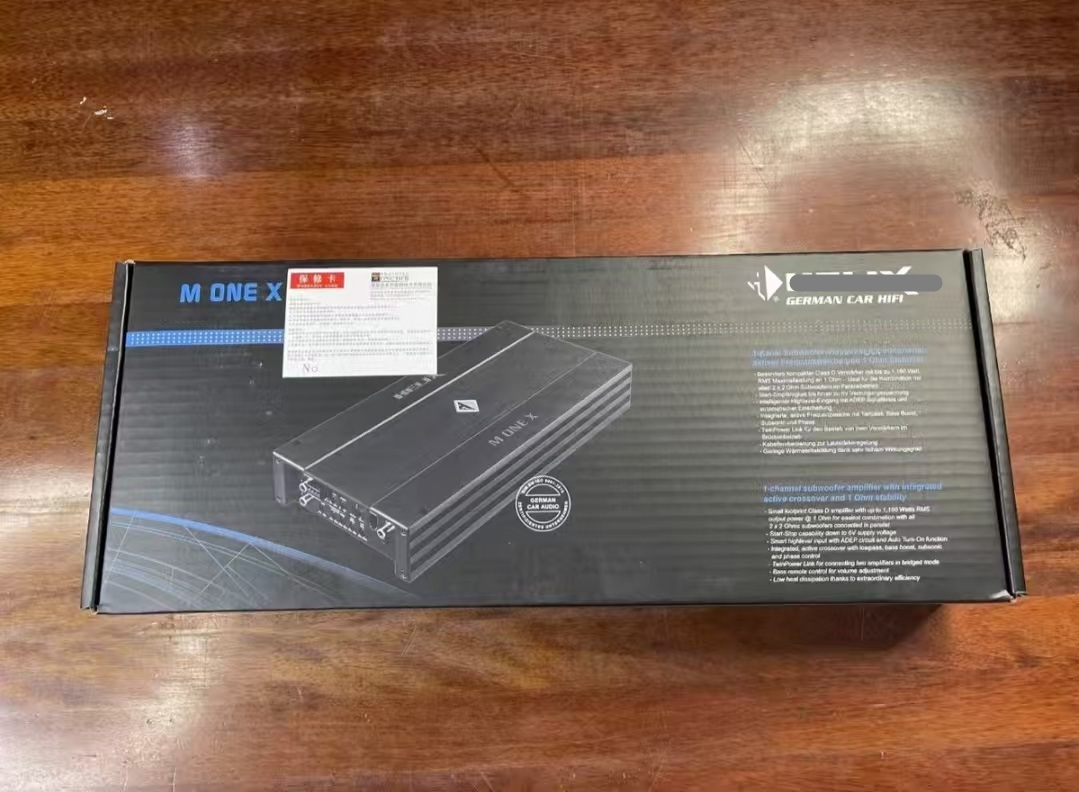

Scope of delivery
1 x Amplifier HELIX M ONE X
1 x Cable remote control
1 x Mounting material
1 x Instruction manual
