Product Specifications

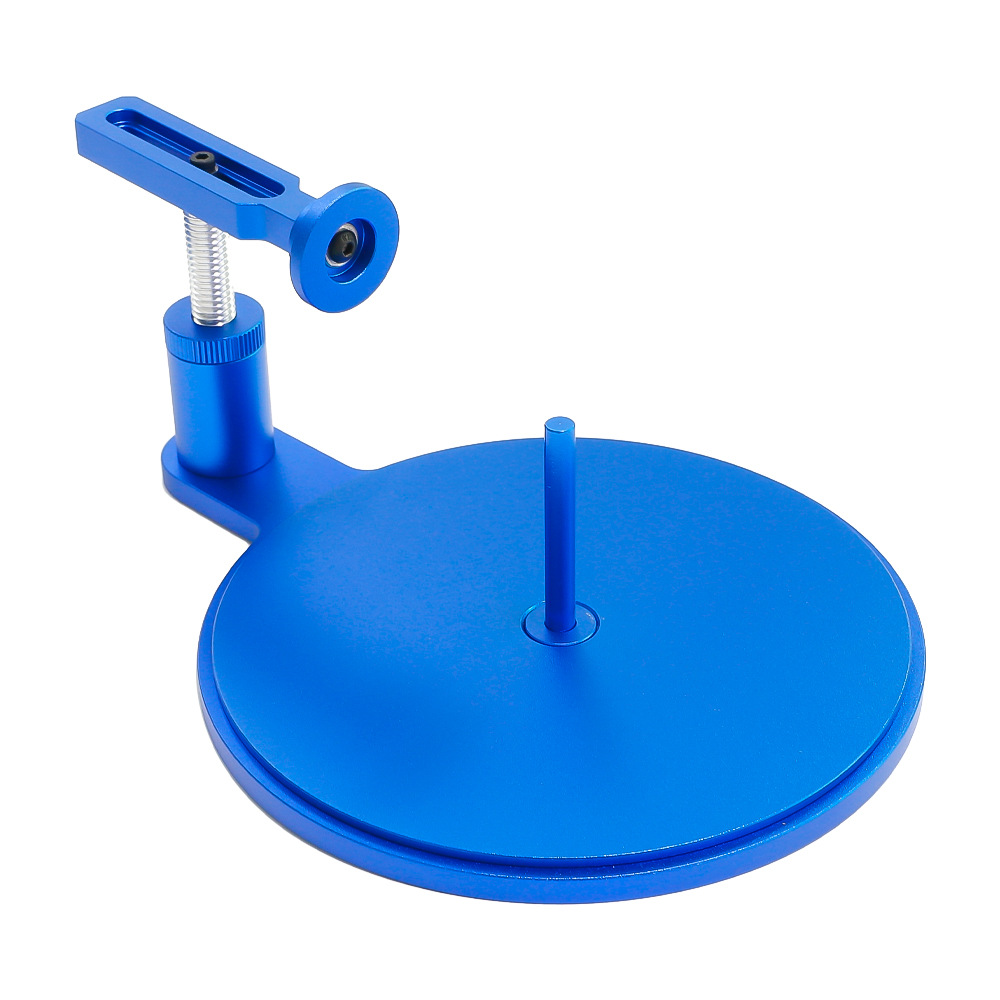

• Type: Professional RC Wheel & Tire Gluing Station

• Compatibility: Universal design compatible with 1/18, 1/10, and 1/8 scale RC truck and car tires.

• Material: High-grade Aluminum Alloy (Anodized Finish)

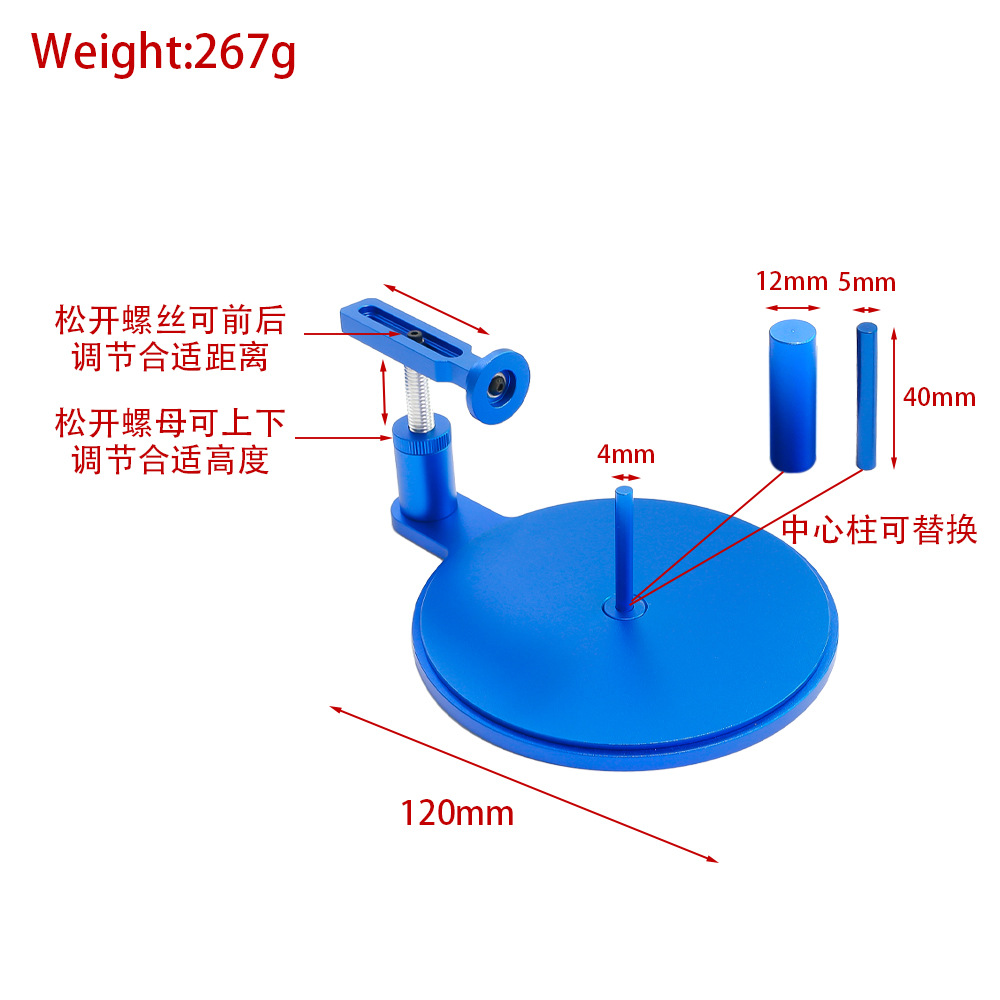

• Base Diameter: 120mm (approx. 4.72 in)

• Total Weight: 267g (approx. 0.59 lbs)

• Adjustability: * Horizontal: Sliding top roller mechanism for precise alignment with different tire widths.

  • Vertical: Height-adjustable screw-post with locking nut for varied tire thicknesses.

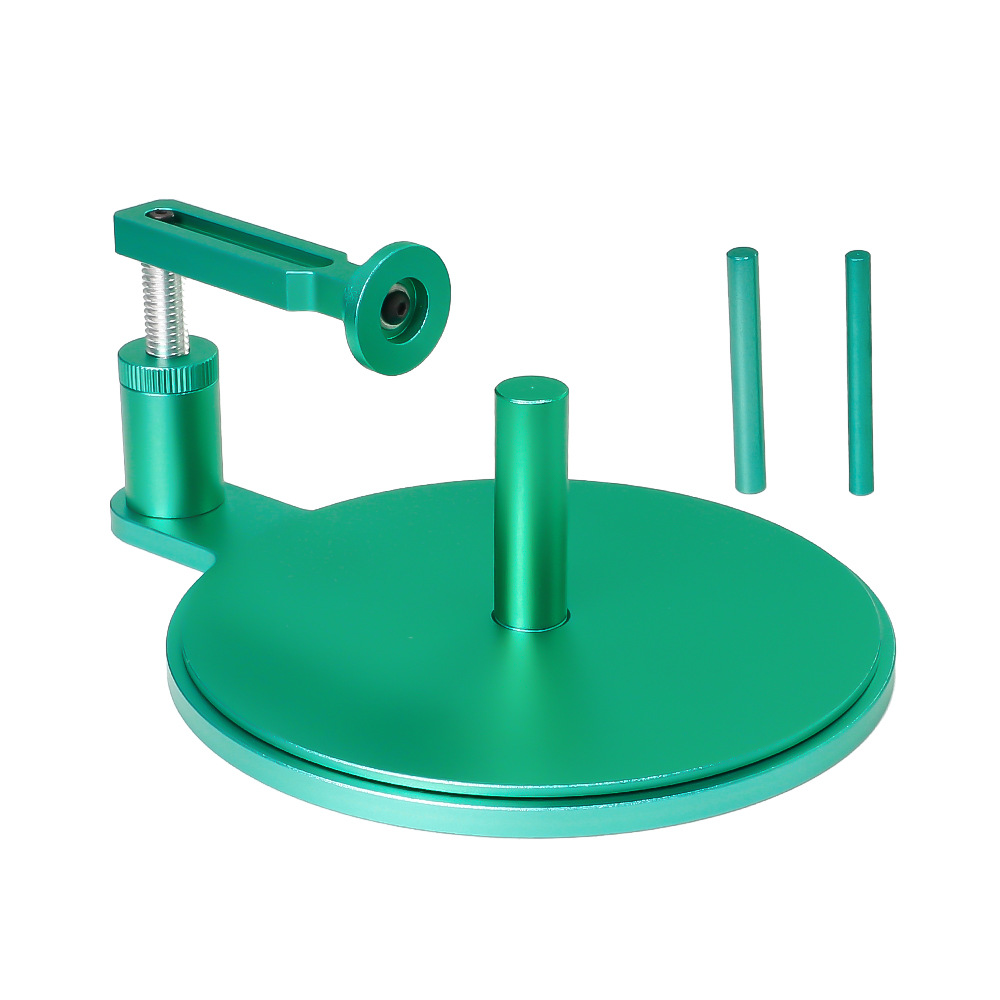

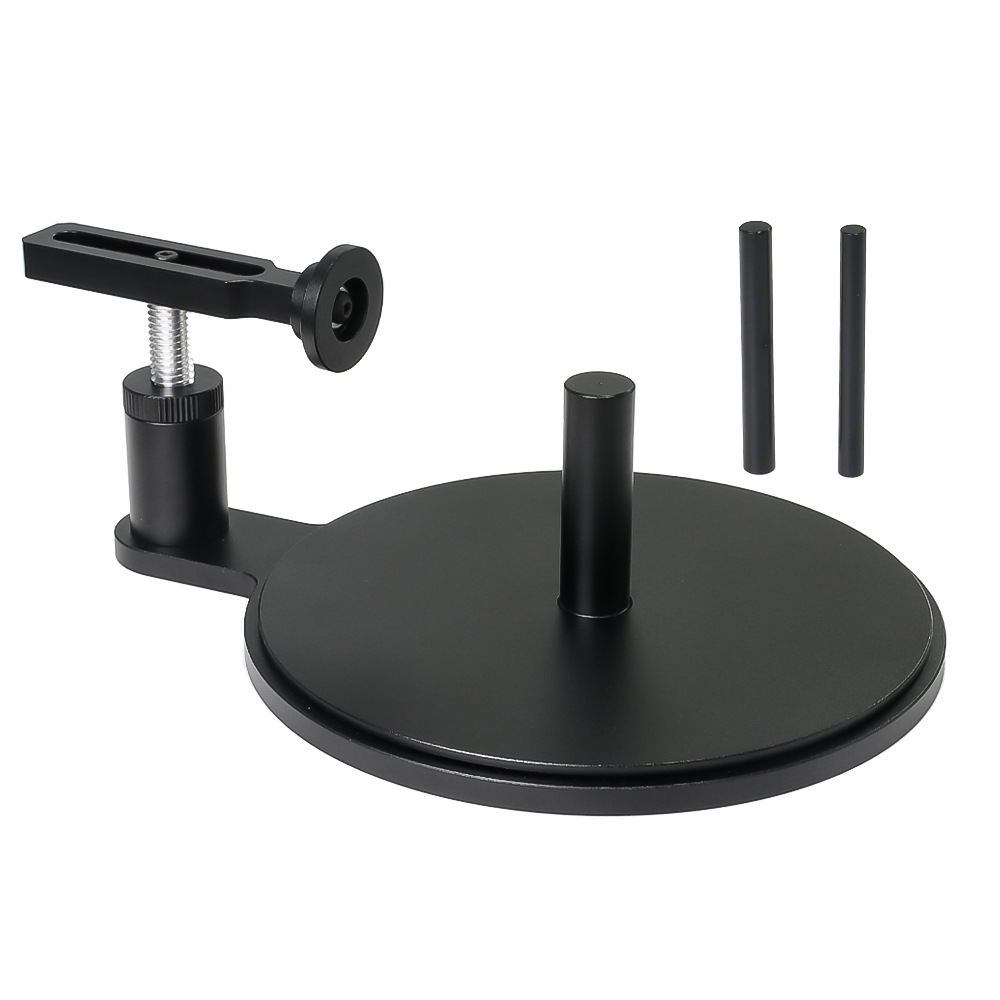

• Interchangeable Center Posts: Includes three sizes to accommodate various wheel hex/hub diameters:

  • Small: 5mm (0.20 in)

  • Medium: 12mm (0.47 in)

  • Height: All posts are 40mm (1.57 in) tall.

• Primary Function: Assists in the uniform application of tire adhesive by providing a stable, rotating platform and consistent downward pressure on the tire bead.

Features & Instructions

• Precision Gluing: Simplifies the tire bonding process, ensuring a secure and professional seal between the tire and the rim.

• Triple-Axis Adjustment:

  1. Fore/Aft: Loosen the top 2mm hex screw to slide the pressure roller for optimal positioning.

  2. Height: Rotate the threaded rod to raise or lower the roller; use the knurled locking nut to secure the position.

  3. Core Fit: Swap between the included center posts to match your wheel’s center bore (fits 12mm, 14mm, and 17mm hex-style wheels).

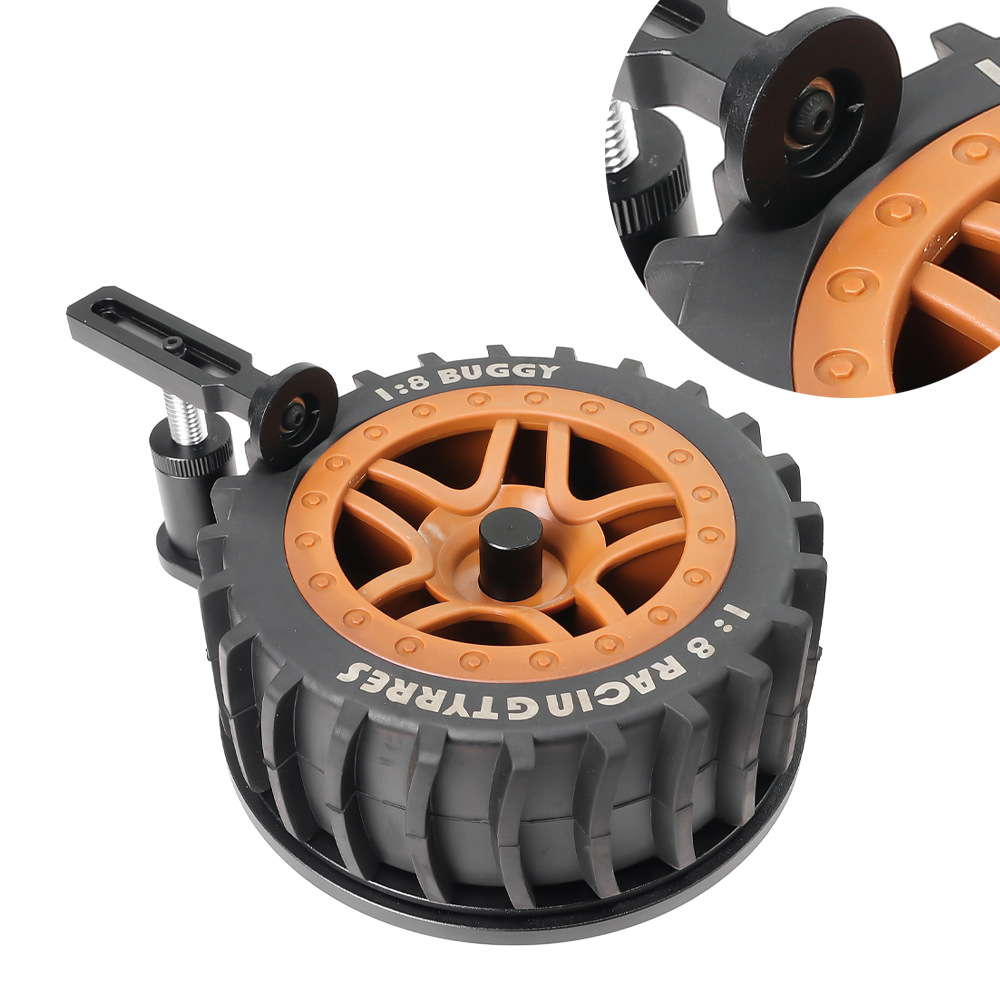

• Operation: Swing the pressure arm aside, place the wheel on the center post, reposition the arm to apply pressure to the tire bead, and rotate the tire while applying adhesive.
