BIGLKNM Hydraulic Log Splitter Cylinder Rebuild Seal Kit for 4.5"Bore x 1.75" Rod Cylinder

  • Part Type:cylinder rebuild seal kit
  • Seal Size: 4.5"Bore x 1.75" Rod Cylinder Log Splitter Rebuild Seal Kit
  • Material: Rubber and Plasticplastics
  • Premium-Grade Material: Hydraulic log splitter cylinder rebuild seal kit made of high quality material to ensures easy rebuilding, preventing oil leaks and damage. Long-lasting durability and reliability.
  • Please make sure your model matches the description.We are committed to providing each customer with a higher standard of

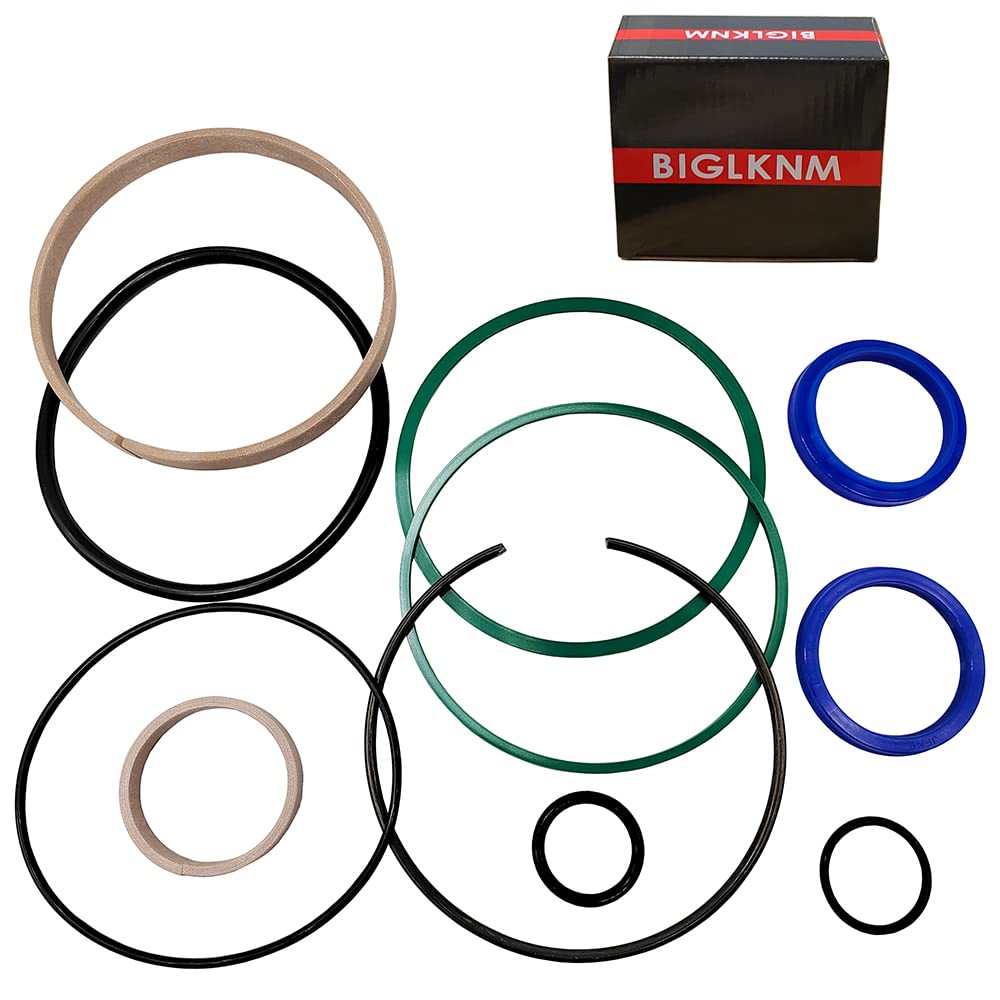

Hydraulic Log splitter cylinder rebuild seal kit for 4.5"Bore x 1.75" rod cylinder
To know whether it fits your cylinder, one good way is to disassemble and measure your cylinder to compare with each item specification. Double check each seal groove is good for our part sitting in.
1. Cylinder tube Bore (I.D.) 4.5" x rod (O.D) 1.75". Please note: 4.5" bore size is Cylinder tube O.D. Cylinder rod size is inside tube part size.
2. Wear rings.
Piston wear ring : 114.3 mm (OD 4.5") x 107.95mm (ID 4.25”) x 9.53mm (0.375" wide), Nylon
Rod wear ring : 44.5mm (ID 1.752") x 50.8mm (OD 2”) x 9.53mm (0.375" wide), Nylon
3. Piston seals
1 square ring and 1 O-ring. Piston Square ring: 114.3 mm x104.3mm x 3.28mm; O-ring (installed under the square ring): 103mm x 2.65mm. CPU + NBR
4. Rod O-ring (item 13): 44.5mm x 54mm x 5mm, CPU. There is O-ring inside.
5. Rod dust ring (Item 12): 44.5mm x 54mm 5.5mm /7.3mm,TPU
Below is 4.5"Bore x 1.75" rod cylinder Specification that OEM made by this seal kit:
Retracted (center to center between rod mountain hole and clevis hole: 32.4”
Extended (center to center same as above): 56.4”
Stroke: 24±0.05”
Dimension from center of clevis hole to back face of cylinder: 2.95”
Dimension from center of rod end hole to front face of rod: 1.06”
Dimension from center of rod end hole to front face of cylinder: 1.18
Ports: 1/2" NPT
Dimension from port to port: 25.4”
Rod: 1.75" rod
Rod end mountain hole: 0.55”
Clevis Mountain hole: 1.16”
Dimension between mountain clevis to clevis: 0.87”
Thickness of each mountain clevis: 0.375”
Length of each mounting clevis: 4.125”
