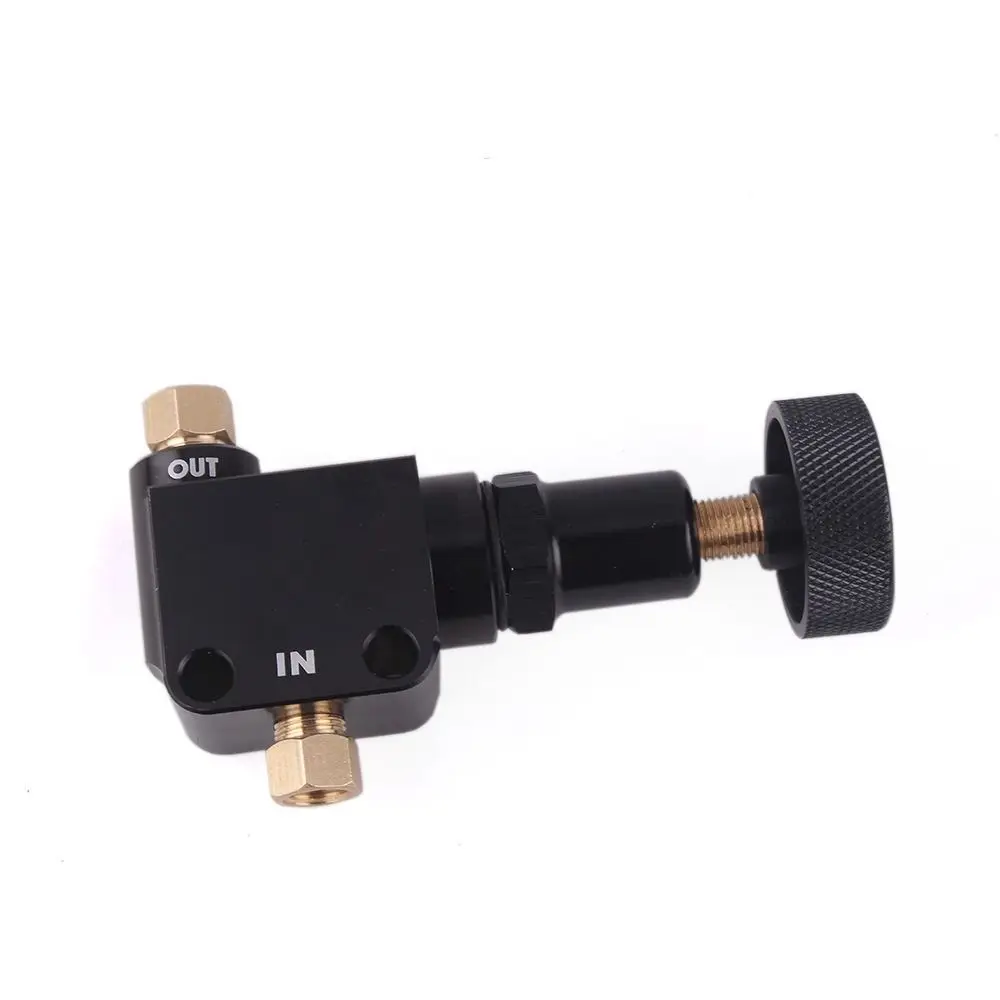

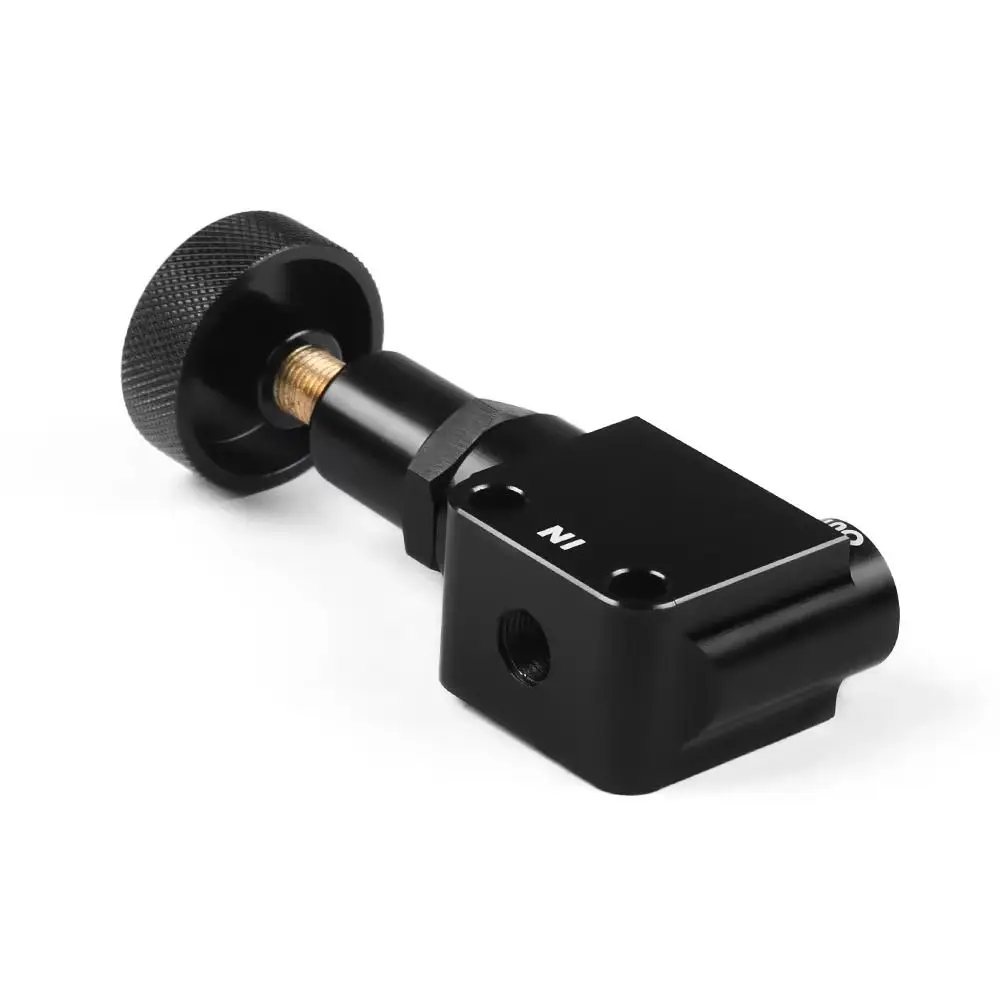

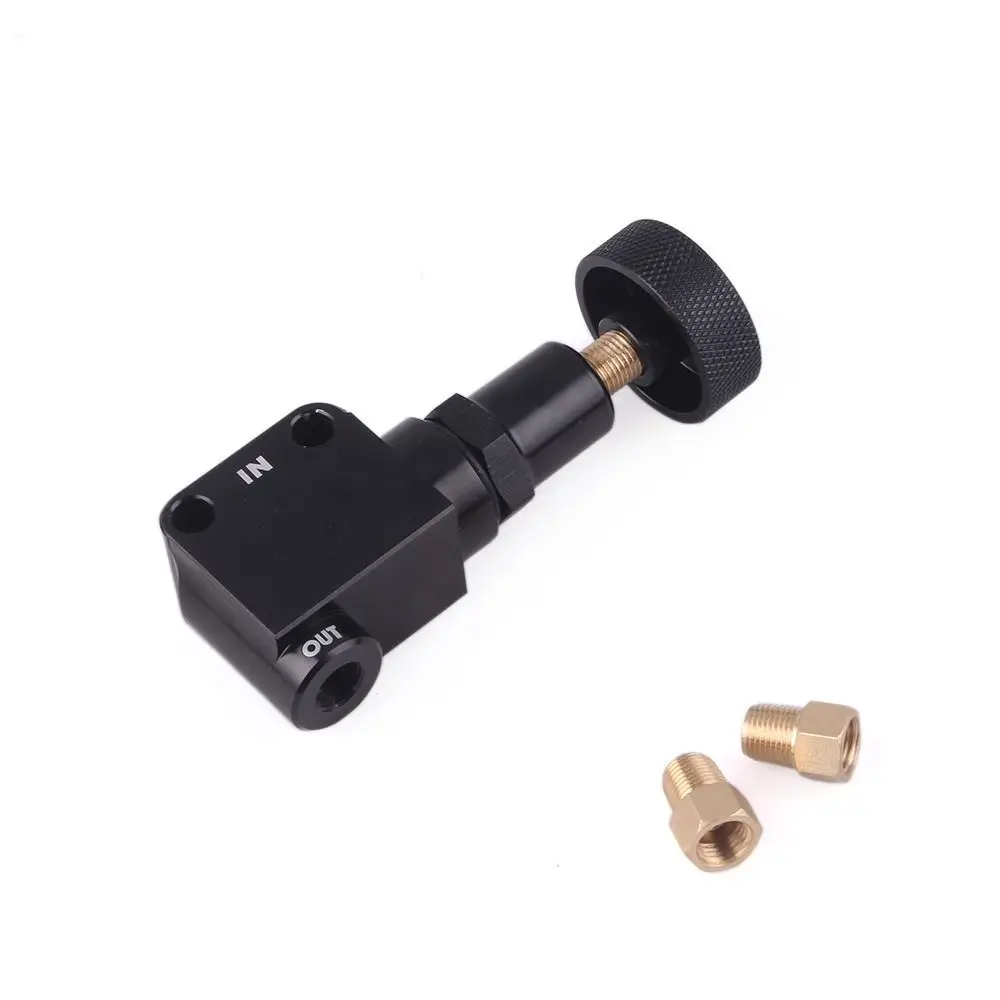

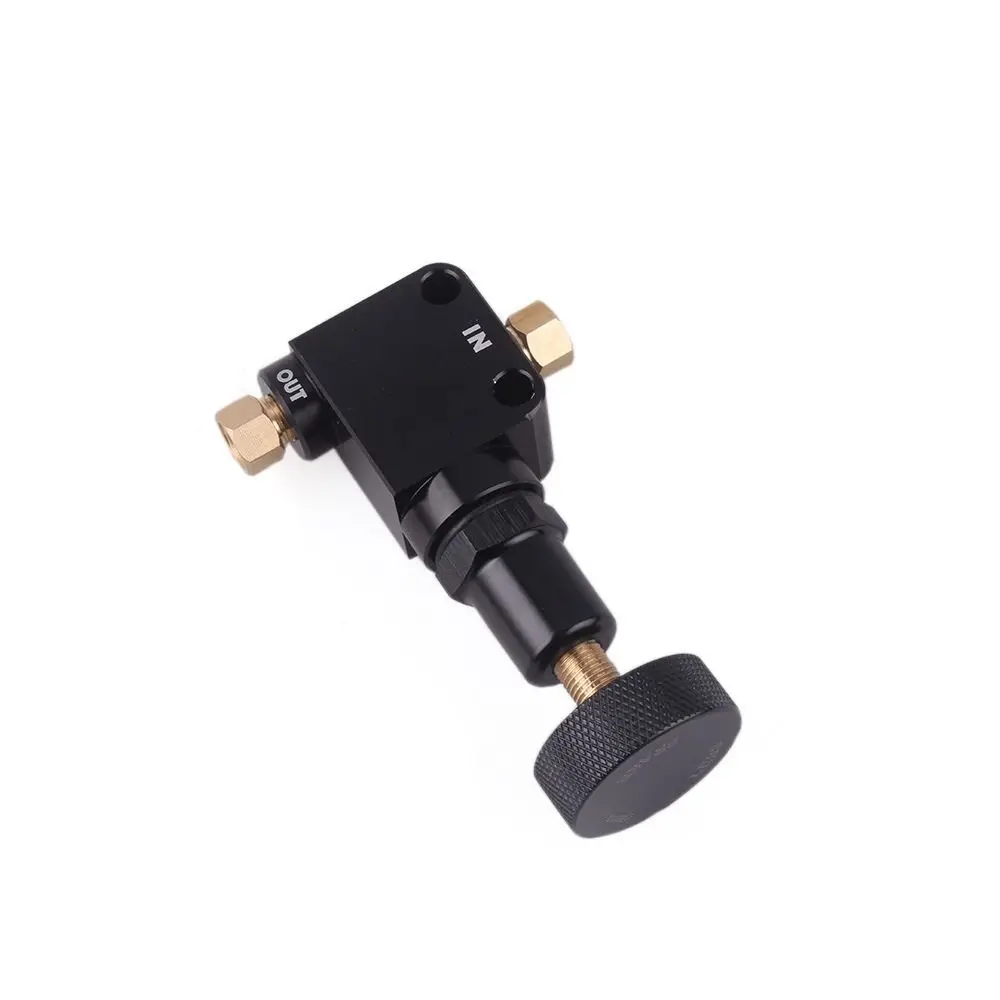

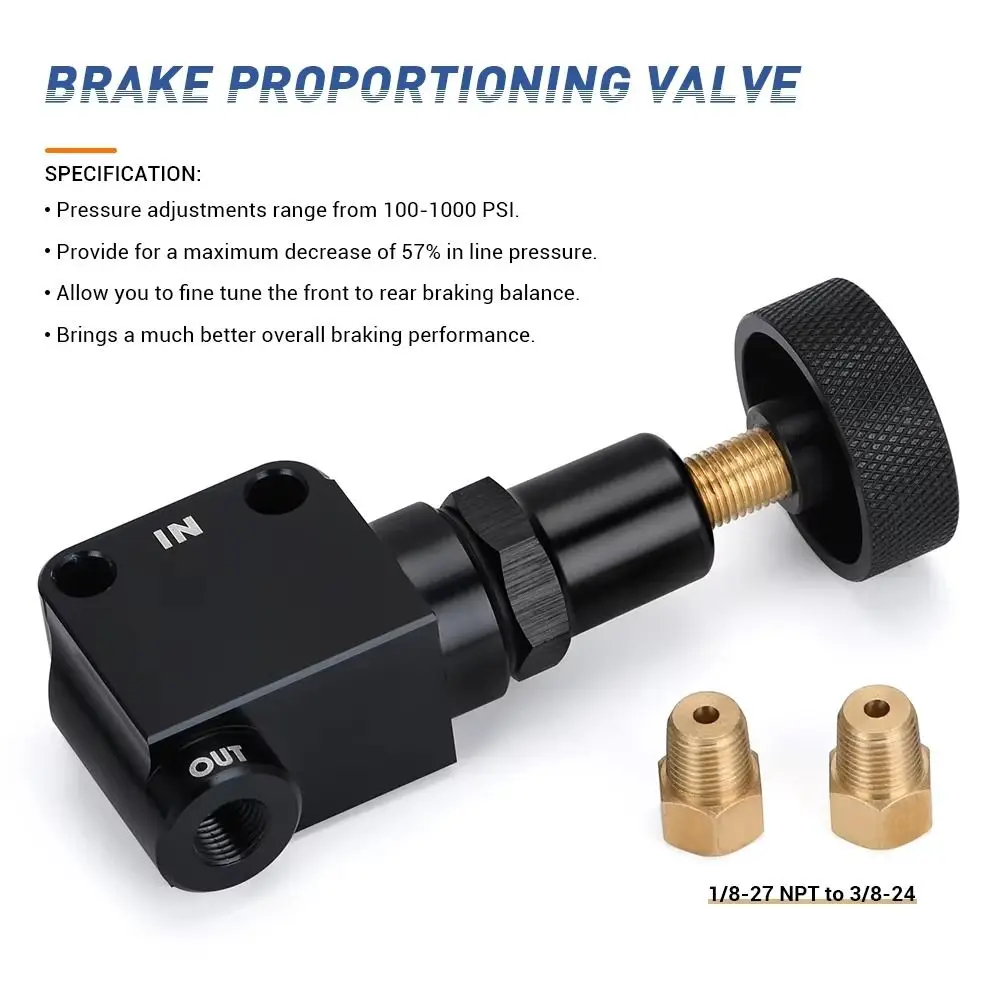

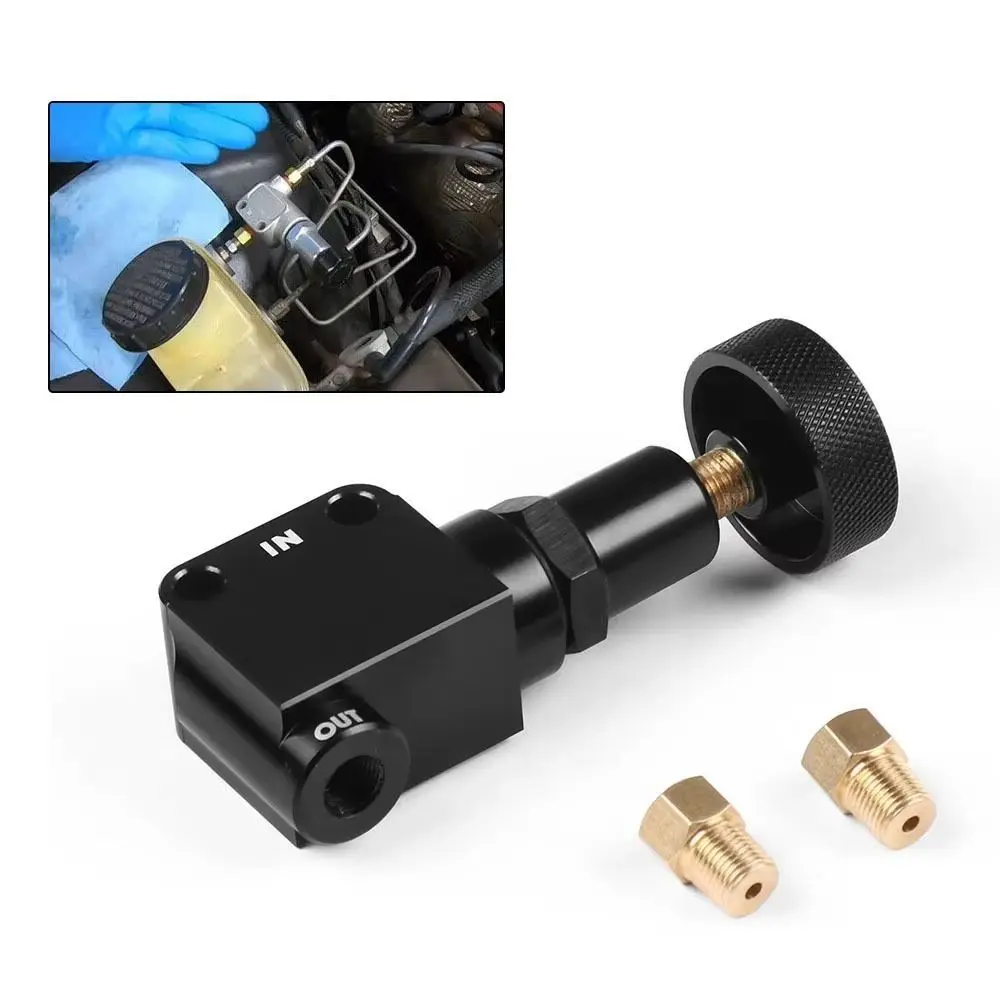

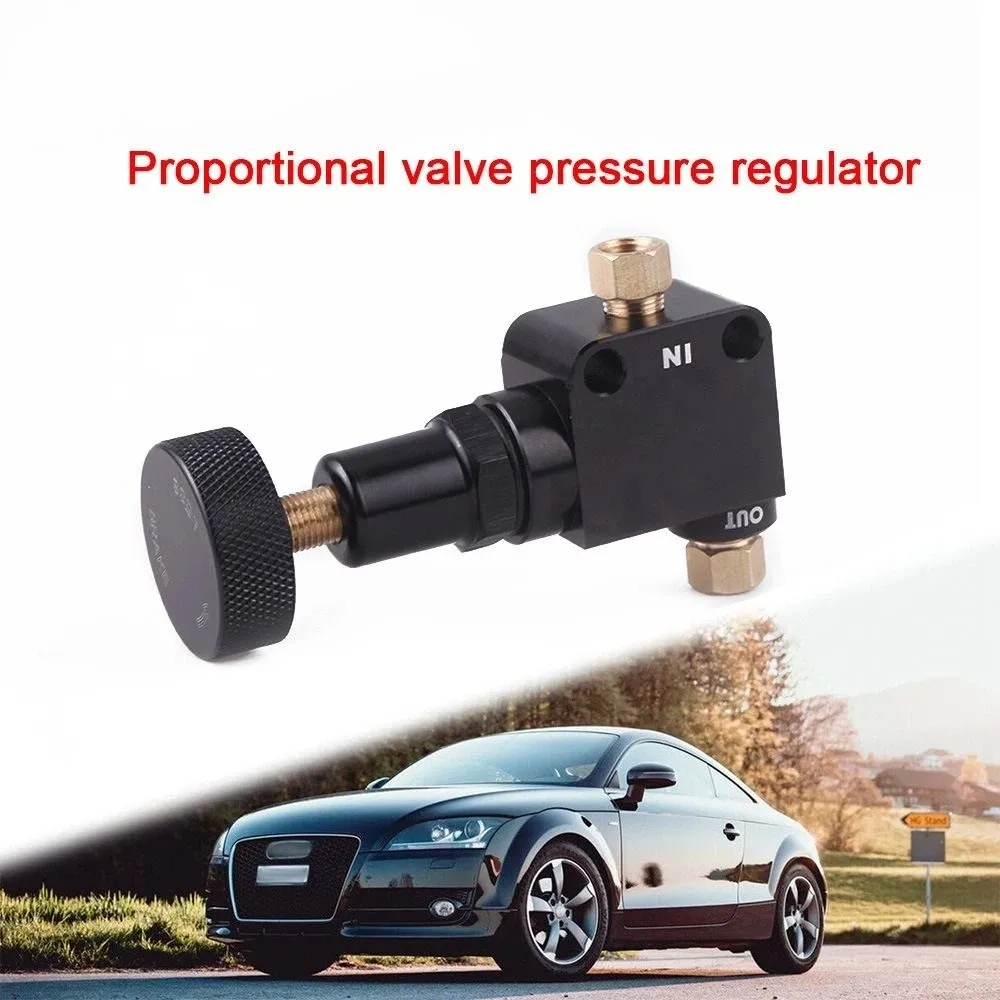

Name: Brake Proportional Valve
Material: Aluminum
Color: Black

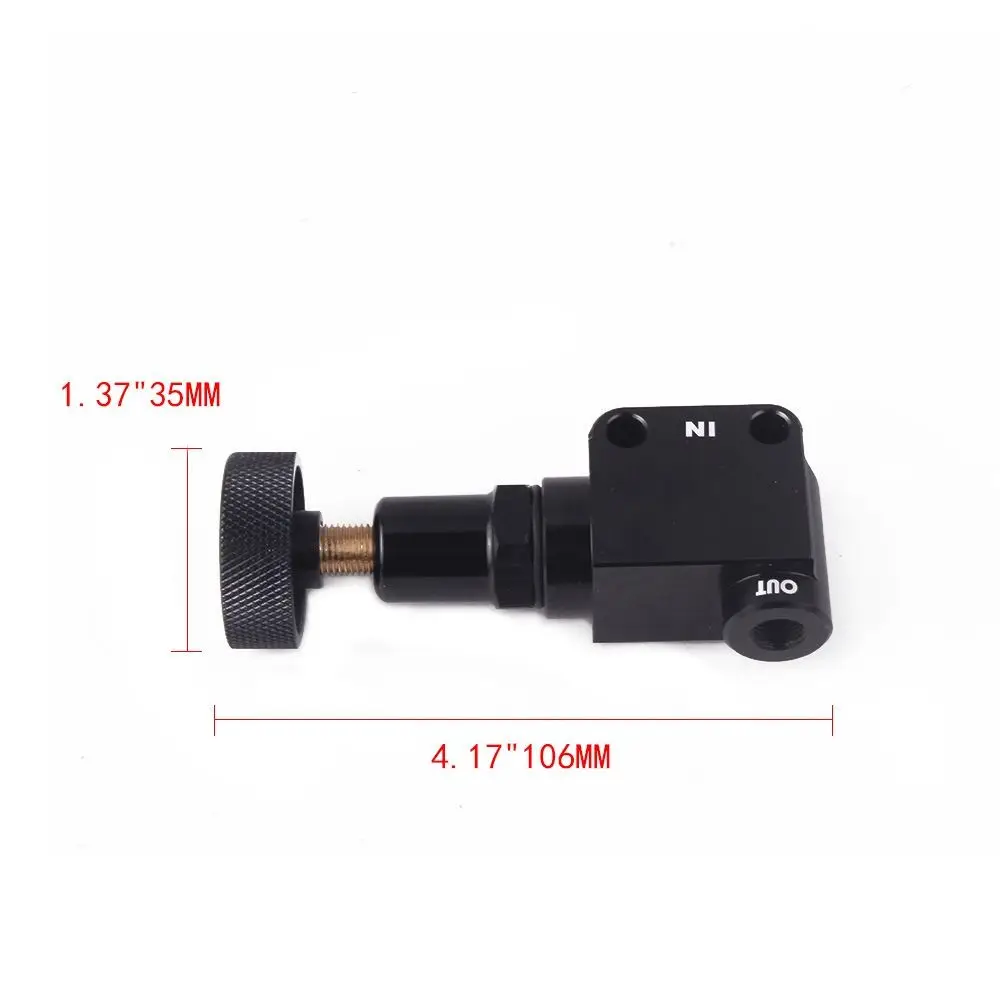

size: 106*35mm(4.17*1.38in)
Applicable vehicle model: Universal

Package includes: 1pc brake proportional valve Installation Instructions:
1.Drain the brake fluid before you do anything else.
2.Use the two 0.25" body holes to secure the valve to a mount.
3.Connect the "IN" port to the pressure line coming from the master cylinder.
4.Connect the line going to the calipers to the "OUT" port.

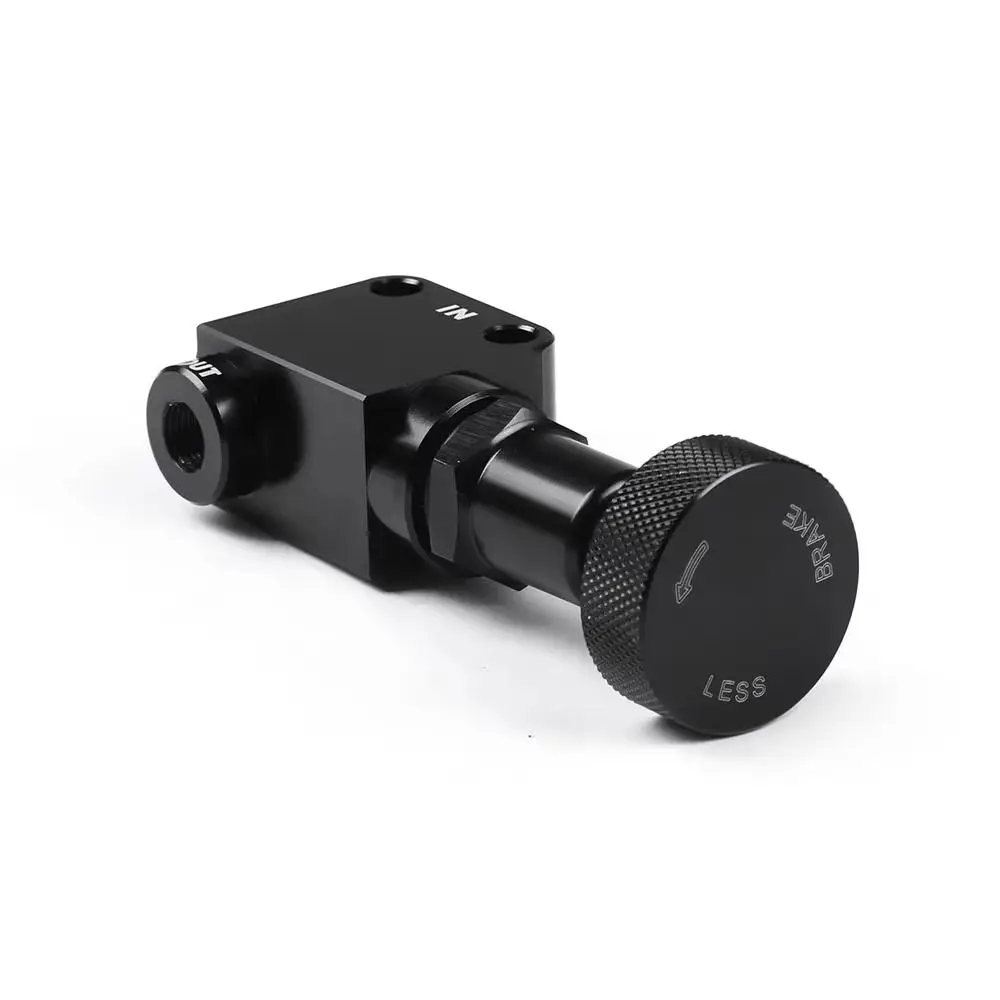

5.Rotating the adjuster knob clockwise until it is all the way in.
6.Bleed the brake and check for any leaks at the valve or its fittings.
7.Do some test braking to adjust the bias before it works properly.
Cautious: Make sure the valve isn't rubbing against any other brake lines or contact with the hood.
