Product parameters

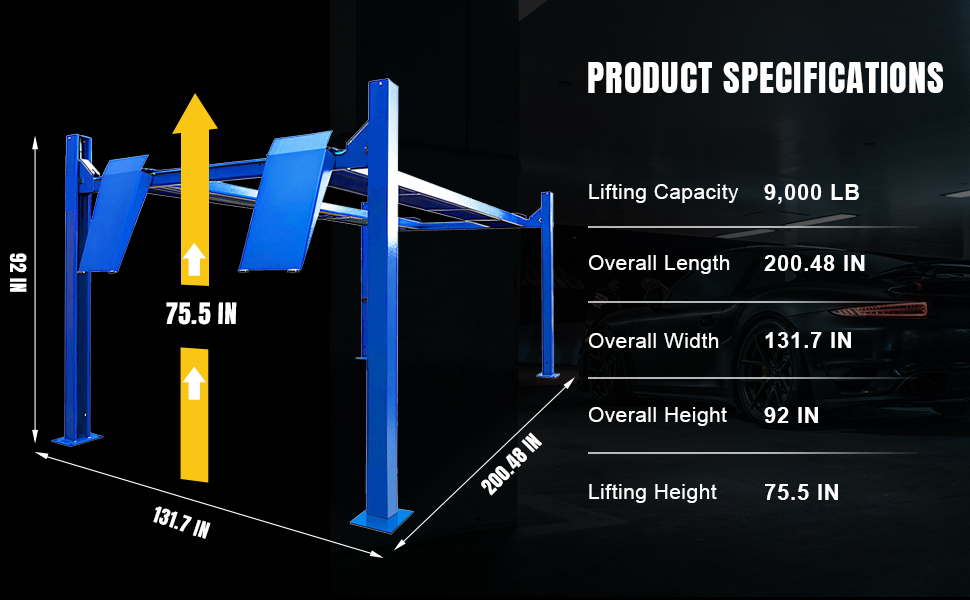

Key Specs	QJY4040-DS
Lift Capacity	9,000-lbs
Overall length	200.48-in
Overall Length Plate to Plate	175.03-in
Overall width	131.7-in
Overall height	92-in
Overall height of posts	87.8-in
Max. lifting height to top of run-ways	75.5-in
Max. clearance under runways on top of lock	69-in
Minimum ground clearance	5.5-in
Approach ramp length	34.5-in
Runway dimensions length	166-in
Runway dimensions width	18.92-in
Runway dimensions height	4.68-in
Outside width with both runways (Adjustable)	76 / 81.9
Clearance between runways (Adjustable)	38.2 / 44.1
Overall width outside of posts	117-in
Max. clearance between posts	106.9-in
Ramp gauge of steel	1/4"
Post dimensions length	6 in
Post dimensions width	5 in
Locking positions (qty.)	13 in
Time of full rise (seconds)	60 in
Motor phase(s)	1 Phase
Voltage	110V(26AMP)
Htz	60 Hz
Manufacturer warranty	1 Year Limited
Shipping Dimensions	171 in. x 21 in. x 28 in.
Product weight	1764 LB
Shipping Weight	1808 LB

Product Introduction

CE Certified Lift Structure and Hydraulic System: Compliant with CE certification standards for lift structure and hydraulic system.
Third-Party Tested: Independently tested for a dynamic load capacity of 115% and a static load capacity of 150%.
Durable Hydraulic System: Designed for long-lasting performance and durability.
Easy Operation and Maintenance: User-friendly and straightforward to operate and maintain.
Double Seal Rings: Incorporates double seal rings to protect PU material.
Carriage Material Q355 (ASTM A572): Utilizes stronger Q355 steel (ASTM A572) for the carriage, surpassing normal Q235 steel.
User-Friendly Controls: Lifting operation using the "UP" button on the motor and manual lowering via a lever.
Overload Prevention: Equipped with a relief valve in the power pump to prevent overloading.
Cylinder Stroke Protection: Features an up-limit switch to safeguard cylinder working stroke within a safe range.
Heavy-Duty Cable and Pulley: Utilizes a robust 3/8" diameter cable and 5" pulley to reduce stress during synchronization and extend cable life.
