Item Description
Features:
1. Universal Battery Compatibility: Compatible with lead-acid, ternary lithium, and lithium iron phosphate batteries; covers the full voltage range from 7V to 100V DC
2. Precise Monitoring: High and low voltage alarms; factory-calibrated voltage ensures battery safety
3. Smart Memory: Retains parameters during power loss; data is not lost when power is disconnected

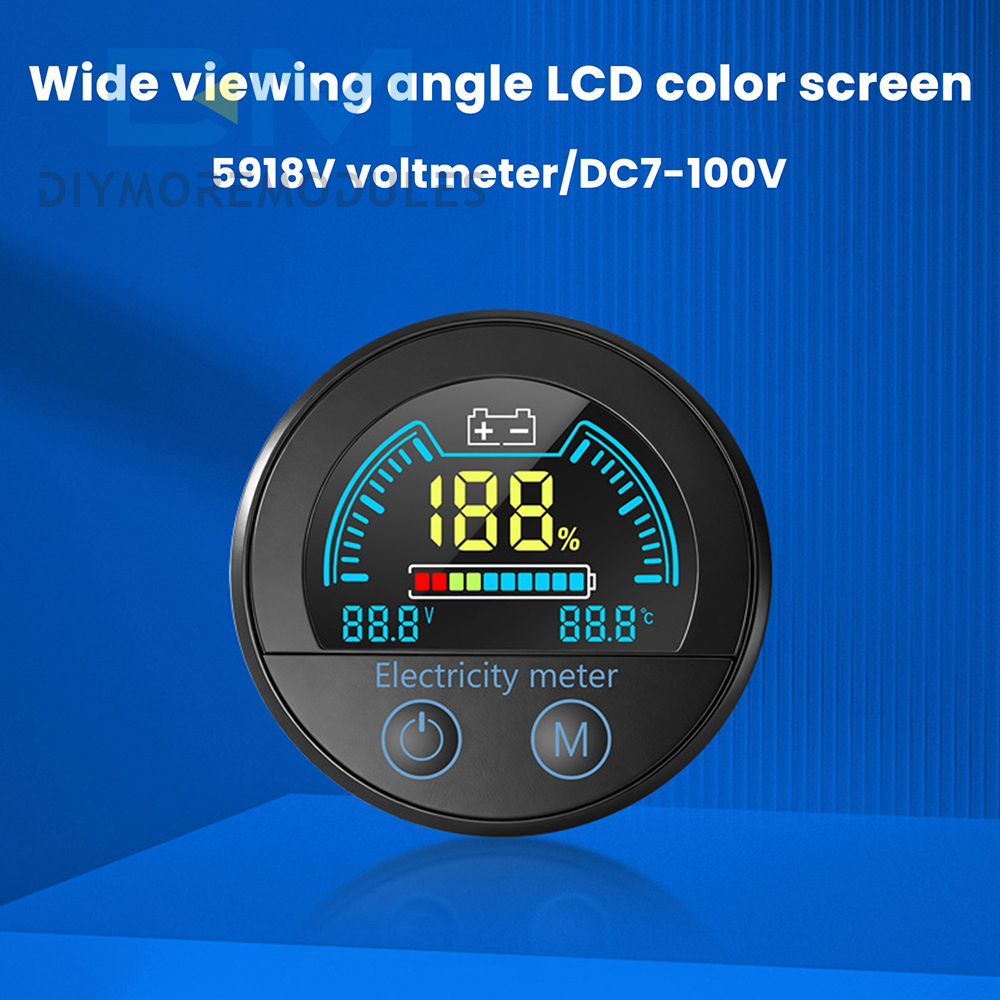

4. User-Friendly Operation: One-touch screen off/settings; adjustable backlight duration; visual color display
5. Flexible Adaptability: Supports customizable settings for multiple cell configurations, suitable for various battery packs
6. Suitable for electric scooters, portable devices, self-balancing scooters, measurement equipment, and other applications
1. Universal Battery Compatibility: Compatible with lead-acid, ternary lithium, and lithium iron phosphate batteries; covers the full voltage range from 7V to 100V DC
2. Precise Monitoring: High and low voltage alarms; factory-calibrated voltage ensures battery safety
3. Smart Memory: Retains parameters during power loss; data is not lost when power is disconnected
4. User-Friendly Operation: One-touch screen off/settings; adjustable backlight duration; visual color display
5. Flexible Adaptability: Supports customizable settings for multiple cell configurations, suitable for various battery packs
6. Suitable for electric scooters, portable devices, self-balancing scooters, measurement equipment, and other applications
Specifications:
Voltage Measurement Range: DC 7–100V
Operating Current: ≤20mA
Measurement Accuracy: ±1%
Standby Power Consumption: <2mA
Scan Rate: 1 scan/500ms

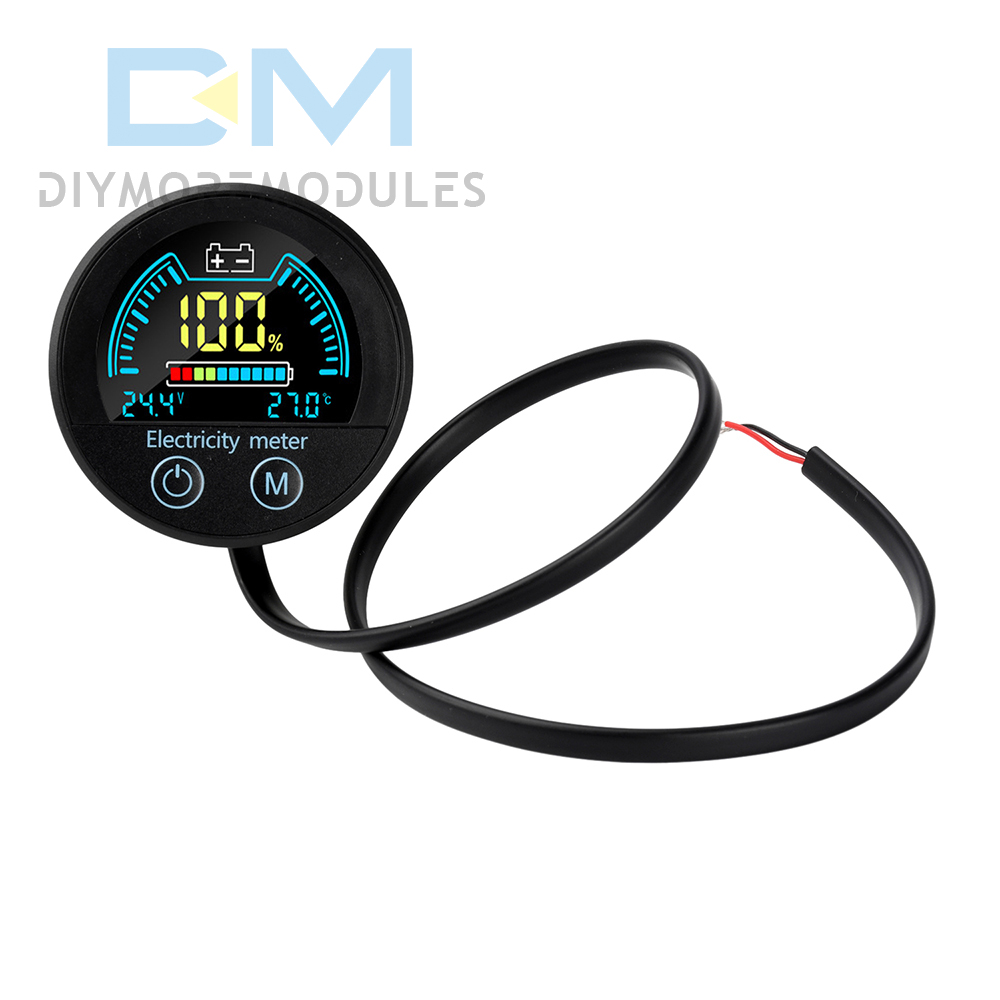

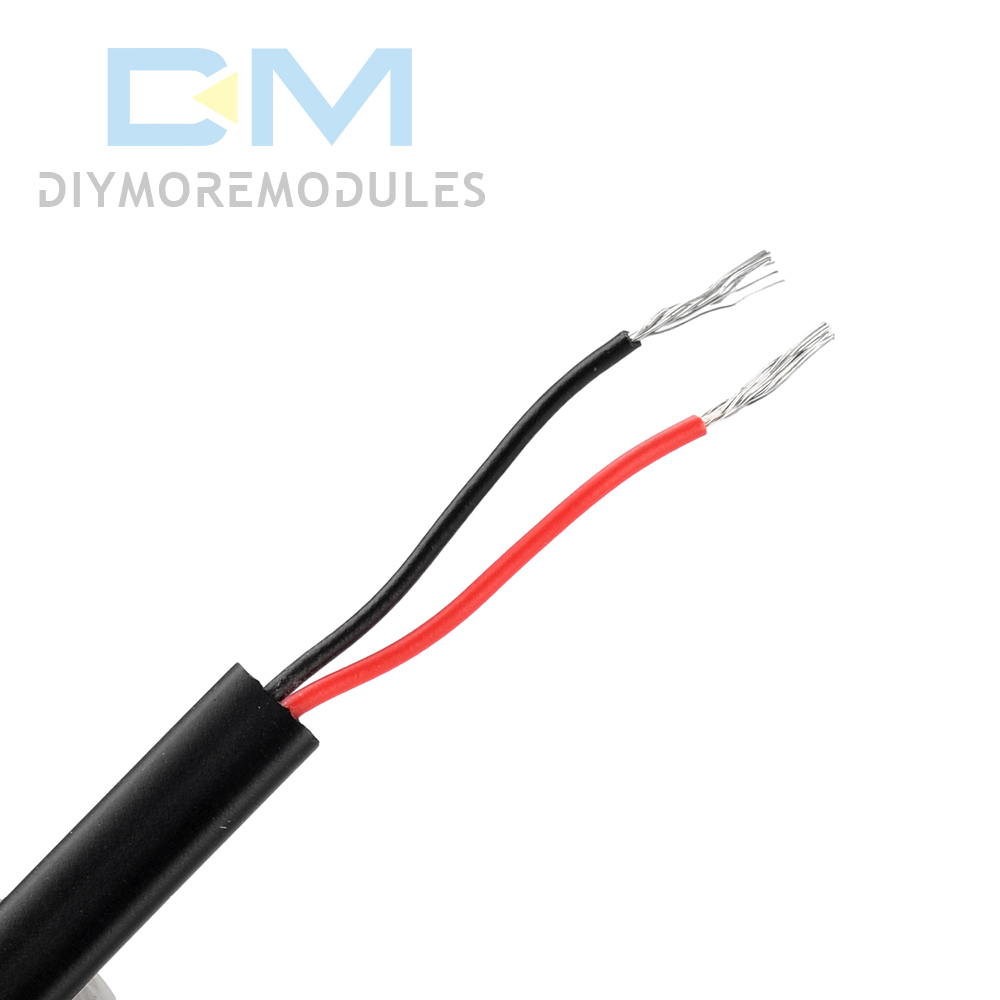

Cable Length: Approx. 45 cm (Red: Positive, Black: Negative)
Product Dimensions: 59 × 59 × 18.2 mm
Cutout Dimensions: 54.56 mm
Voltage Measurement Range: DC 7–100V
Operating Current: ≤20mA
Measurement Accuracy: ±1%
Standby Power Consumption: <2mA
Scan Rate: 1 scan/500ms
Cable Length: Approx. 45 cm (Red: Positive, Black: Negative)
Product Dimensions: 59 × 59 × 18.2 mm
Cutout Dimensions: 54.56 mm
Ternary Lithium Battery Type [L] Measurement: L03S–L22S
Lead-Acid Battery Type [P] Measurement: DC 12V, 24V, 36V, 48V, 60V, 72V, 84V
Lithium Iron Phosphate Battery Type [F] Measurement: F03S–F26S
Custom [C] Measurement: Any battery voltage parameter within the range of DC 7–100V can be set
Lead-Acid Battery Type [P] Measurement: DC 12V, 24V, 36V, 48V, 60V, 72V, 84V
Lithium Iron Phosphate Battery Type [F] Measurement: F03S–F26S
Custom [C] Measurement: Any battery voltage parameter within the range of DC 7–100V can be set
Package Contents:

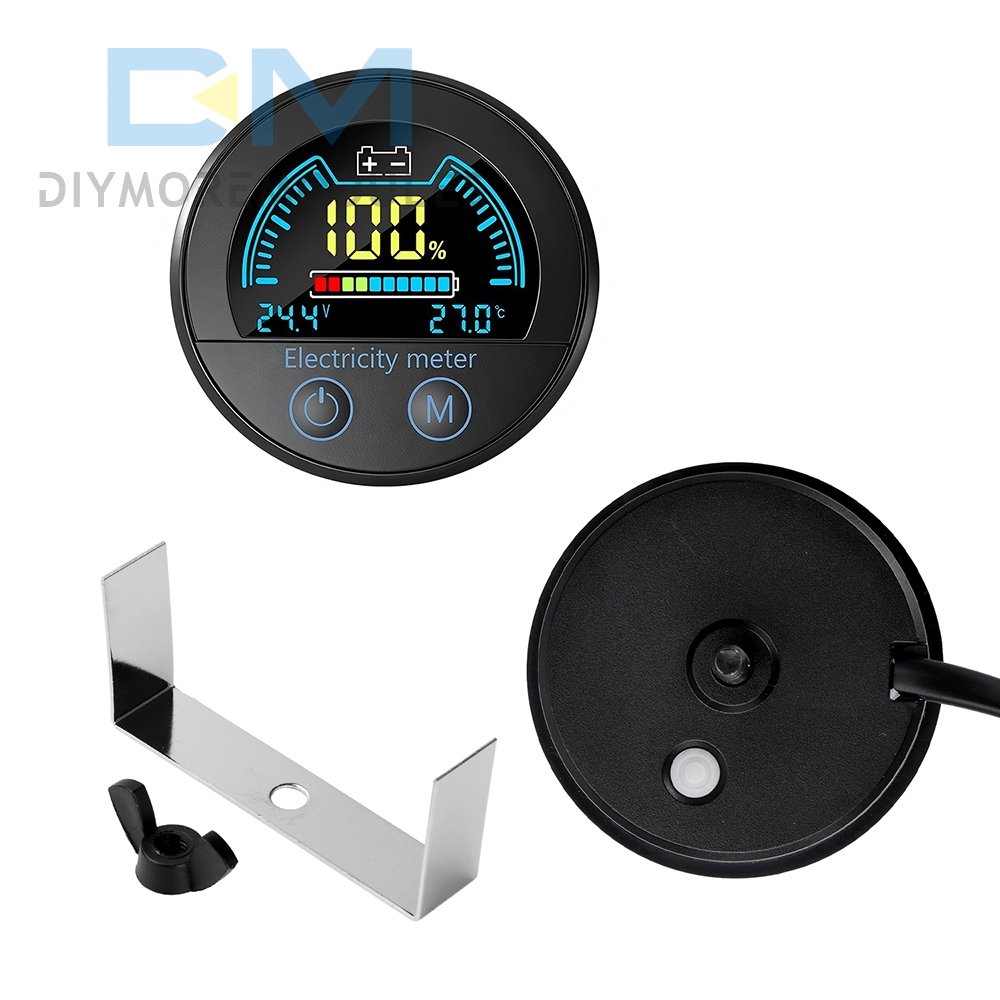

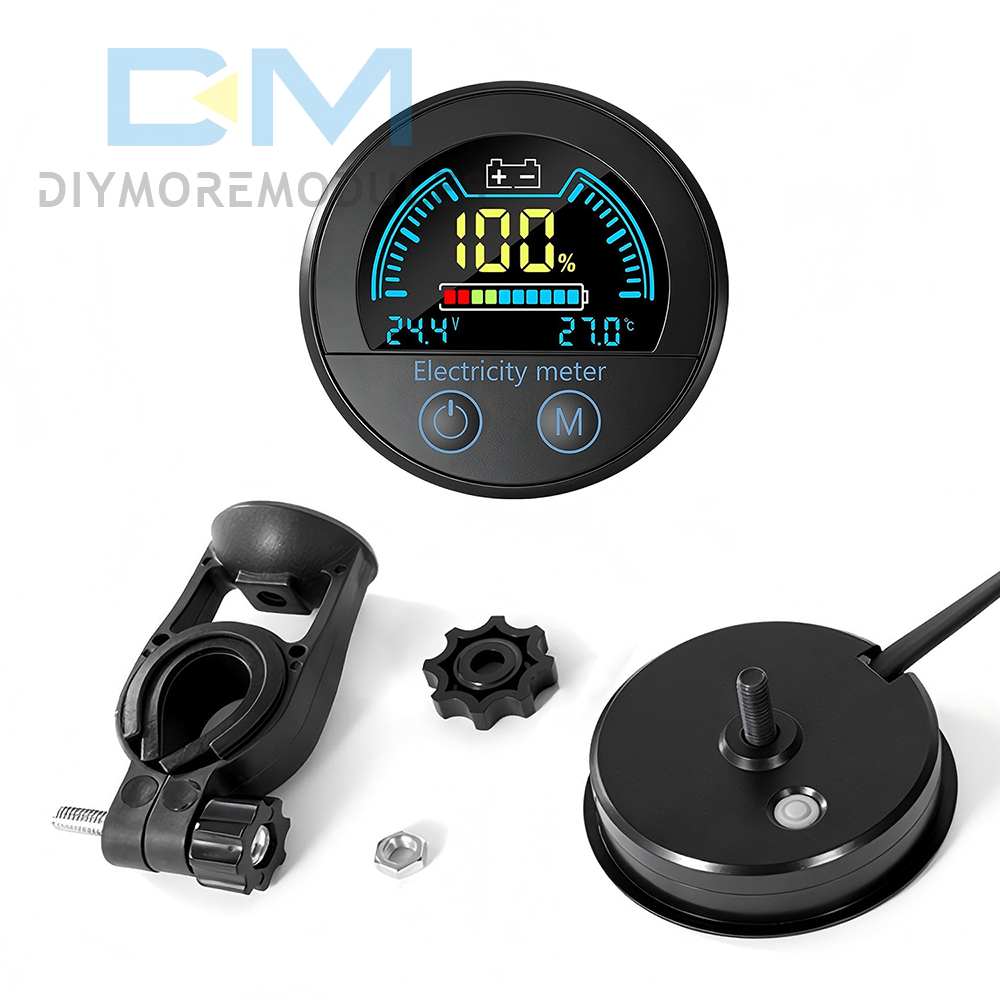

Display *1

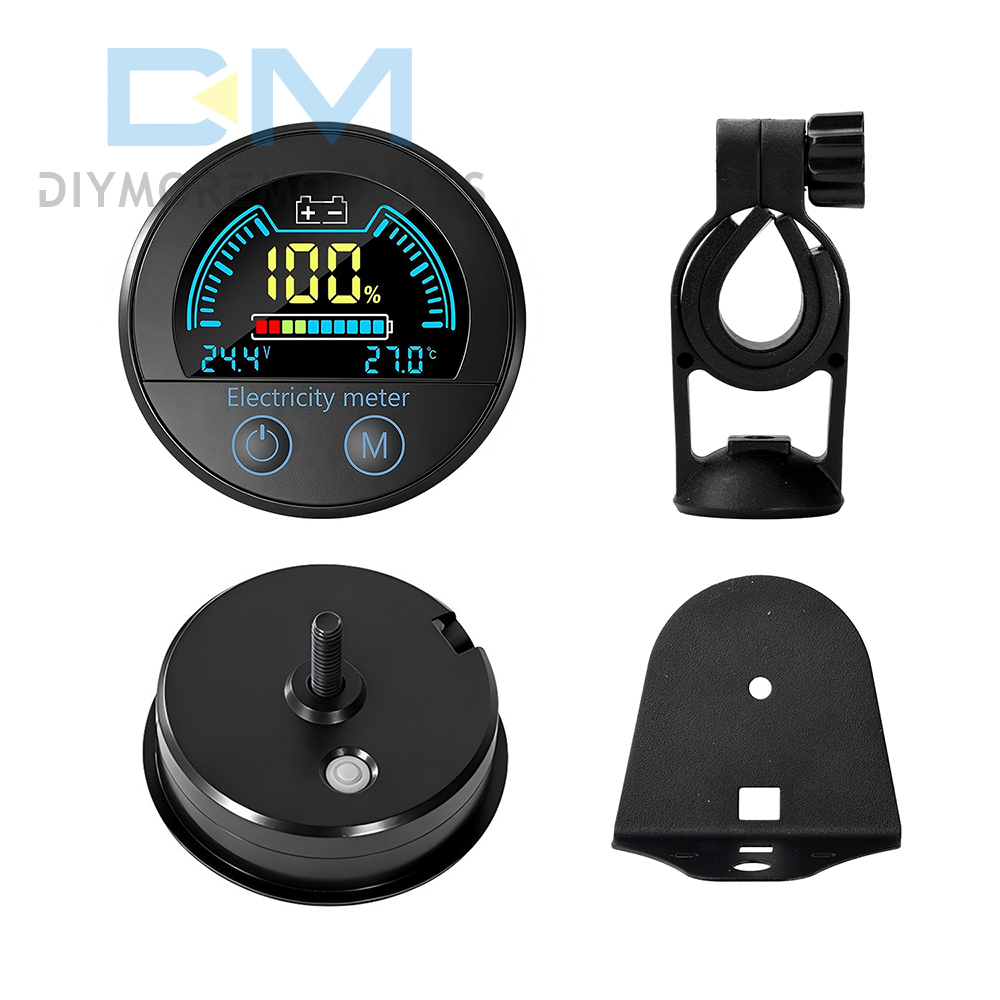

Accessories *1
Display *1
Accessories *1
