Features:



Full kit, Worry free

Multiple Color choice: Warm/Cold White/ Red / Yellow / Pink / Blue / Green / Ice Blue / Purple

Latest COB LED technology, provide high density continuous light without dark area or light spot. Better than SMD LED

Large chipset, 9*22mil. Brighter Light, Longer life time, Better heat disippation than others

Flexible,bending resistance

Cuttable. Every 25mm for 12V

4mm strip width, Super Slim, no edge. Used for any narrow places, invisible

Self-adhesive tape on strip back, easy to mount anywhere

Ra>90,  offers more real Color

Durable Lighting. COB LED strip light service life is more than 50,000 hours

Low DC 12V power, safe to use

CE RoHs certificated

Perfect decoration for Room, Kitchen, Car, Bike, Computer, TV, DIY etc.





Strip Parameters:

Input Voltage: DC12V

Input interface: Red Black Wire. Red Wire for "+", Black wire for "-"

Support dimmer to control brightness: available in store

Rated power: 5W/m,  Because of "voltage drop", usually it can not reach full power. The longer the strip is, the more voltage drop it will be.

LED quantity: 480 LEDs/Meter

Minimum cut length: DC12V- every 25mm

Color Rendering Index: not applicable

Operation temperature: -10℃-+60℃

Storage temperature: -10℃-+60℃

Beam angle: 180°

Waterproof Level: IP20, not waterproof. You may add silcone tube to it



Power Supply Parameters:

US or EU plug, accordind to your choice

UL listed CE High quality power adapter

Input : AC110V~240V

Output: DC 12V/24V power

Output Interface: DC5.5mm Female



Watt Power for Power Supply as below:

1.0m power supply: 12V-1A/24V-1A, 12W/24W, cable 150cm

2.0m power supply: 12V-1A/24V-1A, 12W/24W, cable 150cm

3.0m power supply: 12V-2A/24V-1A, 24W/24W, cable 150cm

4.0m power supply: 12V-2A/24V-1A, 24W/24W, cable 150cm

5.0m power supply: 12V-2A/24V-1A, 24W/24W, cable 150cm



Note:

Please mind the watt of the power adapter and the watt of LED strip when you add more the strip to current strip. Longer strip will consume more watt power. If you are not sure, please contact us.

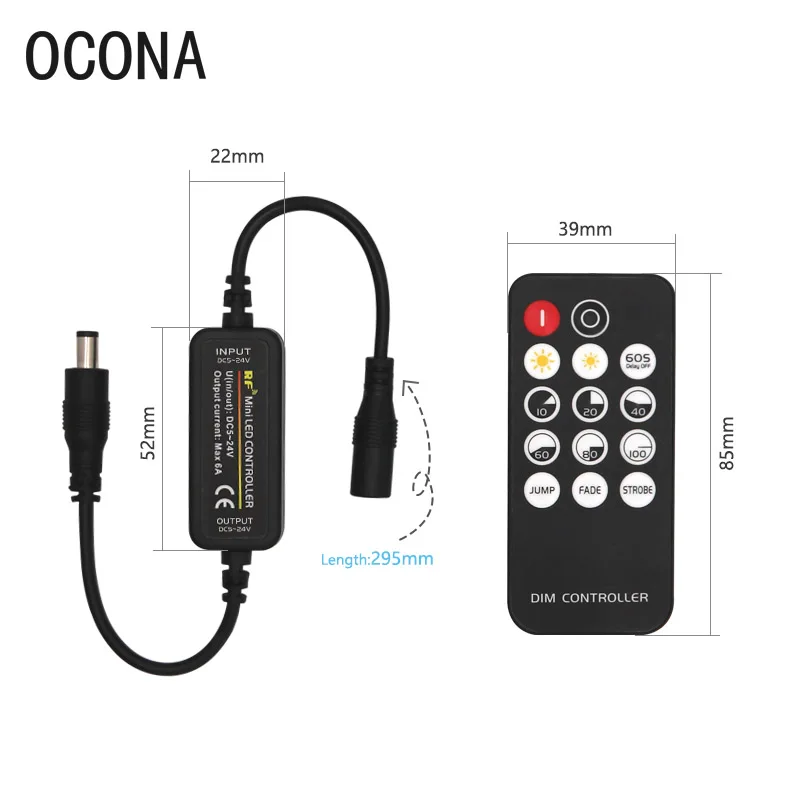

LED Controller






Package includes:

1x COB LED strip

1x Power Adapter

1x LED DIM controller

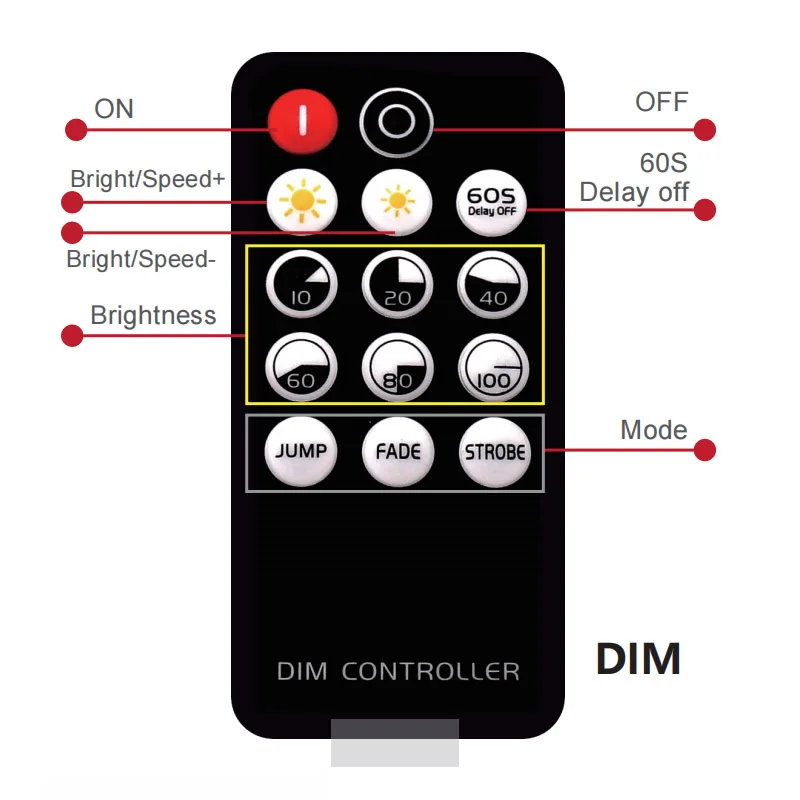

1x RF Remote
