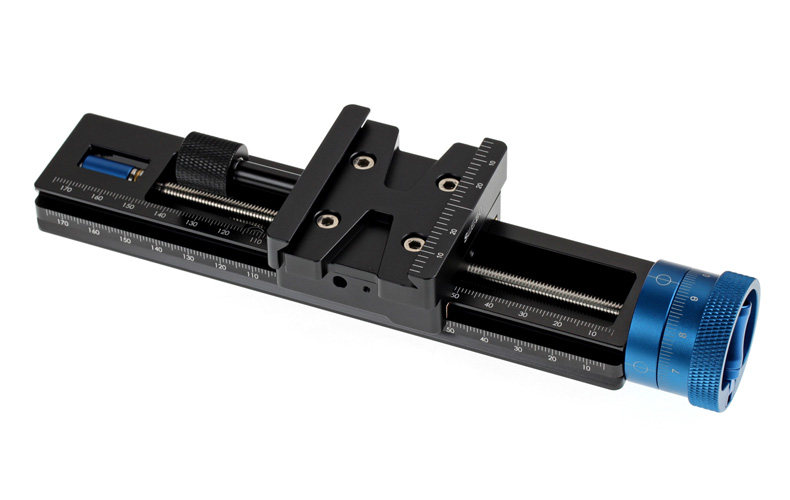

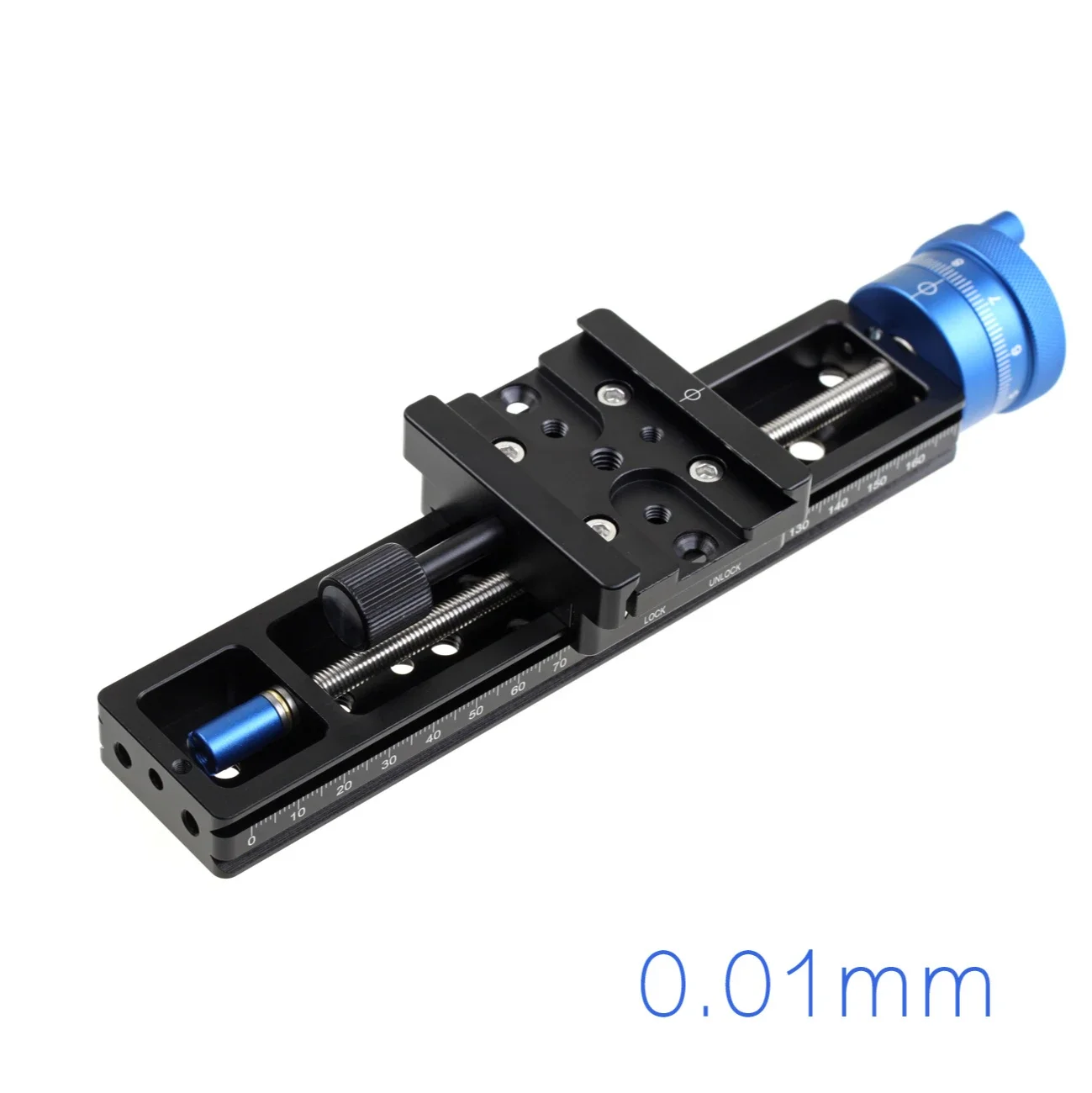

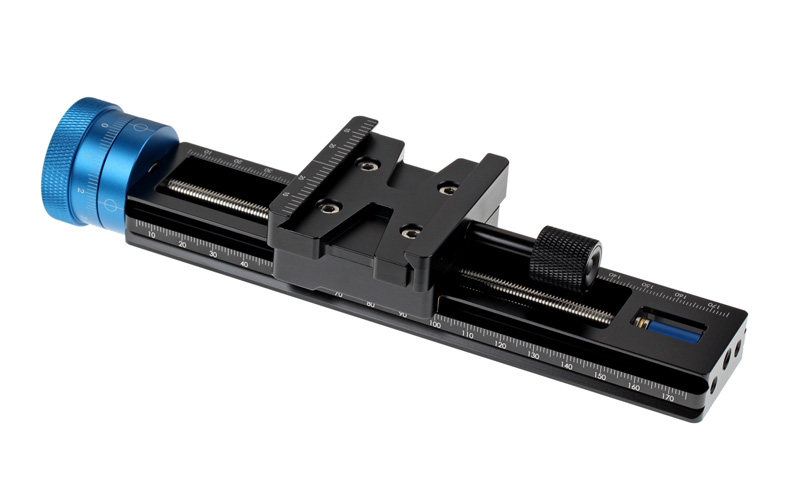

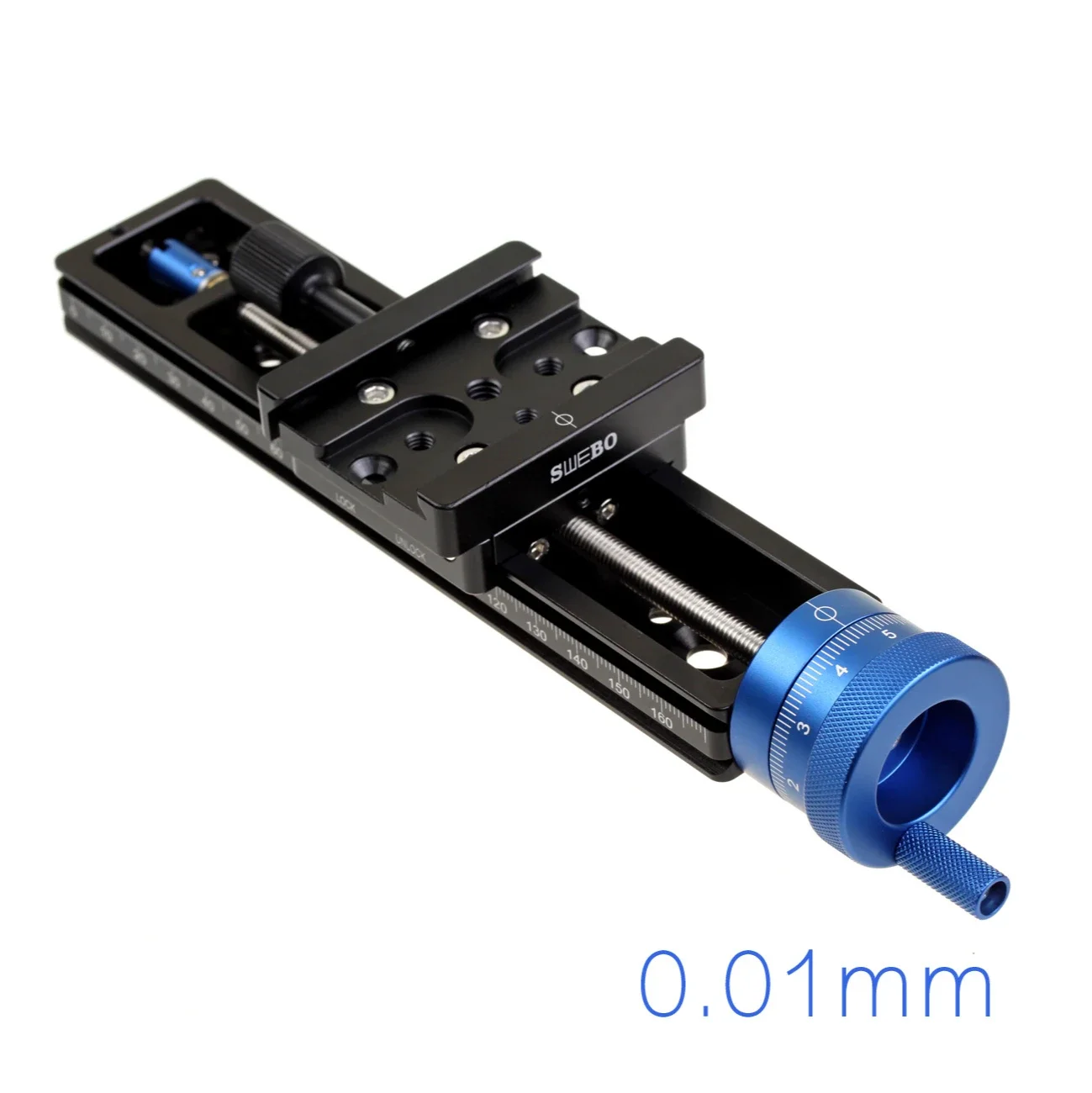

SWEBO LS001 micrometer type micrometer head, accuracy of 0.01 mm, equivalent to 1/5th of the diameter of a hair.
Long 180mm plate center of gravity adjustment range, stainless steel trapezoidal screw precision fine-tuning, copper sliding parts, handwheel Crank dual mode of operation, can be quickly shaken, but also can be precise fine-tuning, both rack and pinion type speed and precision of the screw adjustment. It can be used for macro stacking shooting, macro precision focusing and so on.
Its core driving component is not an ordinary screw rod, but a stainless steel trapezoidal multi-head screw originally used in 3D printers.
The moving nut is made of copper to take advantage of its self-lubricating properties. Supporting the rotating parts are two miniature thrust ball bearings and a copper graphite core miniature bearing sleeve.
It has an enlarged knurled knob for the operating part and a knurled crank for fast travel.
Material; aluminum alloy
Overall length; 208 mm
Movement distance; 120 mm
Accuracy; 0.01mm
Weight; 500grams
Height; 47.5 mm
Width; 60 mm
Width of Holder; 60 mm
Feature:
1. Fastened with four wide-spaced screws for higher rigidity.
2. The holder can be set to be horizontal, which is suitable for cameras with L-shaped quick release plates, which is convenient for quick horizontal and vertical conversion.
3. The holder can be set to vertical, suitable for lens tripod ring with quick release plate structure
4. The extended 60mm length quick release plate is now a free gift. You can also use other universal quick release plates that are compatible with Arca Swiss standards
5. There is a built-in damping adjuster in the front, loosen the 2 set screws to adjust, and then tighten it after completion.

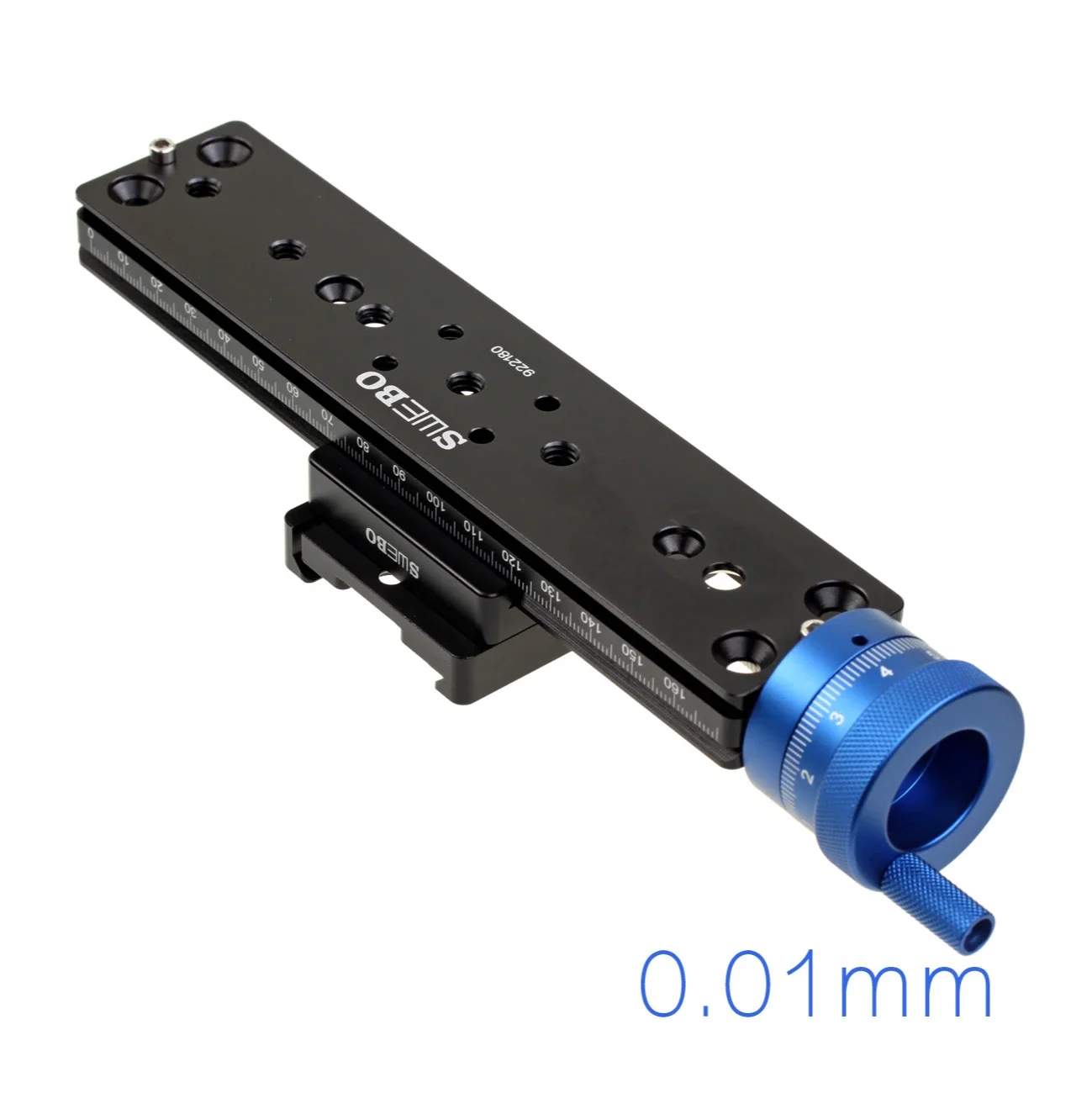

6. The bottom is also a full-length Yajia Swiss standard track, which can be clamped on a general-purpose head. There are also 3 1/4" screw holes for attaching other tripods
Upgraded version:
1. Add 2 large spirit levels, arranged vertically, more accurate than circular decorative spirit levels
2. Increase the gradually exposed scale above the track to observe the camera position more intuitively
3. The clip base has gradually exposed scales on both sides, which is more intuitive than the central scale

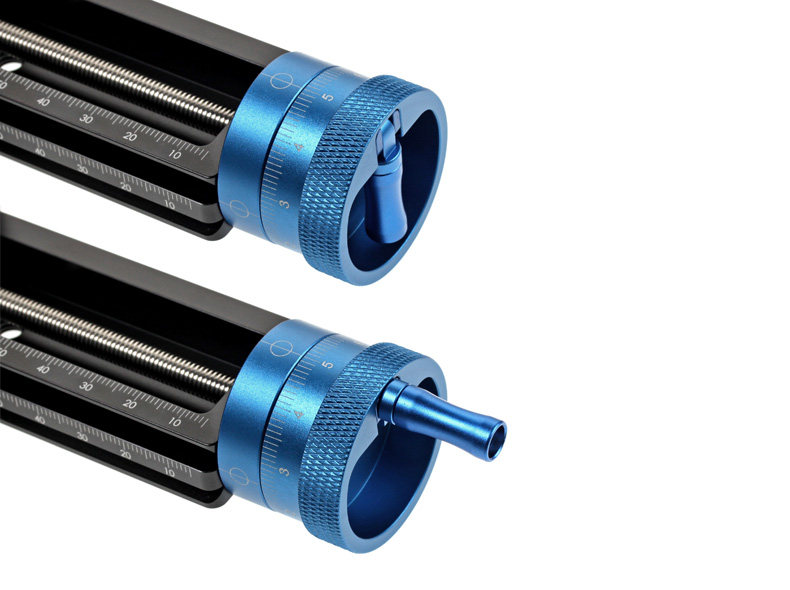

We've significantly upgraded SWEBO's iconic oversized rocker knob mechanism so that the rocker can finally be folded. At the same time, we have realized that folding the handle does not destroy the knurled contour of the knob and does not affect the feel of the knob.
Both positions of the handle have spring+steel ball positioning for a comfortable feel.
Invisible upgrades are bigger
The lubrication of the slide is made of copper + Teflon composite structure. In this way, all the friction parts of the macro head are made of self-lubricating materials to avoid lubricant oil.
Teflon is also a non-stick coating material with the advantage of high temperature resistance. The slide will become hot after exposure to the summer sun, this upgrade solves the problem of the old style lubrication film is not durable under high temperature.
