Dahua 5MP Bullet Camera Full-Colour 2.7-13.5mm Vari-Focal IR 60m Outdoor

Product Image

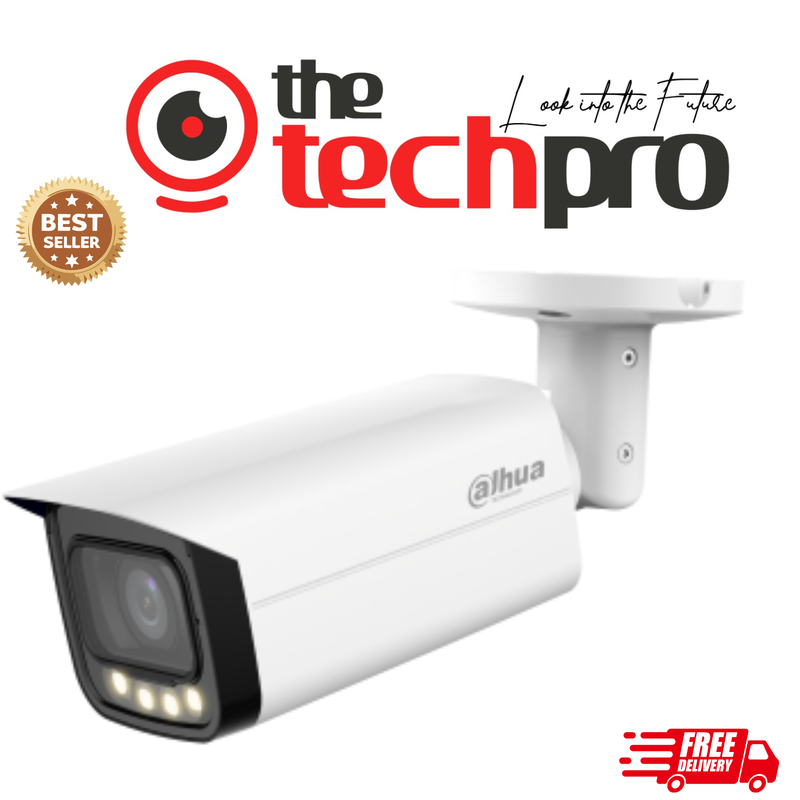

The Dahua HAC-HFW1509TUP-Z-A-LED is a 5MP HDCVI Full-Colour Bullet Camera designed for high-performance 24/7 surveillance. Featuring a motorized 2.7–13.5mm vari-focal lens, this camera provides flexible coverage and precise zoom. With full-color imaging, Smart IR up to 60m, and 120dB true WDR with 3DNR, it delivers crisp, detailed video in all lighting conditions. Its robust IP67-rated weatherproof housing ensures outdoor durability, making it ideal for homes, offices, and commercial sites requiring reliable and clear security monitoring.

Key Points

  • 5MP HDCVI Full-Colour Bullet Camera

  • Motorized 2.7–13.5mm vari-focal lens with auto focus

  • Max 25fps at 5MP (16:9 video output)

  • 24/7 full-color imaging

  • 60m illumination distance with Smart IR

  • Supports CVI / CVBS / AHD / TVI switchable output

  • Built-in microphone for audio recording

  • IP67-rated weatherproof housing

  • DC12V ±30% power supply

Features

  • Full-Colour Imaging 24/7 – Clear, vibrant video in day and night conditions

  • Motorized Vari-Focal Lens – 2.7–13.5mm lens with auto focus for adjustable field of view

  • High-Resolution 5MP – Captures detailed images at up to 25fps

  • True WDR 120dB – Handles challenging lighting with balanced exposure

  • 3D Noise Reduction (3DNR) – Reduces video noise in low-light situations

  • Smart IR Illumination – Up to 60m for night surveillance without overexposure

  • Multi-Format Output – Compatible with CVI, CVBS, AHD, TVI systems

  • Built-In Audio – Integrated microphone for recording sound

  • Durable Outdoor Design – IP67-rated housing for water and dust protection

Technical Specifications

  • Brand: Dahua

  • Model: HAC-HFW1509TUP-Z-A-LED

  • Camera Type: HDCVI Bullet

  • Resolution: 5MP, 25fps max

  • Lens: 2.7–13.5mm motorized vari-focal with auto focus

  • IR / Illumination Distance: Up to 60 meters, Smart IR

  • Minimum Illumination: 0.001 Lux/F1.2, 0 Lux White Light on

  • Video Output: CVI / CVBS / AHD / TVI switchable

  • Audio: Built-in microphone

  • Power Supply: DC12V ±30%

  • Power Consumption: Max 11.88W (with warm light on)

  • IP Rating: IP67 (waterproof)

  • Mounting Style: Bullet / Outdoor

  • Color: White

  • Special Features: Full-color 24/7, WDR, 3DNR, Motorized Lens, Smart IR

Optional Mounts / Accessories

  • DH-PFA130-E Waterproof Junction Box (IP66) – £13.65 + VAT

  • DH-PFA152-E Pole Mount Bracket – £9.90 + VAT

  • DH-PFA135 Waterproof Deep Base – Bullet – Special Price £10.20
