Description:
This 42002-0007S control board replacement kit is compatible with Pentair
MasterTemp NA and LP Series Pool and Spa Heater Electrical Systems,
and for Pentair Sta-Rite Max-E-Therm NA and LP-Series pool and spa heater
electrical systems.

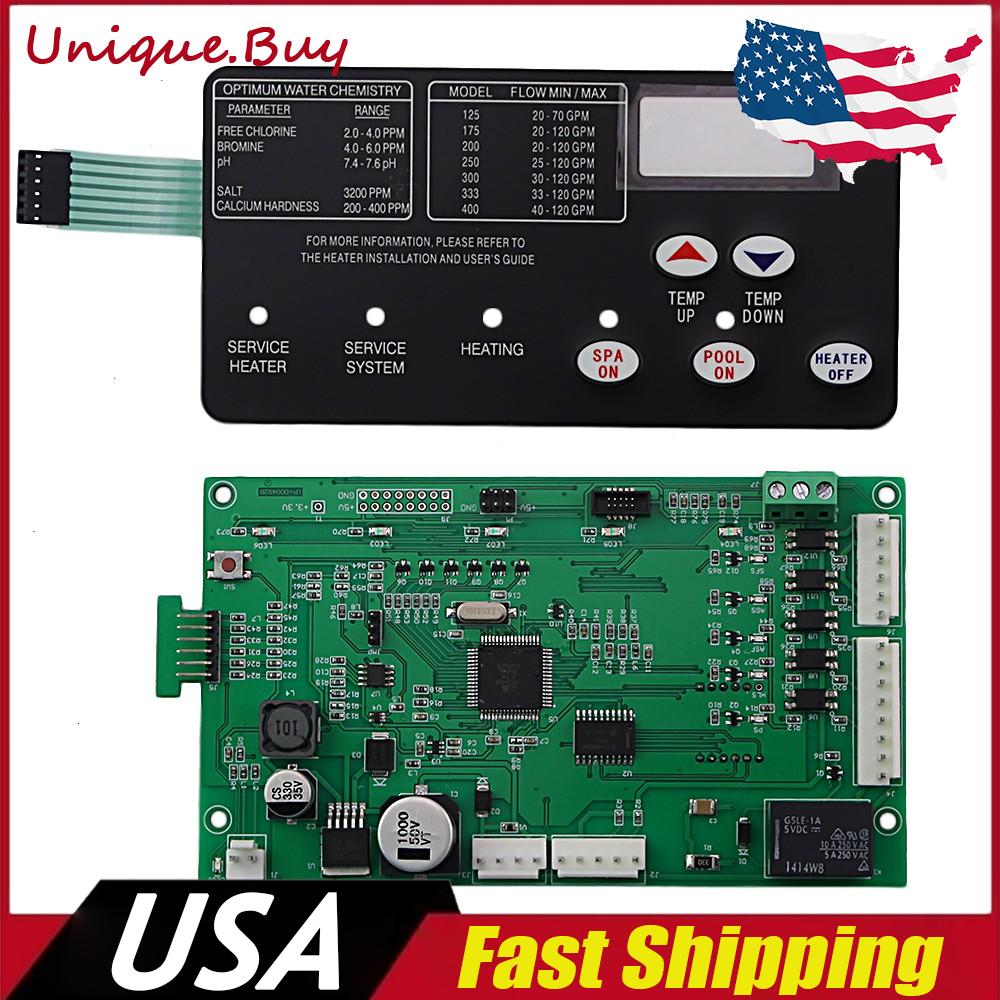

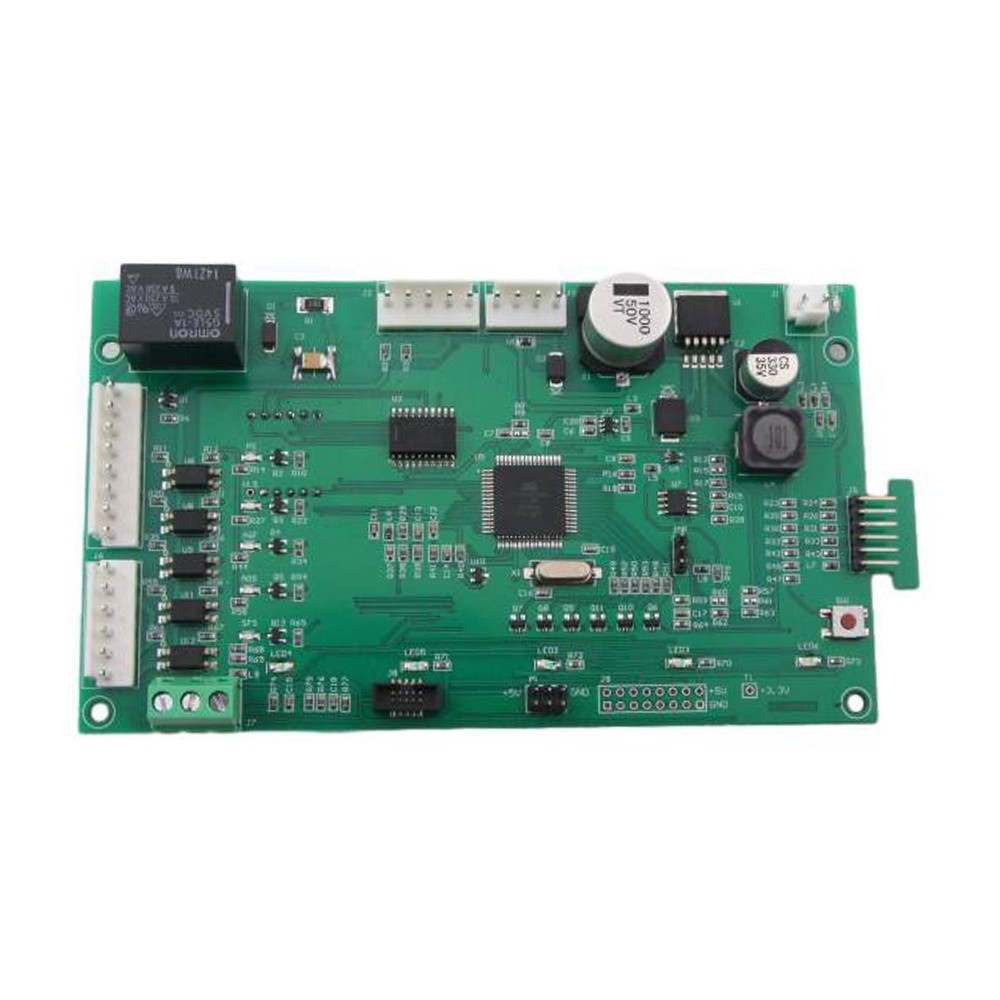

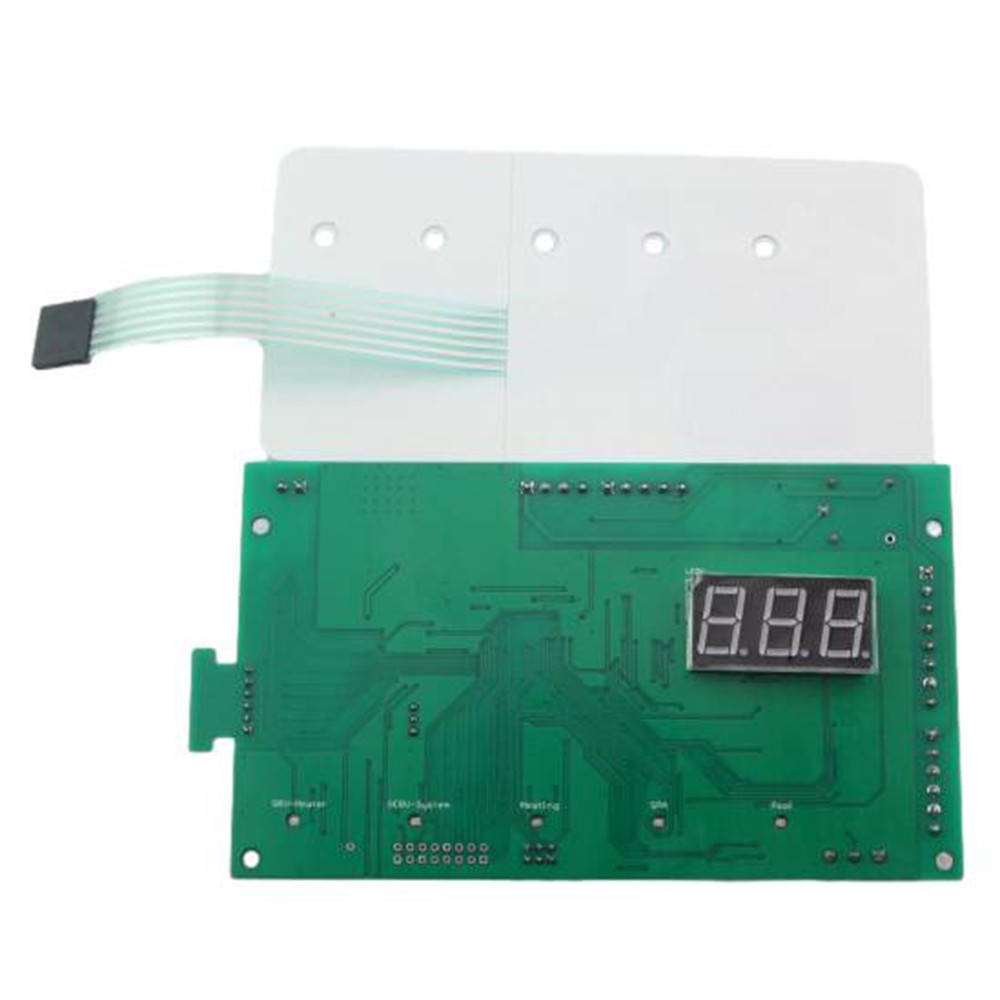

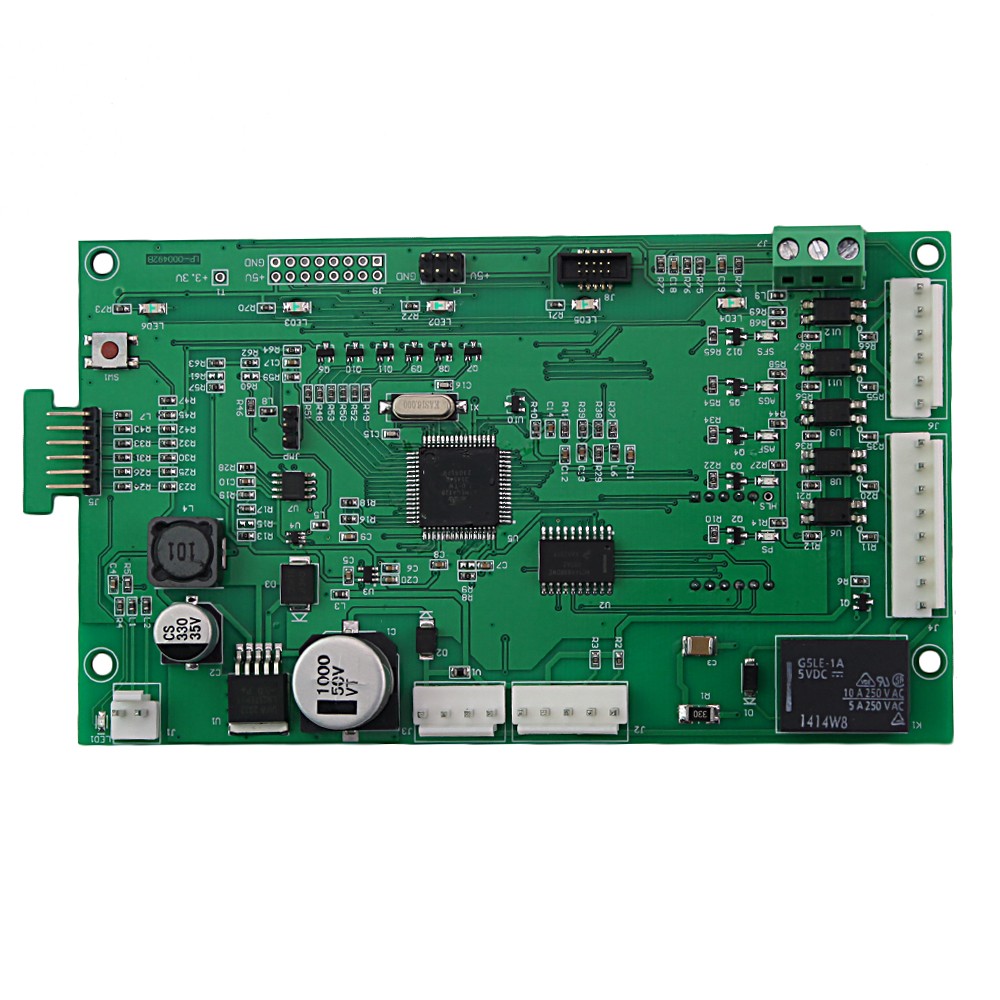

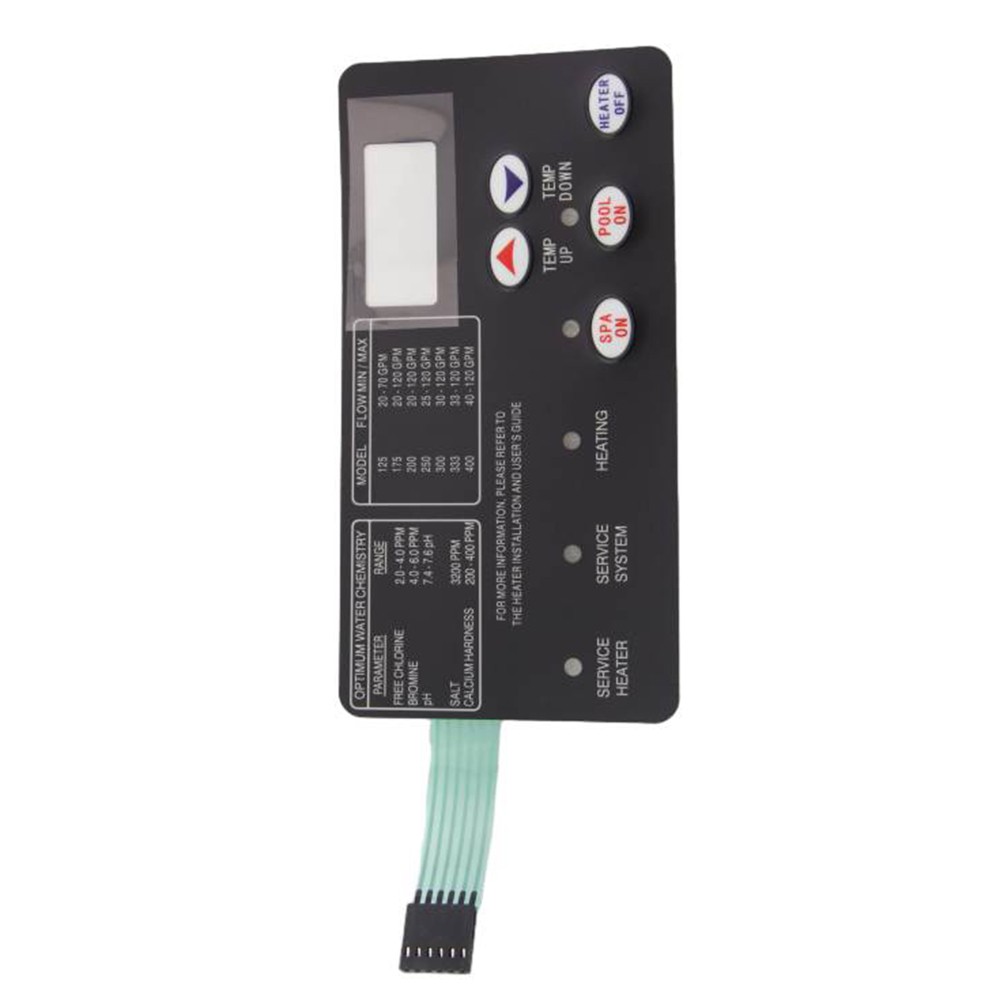

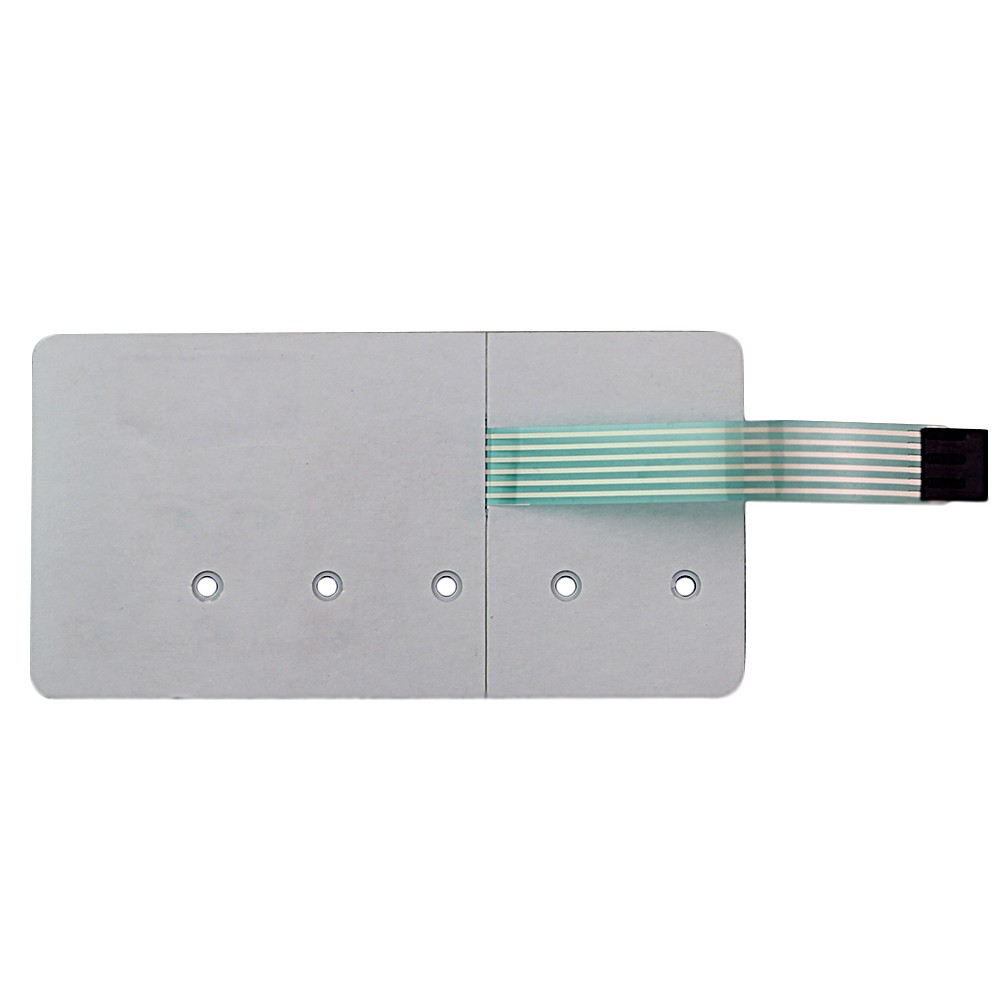

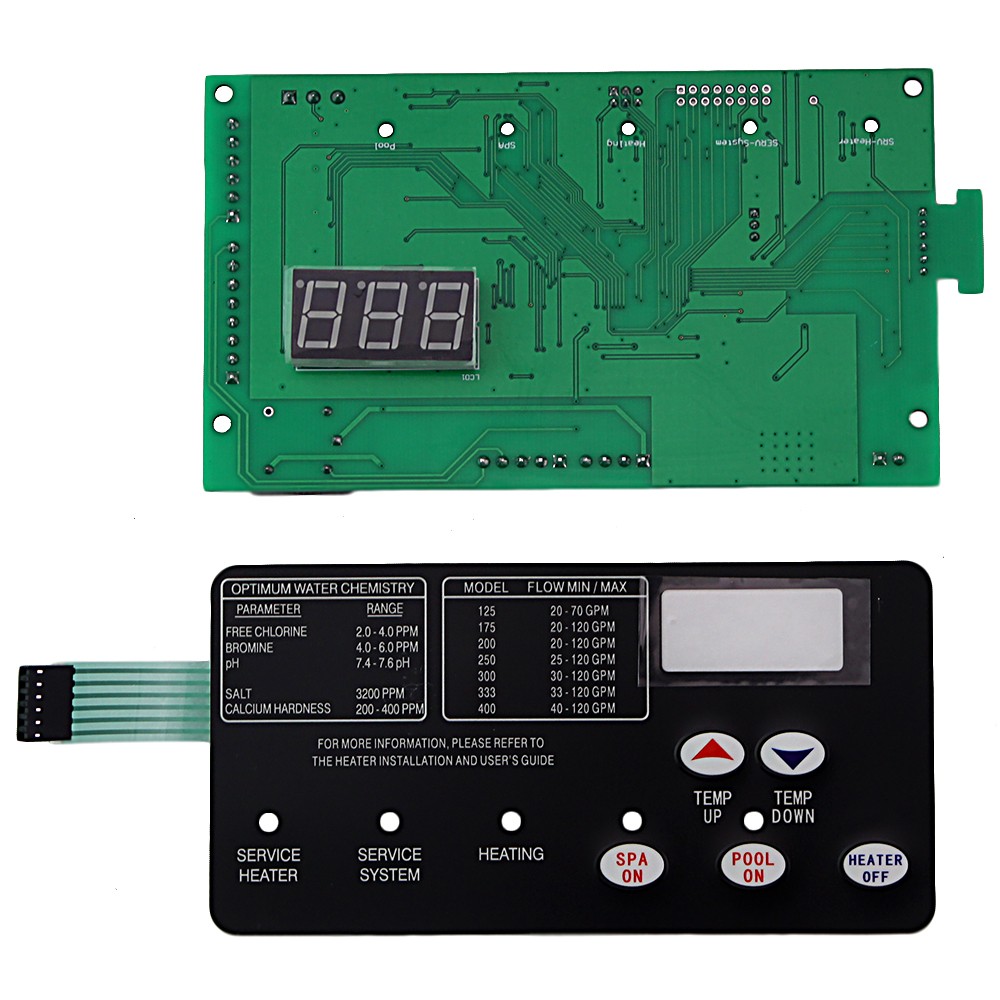

The control board kit contains a 42002-0007S control board and 472610Z switch
membrane pad, replacement for OEM part # 42002-0007S, 461105.
Replacement NA and LP Series Pool/Spa Heater Electrical Systems & 472610Z Switch
Membrane Pad Replacement MasterTemp Pool and Spa Heater Electrical System.
The 42002-0007S control board kit is made of quality material, so built to last.
Installation:
Step 1
Begin by removing the old circuit board by shutting down all power and opening
the top of the heater tohave access to the old board. Unplug the membrane pad
from the board and remove the wire connectors connected to the old board.
Step 2
Unscrew the 4 screws holding the board in place.This will allow you to take the
old board completely out.
Step 3

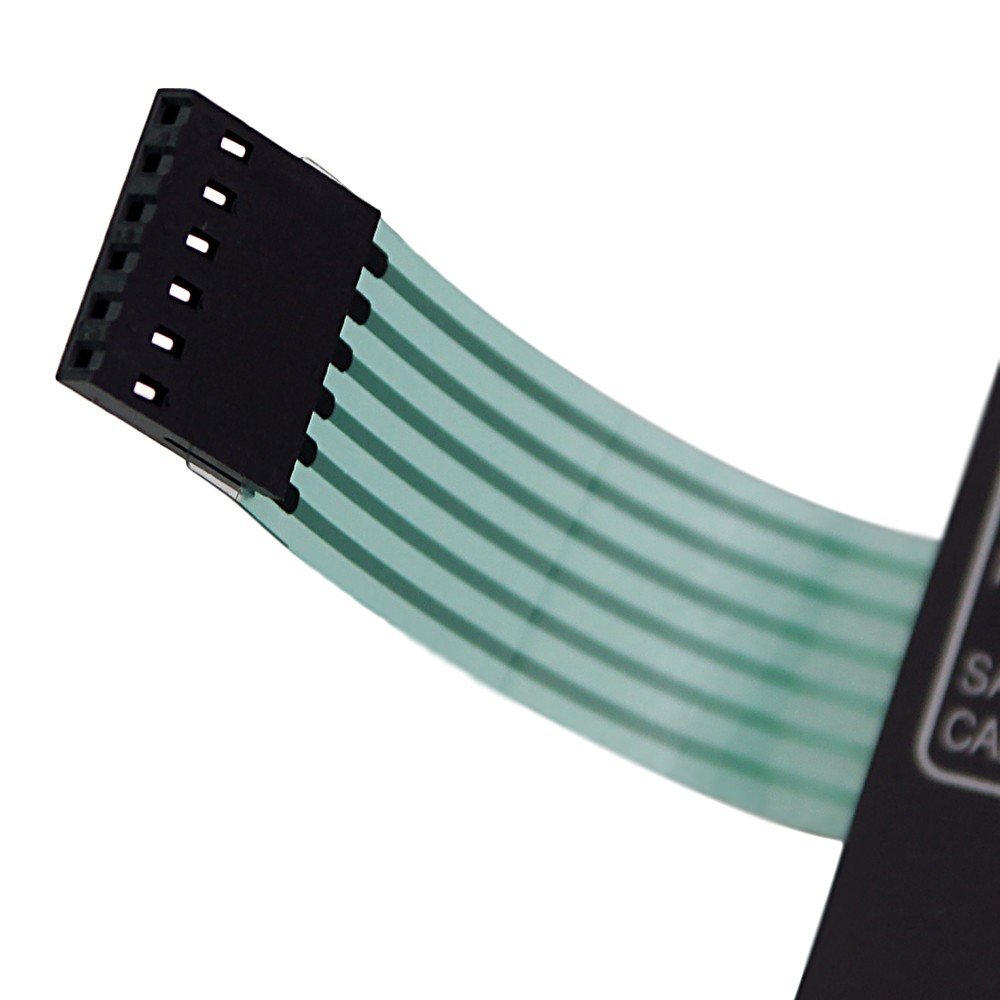

Screw the board back in and plug the membrane pad into the connection that
accepts the ribbon cable. Reconnect all of the wire connections and close out
your master temp or max e therm heater.
Package Includes:
1X Control Board Kit









We will ship within 1 days after payment.
