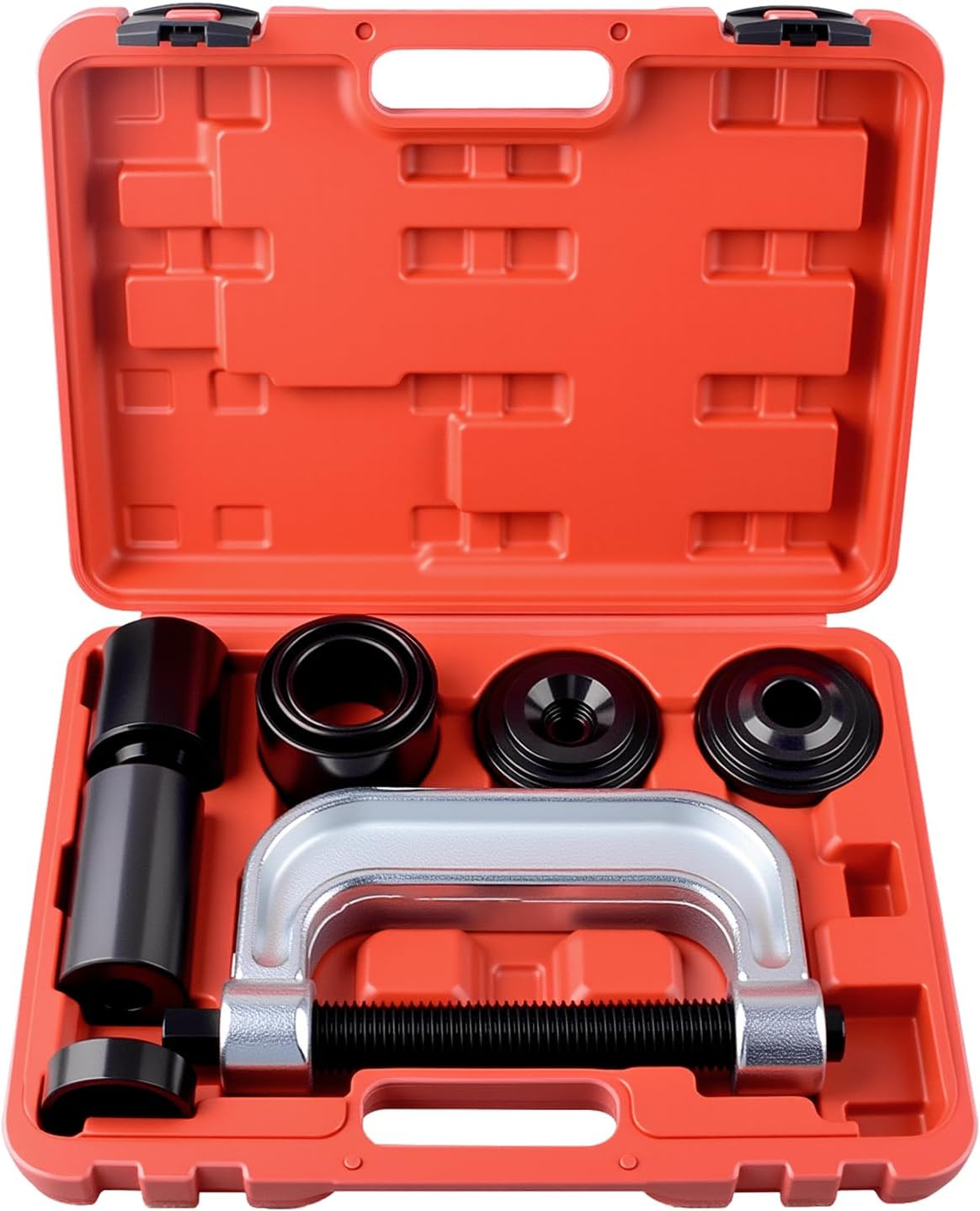

Ball Joint Press U Joint Removal Tool Kit w 4x4 Adapters Case
- This Ball Joint Press & U Joint Removal Tool compatible for most 2WD and 4WD cars and light trucks
- This tool set is made of ultra carbon steel；these components will stand up to heavy use and accidental drops
- The ball joint press kit is an indispensable tool for your garage; Excellent for removal and installation of press-fit parts such as ball joints. Universal joints and truck brake anchor pins
- This versatile ball joint removal tool kit can also remove rusted and corroded parts and easily tighten rusted parts
- Set contains C-frame press, 3 receiver tubes sizes: 2-3/4”x3"", 2-1/4”x 2-1/2” & 1-3/4”x2”, installation and removing adapters.
Product description
Part Dimensions
A: Removal Adapter (1.148" L x 1/2" I.D. x 3" O.D.)
B: Screw
C: Installing Cup (3.676" L x 1-3/4" I.D. x 2" O.D.)
D: Installation Adapter (1.122" L x 0.941" I.D. x 3" O.D.)
E: Forcing-screw Press (Inner Length: 6.22"/158mm)
F: Receiving Cup (2-1/2" L x 2" I.D. x 2-1/4" O.D.)
G: Receiving Tube (1-3/4" L x 1-3/4" I.D. x 2" O.D.)
H: Receiving Tube (1-3/4" L x 2-1/4" I.D. x 2-1/2" O.D.)
I: Receiving Tube (2-1/4" L x 2.723" I.D. x 3" O.D.)
J: Install Cup Adapter (0.845" L x 1.879" I.D. x 2-1/4" O.D.)
To Remove a Ball Joint
1. Assemble the Ball Joint Press (1) over the vehicle's control arm. Select the correct size Receiving Tube (3,4,or 5), and position it under the vehicle's ball joint.
2. Place the Removal Adapter (7) between the Receiving Tube and the Jackscrew (2).
3. Then, place the Installation Adapter (6) between the top of the ball joint and the Ball Joint Press.
4. Tifhten the Jackscrew until the Receiving Tube contacts the vehicle's control arm.
5. Check the alignment of all the Ball Joint Kit parts, and continue tightening the Jackcrew until the vehicle's ball joint is removed.
To Install a Ball Joint
1. Clean the vehicle's control arm, and coat the inside diameter of the control arm with a light lubricant.
2. Insert the replacement ball joint as straight as possible into the vehicle's control arm.
3. Assemble the Ball Joint Press over the vehicle's control arm. Select the correct size Receiving Tube and position it on top of the vehicle's control arm.
4. Place the Installation Adapter between the Receiving Tube and the Ball Joint Press. Then, place the Removal Adapter between the ball joint and the Jackscrew.
5. Check the alignment of all the Ball Joint Kit parts. Then, tighten the Jackscrew until the vehicle's ball joint is firmly sealed.
To Remove and Install Brake Anchor Pins
1. To remove the brake anchor pins, remove all lock ring retainers from the Brake Anchor Pins.
2. Position the Ball Joint Press over the brake spider.
3. Tighten the Jackscrew until the anchor pins can be removed.
4. To install the brakke anchor pins, insert the brake anchor pins. Then reinstall the lock ring retainers on the brake anchor pin.
5. Unscrew and remove the Ball Joint Press.
To Disassemble / Assemble a U Joint
1. To disassemble a U joint, remove any external and/or internal lock rings.
2. Position the Ball Joint Press around the drive shaft yoke and tighten the jackscrew until the first bearing is removed. Reposition the ball joint press and remove the second bearing.
3. To assemble a U joint, clean all dirt and oil from the yoke area. Align the replacement bearing and Ball Joint Press as straight as possible over the yoke. Press the replacement bearing into the yoke, and reassemble the external/internal lock ring.
4. Reposition the ball joint press and second eplacement beaing as straight as possible over the yoke, and press the beaing into the yoke.
5.Reassemble the external/internal lock ring.
To Remove a Ball Joint
To Install a Ball Joint
To Remove and Install Brake Anchor Pins
To Disassemble/Assemble a U Joint
Quality Set
This DAYUAN tool set is made of ultra carbon steel, these components will stand up to heavy use and accidental drops. It's even for professional mechanics.
Wide Variety
This tool set fit most American domestic and imported 2-wheel drive (2WD) and 4-wheel drive (4WD) cars and light pickup trucks that have press-fit type ball joints
East Storage
Comes in a blow molded case for safe & easy transport and storage.
Item Specification
-
Item model number YT1040 Color Red Manufacturer Part Number YT1040 Item Weight 15.4 pounds Is Discontinued By Manufacturer No Product Dimensions 16.9 x 14.5 x 3.9 inches
- Product Dimensions: 14.5 inches x 16.9 inches x 3.9 inches. Weight: 15.4 lb
