Digital Dial Bore Gauge 50-160mm Indicator 0.01mm Deep Engine Cylinder Measuring

  • 0.0005” Precision Deep Bore Gauge : Digital bore gauge covers 50-160mm (2-6") diameter and 150mm (6") depth,delivering ≤0.5m/s response time and 0.01mm (0.0005") resolution for rapid detection of micro deviations. Its anti-corrosion copper sleeve integrates a hardened M2.5mm (0.098") threaded tip (500k+ cycles) and optical glass sensor (±0.001mm stability), paired with a rigid Φ8mm (0.31") shaft to minimize bending, ensuring long-term accuracy in demanding environments

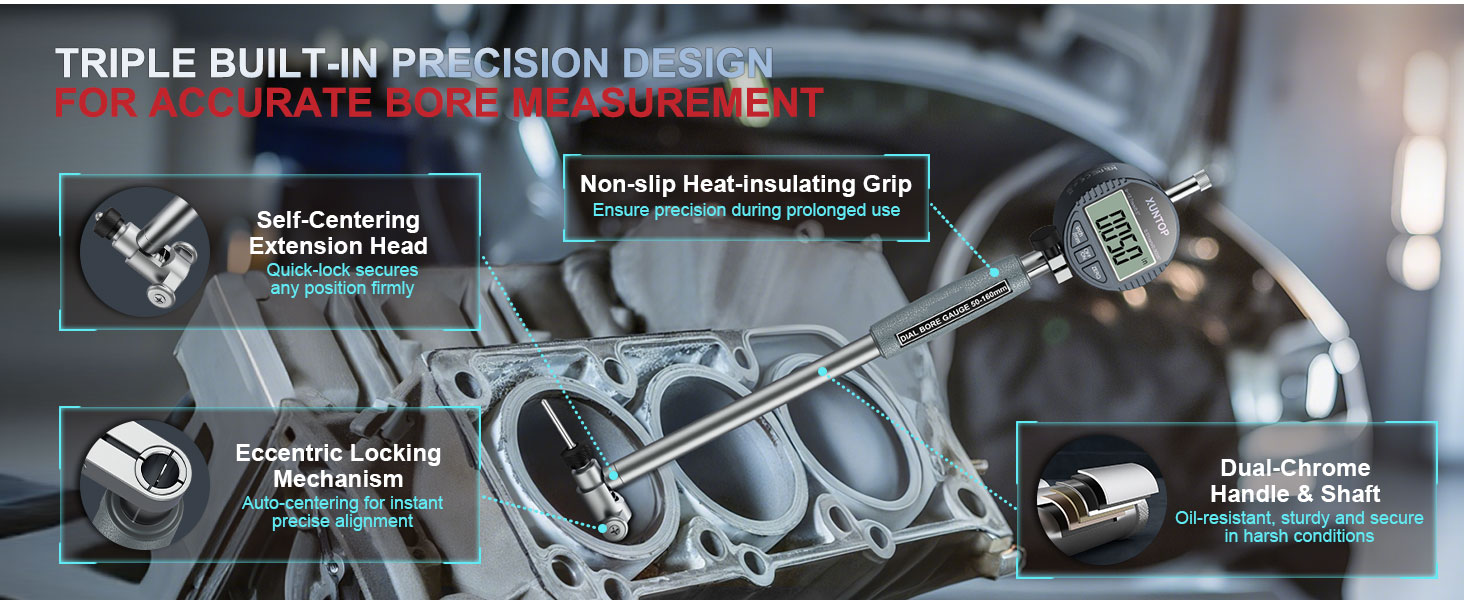

  • Two-point contact probe:Bore gauge’s two-point contact design detects ovality/taper (≤±0.005mm) while self-centering heads self-align on uneven surfaces. The all-metal lock with instant springback secures positioning, paired with a hardened probe (HRC60+) and chrome handle resist wear. This system reduces adjustment and wear during repetitive deep-bore (150mm/6") tasks, ensuring stability in high-vibration environments

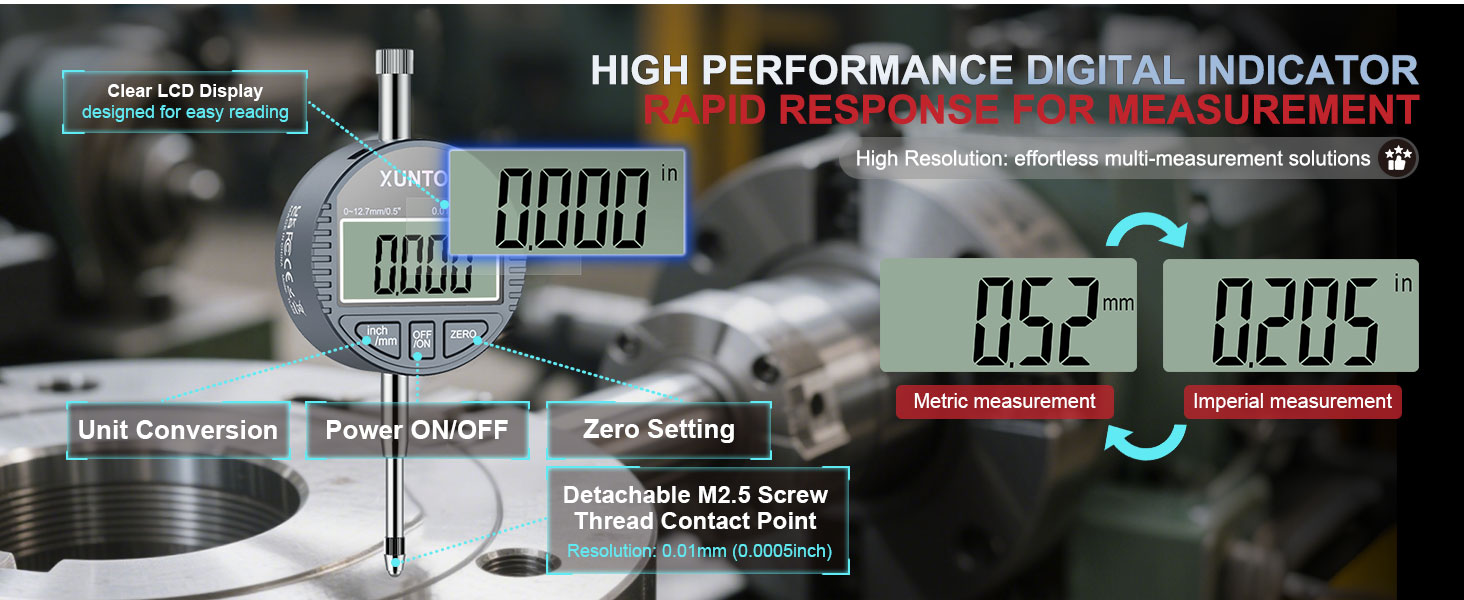

  • High-Contrast LCD & Zero-Setting: The digital bore gauge combines a high-contrast backlight LCD for clear visibility in low-light conditions with instant mm/inch unit conversion, minimizing reading errors across measurement standards. Integrated with zero-setting function for rapid recalibration at any position, it eliminates manual adjustments and reduces operator fatigue

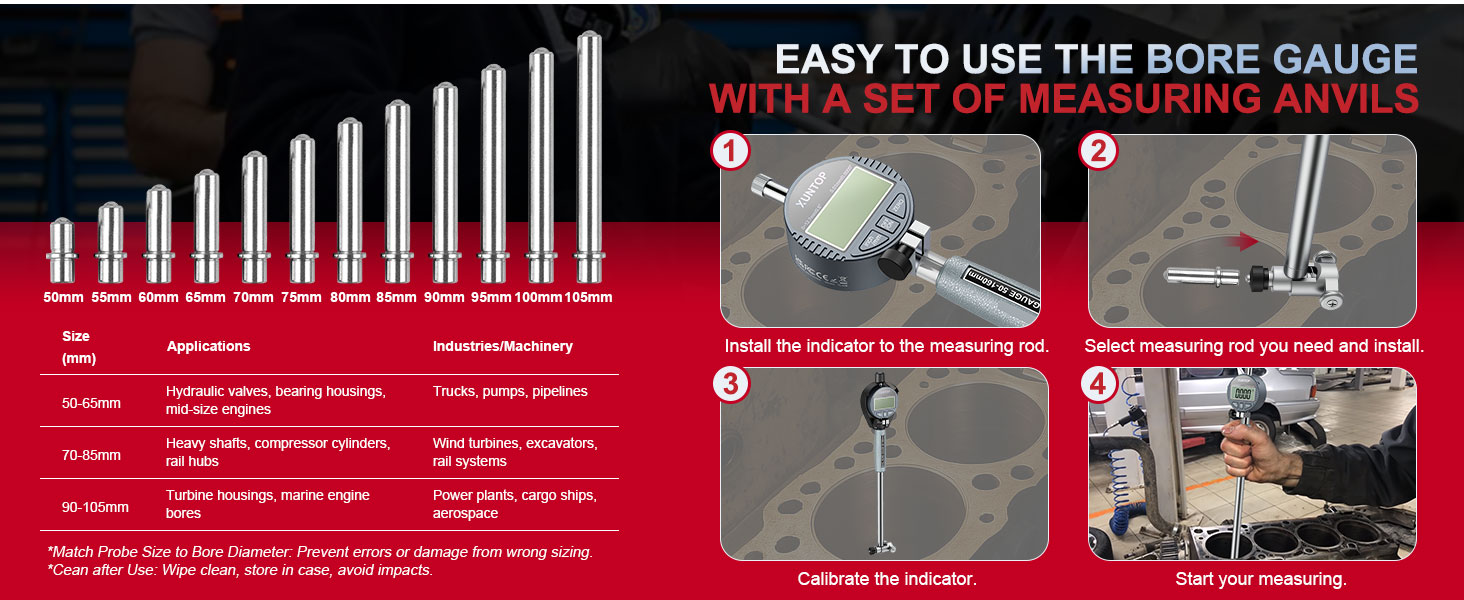

  • 12 Different Specification of Gauge: This digital bore gauge provides 12 probes (50-105mm, 5mm steps) with hardened tips (±0.003mm repeatability). 50-65mm for small/mid-sized bores (pumps, gearboxes), 70-85mm for heavy spindles, and 90-105mm for large components (turbines, cylinders). Quick-change Φ8mm shafts enable task transitions, cutting costs and downtime via one-system use
  • 0.0005” Precision Deep Bore Gauge : Digital bore gauge covers 50-160mm (2-6") diameter and 150mm (6") depth,delivering ≤0.5m/s response time and 0.01mm (0.0005") resolution for rapid detection of micro deviations. Its anti-corrosion copper sleeve integrates a hardened M2.5mm (0.098") threaded tip (500k+ cycles) and optical glass sensor (±0.001mm stability), paired with a rigid Φ8mm (0.31") shaft to minimize bending, ensuring long-term accuracy in demanding environments
  • Two-point contact probe:Bore gauge’s two-point contact design detects ovality/taper (≤±0.005mm) while self-centering heads self-align on uneven surfaces. The all-metal lock with instant springback secures positioning, paired with a hardened probe (HRC60+) and chrome handle resist wear. This system reduces adjustment and wear during repetitive deep-bore (150mm/6") tasks, ensuring stability in high-vibration environments
  • High-Contrast LCD & Zero-Setting: The digital bore gauge combines a high-contrast backlight LCD for clear visibility in low-light conditions with instant mm/inch unit conversion, minimizing reading errors across measurement standards. Integrated with zero-setting function for rapid recalibration at any position, it eliminates manual adjustments and reduces operator fatigue
  • 12 Different Specification of Gauge: This digital bore gauge provides 12 probes (50-105mm, 5mm steps) with hardened tips (±0.003mm repeatability). 50-65mm for small/mid-sized bores (pumps, gearboxes), 70-85mm for heavy spindles, and 90-105mm for large components (turbines, cylinders). Quick-change Φ8mm shafts enable task transitions, cutting costs and downtime via one-system use
