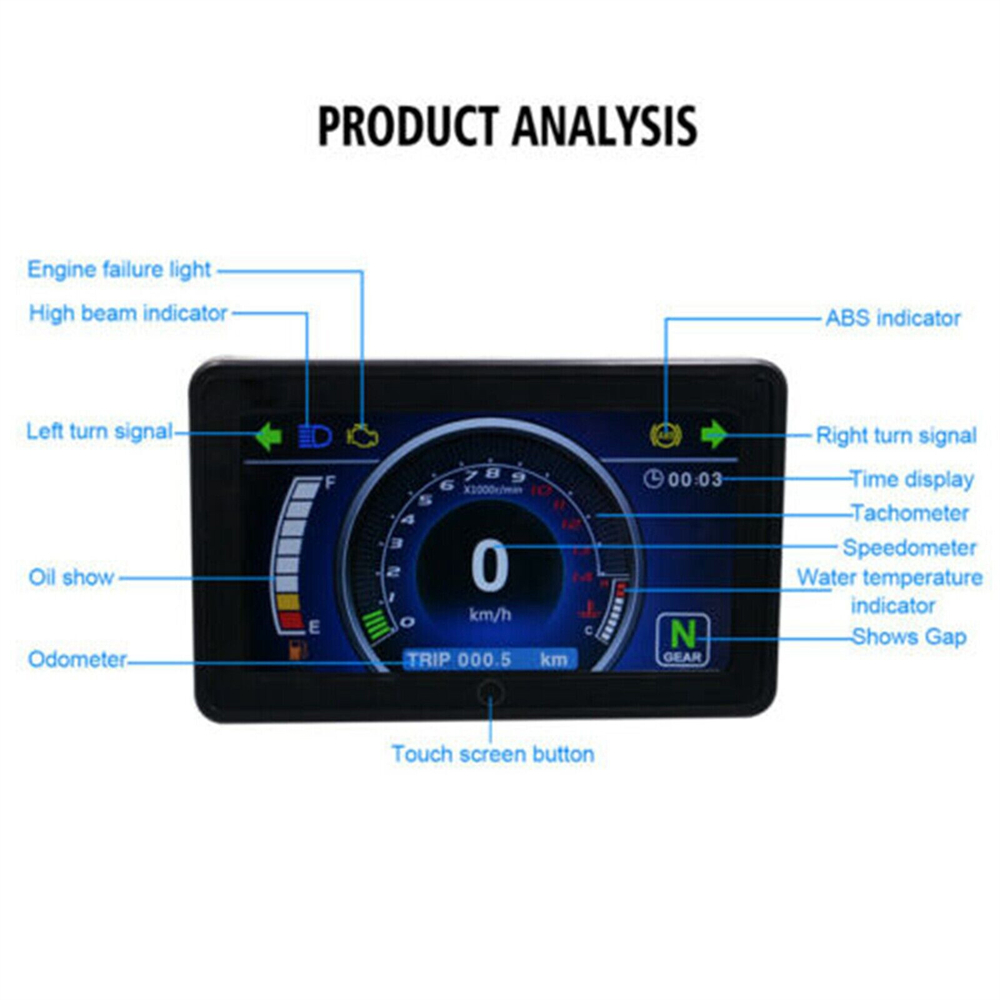

Speedometer: LCD display speed, 36.2Hz corresponds to 63km/h
Mileage: Total mileage ODO display range is 0-999999km
Mileage clear: Subtotal mileage is not saved and the boot display is
0. The total mileage is cleared: within 15 seconds of starting, one of
the left and right turns and the high beam are turned on and off more
than 7 times, and the total flashes 4 times and then becomes zero.
Tachometer: 166Hz corresponds to 10*1000r/min
Fuel: no driving damping time, from 8 squares to no grid for a total
of 10 seconds (no grid above 92 euros; 91-86 euros 1 grid; 8 grids
below 14 euros)
Water temperature: no driving damping time, from 8 squares to no
grid total 10 seconds (no grid above 156 euros; 1 grid flash at 27-17
euros; 8 grids below 17 euros)
The file is displayed: when there is no gear access, the gear position is not relevant. 1-6, N files are negative control
Button definition:
1 touch button:
[1] short press, total ODO and subtotal TRIP switching
[2] After 4 seconds after the normal display interface of the
power-on door, press the left button for 3 seconds in the ODO state, and
the metric KM is switched to the English MILE.
[3] After 4 seconds after the normal display interface of the
power-on door, when the total ODO interface is displayed, press and hold
for 3 seconds to enter the clock setting. The clock hour is displayed
in red, short press plus 1, long press for 3 seconds to switch to the
red display. Short press and add 1 and press and hold the button for 3
seconds to save and exit.
[4] In the subtotal TRIP interface, press and hold the button for 3 seconds, and the subtotal is cleared.
Multimedia: None
Clock: Yes, 24 hours, with battery, keep the timer in front of the clock
MCU version: V0-0-3
ARM version: C2-CY1985-A1-22-V003-190114
ARM update: Insert the USB flash drive into the instrument USB
interface, wait for 1-2 seconds to jump out of the firmware upgrade
interface, wait for 2 seconds after the progress bar goes to the head,
turn off the power, unplug the USB flash drive, and then turn on the
power supply to start normally, indicating that the update is
successful.

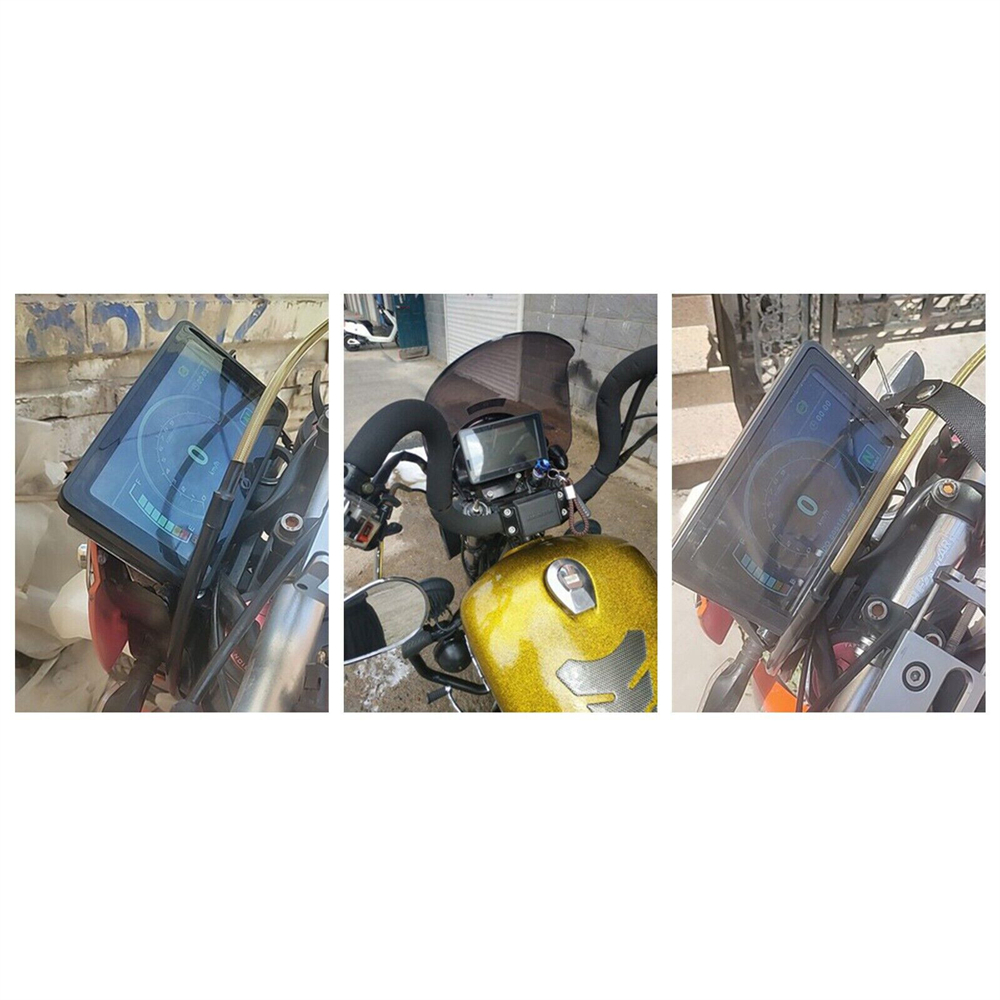

Scope of use: tire size is installed on a 17 or 18 inch motorcycle
Product advantages:
[1] high quality ABS material, exquisite and smooth,
[2]Safety and environmental protection
[3] Full LCD display, even if driving at night, all situations are clearly visible
[4] The product has good sealing performance and high water resistance, and is not affected by the weather.
[5] The product has a touch button, which is convenient for switching adjustment functions.
