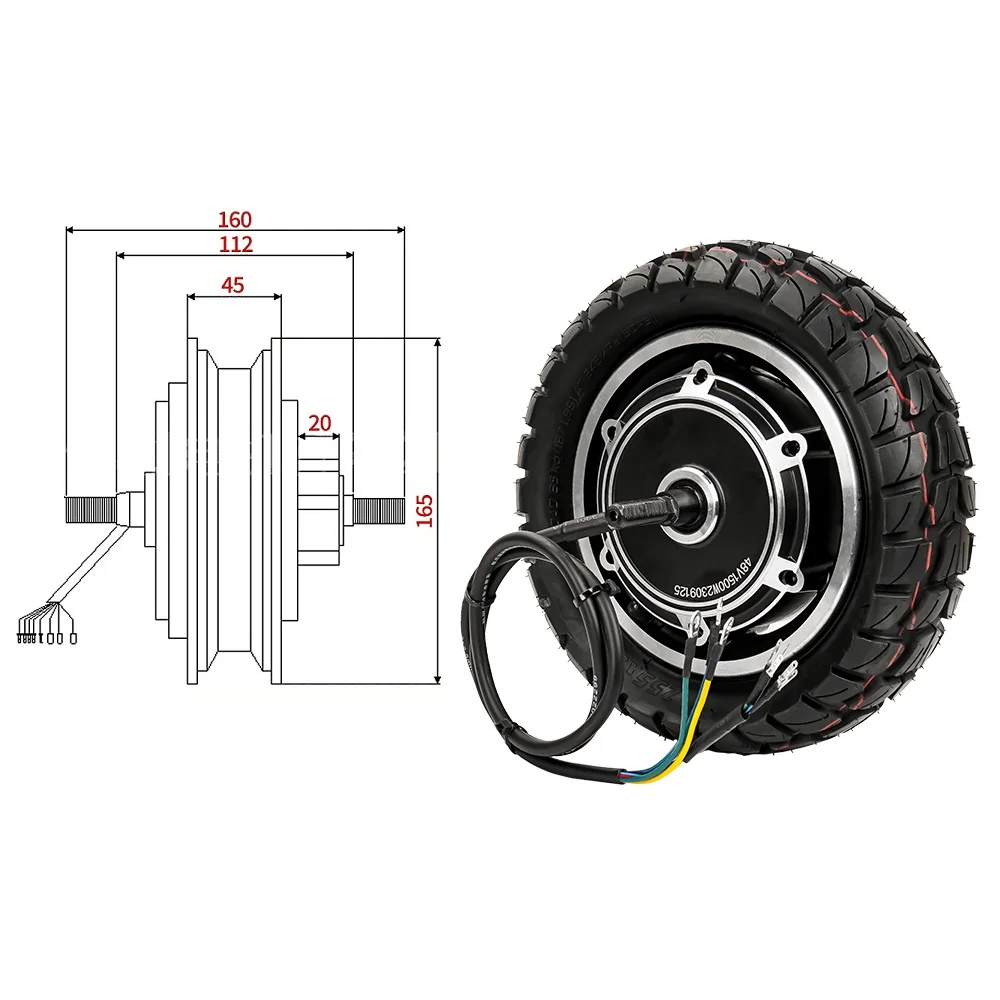

Motor model: 10 inch

Rated Current: 48V

Power: 1000W

Pole: 15

Shaft length: 160MM

Applicable models: 10-inch scooter

Tyre Size: 80/65-6

Open Size: 112MM

Width: 45MM



1* 10 inch Hub motor

1* Front wheel

2 Set Tire( include the inner tube)

1* Controller

1* Accelerate instrument

1 Pair Brake lever

2* Disc brake set

2* Brake line

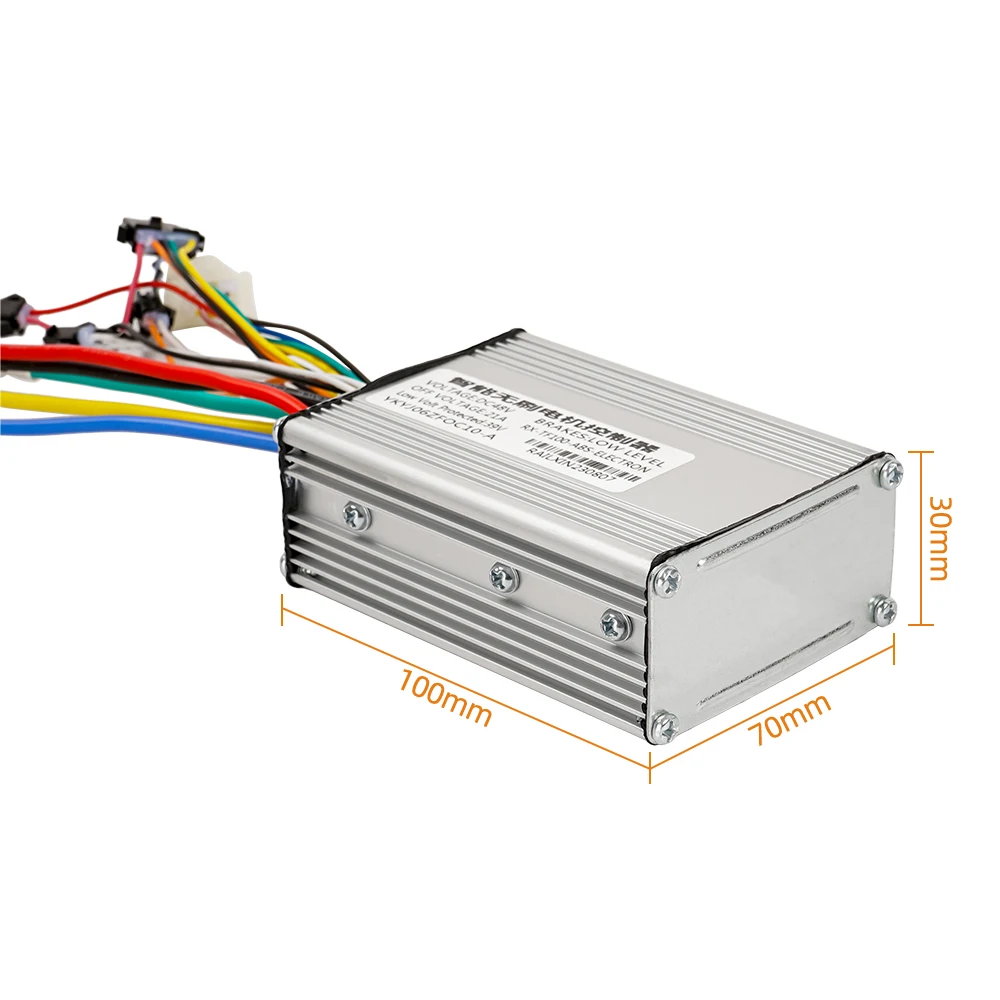

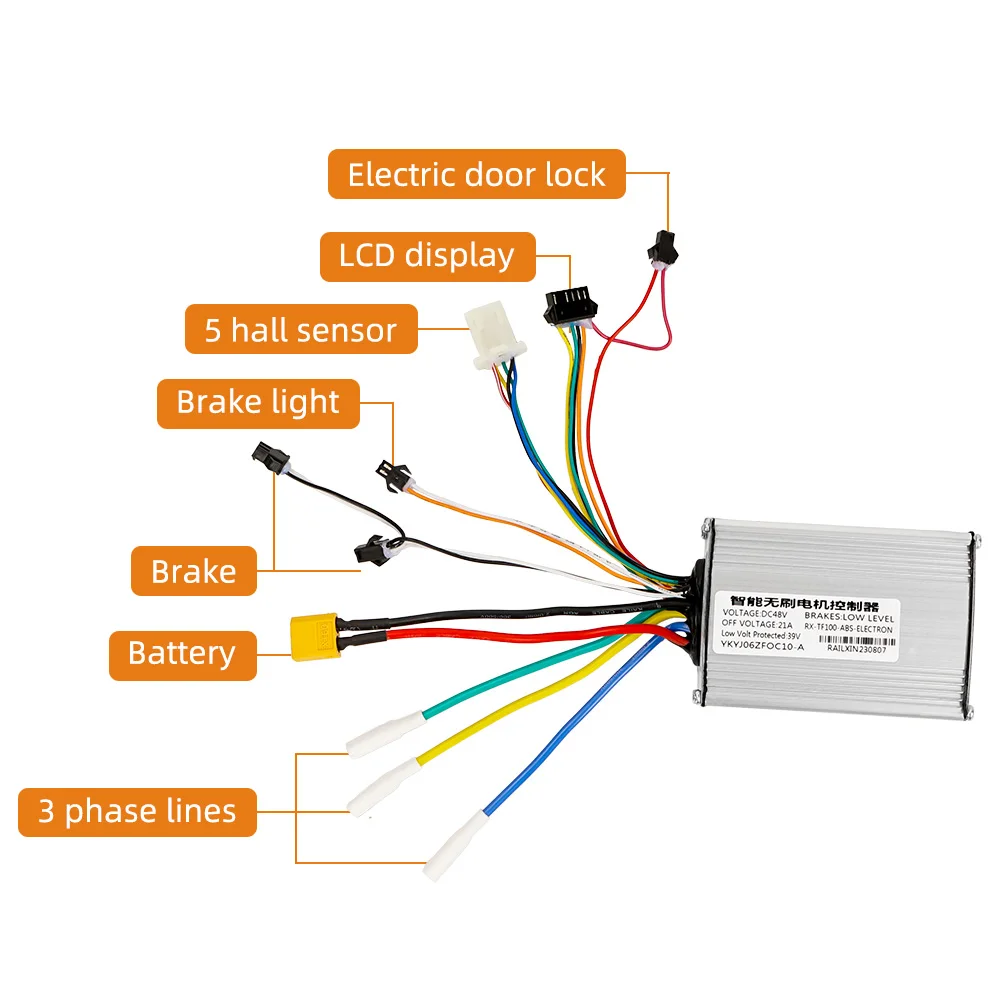

The controller lines:

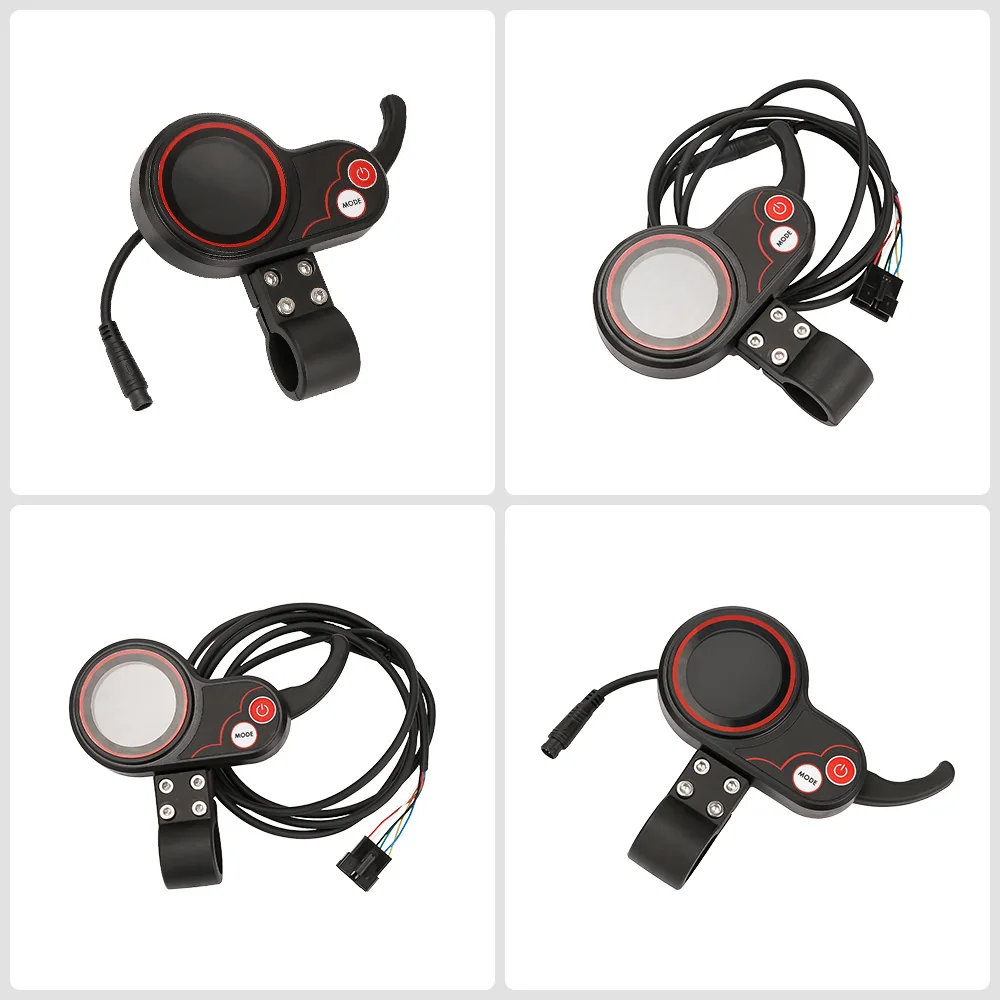

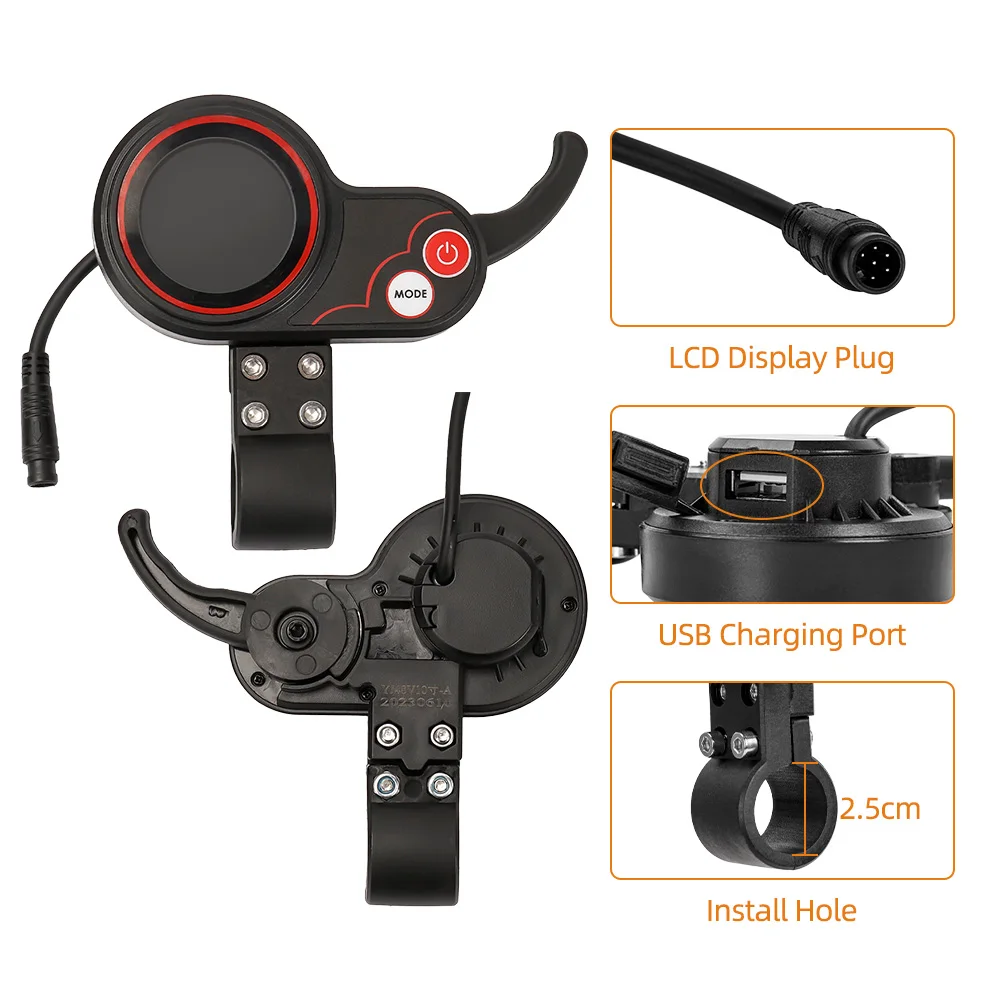

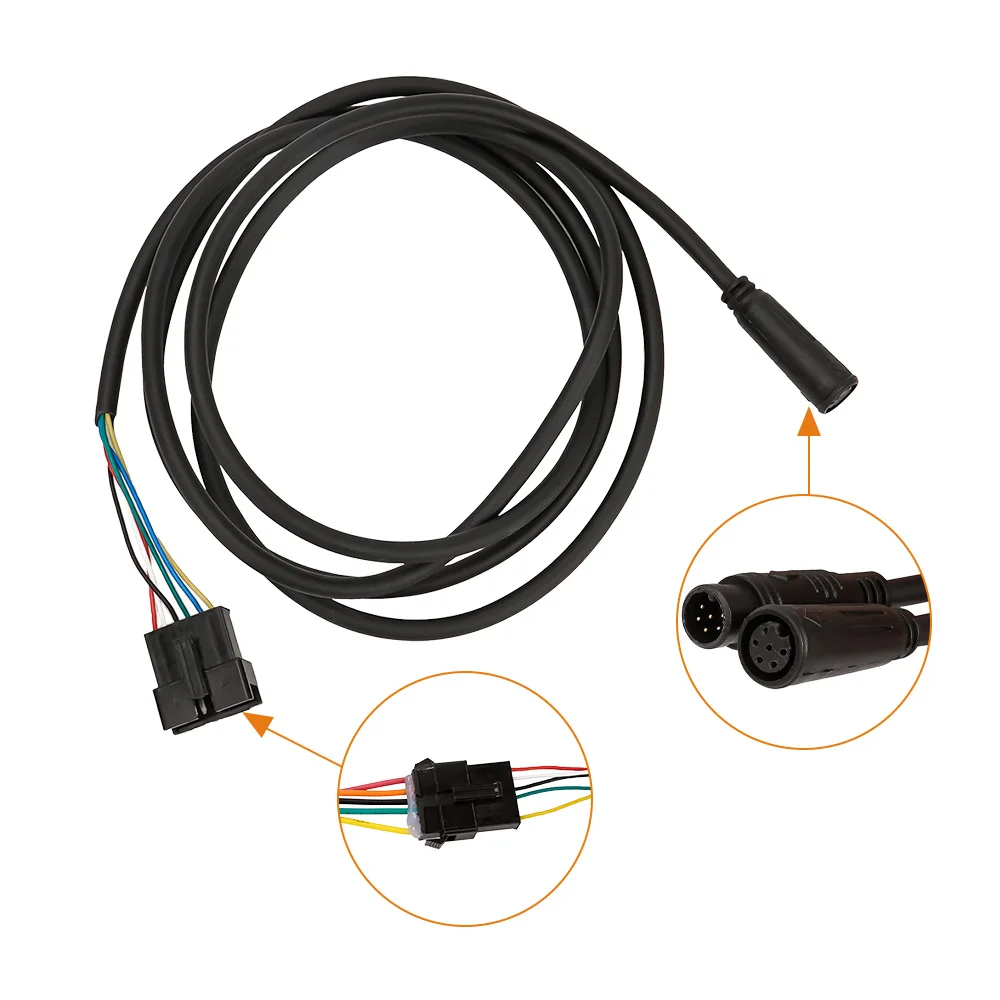

LCD display wiring:

1. Red wire (D+): power supply positive input

2. Black wire (GND): negative pole of power supply

3. Blue line (DS): Controller electric door lock

4. Green wire (RX): communication reception

5. White line (TX): communication transmission

Display function:

Speed display, battery indicator, fault indicator, headlight indicator, cruise indicator, gear indicator, total mileage, single mileage

Real-time voltage, running current, running time, start mode

Parameter setting and definition:

P01: Backlight brightness, level 1 is the darkest, level 3 is the brightest;

P02: Mileage unit, 0: KM; 1: MILE;

P03: Voltage level: 24V, 36V, 48V, default 36V;

P04: Sleep time: 0, no sleep; other numbers are sleep time, range: 1-60; unit minute;

P05: Power-assisted drive gear setting

P06: Wheel diameter: unit, inch; precision: 0.1;

P07: Number of speed magnets: range: 1-100;

P08: Speed limit, the maximum operating speed of the motor

P09: Zero start, non-zero start setting, 0: zero start; 1: non-zero start;

P10: Drive mode setting 0 Power-assisted drive 1 Electric drive 2 Power-assisted drive Electric drive coexistence

P11: Assist sensitivity setting 1-24

P12: Starting torque: range: 0-5, 0 is the weakest, 5 is the strongest;

P13: Magnet type setting of booster plate 5 8 12

P14: Controller current limit value setting Default 12A range: 1-20A; (requires controller software support)

P15: Motor drive signal percentage setting (to achieve the speed limit function of PO8) full speed is set to 100

P16: Instrument real-time cruise function 1 With this function 0 Without this function

P17: Headlight synchronization function 1 Headlights and backlight do not light up after turning on 0 Headlights and backlight light up after turning on

P18: Power-on password selection function 1 With this function 0 Without this function

P99: One-key recovery function (in the P99 parameter setting interface, press and hold the MODE key for 5-6 seconds, and all parameters will be restored to the first

Initial settings for the second boot)

ODO: ODO clear (in the ODO parameter setting interface, first short press the MODE button and then long press for 5M-6 seconds until the number is zero, release
