Item Description
Features:

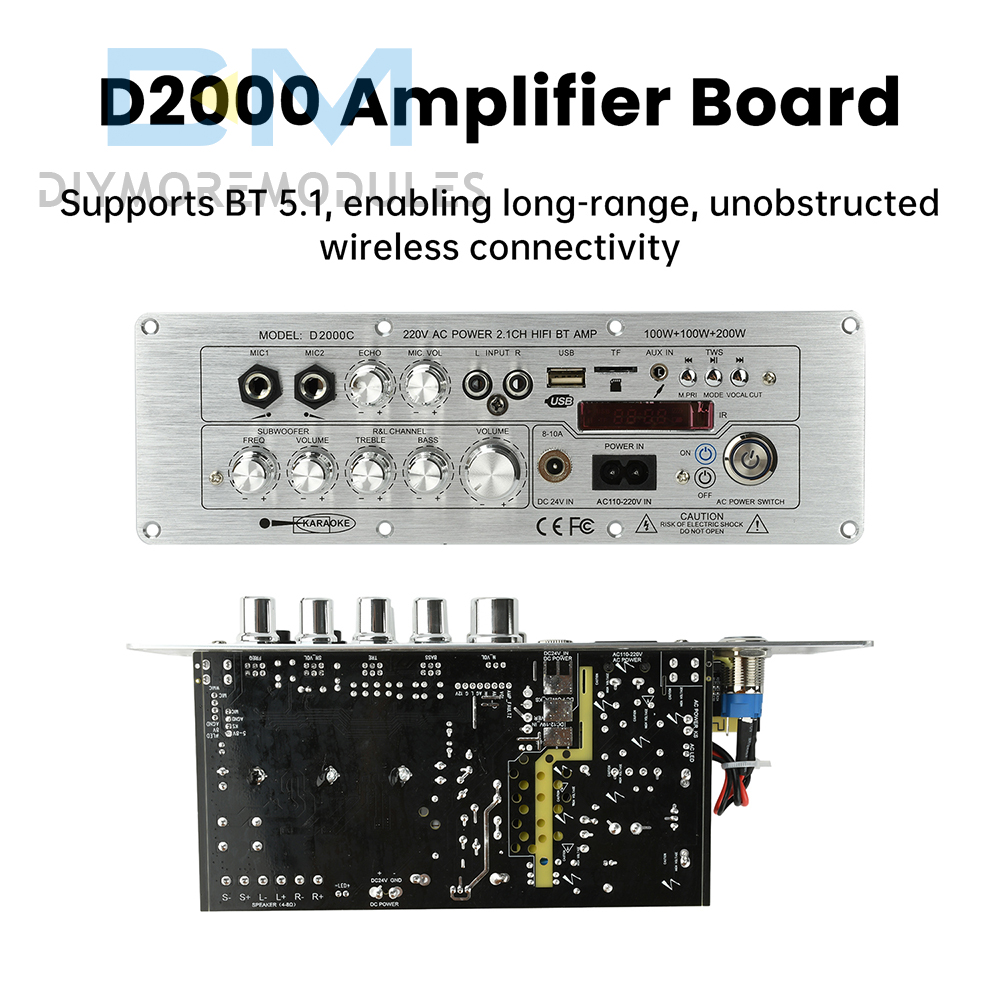

1. Supports Bluetooth 5.1 for long-range wireless connectivity without obstructions

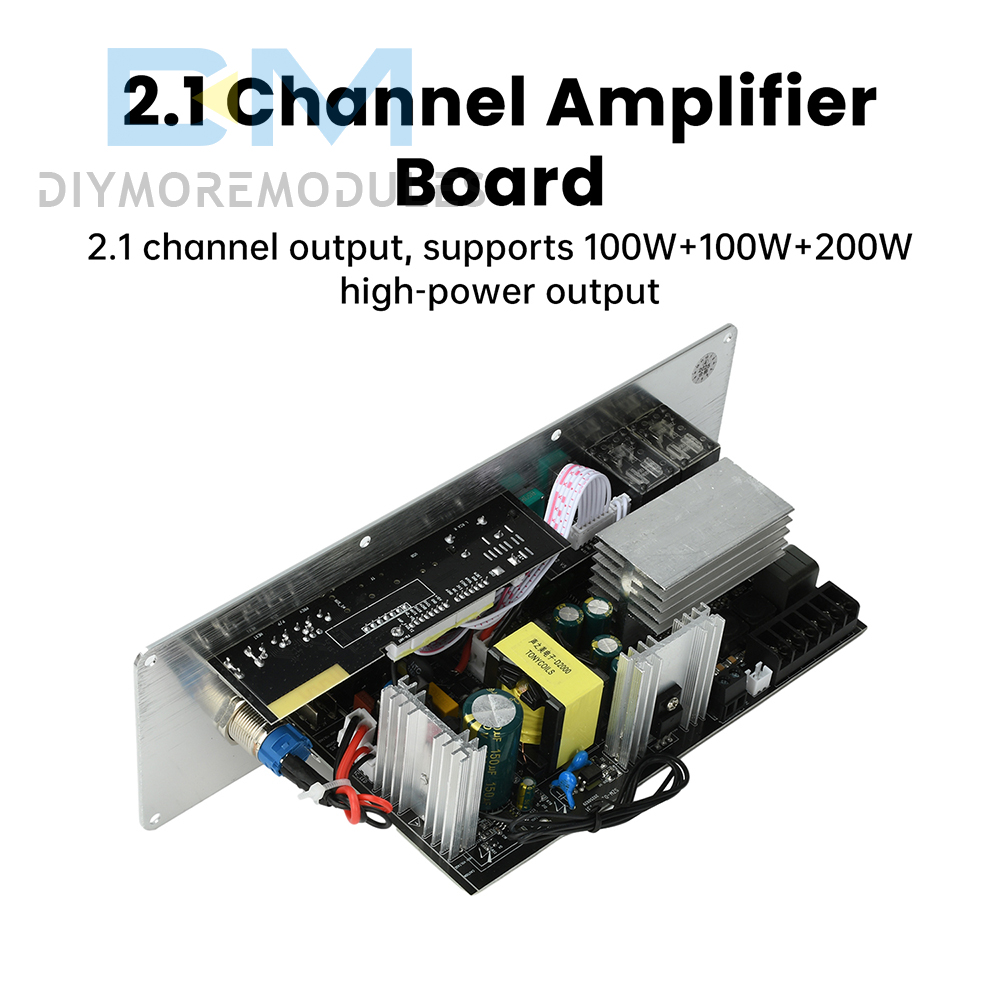

2. 2.1-channel output with 100W+100W+200W high-power capability

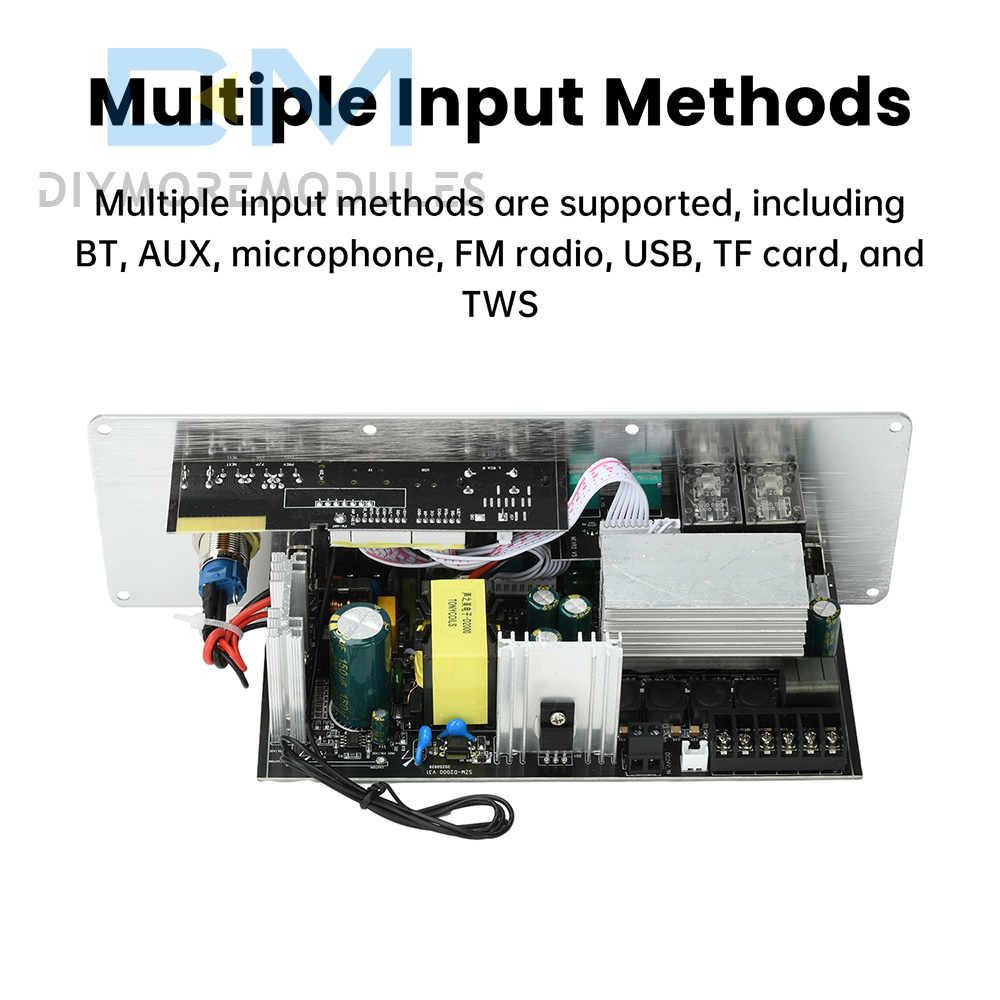

3. Multiple input options: Bluetooth + AUX + Microphone + FM + USB + TF card + TWS

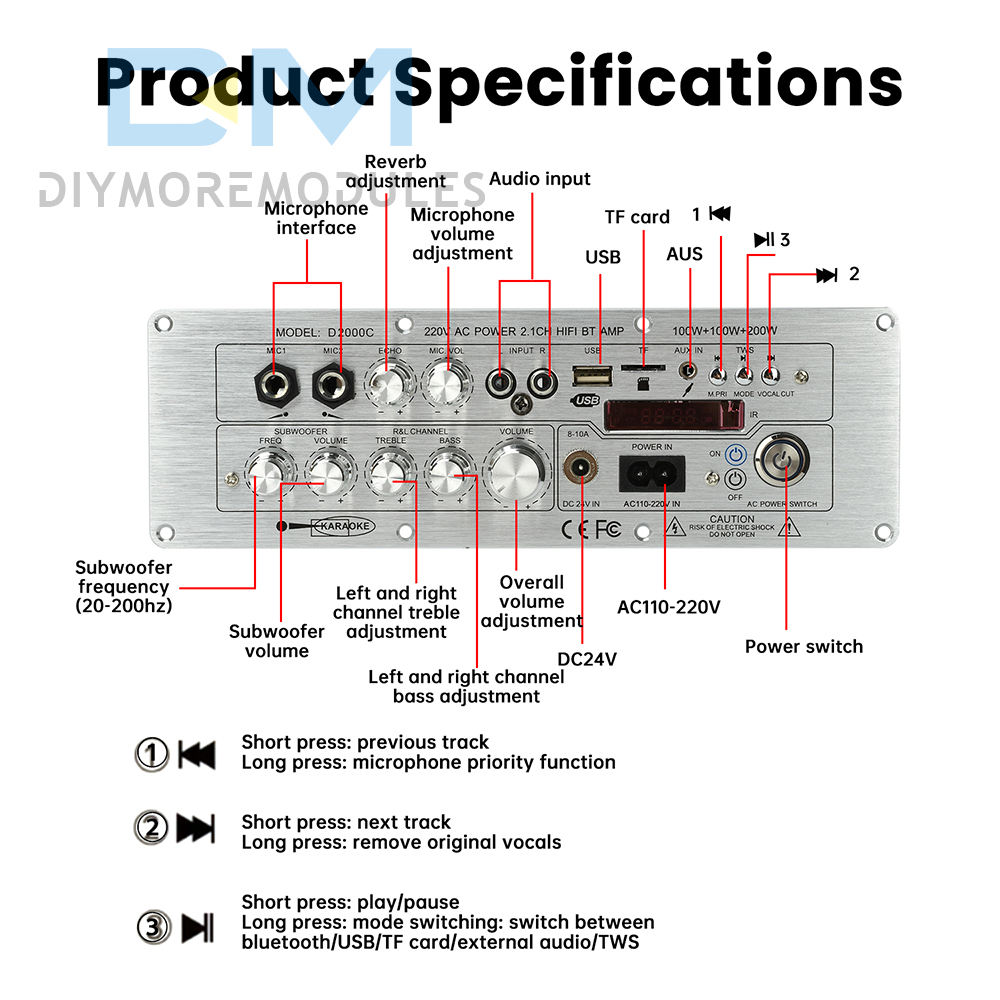

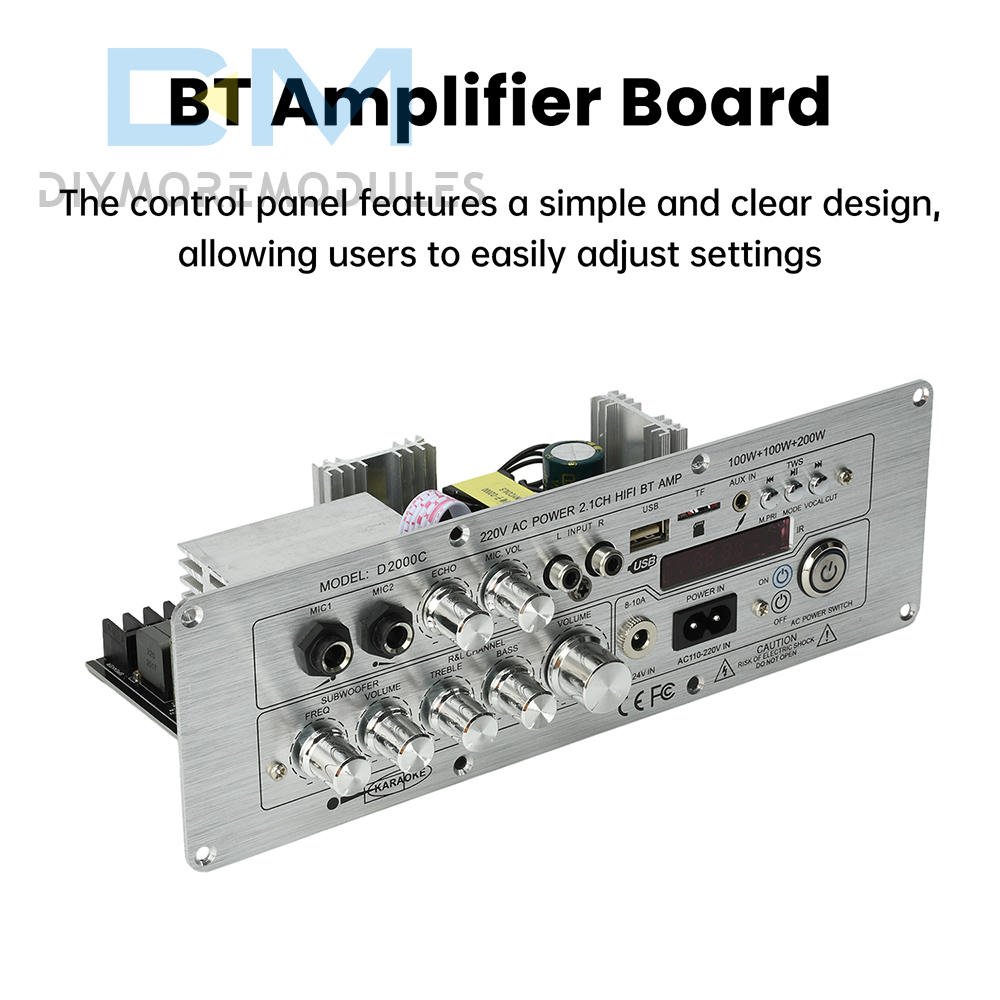

4. Intuitive control panel design for effortless settings adjustment

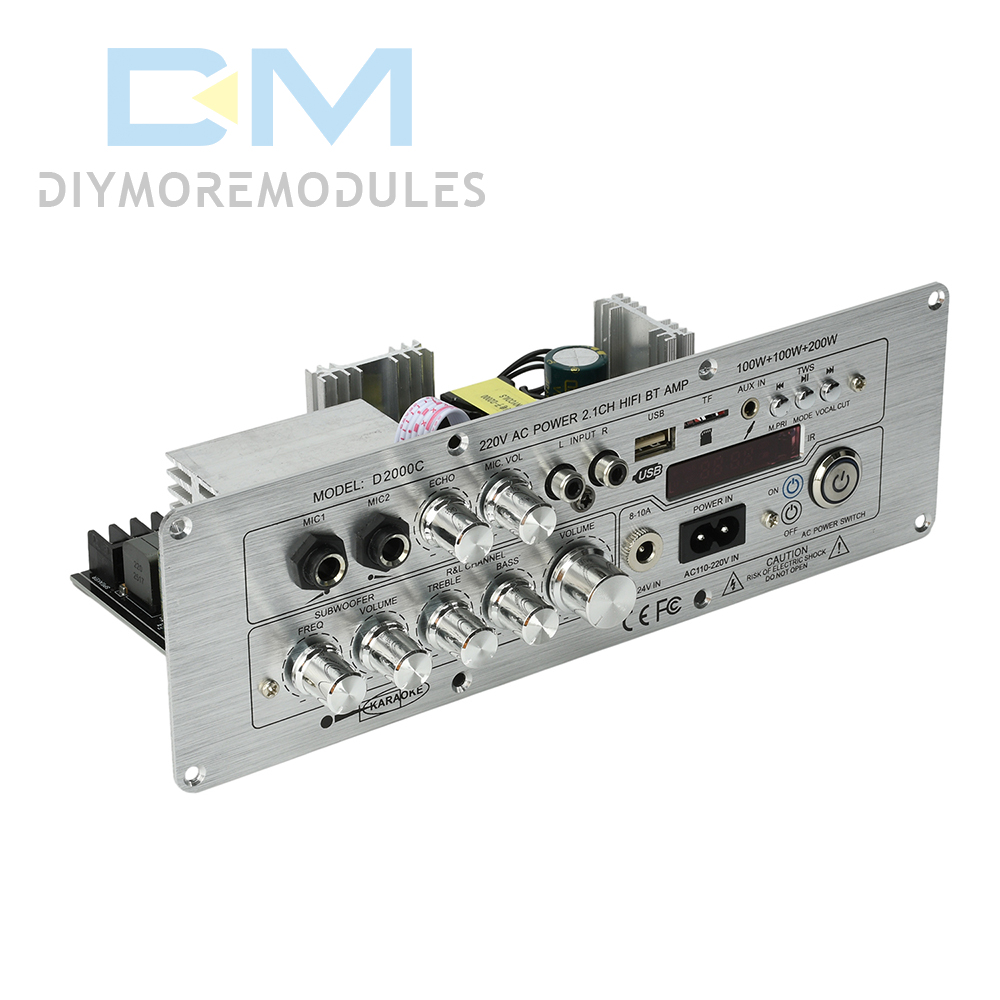

5. Brushed metal panel with vibrant finish and smooth, comfortable texture
1. Supports Bluetooth 5.1 for long-range wireless connectivity without obstructions
2. 2.1-channel output with 100W+100W+200W high-power capability
3. Multiple input options: Bluetooth + AUX + Microphone + FM + USB + TF card + TWS
4. Intuitive control panel design for effortless settings adjustment
5. Brushed metal panel with vibrant finish and smooth, comfortable texture
Specifications:

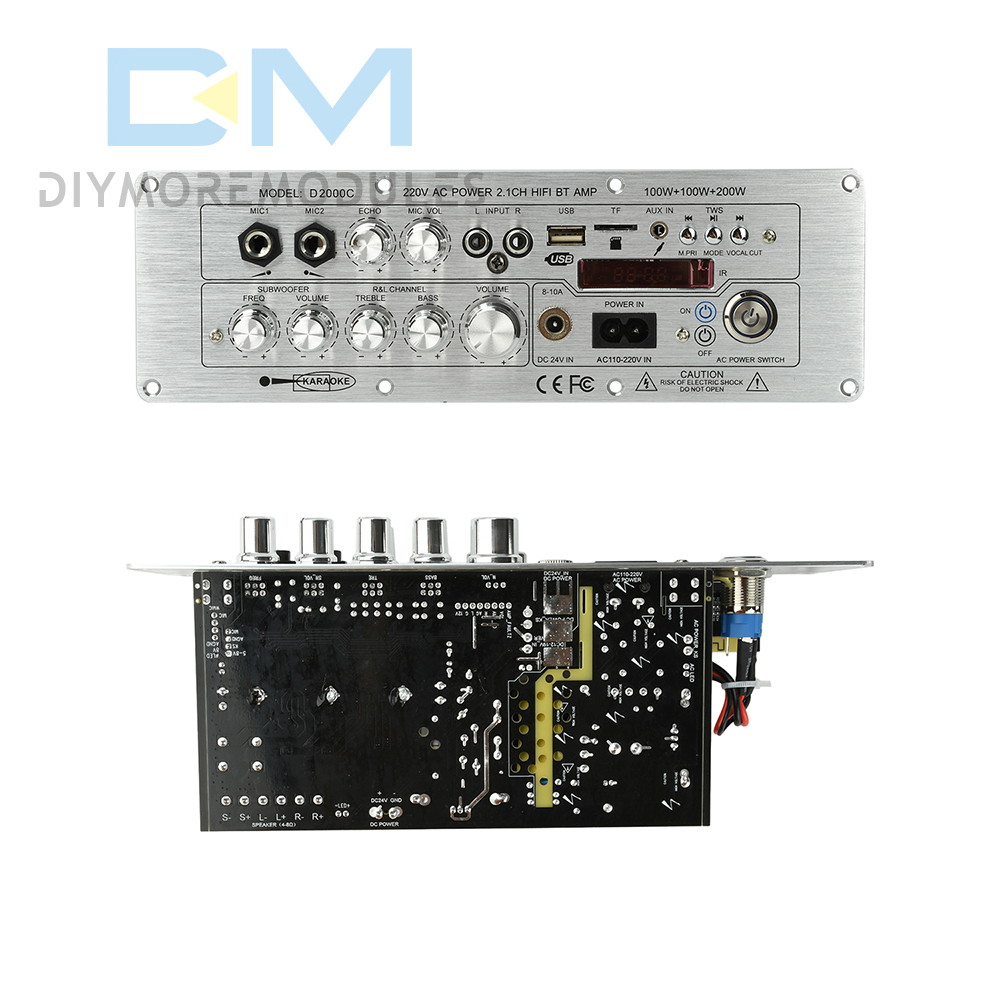

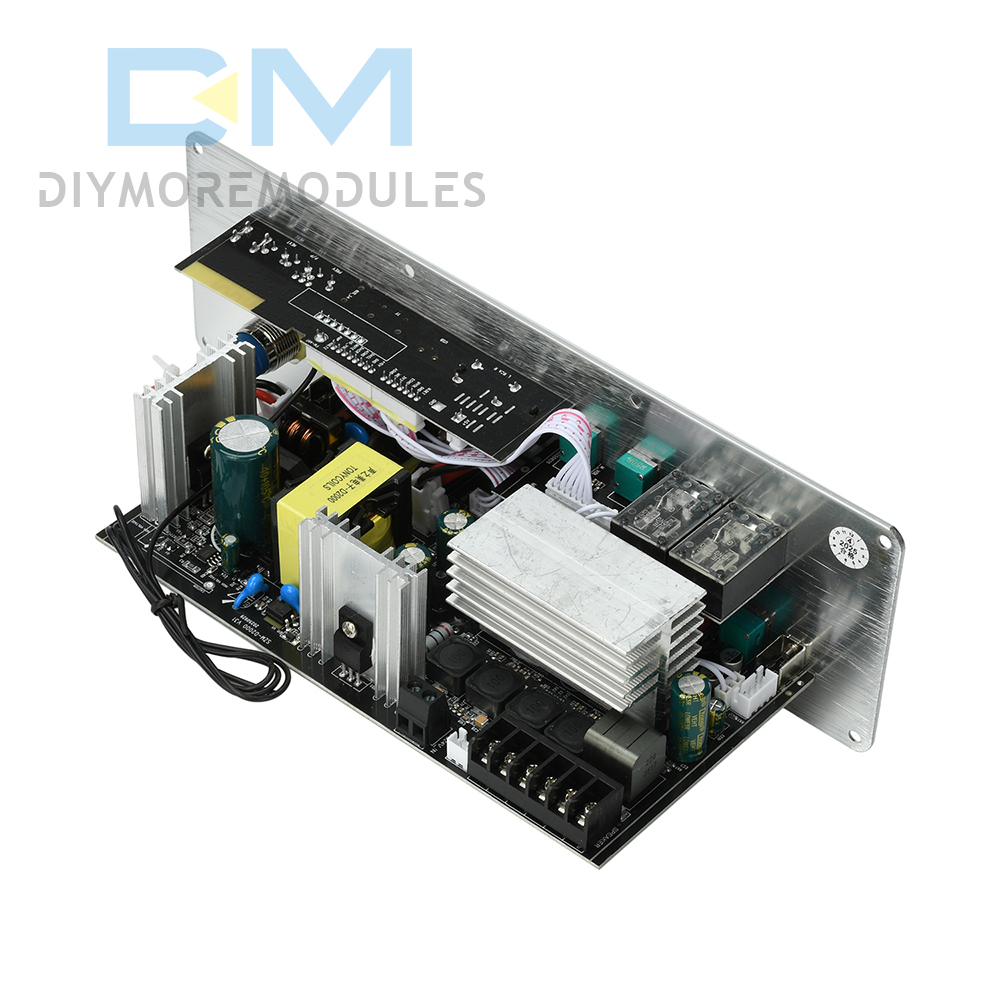

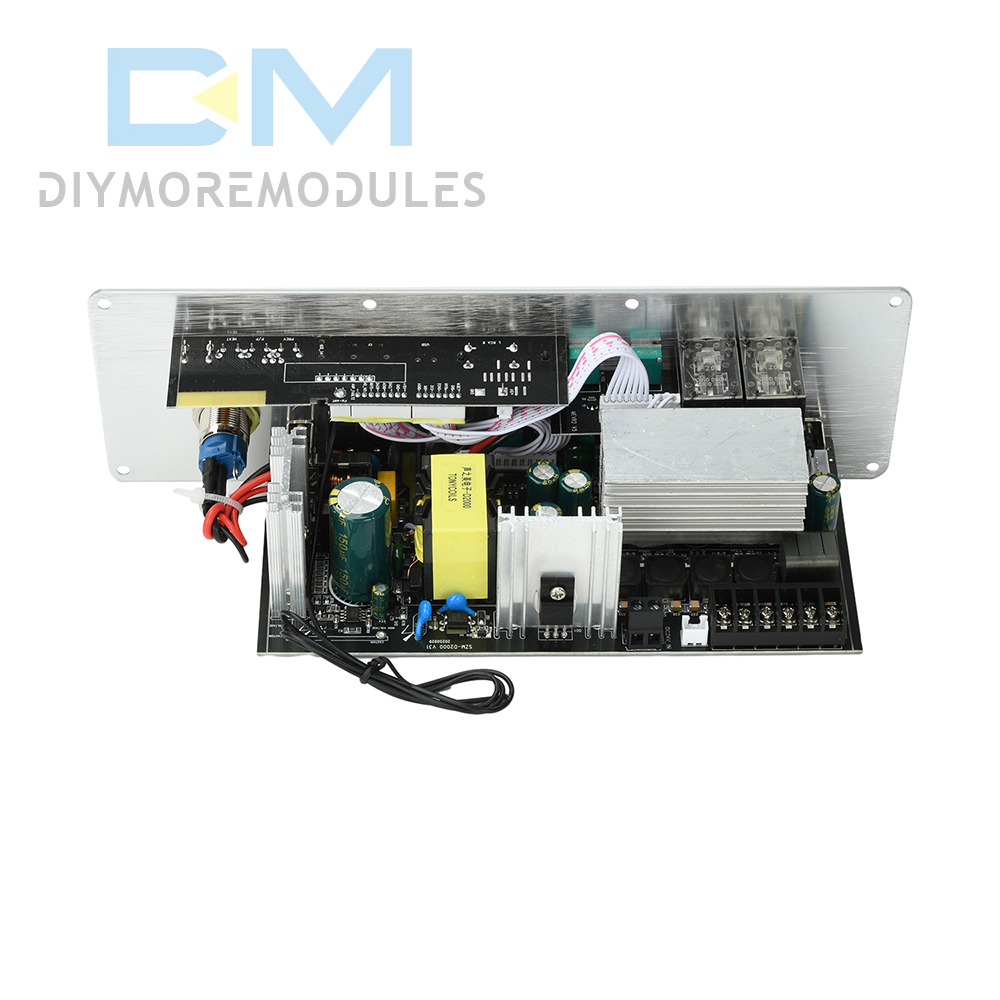

Product Name: 2.1-Channel Bluetooth Amplifier Board
Model Number: D2000
Bluetooth Version: 5.1 (unobstructed, 10m range)
Input Sensitivity: 500mV
Inputs: Bluetooth + AUX + Microphone + FM + USB + TF Card + TWS
Channels: 2.1-channel
Amplifier Chip: TPA3221
Power Supply: DC 24V/5A or higher, AC 110-220V (higher voltage yields greater output power)
Compatible Speakers: 20-200W, 4-8Ω
Output Power: Left/Right Channels ≤100W, Subwoofer ≤200W

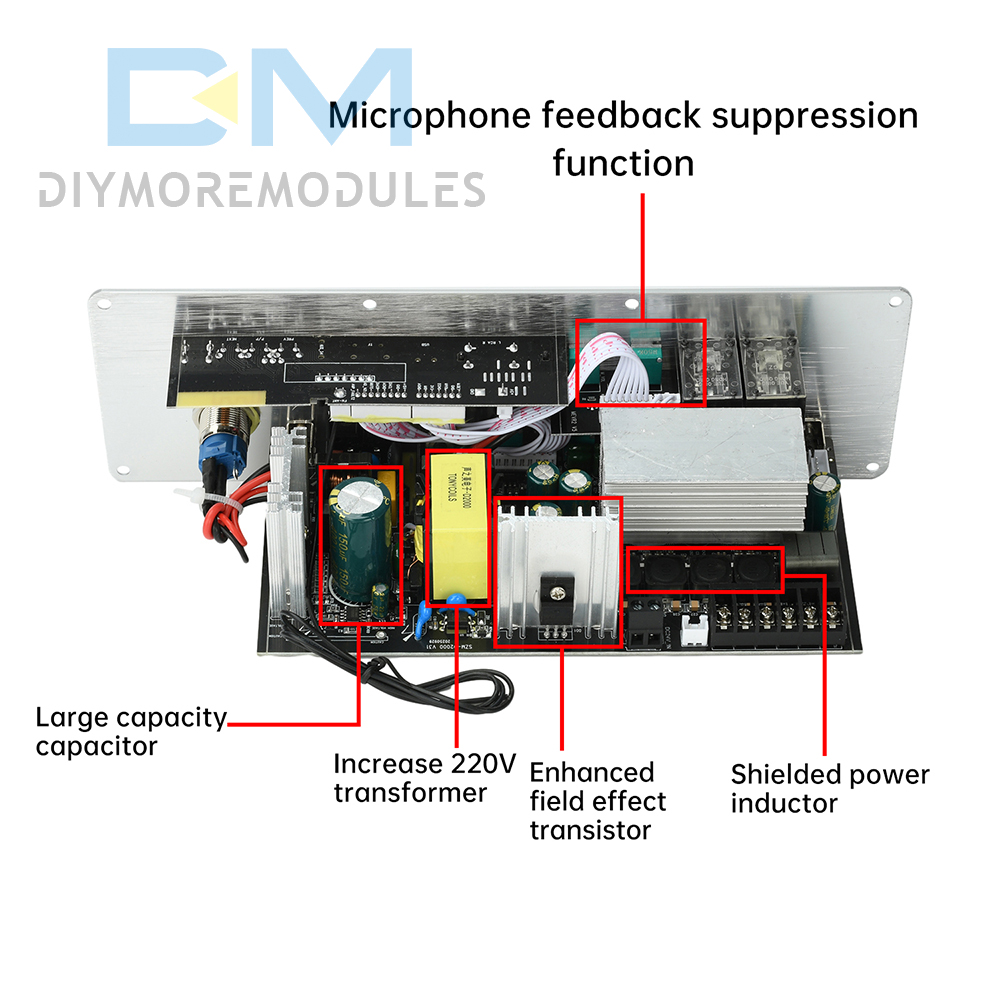

Protection Mechanisms: Overvoltage, Undervoltage, Overheat Detection (AC/DC), Short Circuit Protection
Heatsink Dimensions: 60*32*42mm
Product Dimensions: 250*80*85mm
Product Name: 2.1-Channel Bluetooth Amplifier Board
Model Number: D2000
Bluetooth Version: 5.1 (unobstructed, 10m range)
Input Sensitivity: 500mV
Inputs: Bluetooth + AUX + Microphone + FM + USB + TF Card + TWS
Channels: 2.1-channel
Amplifier Chip: TPA3221
Power Supply: DC 24V/5A or higher, AC 110-220V (higher voltage yields greater output power)
Compatible Speakers: 20-200W, 4-8Ω
Output Power: Left/Right Channels ≤100W, Subwoofer ≤200W
Protection Mechanisms: Overvoltage, Undervoltage, Overheat Detection (AC/DC), Short Circuit Protection
Heatsink Dimensions: 60*32*42mm
Product Dimensions: 250*80*85mm
Notes:
● Sufficient output power is only achievable when audio input is adequate and power supply voltage/current is effective!
● Higher power supply voltage yields greater output power, while lower speaker impedance also increases output power. Ensure your power supply's rated power exceeds the amplifier's actual operating power.
● Sufficient output power is only achievable when audio input is adequate and power supply voltage/current is effective!
● Higher power supply voltage yields greater output power, while lower speaker impedance also increases output power. Ensure your power supply's rated power exceeds the amplifier's actual operating power.

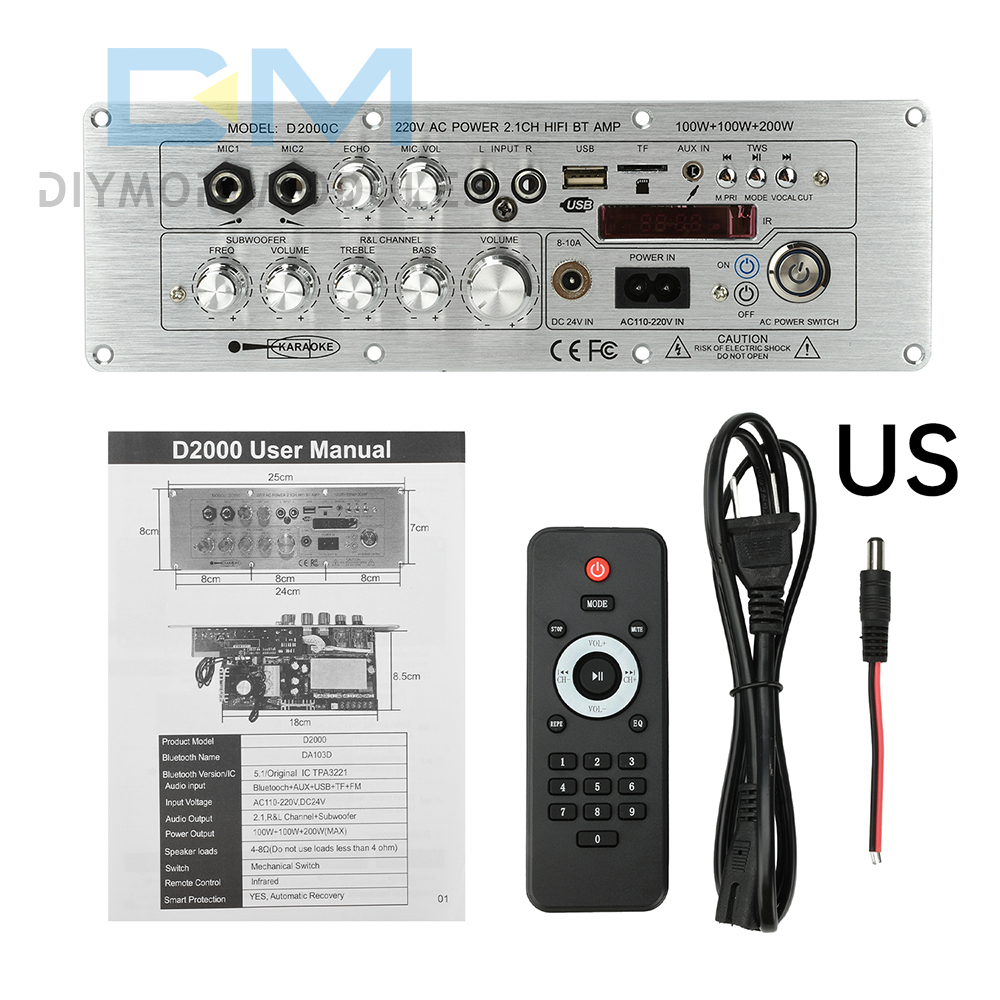

Product List:
1X Amplifier Board
1X Remote Control
1X DC Cable
1X Connection Cable
1X Amplifier Board
1X Remote Control
1X DC Cable
1X Connection Cable
