| Make | Model | Year | Liter |
| Chevrolet | Malibu Limited | 2016 | 2.5L |
| Cadillac | XTS | 2014-2019 | 3.6L |
| Buick | Regal | 2014-2017 | 2.0TL |
| Buick | LaCrosse | 2010-2011 | 3.6L |
| Chevrolet | Malibu | 2014-2015 | 2.5L |
| Buick | Regal | 2015-2017 | 2.4L |
| Chevrolet | Malibu | 2014-2015 | 2.0TL |
| Buick | LaCrosse | 2010 | 3.0L |
Product Overview
The fuel pump assembly is a critical component of the automotive fuel injection system, primarily composed of the fuel supply pipe, return pipe, electric pump, reservoir cup, fuel level sensor, and mounting bracket. It operates by using an electric motor to drive the internal impeller, creating pressure that draws fuel from the tank and delivers it to the engine combustion chamber.
Most modern vehicles utilize vane-type electric fuel pumps, which are known for high flow rates, stable and high-pressure output, low noise, and extended service life. This design relies on an electric motor to drive turbine blades, using centrifugal force to draw fuel in through the inlet and discharge it through the outlet.
Replacement Interval
The general service life of a fuel pump is 5 years or 100,000 kilometers (approximately 60,000 miles).
Key Features
Quiet Operation: Operating noise is as low as 48dB, ensuring a quieter and more comfortable driving experience.
Accurate Fuel Level: Integrated fuel level sensor provides precise resistance values for accurate fuel gauge readings.
Sufficient Fuel Supply: Delivers a stable and ample fuel flow under various pressures to meet the engine's demands under all operating conditions.
Long Service Life: High-quality internal components and robust design minimize wear. After 3500 hours of endurance testing, the flow rate衰减 is less than 15%.
Multi-Fuel Compatibility: Capable of stable operation with different fuel types (such as gasoline and diesel), providing the required pressure and flow for the fuel system.
High Energy Efficiency: Features a high electromagnetic compatibility rating (Class 3) and low current consumption during operation, contributing to overall vehicle energy efficiency.

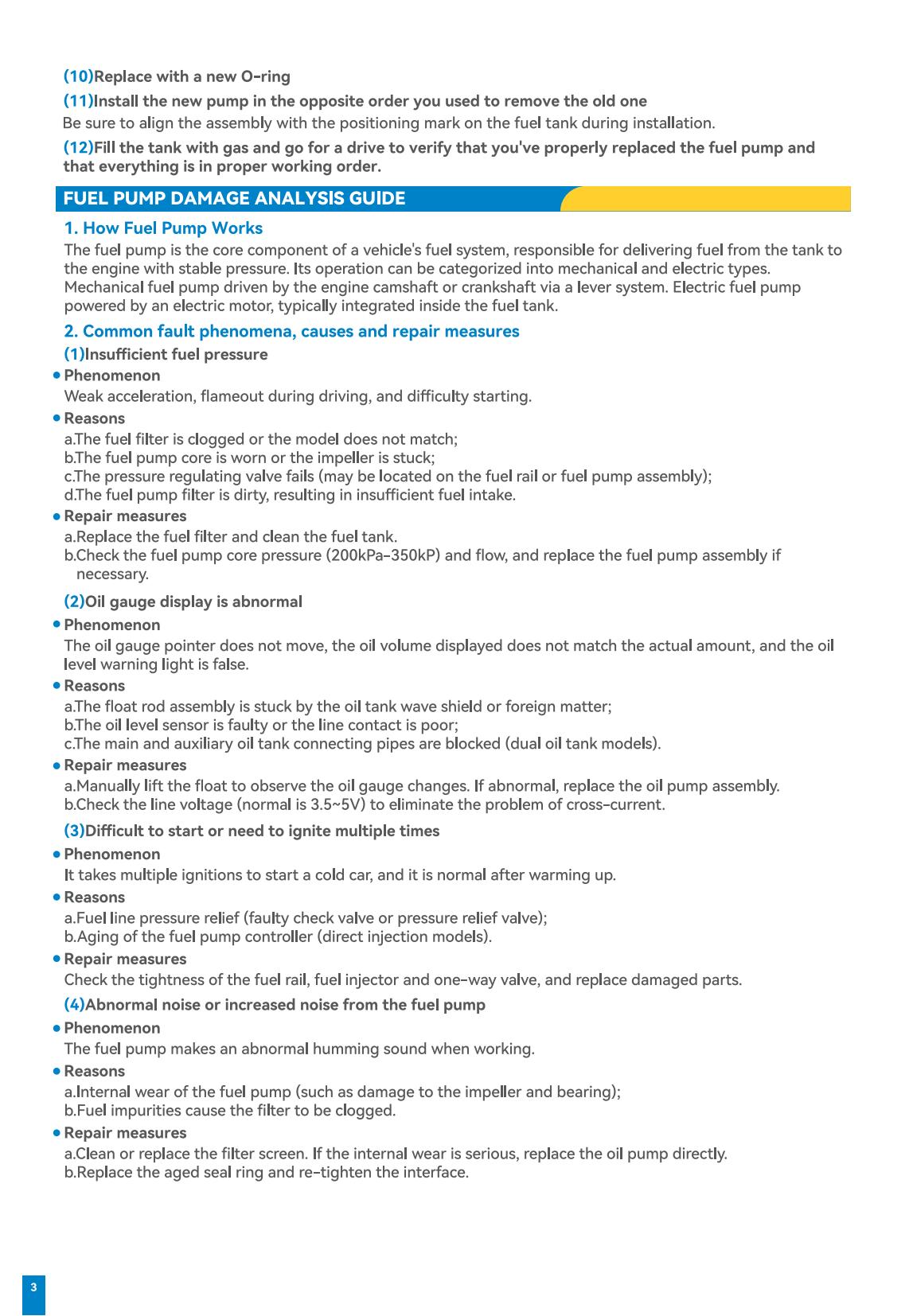

Common Fuel Pump Failure Diagnosis & Solutions
1. Fuel Pump Relay or Fuse Issues
Symptoms: Engine cranks but won't start, no noise from the fuel pump when ignition is on.
Cause: Relay or fuse may fail due to aging or excessive current draw.
Solution: Inspect the fuel pump relay and associated fuses. Replace if blown, corroded, or faulty.
2. Internal Wear or Damage
Symptoms: Engine sputters at high speeds, loss of power, surging, or overall poor performance.
Cause: Internal components (motor, bearings) wear out over time, often exacerbated by a clogged fuel filter or strainer, forcing the pump to work harder.
Solution: Inspect the fuel pump assembly and fuel system for blockages. Replace the fuel pump assembly if internal damage is found. Regular maintenance of fuel filters is crucial.
3. Electrical Connection Problems
Symptoms: Intermittent stalling or failure to start, especially during temperature changes.
Cause: Loose, corroded, or damaged wiring connectors at the fuel pump or harness side. Temperature changes cause expansion and contraction, worsening poor connections.
Solution: Check all wiring connections related to the fuel pump. Ensure they are secure and free from corrosion. Clean or repair any damaged connectors as needed.
