Specifications:

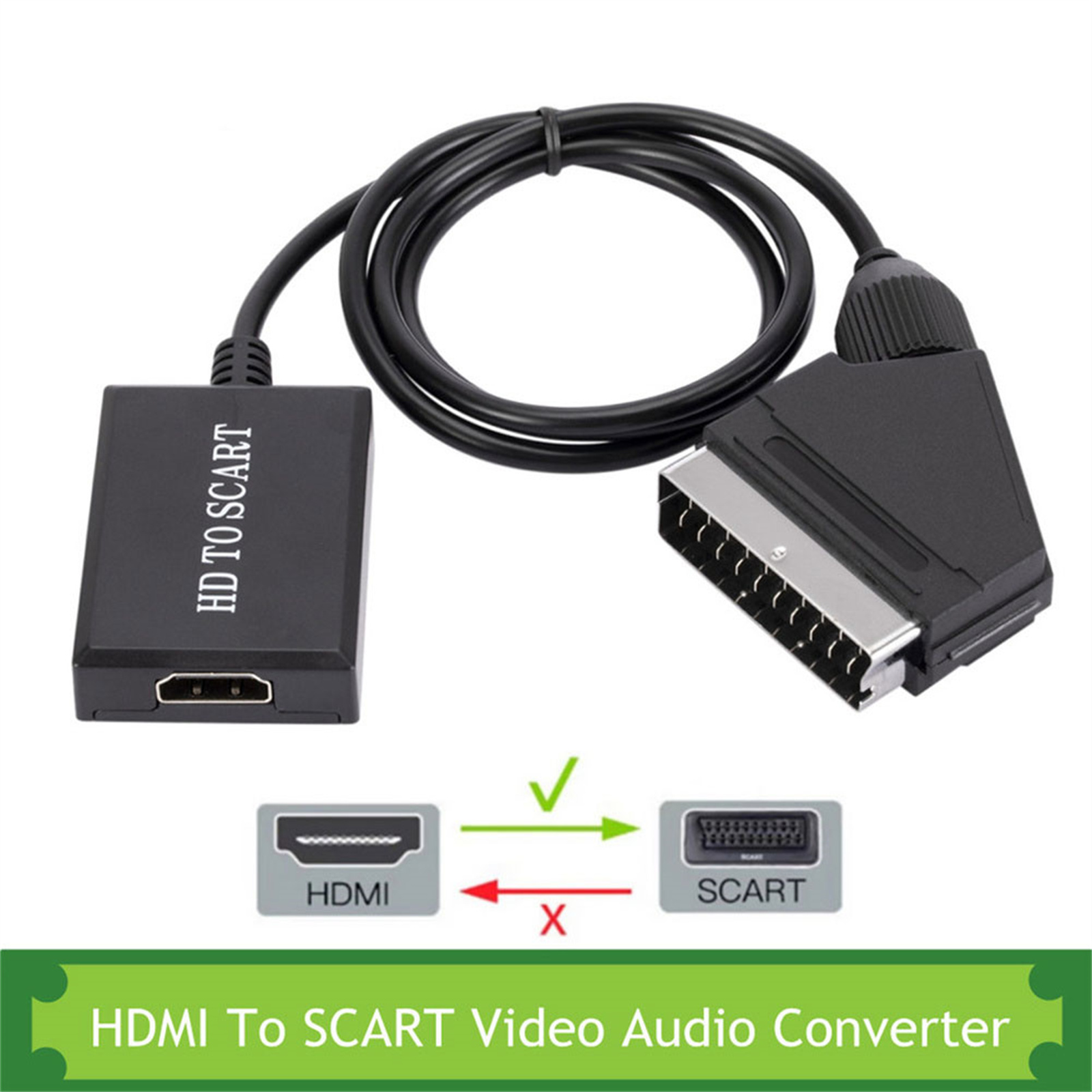

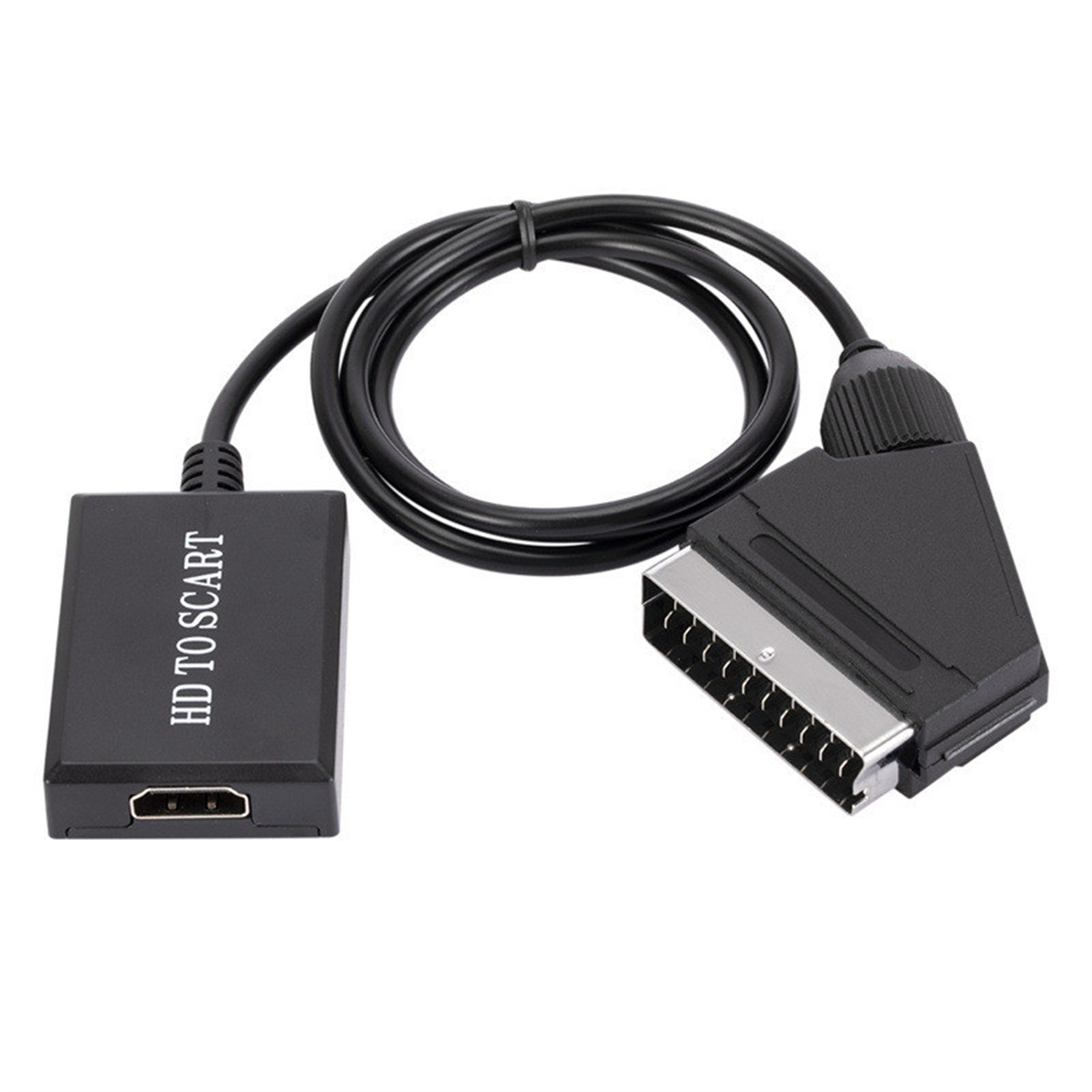

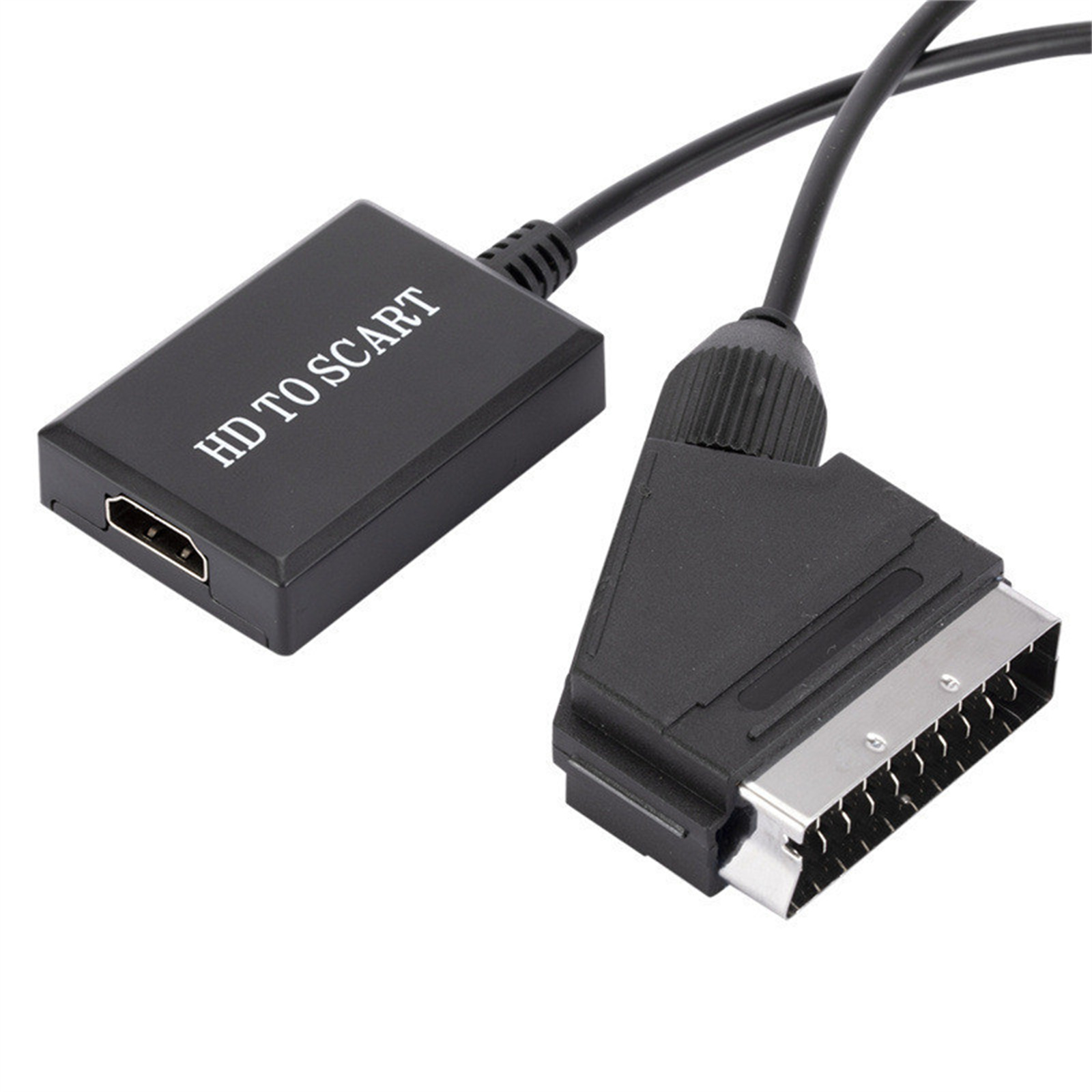

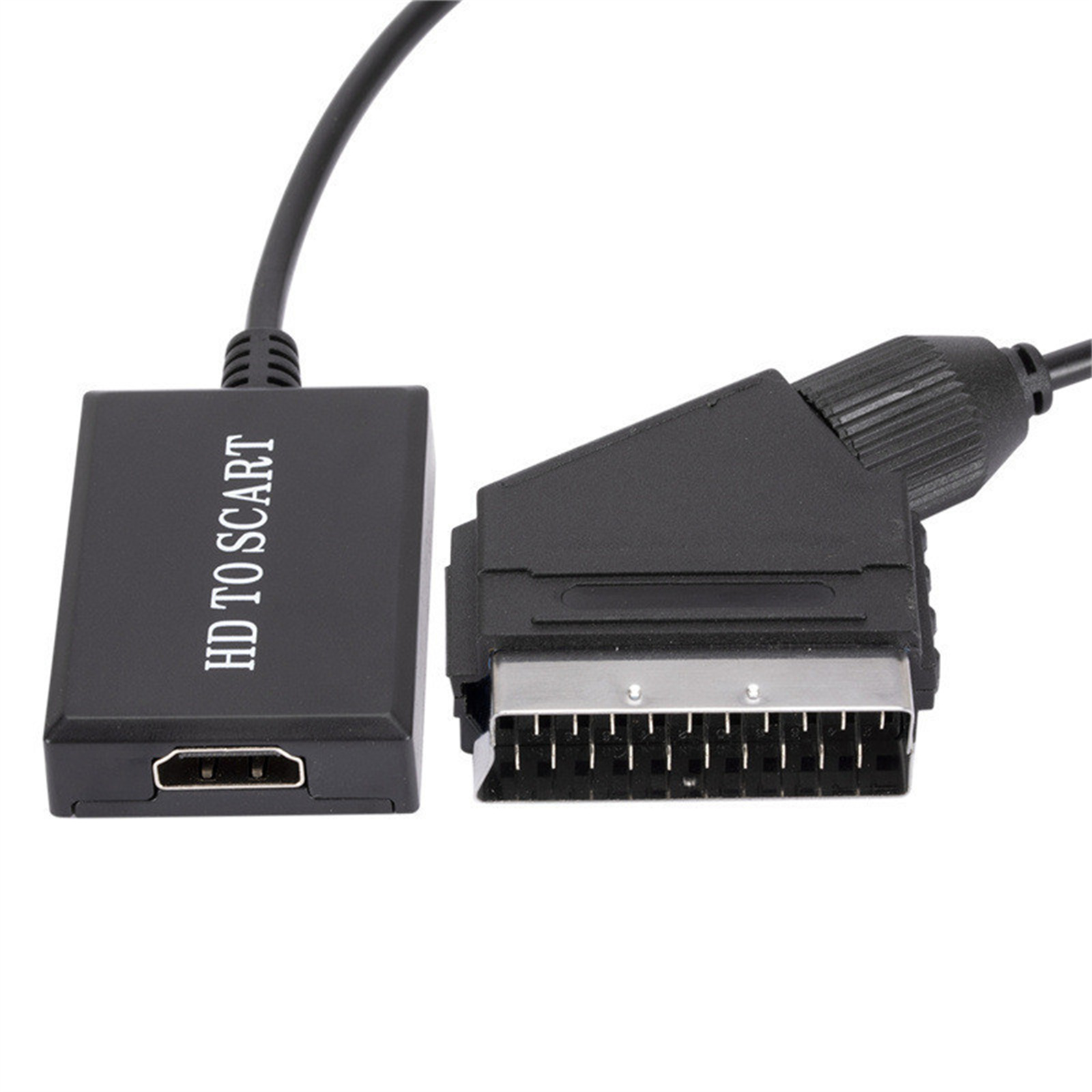

Name: HDMI to SCART converter
Input: HDMI
Output: SCART

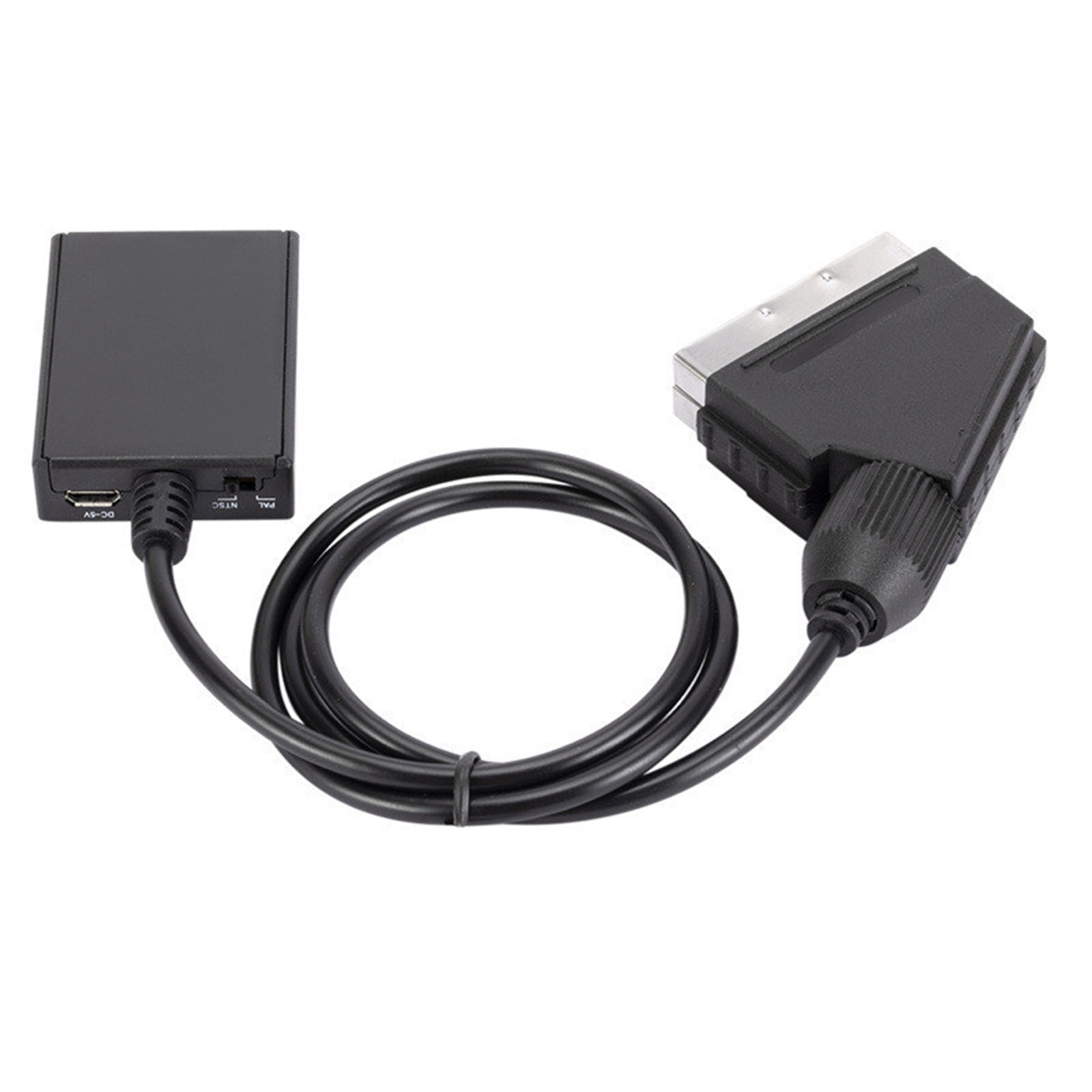

Switch: PAL/NTSC
Shell: ABS
HD input output resolution: Supports up to 1080P 60HZ
HD supports video color formats: 24 bit/ dark 30 bit/ 36 bit
HD transmission bandwidth: Up to 300MHz
HD transmission speed: Up to 10.2 Gbps
Input and output TMDS signal: 0.5~1.5Vp-p (TTL)
Input/output DDC signal: 5Vp-p (TTL)
RCA analog output: 1V RMS
Signal to noise ratio: ≥ 90dB
Distortion: ≤ 0.1%
Frequency response: 20Hz~20KHz
HD input cable length: ≤ 5m AWG26 HD standard wire
SCART output cable length: ≤ 5m AWG26 SCART standard wire
Working current: ≤ 600mA
Power supply: DC 5V/1A(Not included DC5V Power adapter)
Working temperature: 10 ℃~+55 ℃
Features:
No need to drive, light and flexible, plug and play.
Use high-quality scaling technology to process the input resolution.
Support NTSC and PAL two standard TV mechanism output.
Product List:

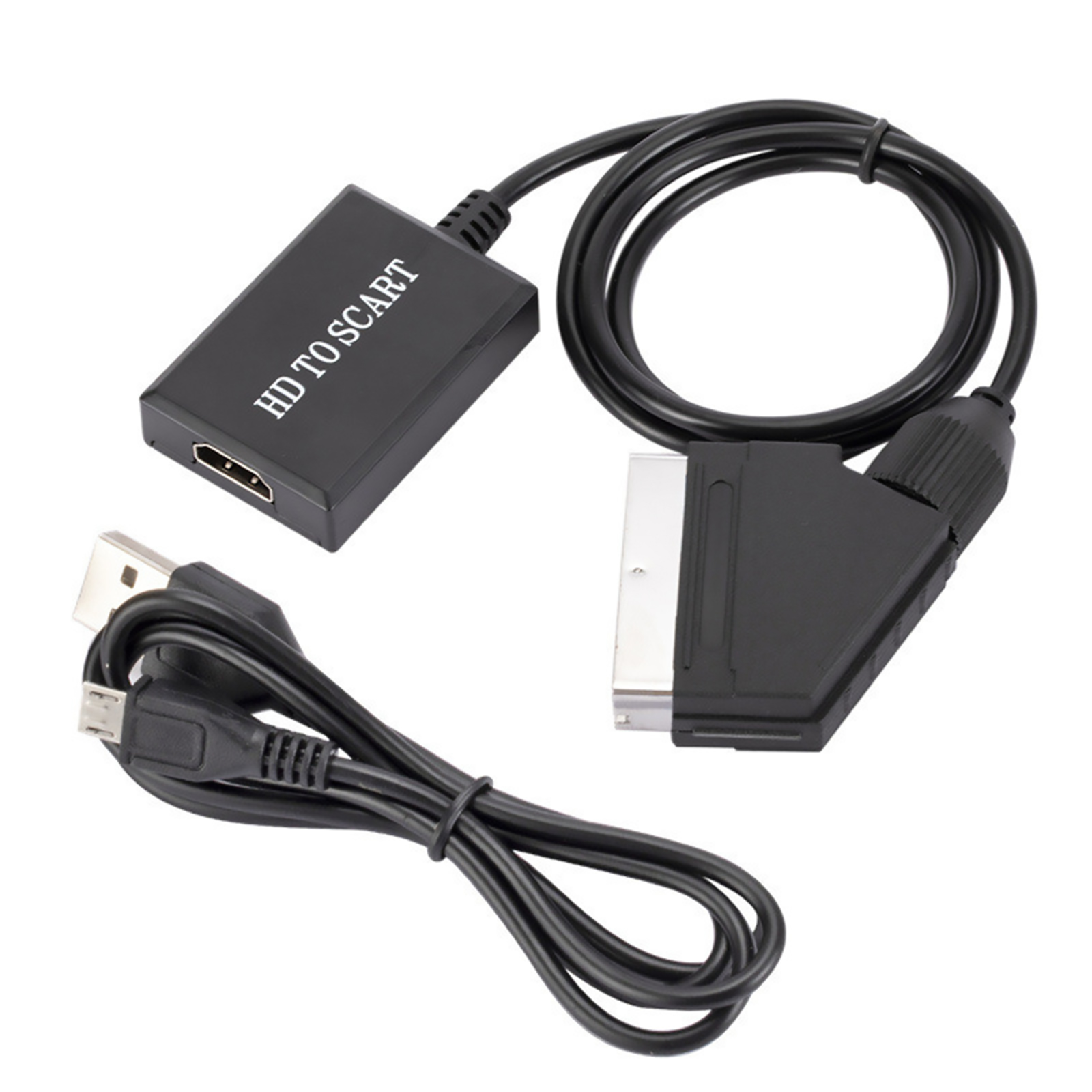

1* HDMI To SCART Converter
1* USB Charge cable(Not included DC5V Power adapter)
