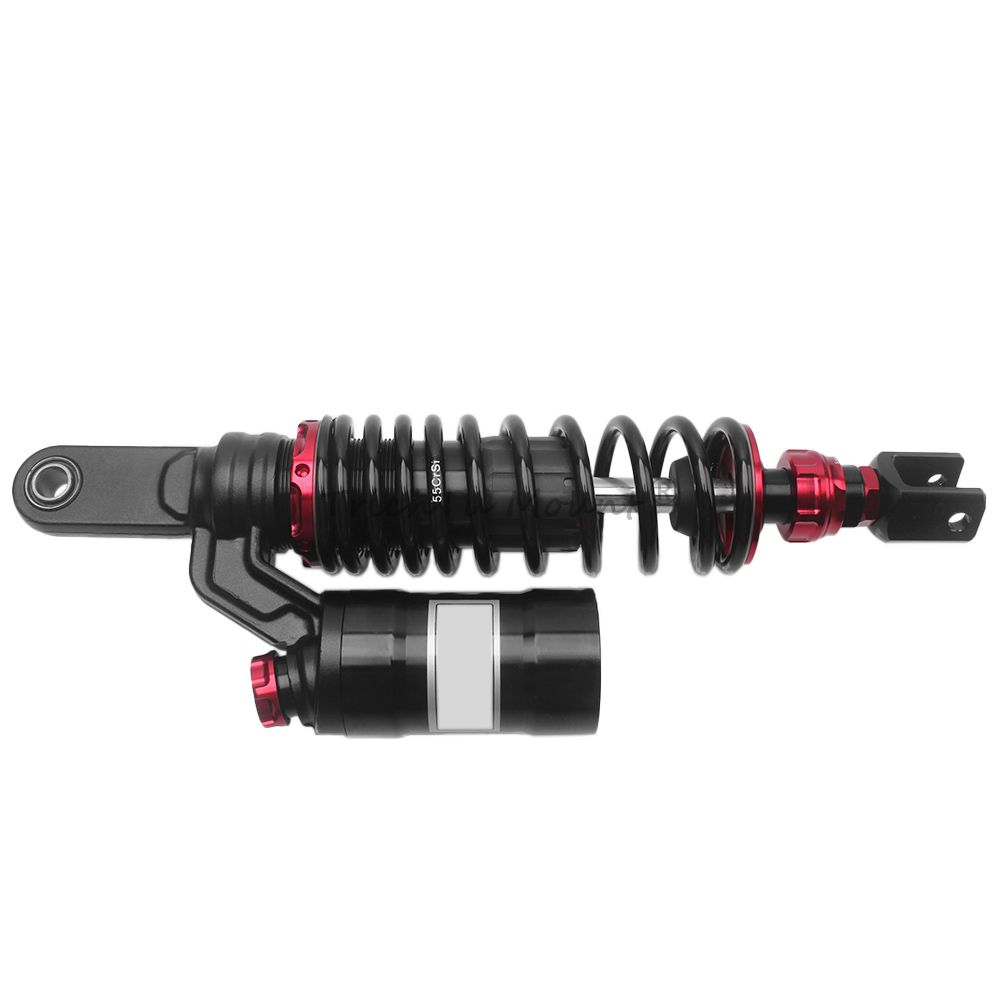

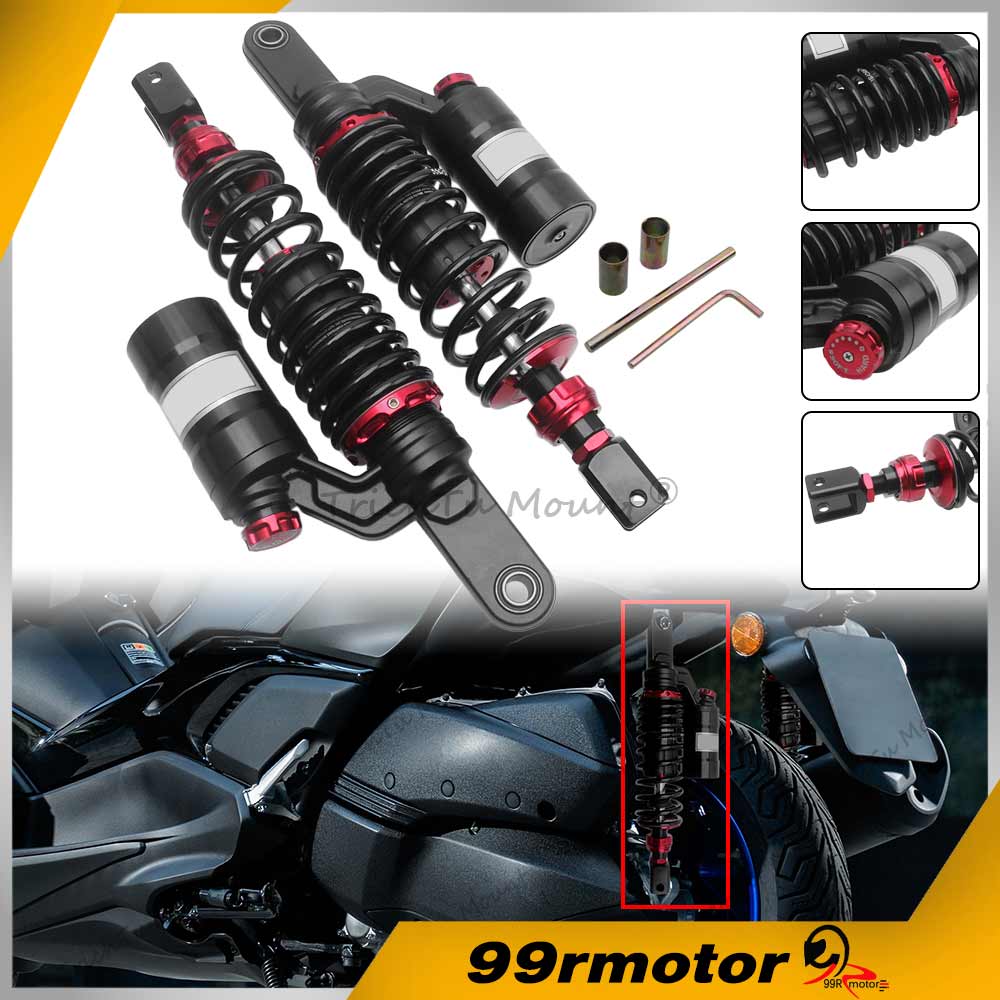

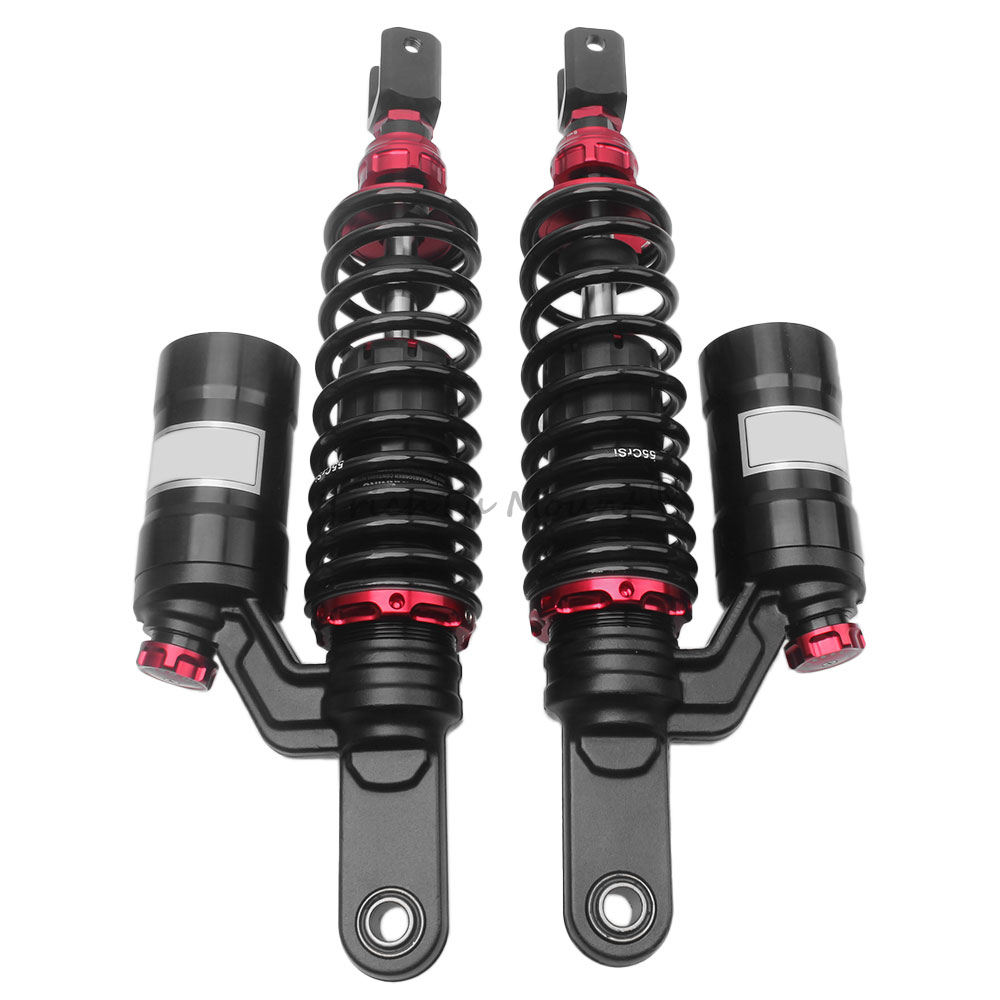

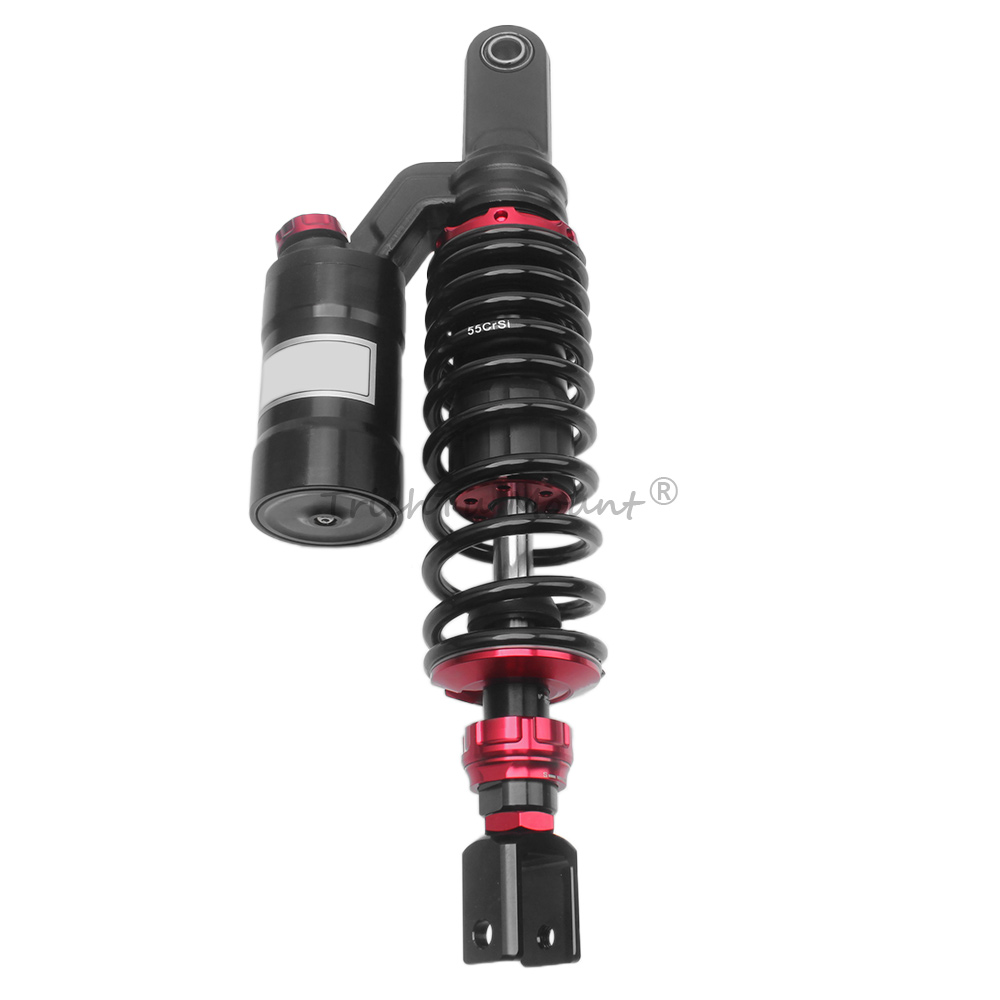

13.8" Rear Air Shock Absorber For YAMAHA XMAX 250 300 X-MAX MAJESTY Honda PCX150
Specification:
Description:
Item Type: Air shock absorber
Material: High quality Solid Steel+Aluminium Alloy
Color: Black Red

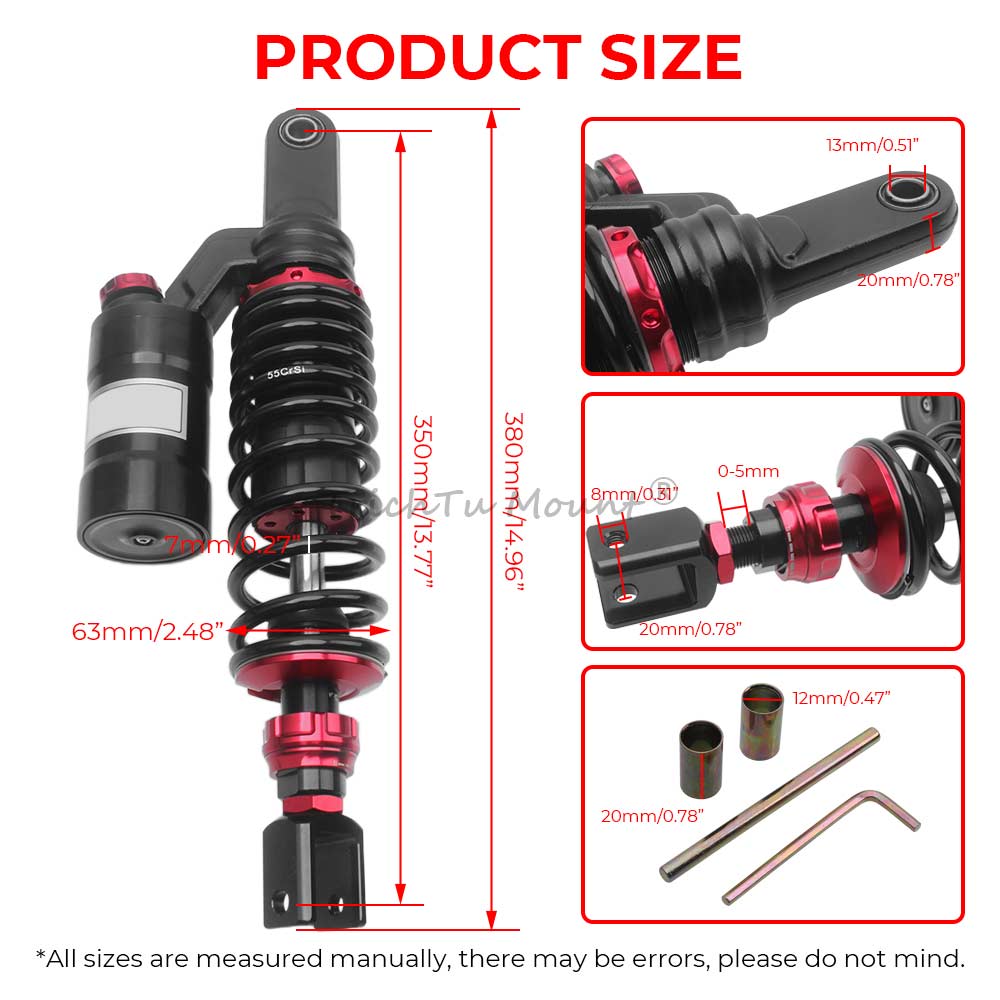

Total Length: 380mm (14.96")
Length of Eye to Eye Core: 350mm (13.8",Adjustable length, extendable by 5 mm）
Top Eye (Width/Diameter): 20x12mm，10mm diameter eye bushing kit
Clevis Hole Diameter: 8mm/M8
Clevis Inner Width: 20mm
Eye thickness: 20mm
Spring Thickness: 7mm
Spring Width: 63mm
Working Stroke: 60mm
Max loading: <=300 kgs/pair
Feature:

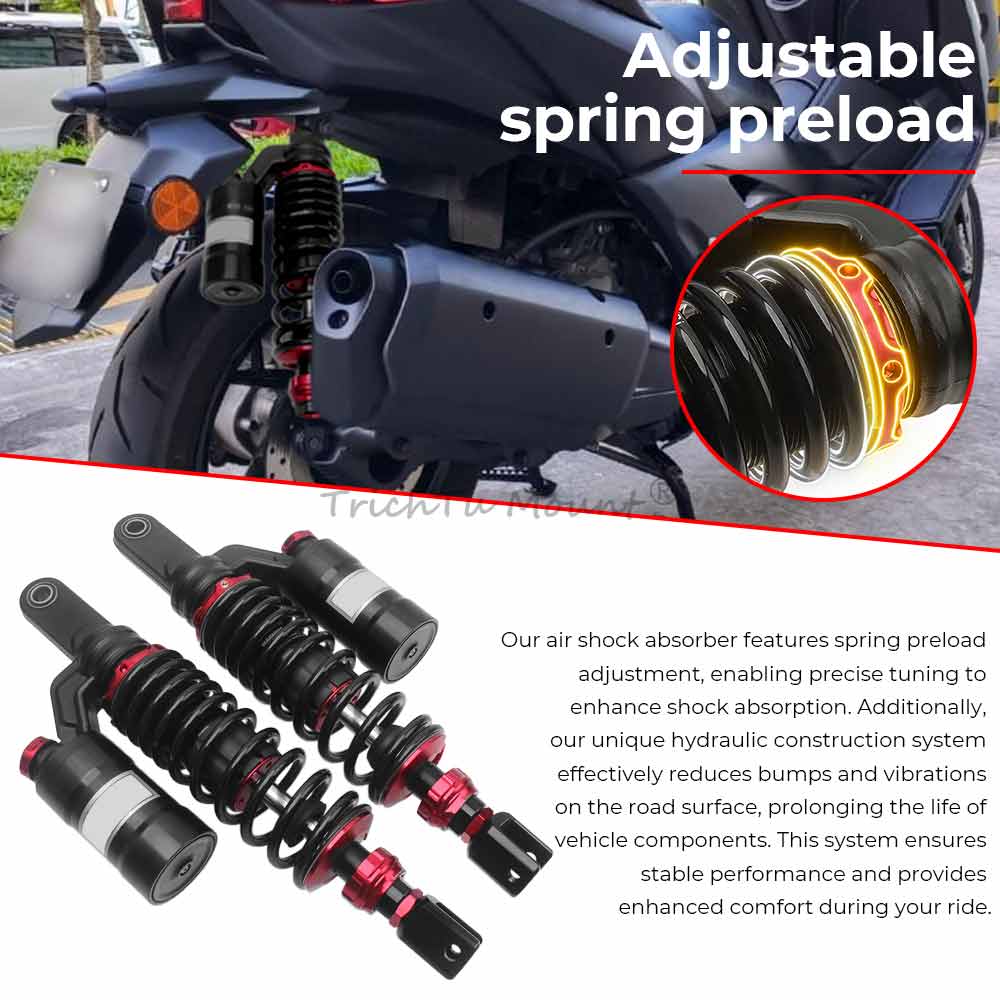

1.Adjustable spring preload：
Our air shock absorber features spring preload adjustment, enabling precise tuning to enhance shock absorption.Additionally, our uniquehydraulic construction system effectively reduces bumps and vibrations on the road surface, prolonging the life of vehicle components.This system ensures stable performanceand provides enhanced comfort during your ride.

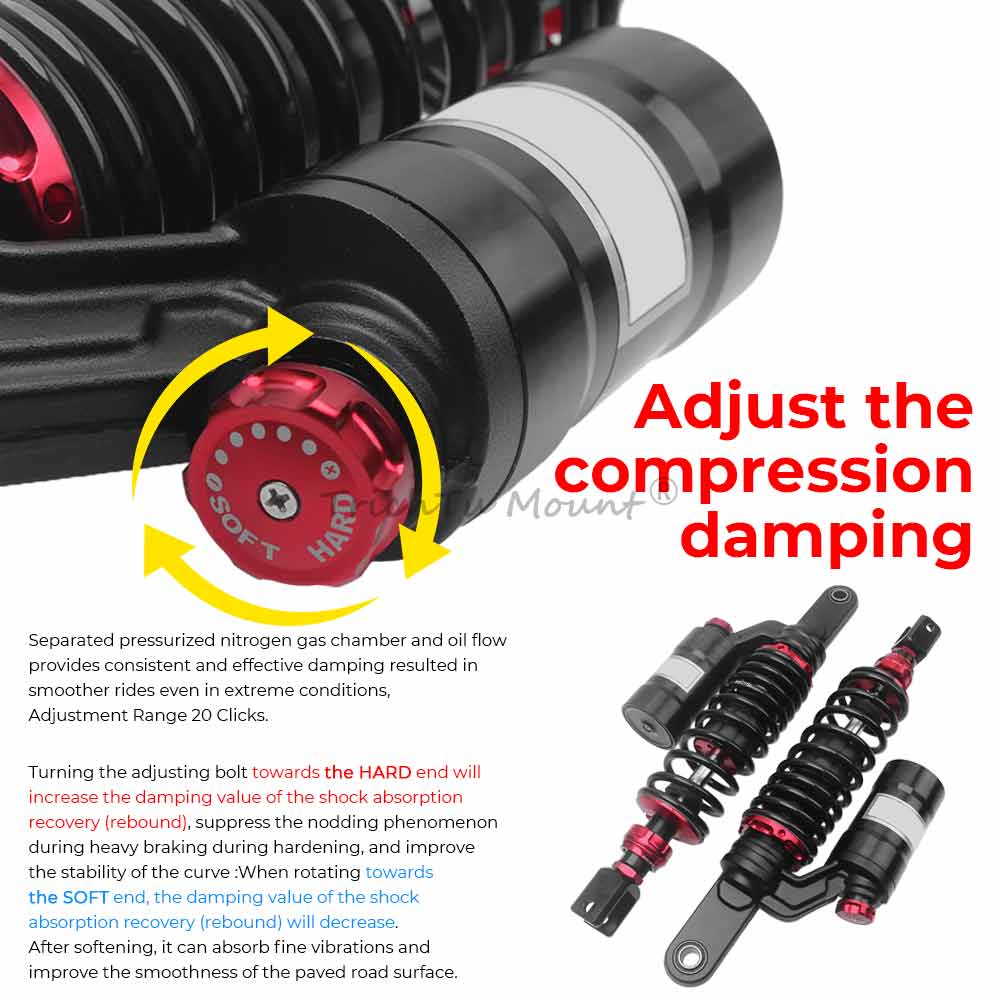

2. Separated pressurized nitrogen gas chamber and oil flow provides consistent and effective damping resulted in smoother rides even in extreme conditions,Adjustment Range 20 Clicks:
Adjust the compression damping through the "H=HARD → S=SOFT" adjustment.
Turning the adjusting bolt towards the HARD end will increase the damping value of the shock absorption recovery (rebound), suppress the nodding phenomenon
during heavy braking during hardening, and improve the stability of the curve ; When rotating towards the SOFT end, the damping value of the shock absorption
recovery (rebound) will decrease. After softening, it can absorb fine vibrations and improve the smoothness of the paved road surface .

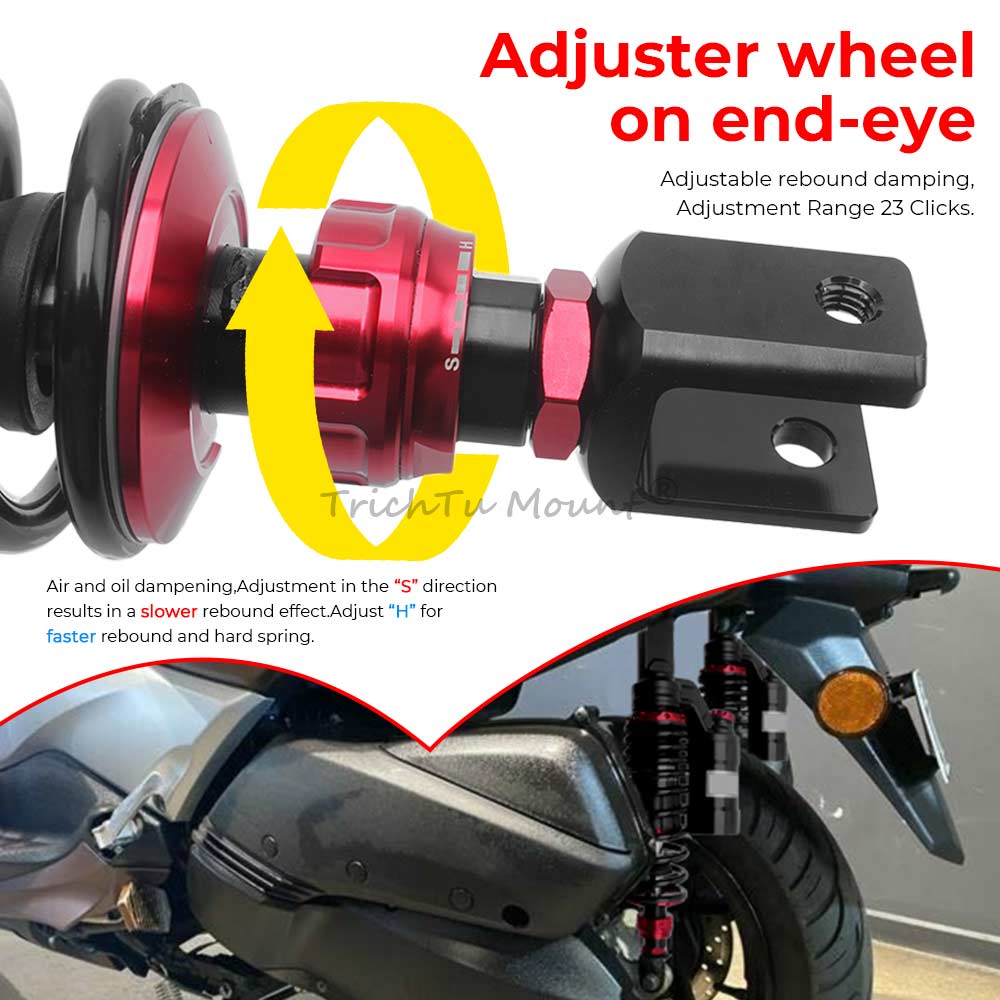

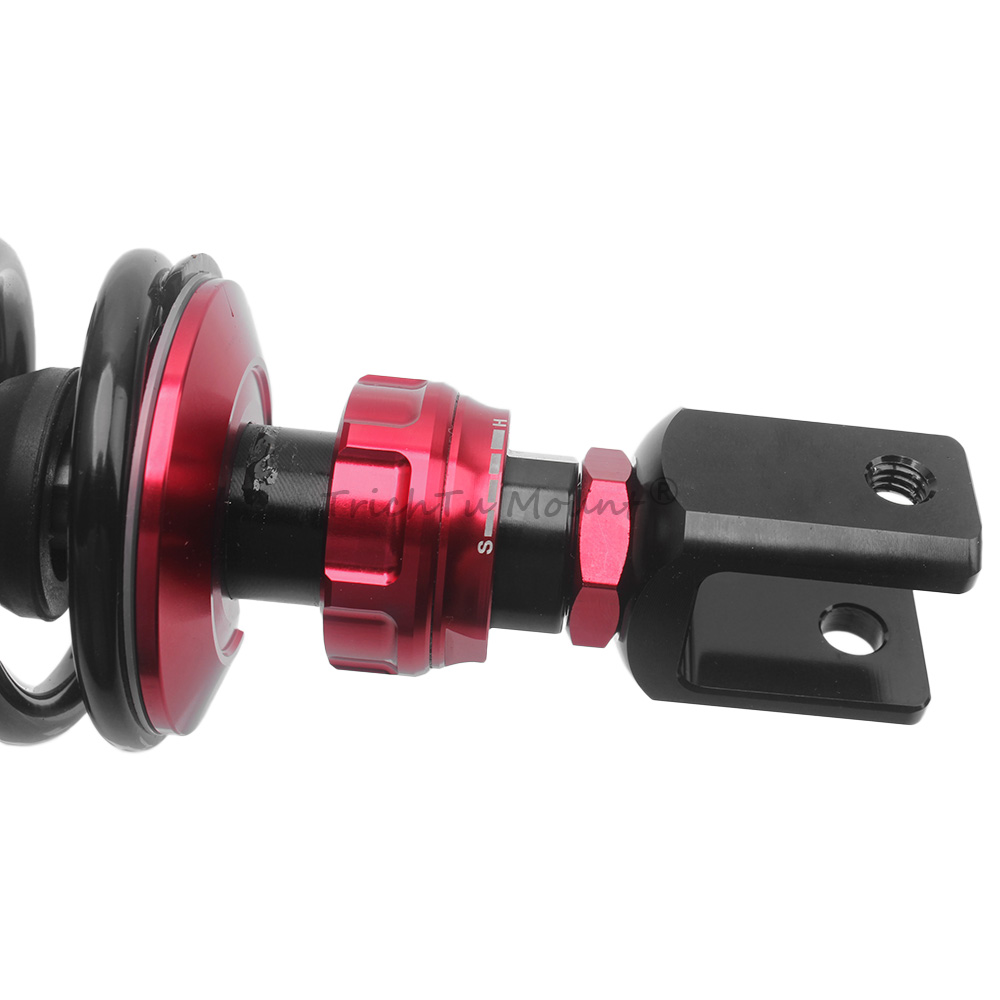

3. Adjustable rebound damping,Adjustment Range 23 Clicks. (Adjuster wheel on end-eye)
Air and oil dampening,Adjustment in the “S” direction results in a slower rebound effect. Adjust “H” for faster rebound and hard spring.
4.Highpressure nitrogen shock absorbers：
Highpressure nitrogen shock absorbers are safer, more comfortable and have stable performance. The difference between nitrogen shock absorbersand ordinary
shock absorbers is that nitrogen shock absorbers are more stable in driving because nitrogen is more thermally stable than air. It is capable of maintaining stable
damping for superior ride quality, provides excellent rearg performance.

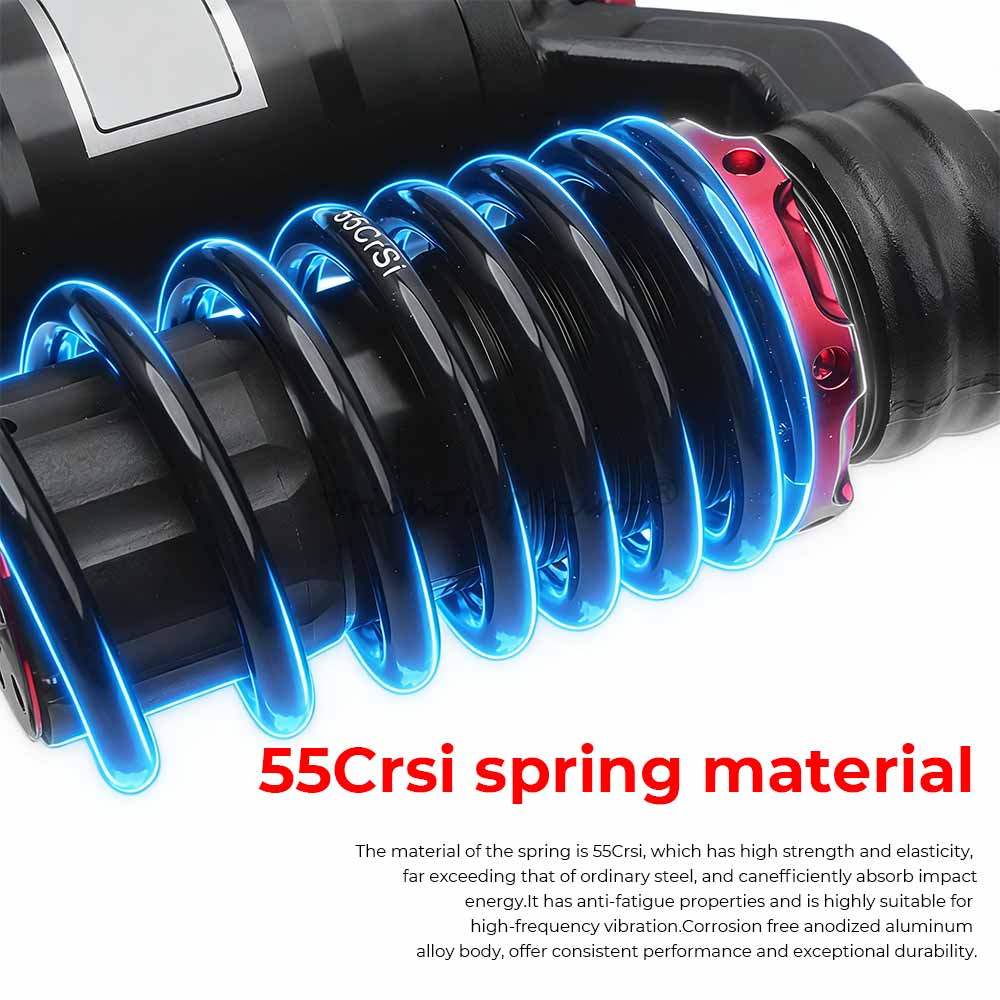

5. Exceptional fatigue resistance, high elasticity and abrasion resistance, durable and stable:

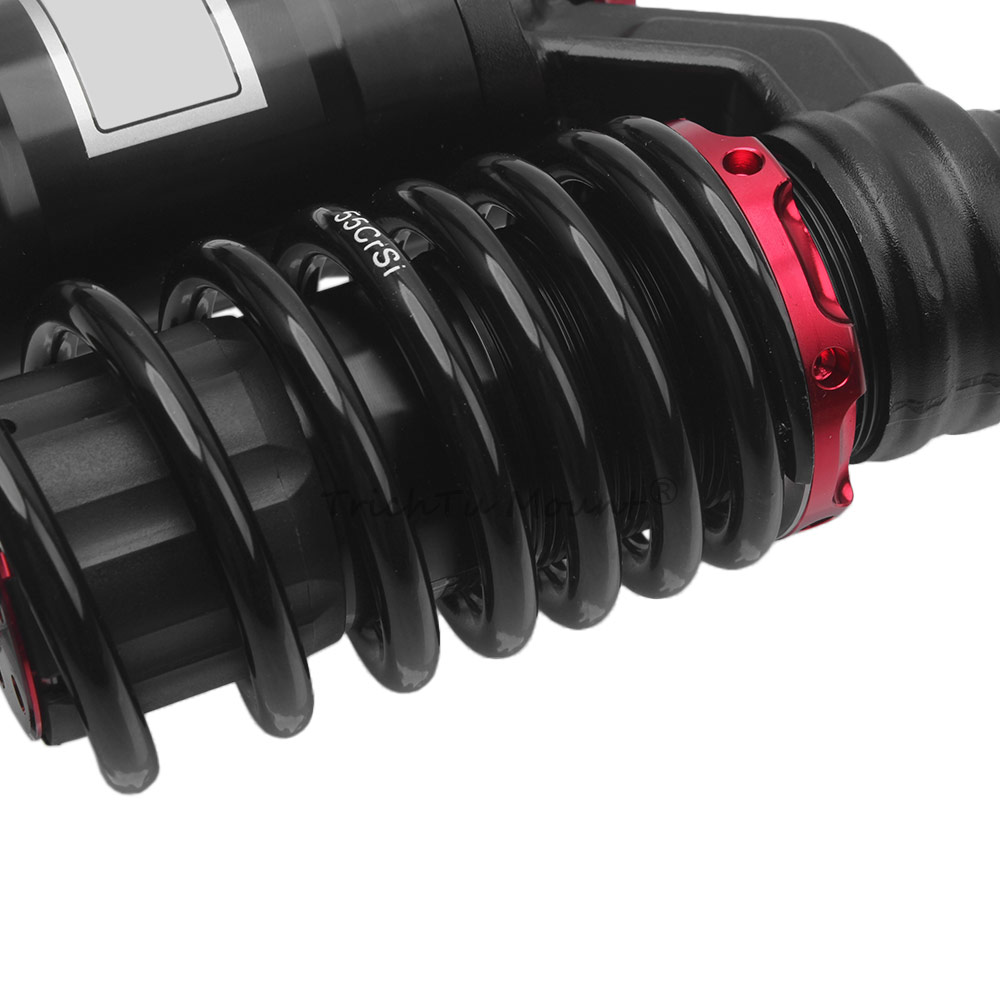

The material of the spring is 55Crsi, which has high strength and elasticity, far exceeding that of ordinary steel, and canefficiently absorb impact energy. It has anti-fatigue properties and is highly suitable for high-frequency vibration. Corrosion free anodized aluminum alloy body, offer consistent performance and exceptional durability.

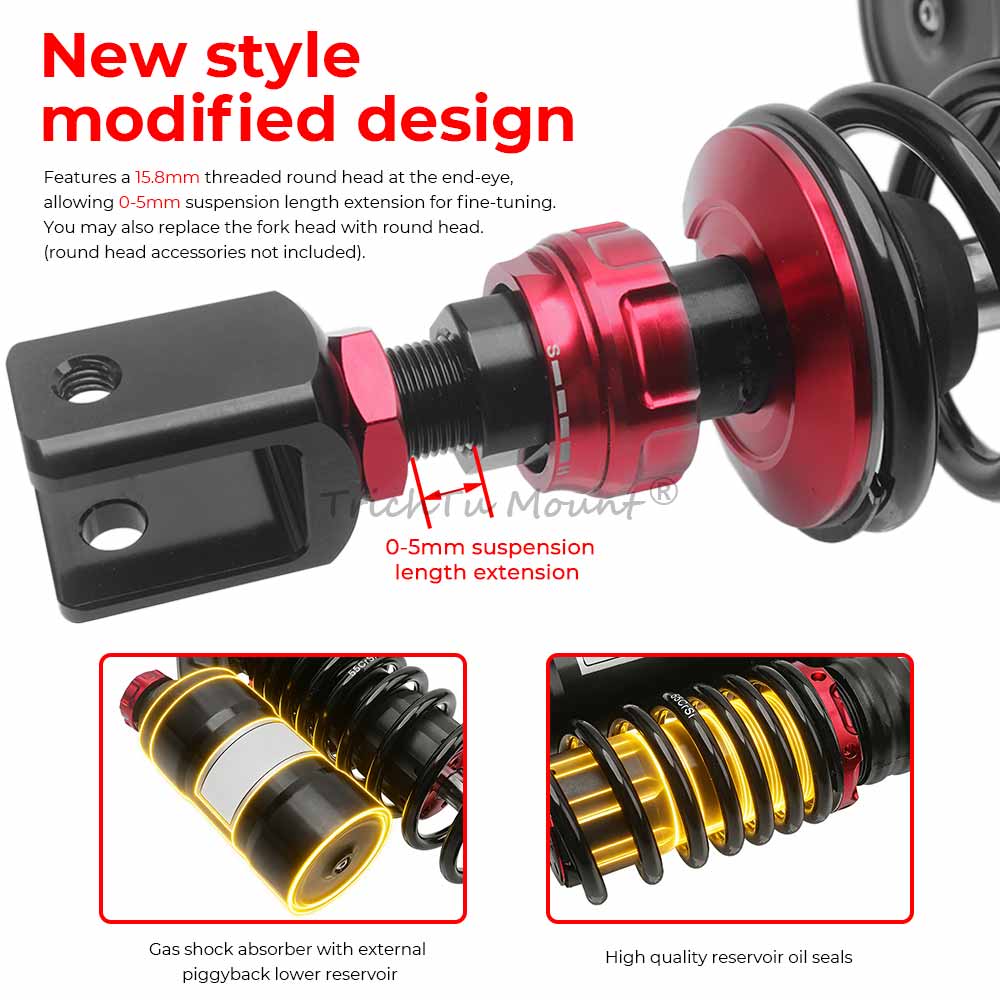

6. New style modified design,enhancing a modern feel:
Gas shock absorber with external piggyback lower reservoir, Exude an air of nobility. which perfect for decorating your bike,Very eye-catching and can make your Motorcycle the center of attention.

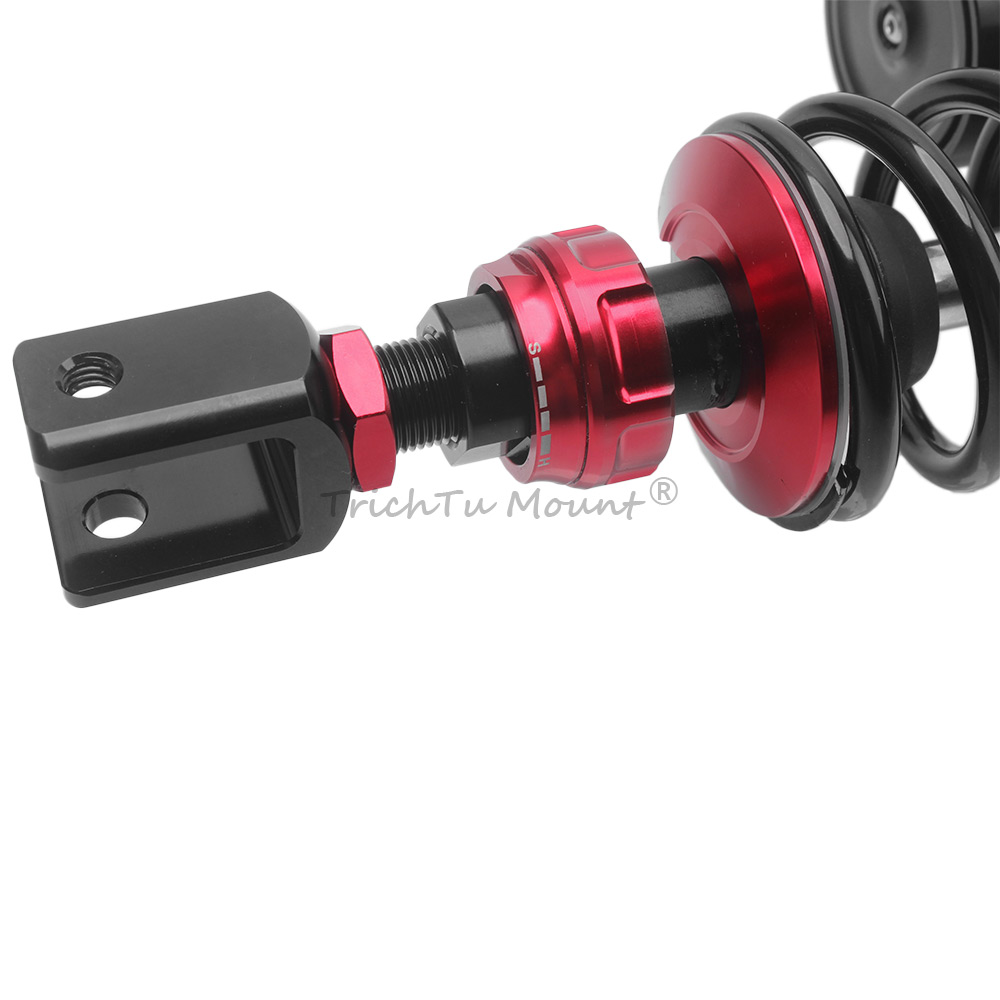

Features a 15.8mm threaded round head at the end-eye, allowing 0-5mm suspension length extension for fine-tuning.You may also replace the fork head with round head (fork head accessories not included).
7.High quality reservoir oil seals：
Oil seal by japanese high standard,Double sealing piston with quality low friction o-ring
Fitment:
Fit for YAMAHA XMAX 250 300 X-MAX (Replace for B74-F2210-00):
Fit for YAMAHA XMAX CZD300 2018-2025
Fit for YAMAHA XMAX 300 CZD300-A(BY35)2019
Fit for YAMAHA XMAX 300 CZD300-A(BY37)2020
Fit for YAMAHA XMAX 300 CZD300-A(B741) 2017
Fit for YAMAHA XMAX 300 CZD300-A(BY31) 2018
Fit for YAMAHA EVOLIS 300 ABS CZD300-A(B742) 2017
Fit for YAMAHA XMAX 300 ABS CZD300-A(B749) 2017
Fit for YAMAHA XMAX 300 CZD300-A(BY34) 2019
Fit for YAMAHA XMAX 250 CZD250-A(B8Y1) 2019
Fit for YAMAHA XMAX 250 CZD250-A(B8Y2) 2019
Fit for YAMAHA XMAX 250 CZD250-A(BG61) 2017
Fit for YAMAHA XMAX 250 2017-2025
Fit for YAMAHA MAJESTY 250 1996-2006
Fit for YAMAHA MAJESTY 125 1998-2009
Fit for Honda PCX150 2018-2020
May also fit for other 150cc~1000cc street bikes/Karting(Go kart)/Scooters and Moped Quad (ATV) MODELS that length of eye center to clevis 350mm distance, and top eye (Width/Diameter) is 20x12mm,and top eye (Width/Diameter) is 20x12/10mm,and Bottom (Width/Diameter)is F.20xM8.
Note:
Please kindly check the specific size above before placing the order to confirm it can fit for your vehicle or motorcycle.
Please allow 1-5mm for variance due to manual measurement
Installation instruction is not included, professional installation is highly recommended
If you have questions, please feel free to contact us, thank you!

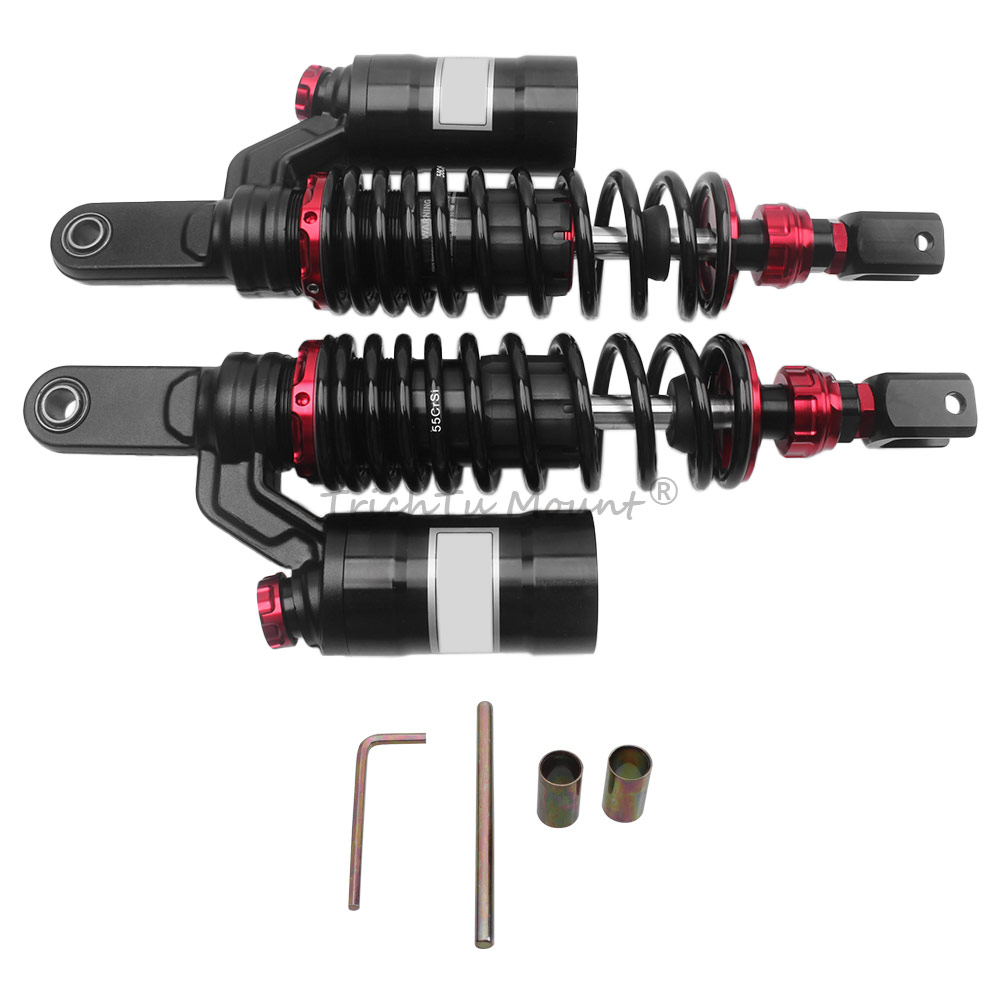

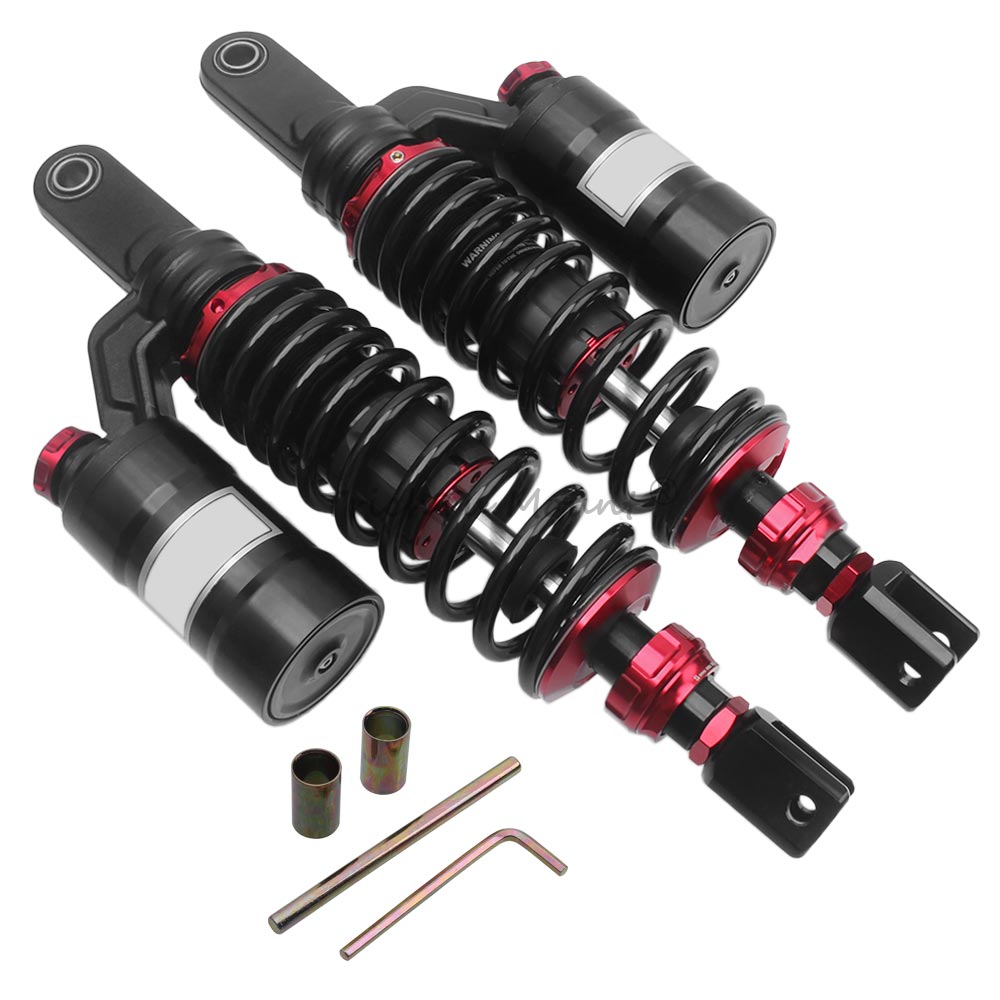

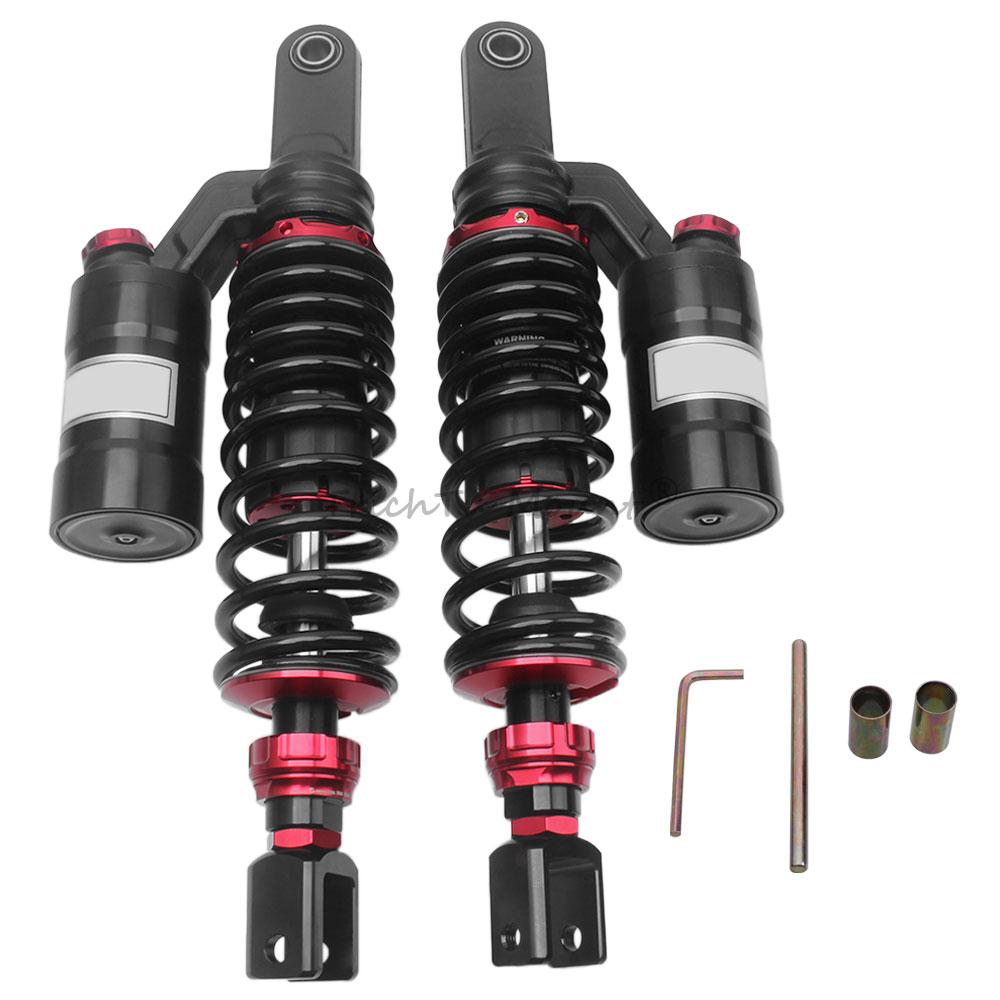

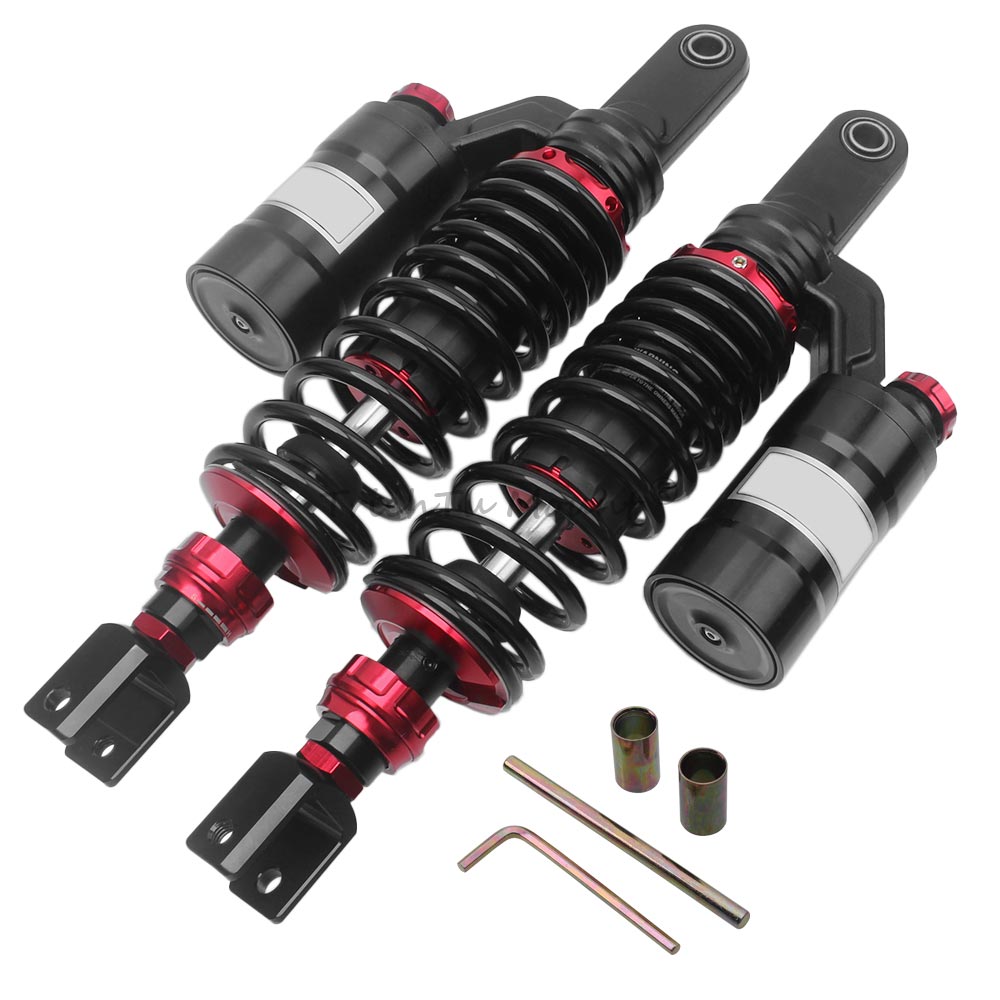

Package Included:

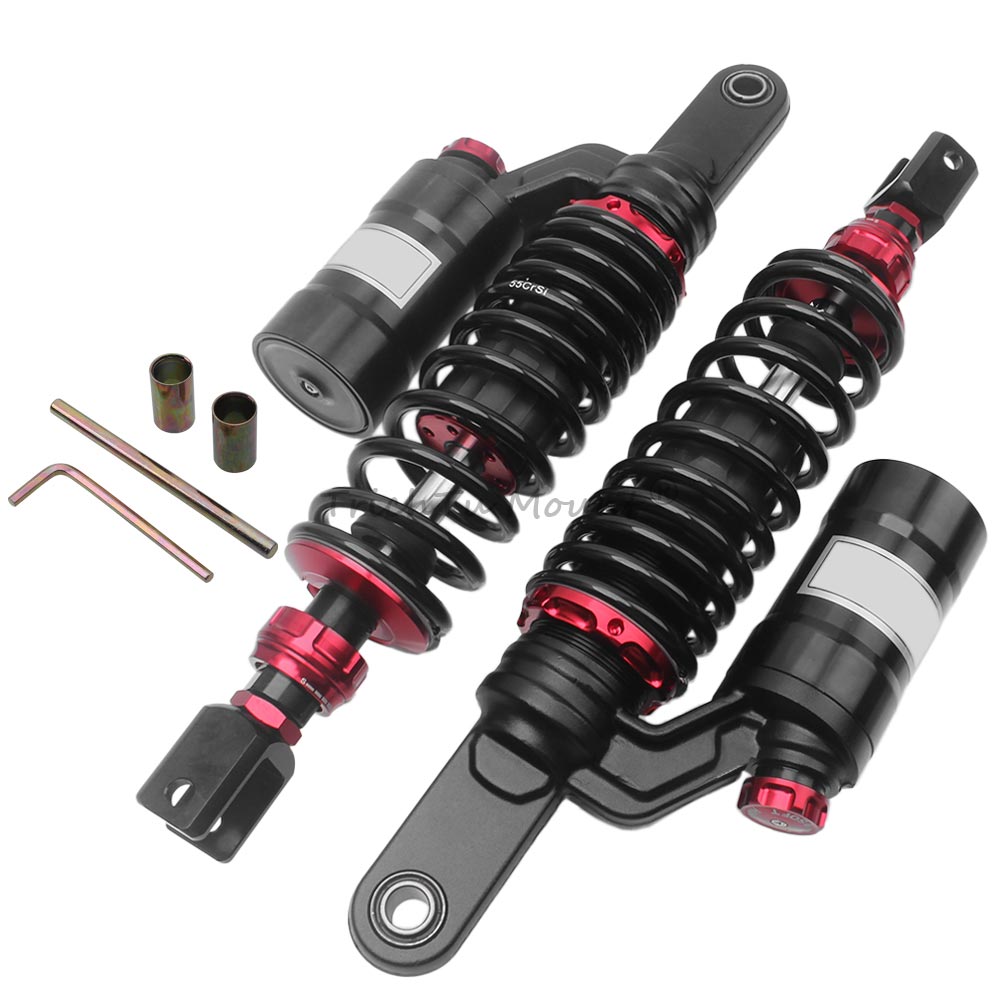

1 x Pair Shocks Absorbers (As the picture)

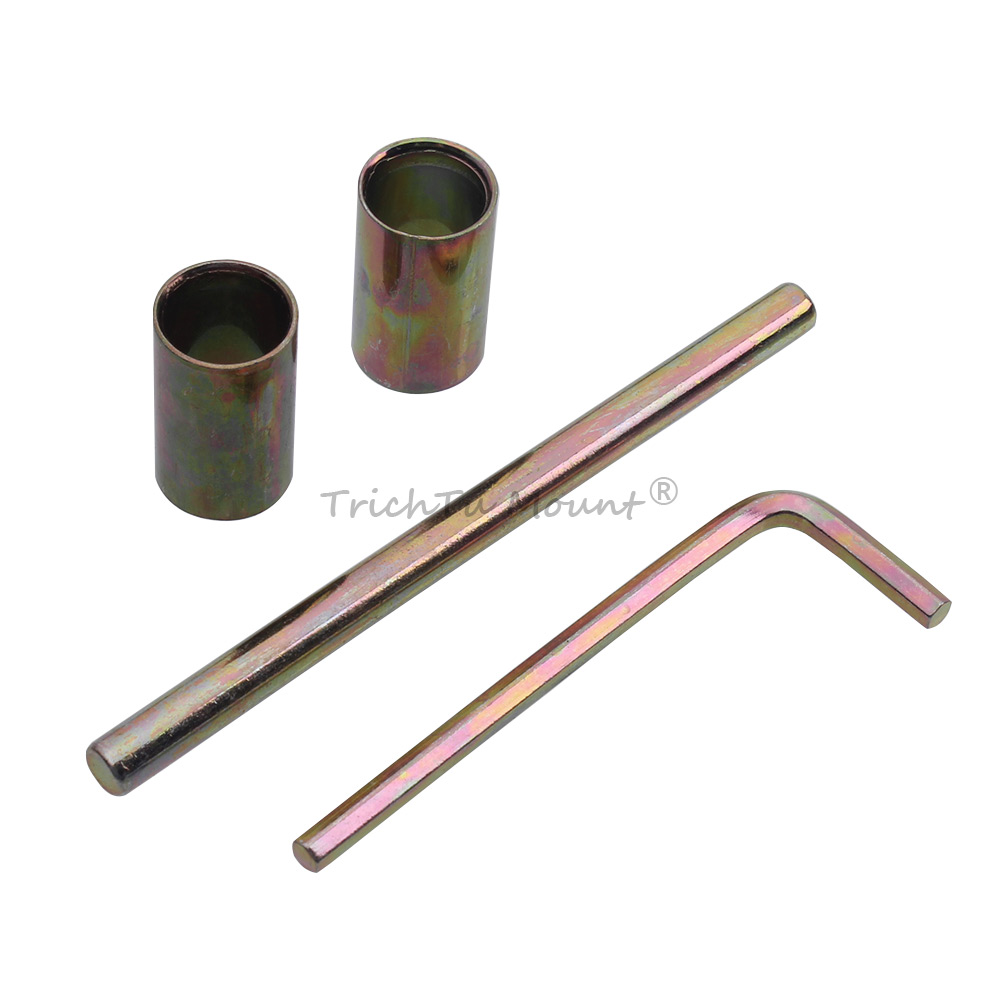

2 x 10mm diameter eye bushing kit
2 x Adjustment tools
Pictures show:
Company Information:
TrichTu Mount is a manufacturer specializing in the production of motorcycle parts. We are committed to providing high-quality, reliable and innovative motorcycle accessories to meet riders' needs for safety, performance and personalization. Our product range covers a wide range of motorcycle parts, including brake systems, suspension systems, engine parts, steering systems, body parts, etc. With attention to detail and quality control, each product undergoes rigorous testing and quality inspection to ensure its durability, reliability and safety. Whether you are a professional rider or a cycling enthusiast, TrichTu Mount will be your trusted supplier of motorcycle parts. We want to work with you to create a safe, performant and satisfying riding experience. |
Our Advantage:
| Only use high-quality raw materials for production,truly control from the source to ensure product quality. |
 |

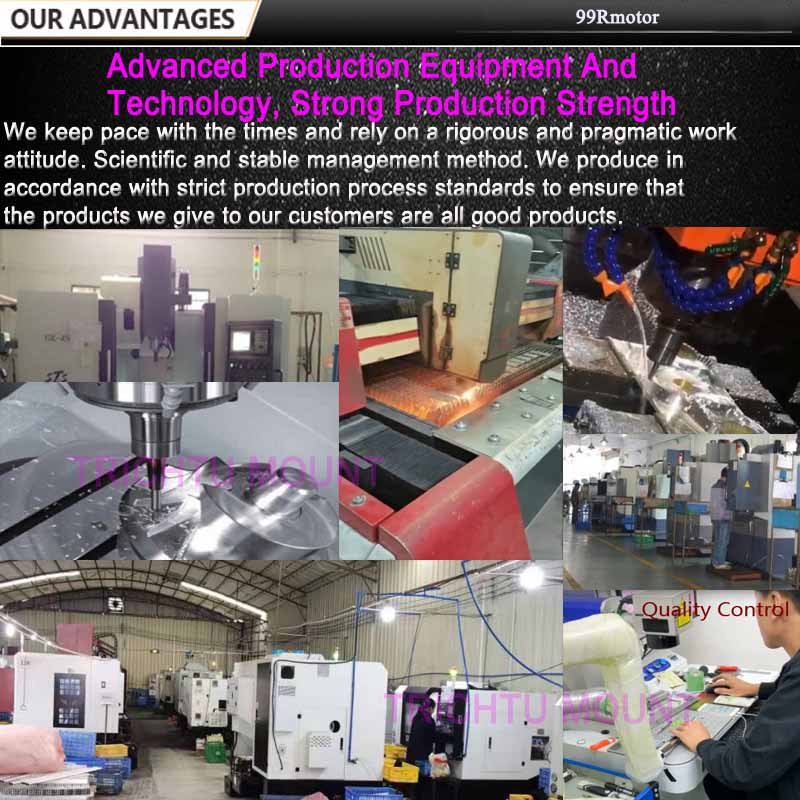

Advanced ProductionEquipment And Technology, StrongProduction Strength. We keep pace with the times and rely on a rigorous and pragmatic work attitude,scientific and stable management method. We produce in accordance with strict production process standards to ensure that the products we give to our customers are all good products. |
 |
