Item Description
Description:
1. Using ICL8038 + high-speed op amp composed of signal generator, by the following characteristics
(1) can output triangular wave, rectangular wave and sine wave, forward and reverse sawtooth wave.
(2) frequency adjustment range: 5HZ ~ 400kHz
(3) duty cycle adjustment range: 2% to 95%
(4) low distortion sine wave: 1%
(5) Low temperature drift: 50ppm / ℃
(6) triangular wave output linearity: 0.1%
(7) single power supply (built-in power management IC): +12 V ~ +15 V
(8) DC bias adjustable: -7.5V-7.5V
(9) Output amplitude adjustable: 0.1V-11VPP (operating voltage 12V)
Note: DIY kits with Transparent Shell
Package Included:

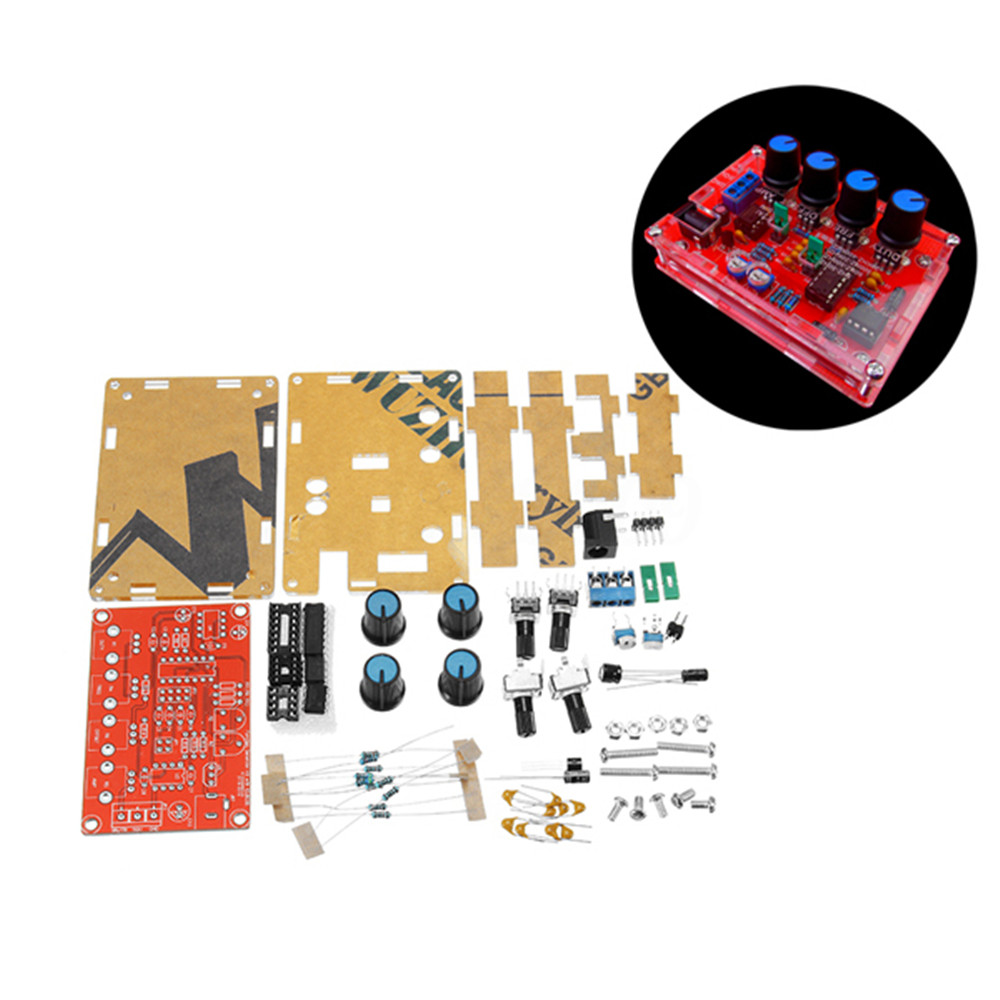

1PC*DIY DC 12V ICL8038 5HZ~400KHZ Function Signal Generator Sine Triangle Sawtooth
1. Using ICL8038 + high-speed op amp composed of signal generator, by the following characteristics
(1) can output triangular wave, rectangular wave and sine wave, forward and reverse sawtooth wave.
(2) frequency adjustment range: 5HZ ~ 400kHz
(3) duty cycle adjustment range: 2% to 95%
(4) low distortion sine wave: 1%
(5) Low temperature drift: 50ppm / ℃
(6) triangular wave output linearity: 0.1%
(7) single power supply (built-in power management IC): +12 V ~ +15 V
(8) DC bias adjustable: -7.5V-7.5V
(9) Output amplitude adjustable: 0.1V-11VPP (operating voltage 12V)
Note: DIY kits with Transparent Shell
Package Included:
1PC*DIY DC 12V ICL8038 5HZ~400KHZ Function Signal Generator Sine Triangle Sawtooth
