Specifications
- Material: Cast Iron, Stainless Steel, ABS
- Rated Power: 1100W
- Motor Type: Brushed
- Spindle Bore: 1.5 in. (38 mm)
- Swing Over Bed: 8.7 in. (220 mm)
- Tailstock Taper: MT#2
- Spindle Taper: MT#5
- Metric Thread Range: 0.5-3 mm
- Inch Thread Range: 8-44 tpi
- Center Distance: 29.5 in. (750 mm)
- Chuck Diameter: 5 in. (125 mm)
- Max. Spindle Speed: 3000 rpm
- Product Dimensions: 43.7 x 16.9 x 13.6 in. (111x43x34.5 cm)
- Net Weight: 165.3 lb. (75 kg)
Packing List
- 1x Mini Lathe
- 1x Chuck Wrench
- 3x Chuck Jaws
- 2x Screwdrivers
- 3x Wrenches
- 6x Metal Gears
- 1x Steady Rest
- 1x Follow Rest
- 1x Bottle for Cutting Oil
- 5x Hex Wrenches
- 1x Dead Center
- 3x Slideway Levers
- 5x Brazed Carbide Tools
- 1x Tool Box
- 1x Instructions

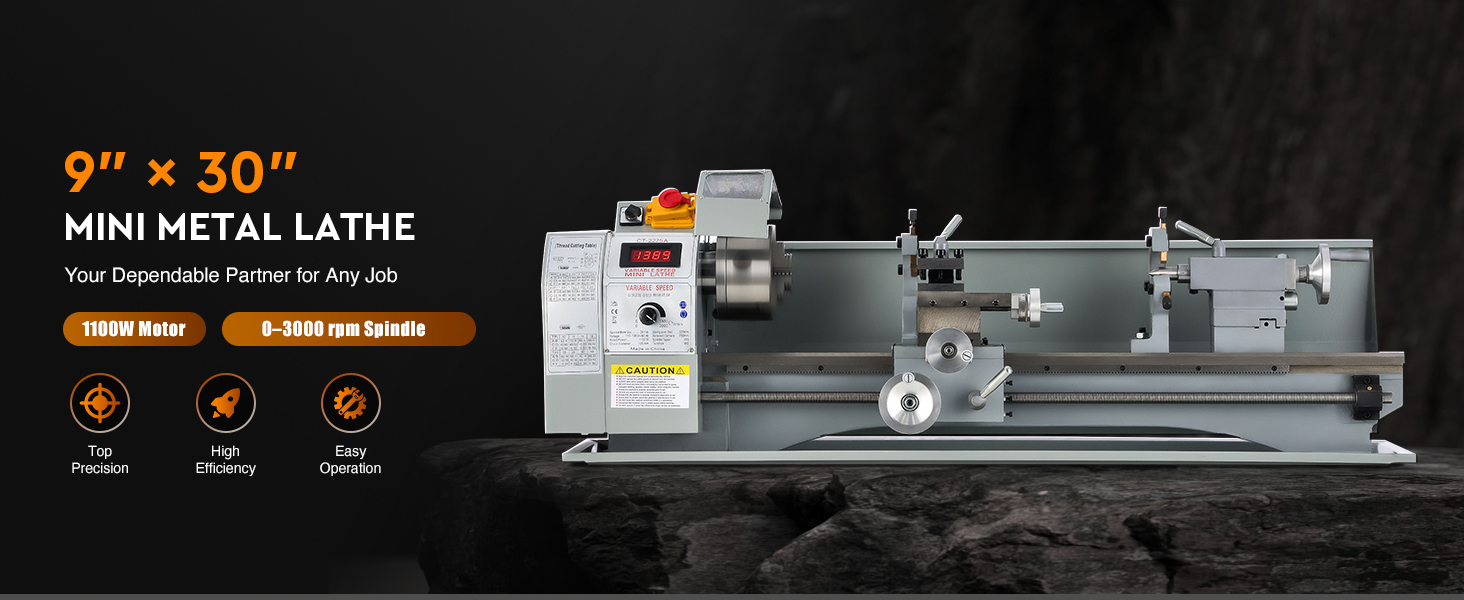

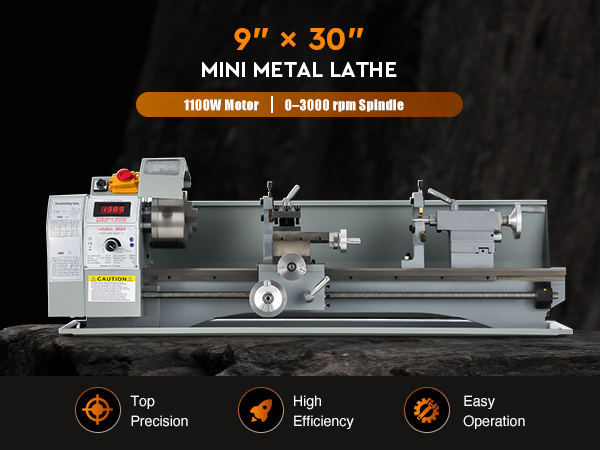

Mini Yet Powerful: Measuring only 43.7x16.9 in., this mini metal lathe by Creworks packs a punch with its 1100W motor, making it ideal for tackling small to medium metalworking projects. It provides an 8.7 in. swing over bed and 29.5 in. distance between its centers with a 1.5 in. spindle bore.

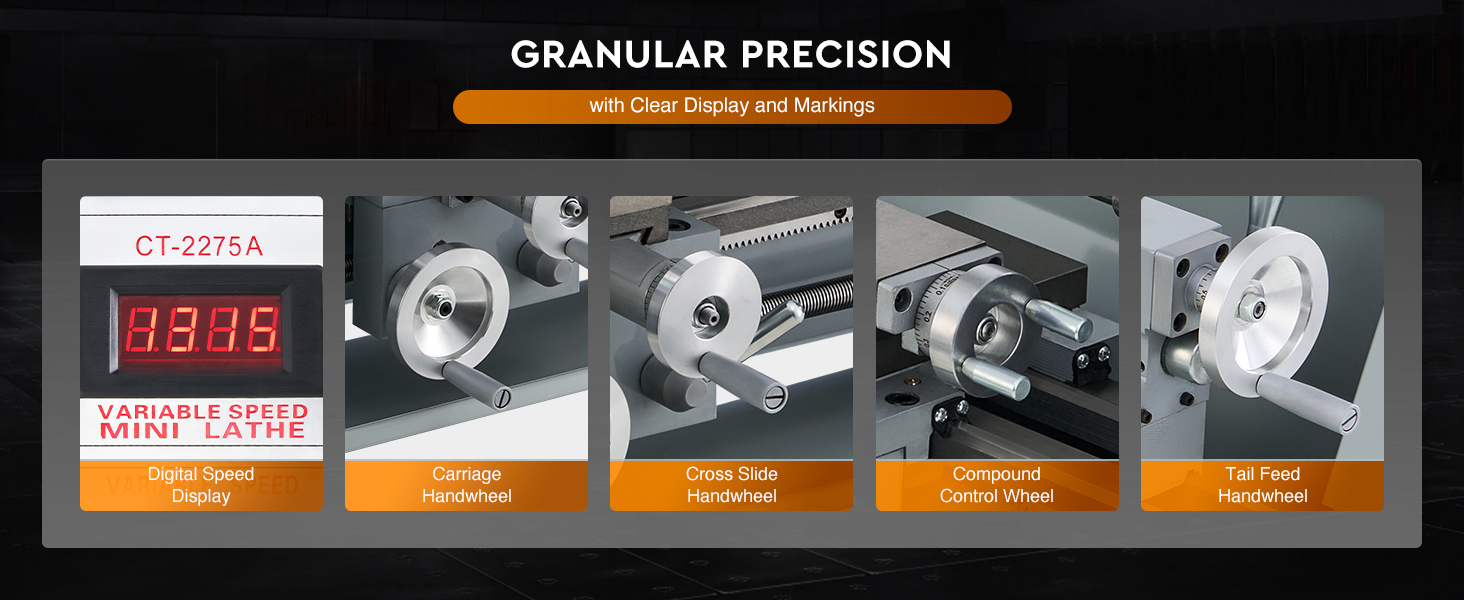

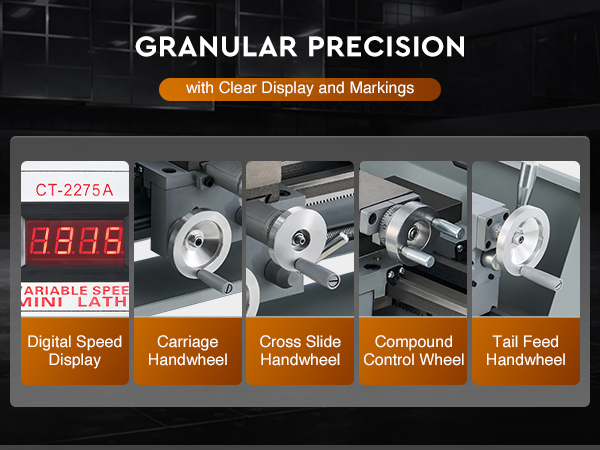

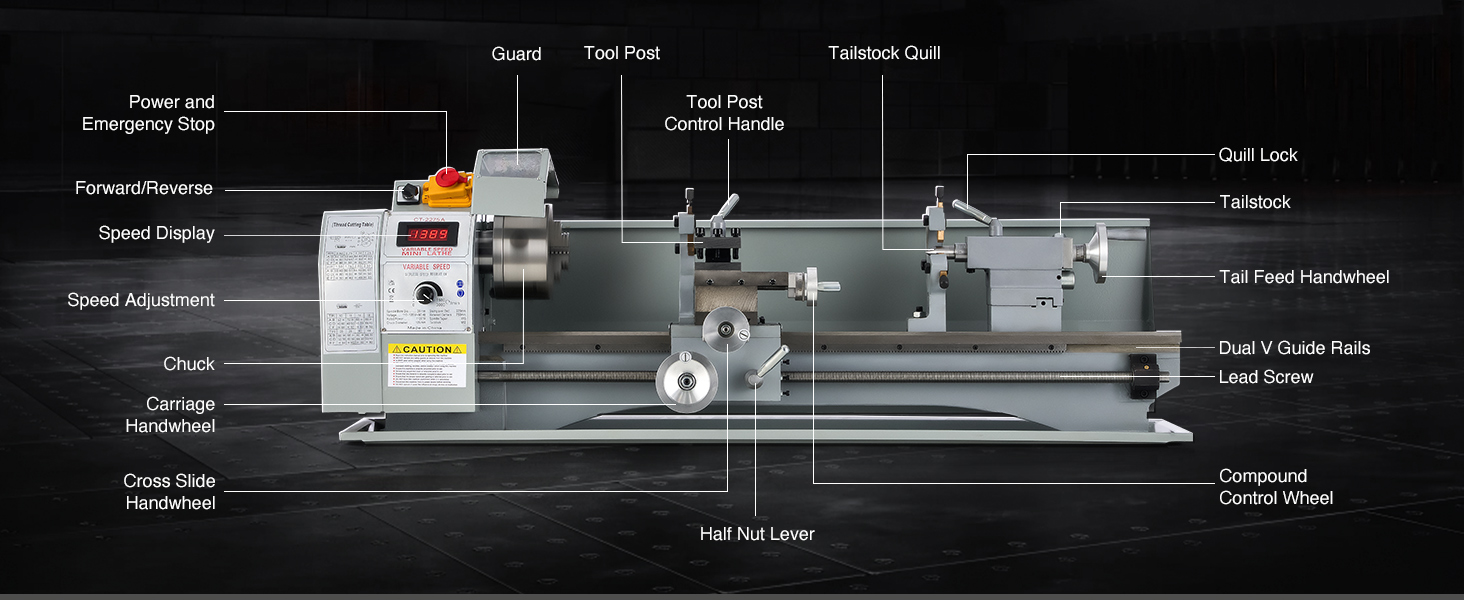

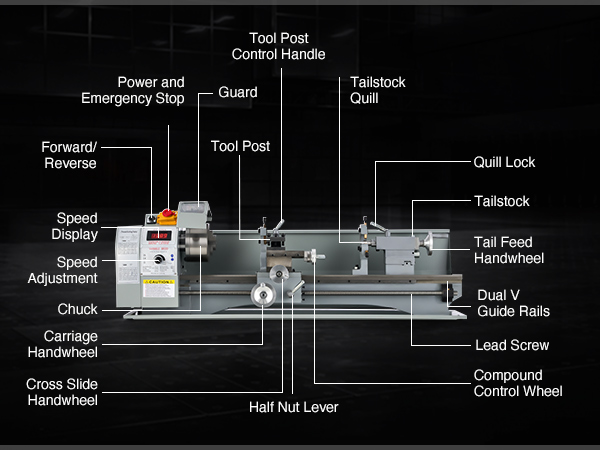

Complete Control: The mini metalworking machine's rotational speed can be set from 0 to 3000 rpm and monitored through the real-time digital display. The well-crafted head and tailstocks, large through-hole, and 4-way tool post also contribute to providing greater control of your work.
Precise Engineering: Ideal for professionals, this benchtop mini metal lathe's high-precision 5 in. 3-jaw chuck handles both square and round objects with equal aplomb. Its granular precision is especially useful for jobs requiring high accuracy such as threading.
Ultra Sturdy & Safe: The robust cast iron construction ensures a long service life and superior corrosion resistance. The transparent chuck guard protects you from swarf or broken tools while also permitting visibility into the point of operation.
Wide Application: Tailored for precision tasks, this mini woodworking lathe effortlessly handles turning, drilling, threading, and cutting. Its capabilities extend to various materials, including wood, plastics, brass, aluminum, and more!
Specifications
- Material: Cast Iron, Stainless Steel, ABS
- Rated Power: 1100W
- Motor Type: Brushed
- Spindle Bore: 1.5 in. (38 mm)
- Swing Over Bed: 8.7 in. (220 mm)
- Tailstock Taper: MT#2
- Spindle Taper: MT#5
- Metric Thread Range: 0.5-2.5 mm
- Inch Thread Range: 10-44 tpi
- Center Distance: 29.5 in. (750 mm)
- Chuck Diameter: 5 in. (125 mm)
- Max. Spindle Speed: 3000 rpm
- Product Dimensions: 43.7 x 16.9 x 13.6 in. (111x43x34.5 cm)
- Net Weight: 165.3 lb. (75 kg)
Packing List
- 1x Mini Lathe
- 1x Chuck Wrench
- 3x Chuck Jaws
- 2x Screwdrivers
- 3x Wrenches
- 6x Metal Gears
- 1x Steady Rest
- 1x Follow Rest
- 1x Bottle for Cutting Oil
- 5x Hex Wrenches
- 1x Dead Center
- 3x Slideway Levers
- 5x Brazed Carbide Tools
- 1x Tool Box
- 1x Instructions
Mini Yet Powerful: Measuring only 43.7x16.9 in., this mini metal lathe by Creworks packs a punch with its 1100W motor, making it ideal for tackling small to medium metalworking projects. It provides an 8.7 in. swing over bed and 29.5 in. distance between its centers with a 1.5 in. spindle bore.
Complete Control: The mini metalworking machine's rotational speed can be set from 0 to 3000 rpm and monitored through the real-time digital display. The well-crafted head and tailstocks, large through-hole, and 4-way tool post also contribute to providing greater control of your work.
Precise Engineering: Ideal for professionals, this benchtop mini metal lathe's high-precision 5 in. 3-jaw chuck handles both square and round objects with equal aplomb. Its granular precision is especially useful for jobs requiring high accuracy such as threading.
Ultra Sturdy & Safe: The robust cast iron construction ensures a long service life and superior corrosion resistance. The transparent chuck guard protects you from swarf or broken tools while also permitting visibility into the point of operation.
Wide Application: Tailored for precision tasks, this mini woodworking lathe effortlessly handles turning, drilling, threading, and cutting. Its capabilities extend to various materials, including wood, plastics, brass, aluminum, and more!
