Features:

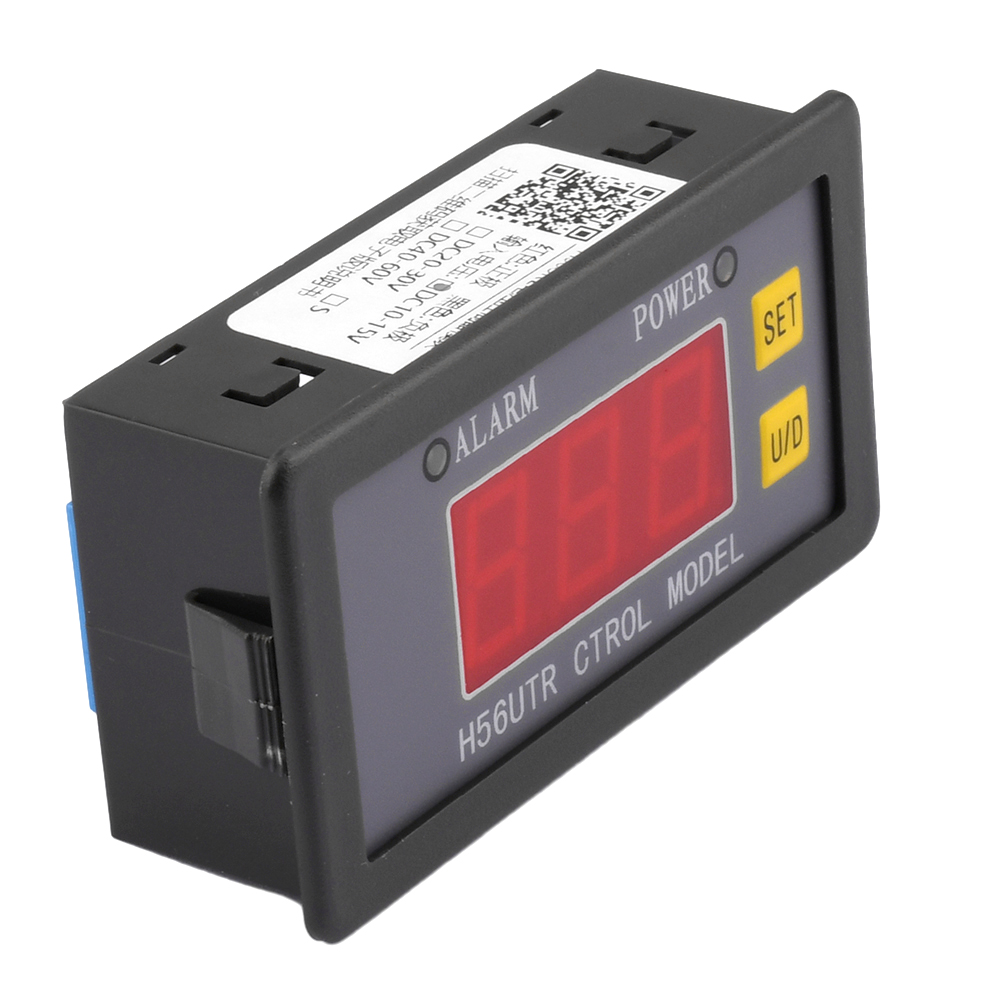

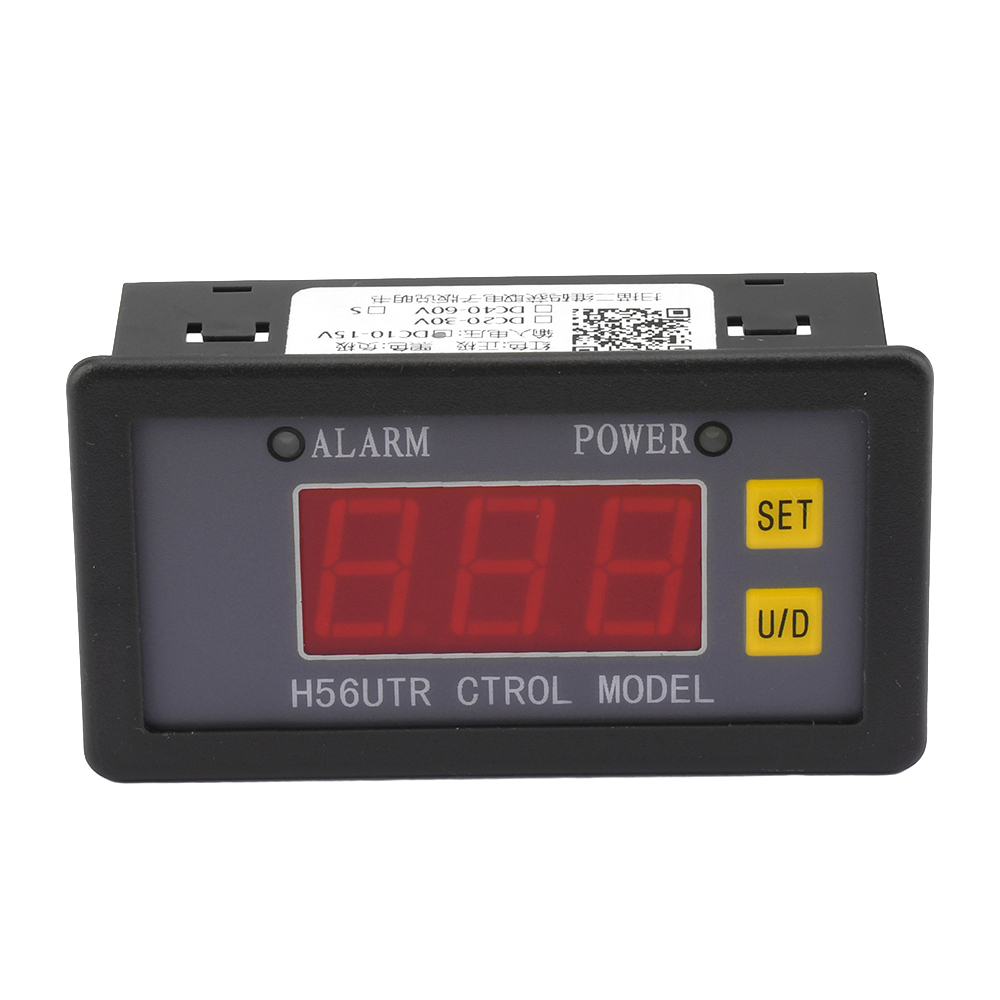

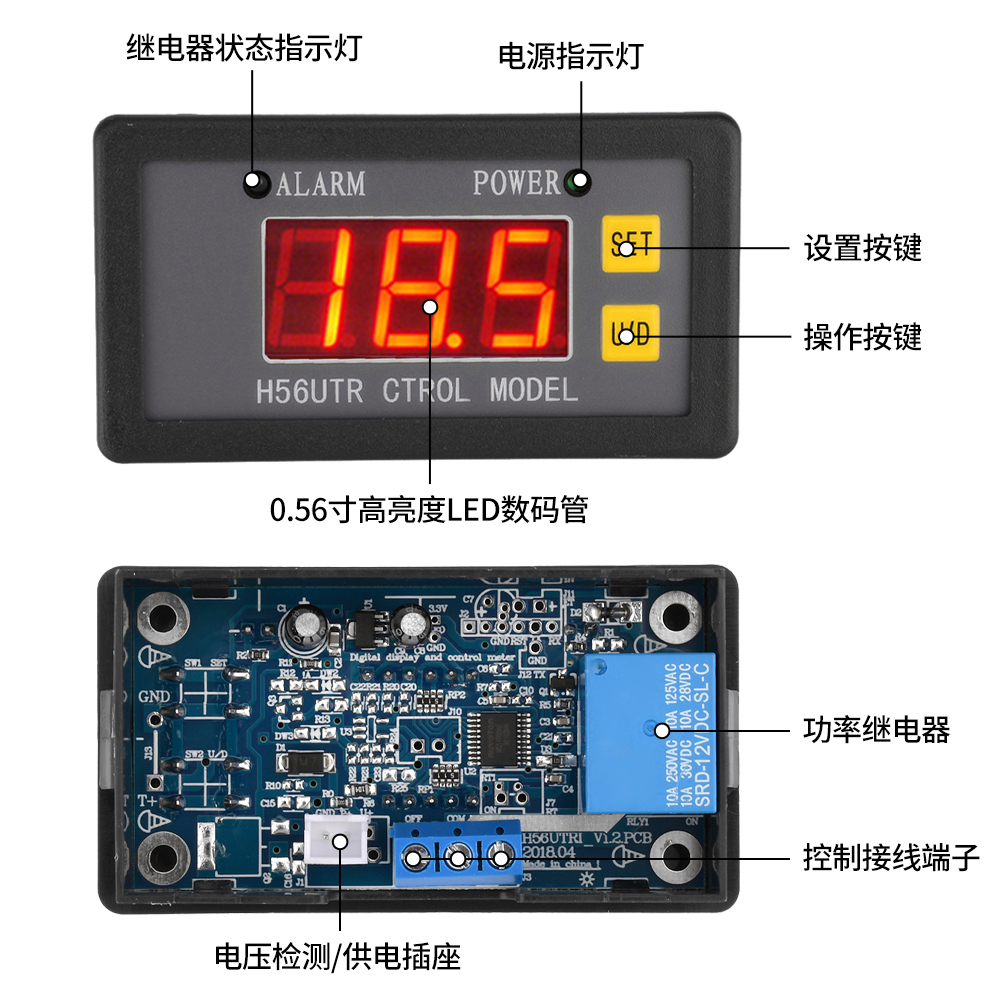

1. It adopts a three position bright LED digital tube display and a card slot installation method.
2. Accurate measurement of DC voltage, with flashing alarms for upper and lower voltage limits.
3. Multiple modes can be combined according to the upper and lower limits of the set voltage, various delays, timing, and timing cycles.
4. Various mode setting parameters can be saved after power off, and the last mode execution can be resumed after power on again.

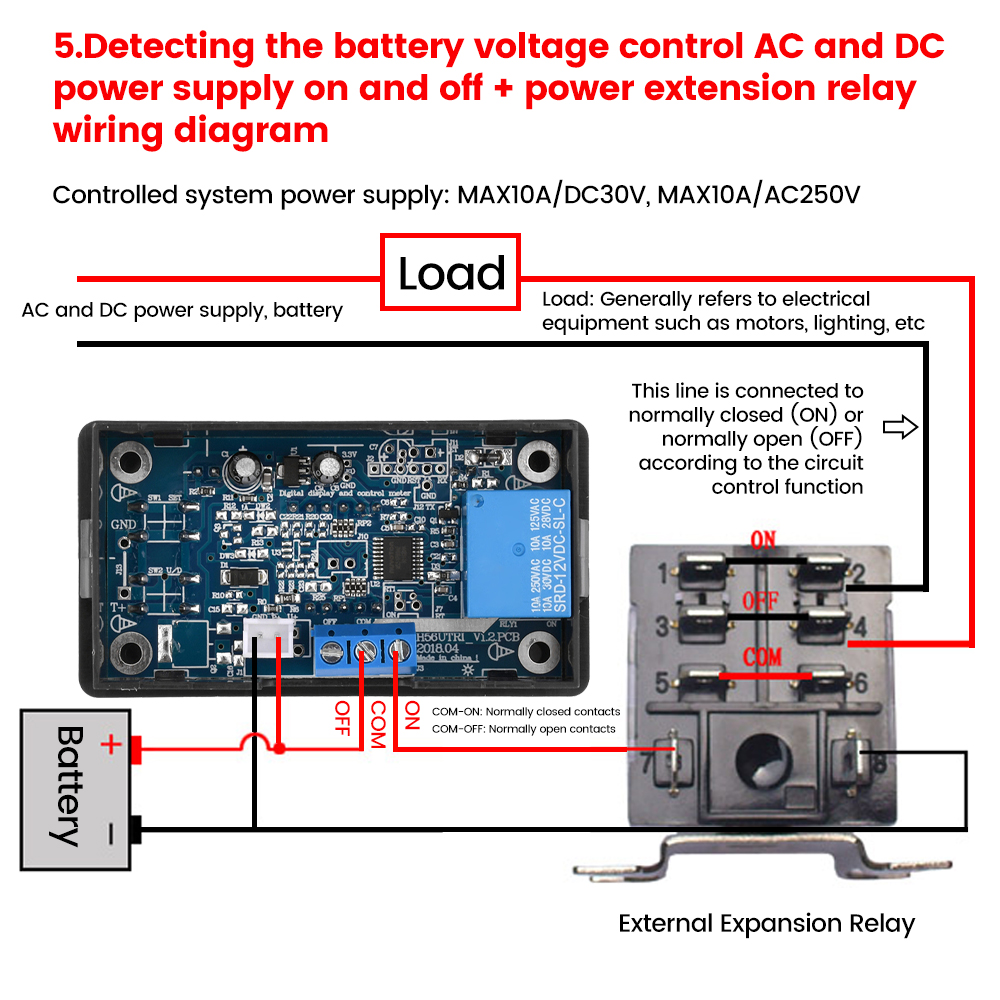

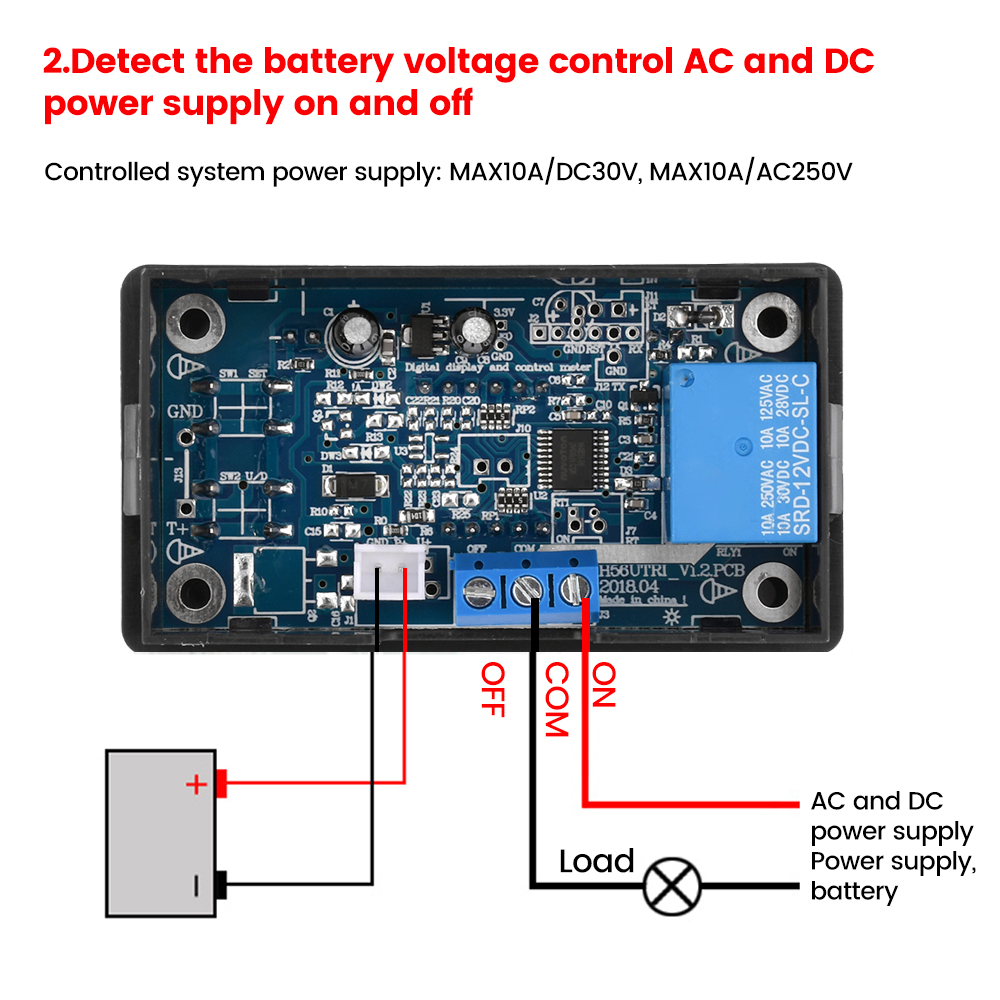

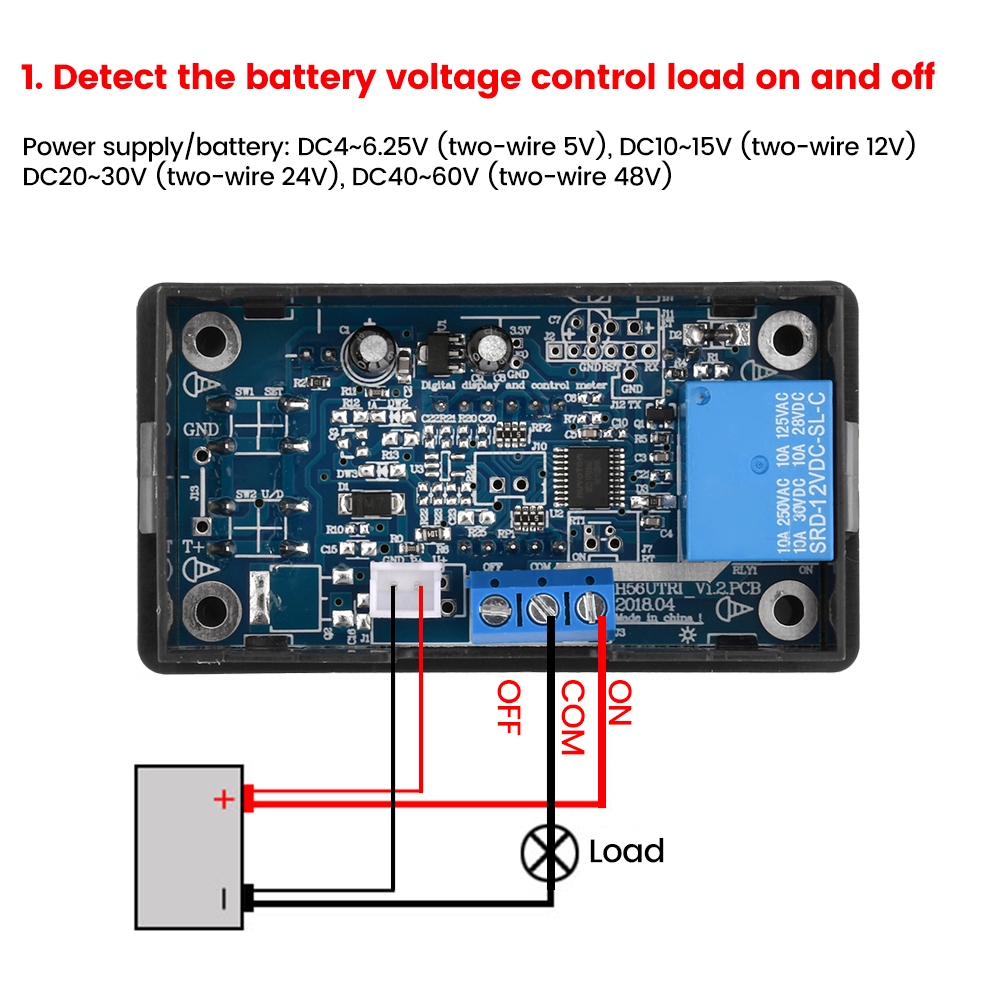

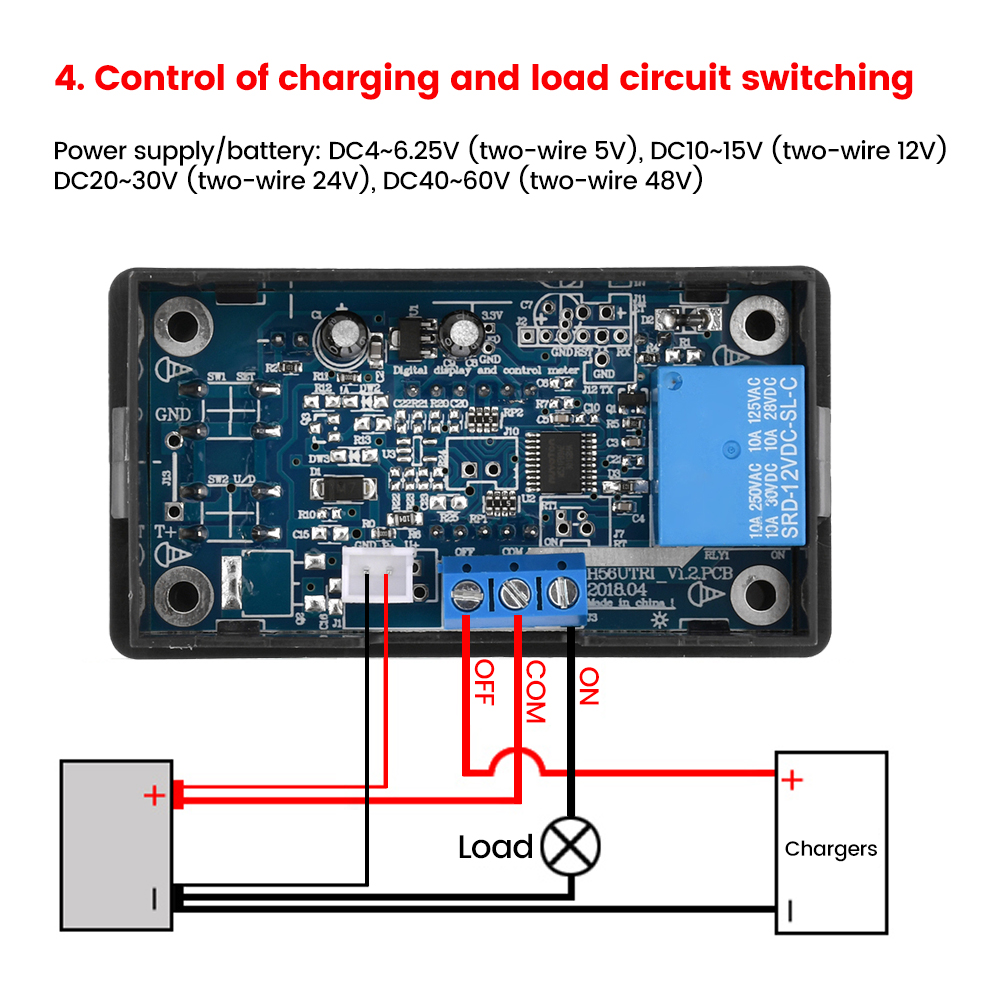

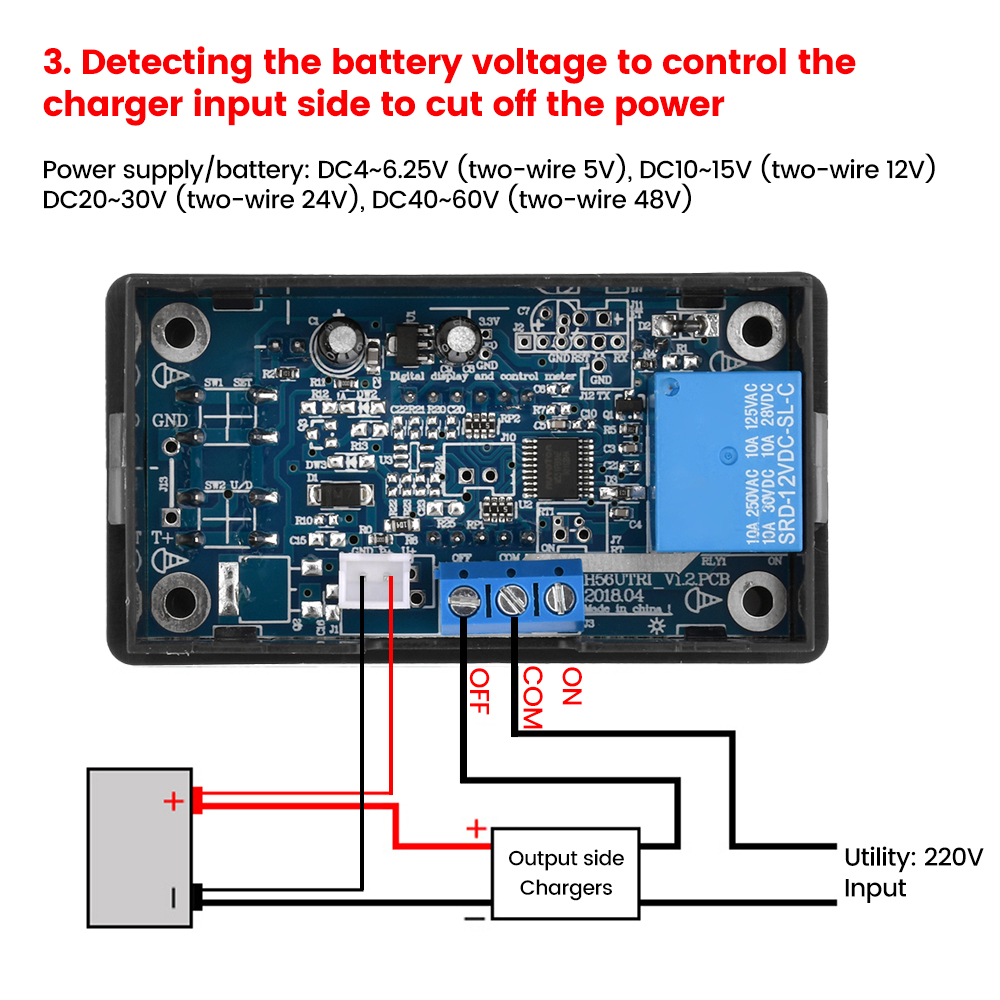

5. Widely used in battery charging and discharging control, automotive battery control, DC motor control, and overvoltage/undervoltage protection.

Parameter:
Working voltage: DC 12V, 24V, 48V (optional)
DC 10-15V (two wire 12V relay)
DC 20-30V (two wire 24V relay)
DC 40-60V (two wire 48V relay)
Voltage detection and display range: determined based on customer selection needs
Timing range: 0.0~99.9 seconds, 0~999 seconds, or 0~999 minutes (optional)
Standby current: 15mA/12V, minimum 10mA/12V when the relay is disconnected, 45mA/12V when the relay is closed

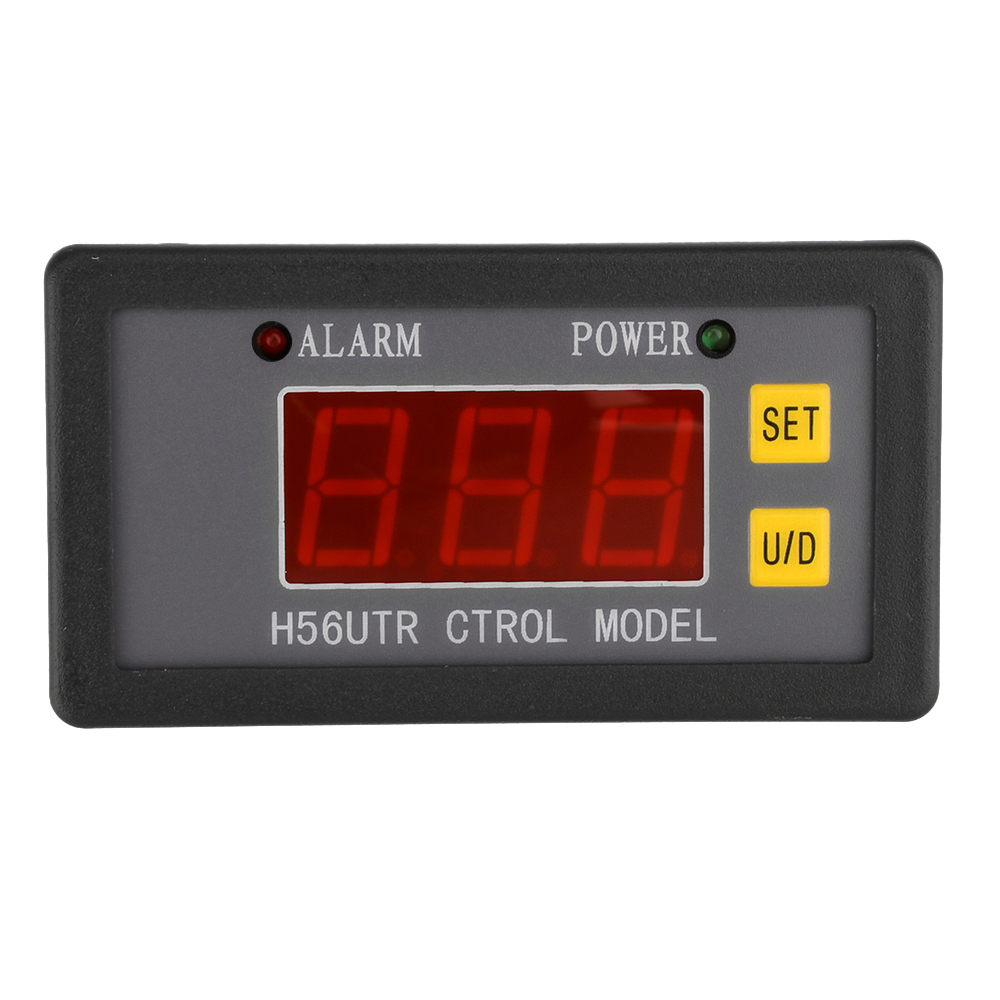

Display method: 0.56 inch LED digital tube
Digital display color: red
Working environment: -40~85 ℃
Product size: 79 * 42.5 * 24.6mm
Opening size: 76 * 39mm (recommended)

The default state of relay powering on can be set arbitrarily;

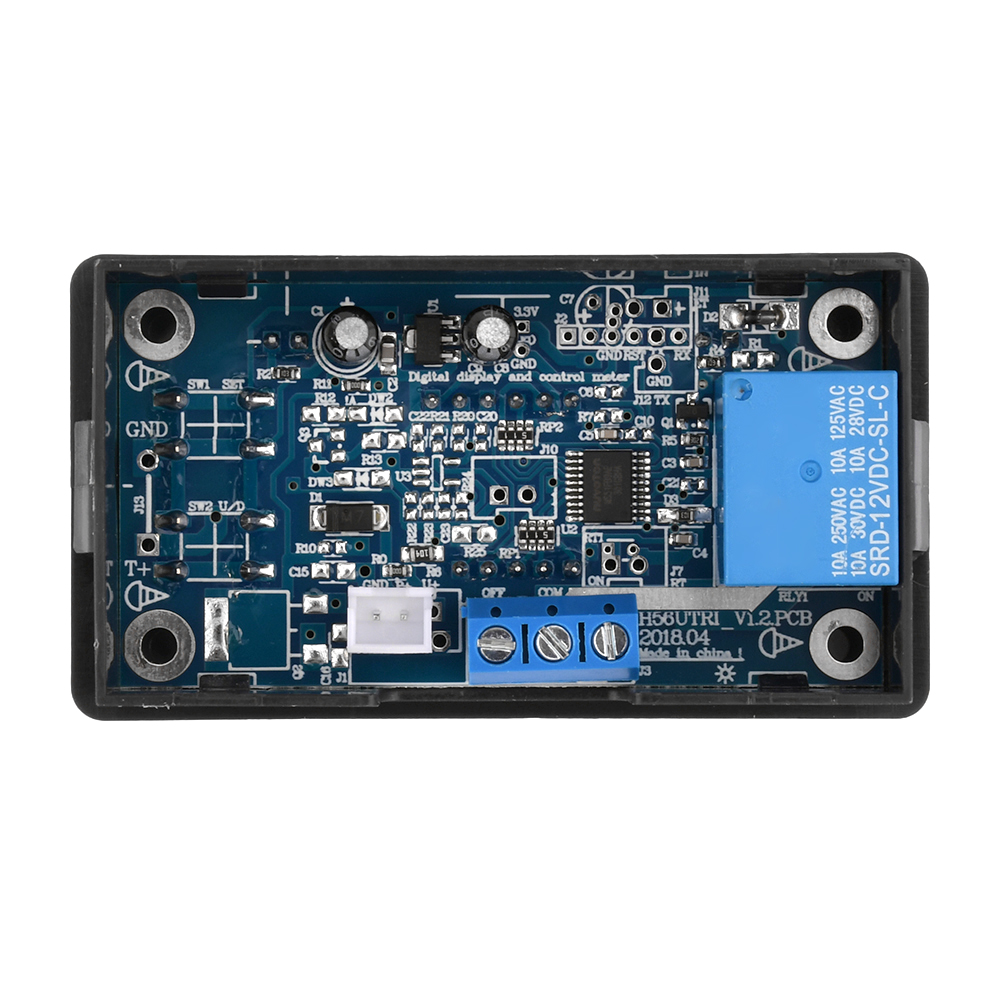

Relay parameters:
Rated working voltage of the coil: DC 12V/24V/48V
Minimum release voltage of coil: rated working voltage * 75%
Maximum suction voltage of the coil: rated working voltage * 90%
Maximum continuous working voltage of the coil: rated working voltage * 110%
Contact load: DC30V/10A, AC250V/10A, one set of normally open and normally closed conversion
Contact resistance: 100m Ω Max
Contact suction time: 10msec Max
Contact release time: 5msec Max
Isolation voltage between coil and contact: 1.5KVAC/1minute
Isolation impedance: 100M Ω Min 500VDC
Contact mechanical durability:>10 million times

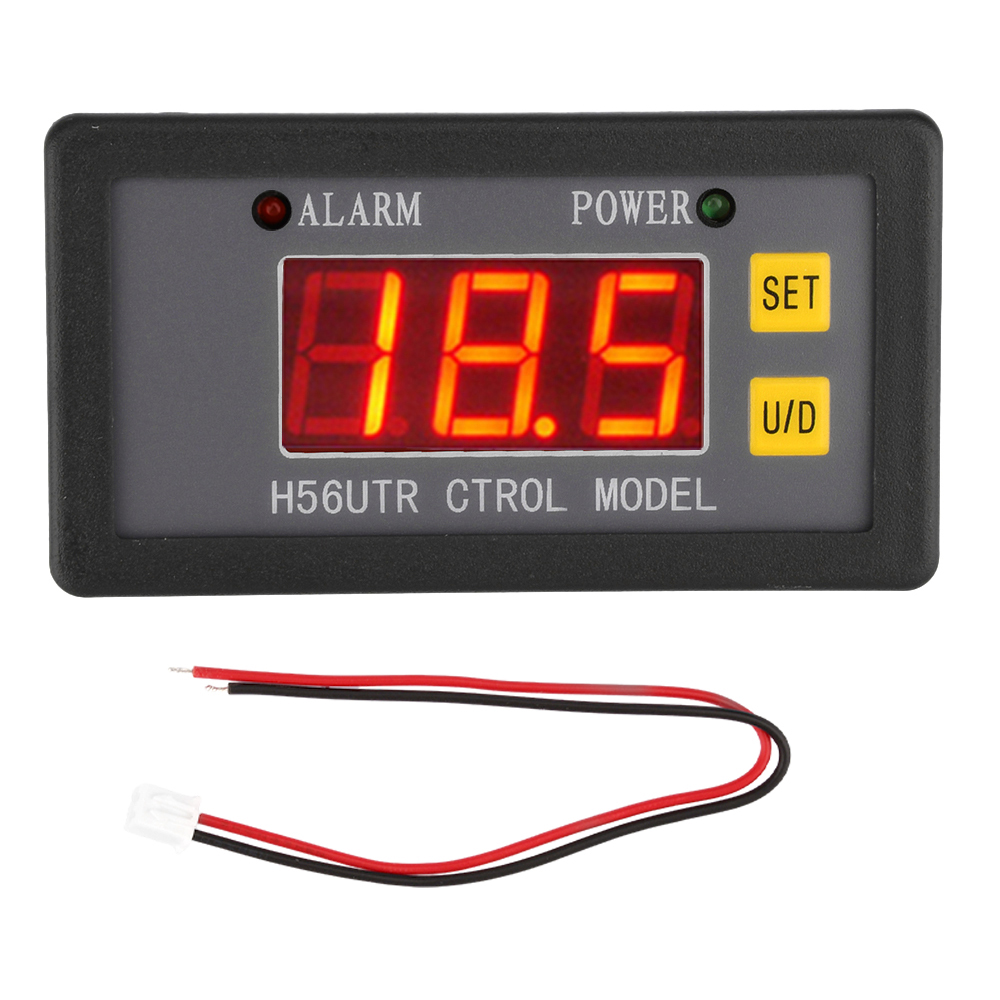

Package include:
Voltmeter * 1
Wiring * 1
