Item Description
Features:
1. Power-off memory function
2. Reverse polarity protection prevents module damage from incorrect power connections
3. Timing accuracy down to 0.01 seconds. Selectable range: 0.1 seconds (minimum) to 999 minutes (maximum)
4. Low-power saving mode allows display area shutdown
5. Wide application range: suitable for pump control, motor control, LED strip control, solenoid valve control, etc.
1. Power-off memory function
2. Reverse polarity protection prevents module damage from incorrect power connections
3. Timing accuracy down to 0.01 seconds. Selectable range: 0.1 seconds (minimum) to 999 minutes (maximum)
4. Low-power saving mode allows display area shutdown
5. Wide application range: suitable for pump control, motor control, LED strip control, solenoid valve control, etc.
Product Description:
Multifunctional relay control module designed for users with diverse requirements. Utilizes a microcontroller as the main control unit with 32 preset functions. Users can select specific functions based on actual needs. Applicable for pump control, motor control, LED strip control, solenoid valve control, etc.
Multifunctional relay control module designed for users with diverse requirements. Utilizes a microcontroller as the main control unit with 32 preset functions. Users can select specific functions based on actual needs. Applicable for pump control, motor control, LED strip control, solenoid valve control, etc.
Product Parameters:

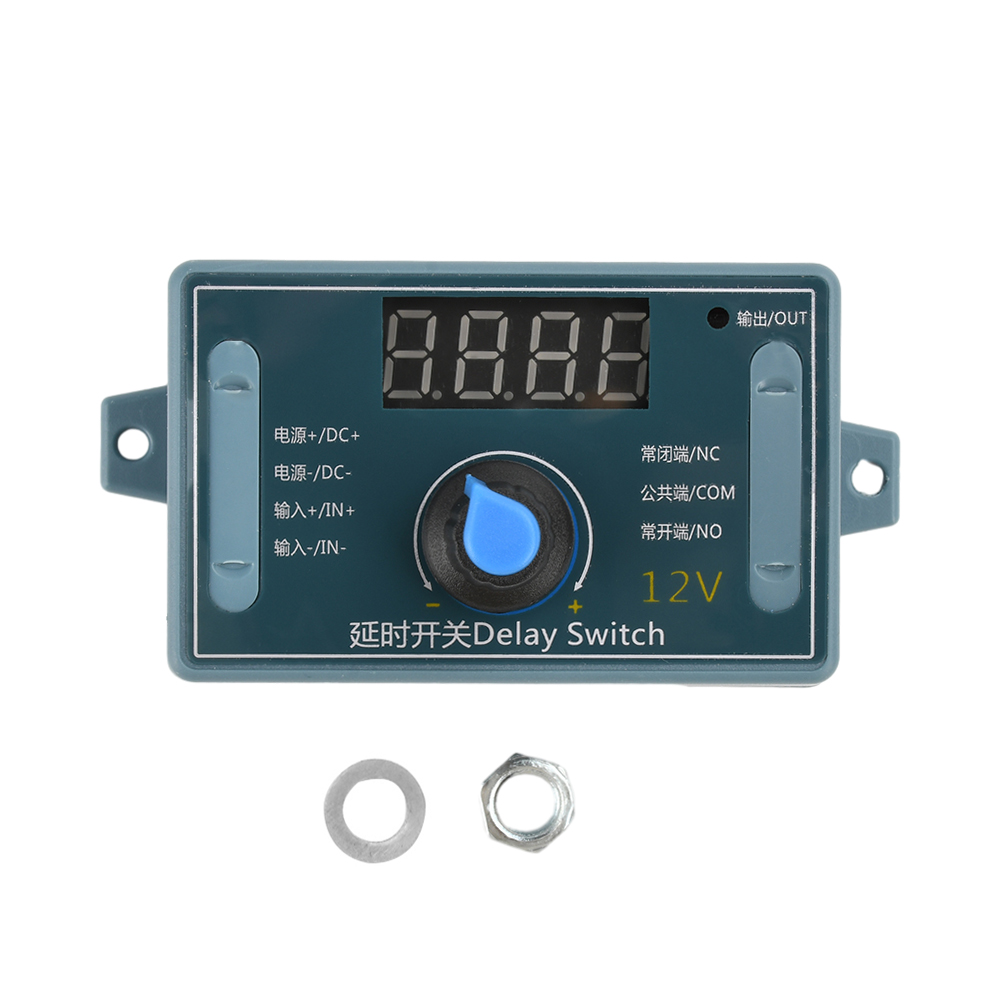

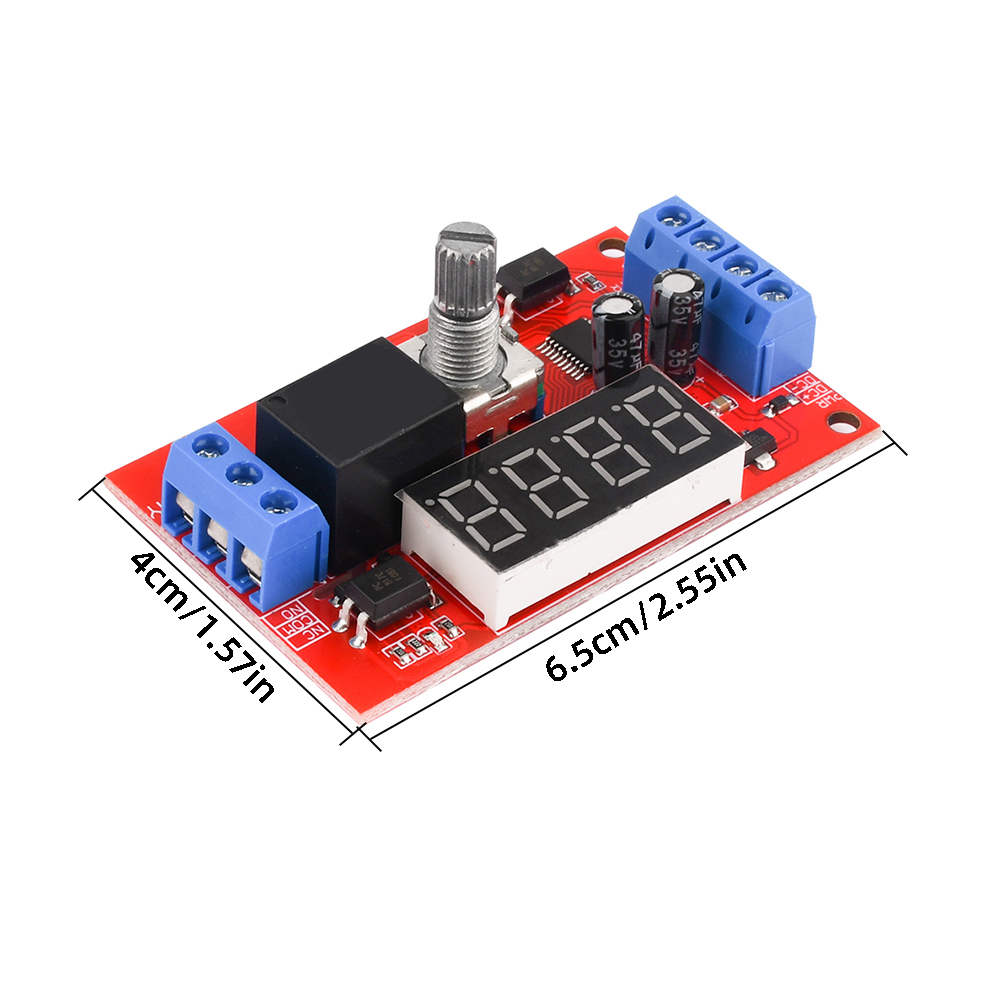

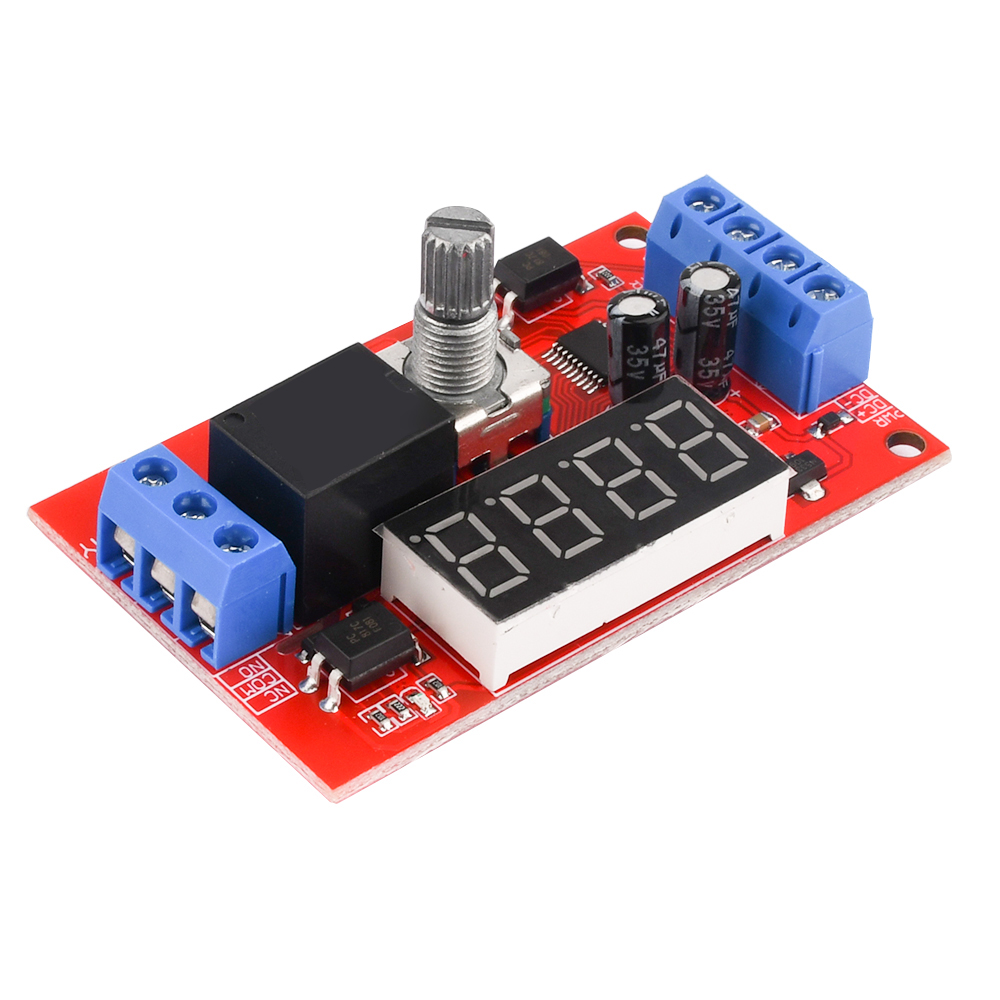

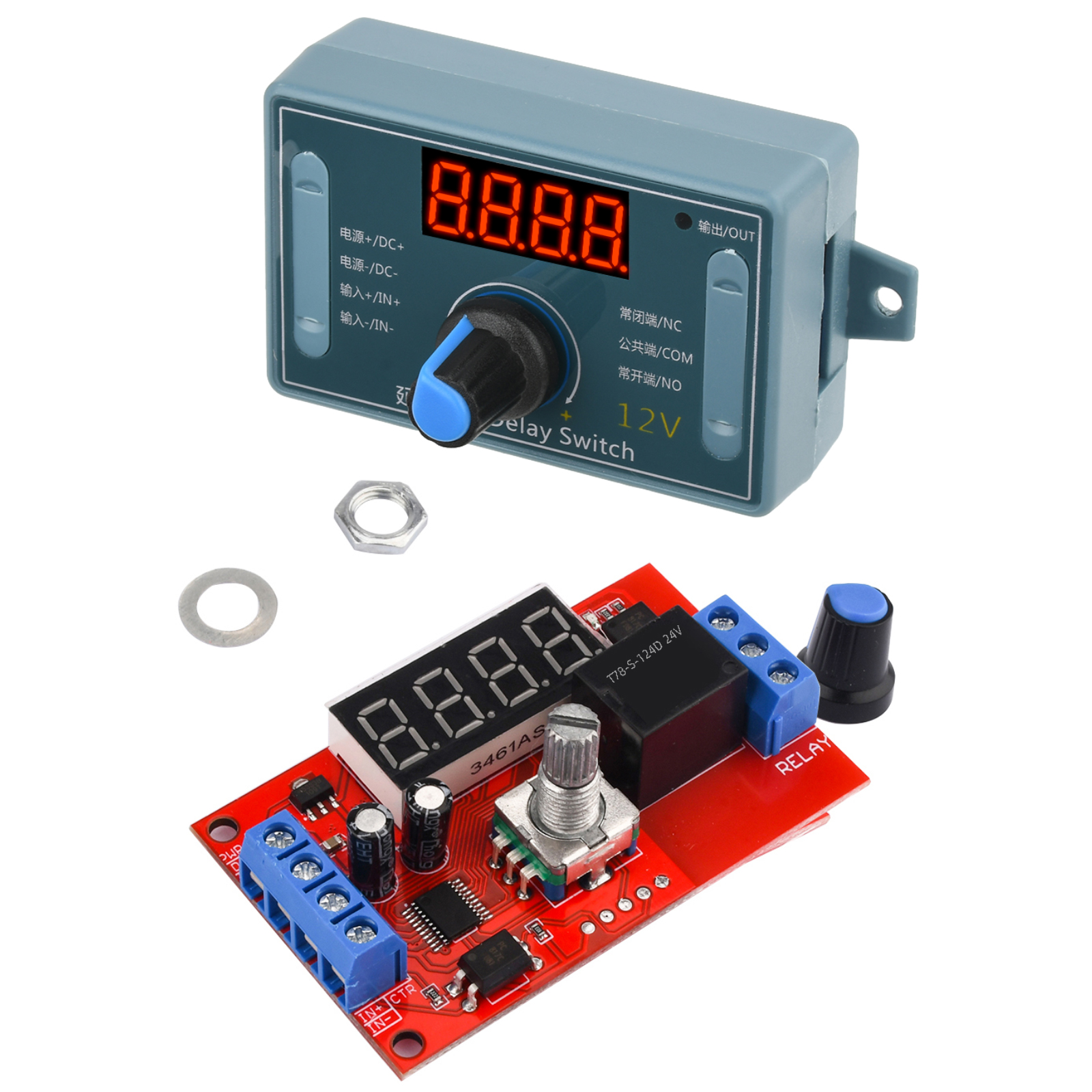

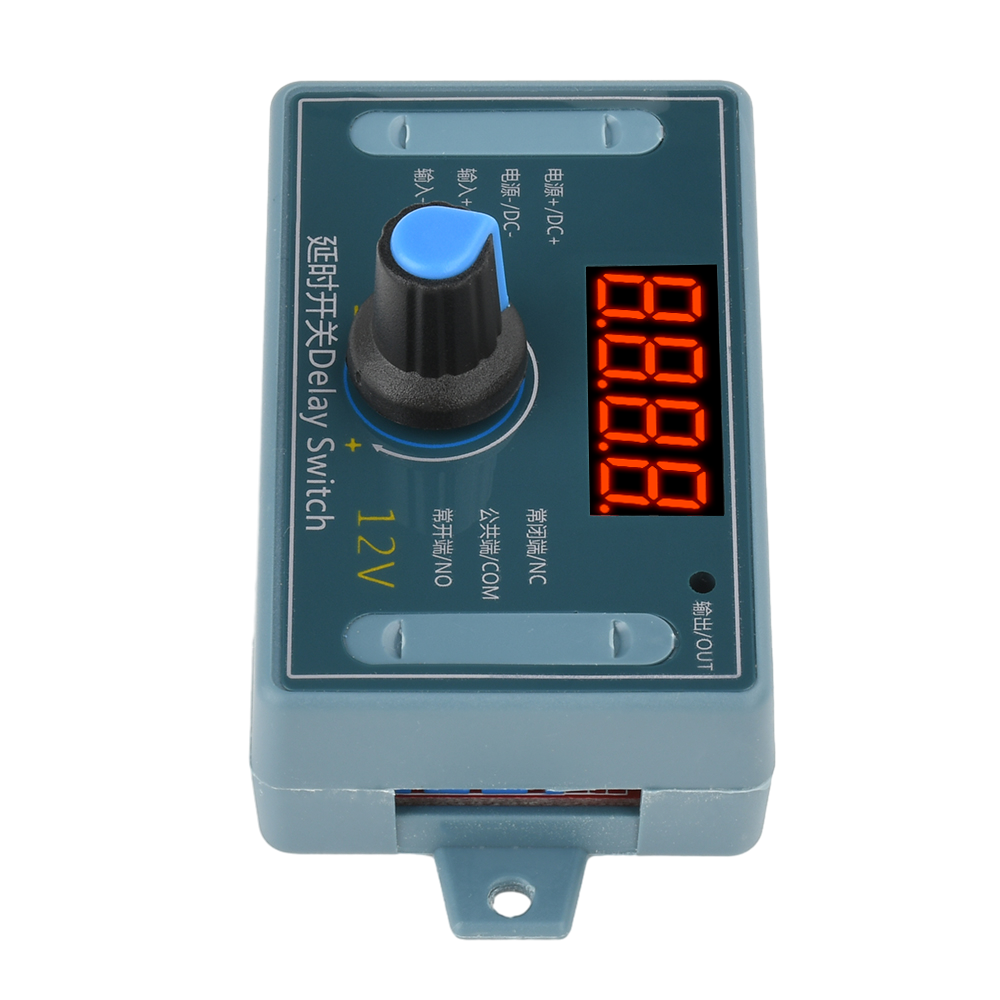

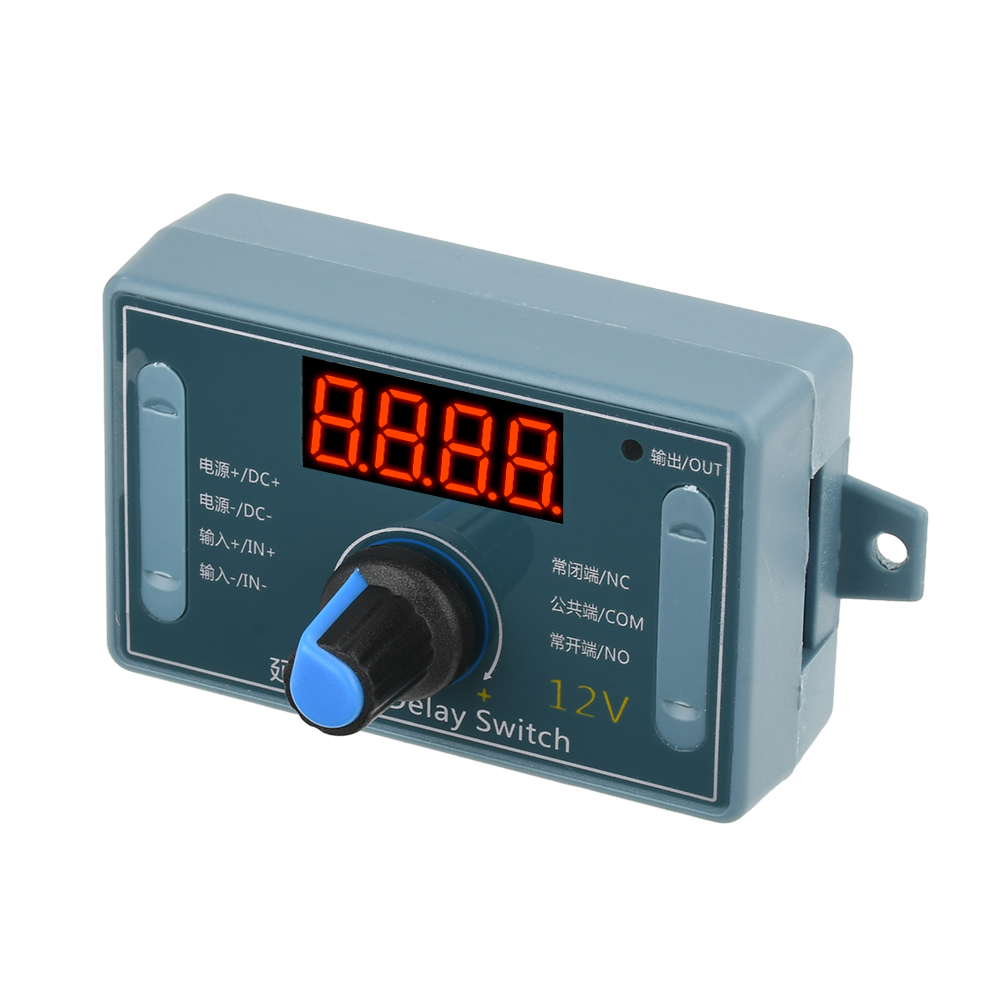

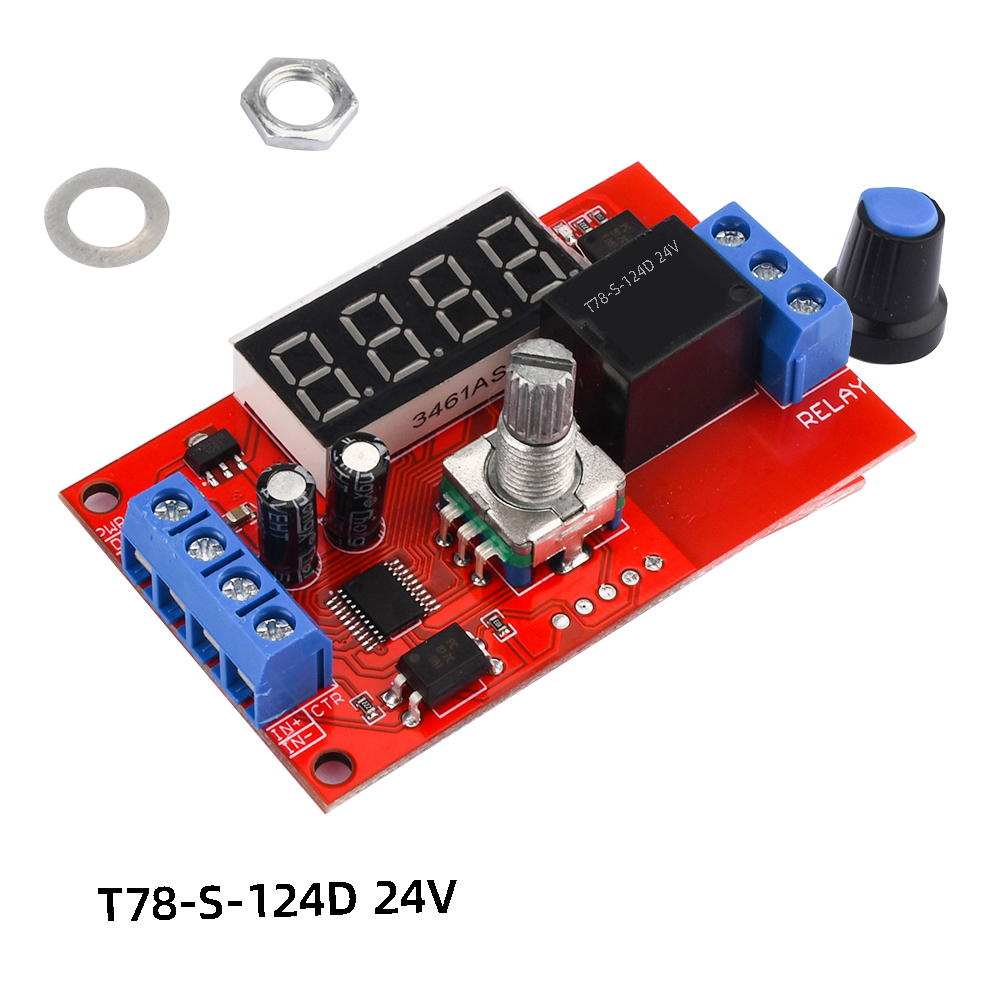

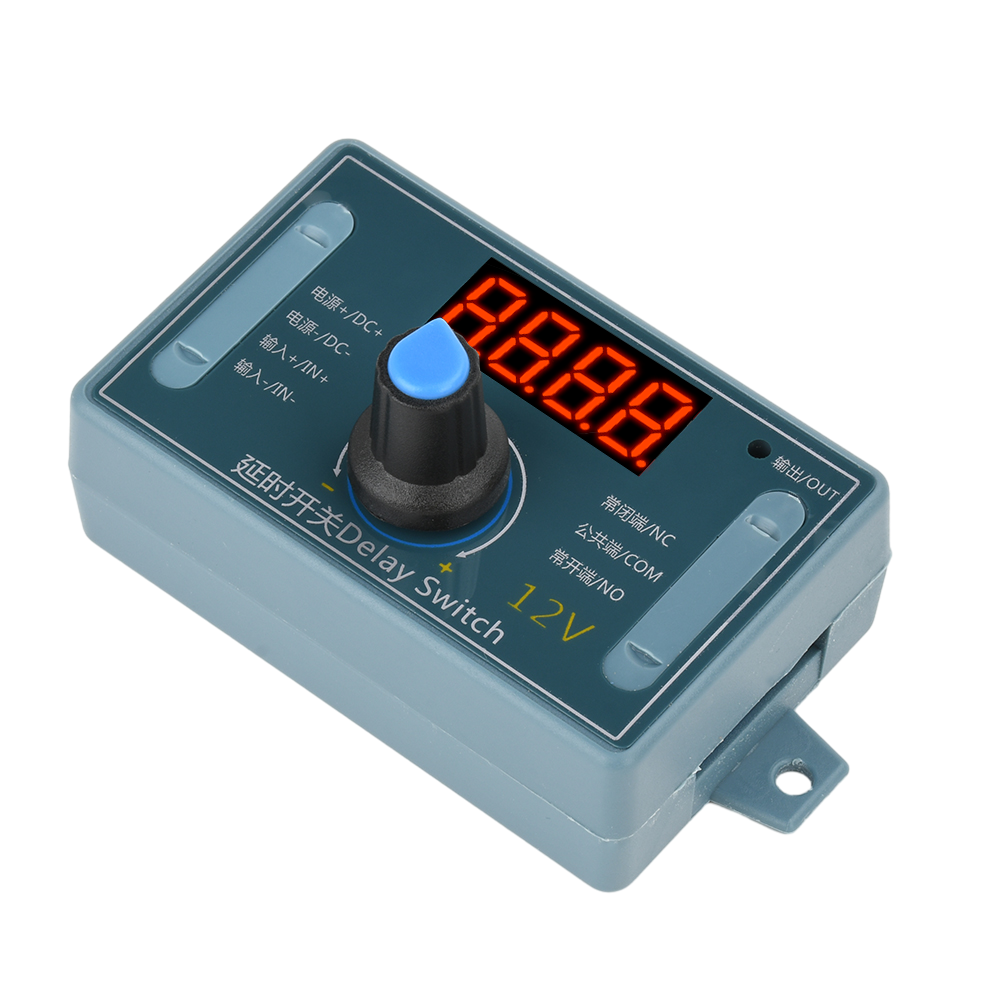

Product Name: Multifunctional Time-Delay Relay
Relay Voltage: Selectable DC 5V/12V/24V
Input Voltage:
- 5V Version: DC 5V supply
- 12V Version: DC 12V supply
- 24V Version: DC 24V supply
Output Load:
- DC: Up to 30V, max 10A
- AC: Up to 250V, max 5A
Trigger Signal:
5V Version (High Level: 5V);
12V Version (High Level: 12V);
24V Version (High Level: 24V)
Low Level: All Ground (OV)
Quiescent Current: 20mA
Operating Current: 60mA
Operating Temperature: -25°C to 85°C
Power-off Memory: Yes
Product Name: Multifunctional Time-Delay Relay
Relay Voltage: Selectable DC 5V/12V/24V
Input Voltage:
- 5V Version: DC 5V supply
- 12V Version: DC 12V supply
- 24V Version: DC 24V supply
Output Load:
- DC: Up to 30V, max 10A
- AC: Up to 250V, max 5A
Trigger Signal:
5V Version (High Level: 5V);
12V Version (High Level: 12V);
24V Version (High Level: 24V)
Low Level: All Ground (OV)
Quiescent Current: 20mA
Operating Current: 60mA
Operating Temperature: -25°C to 85°C
Power-off Memory: Yes

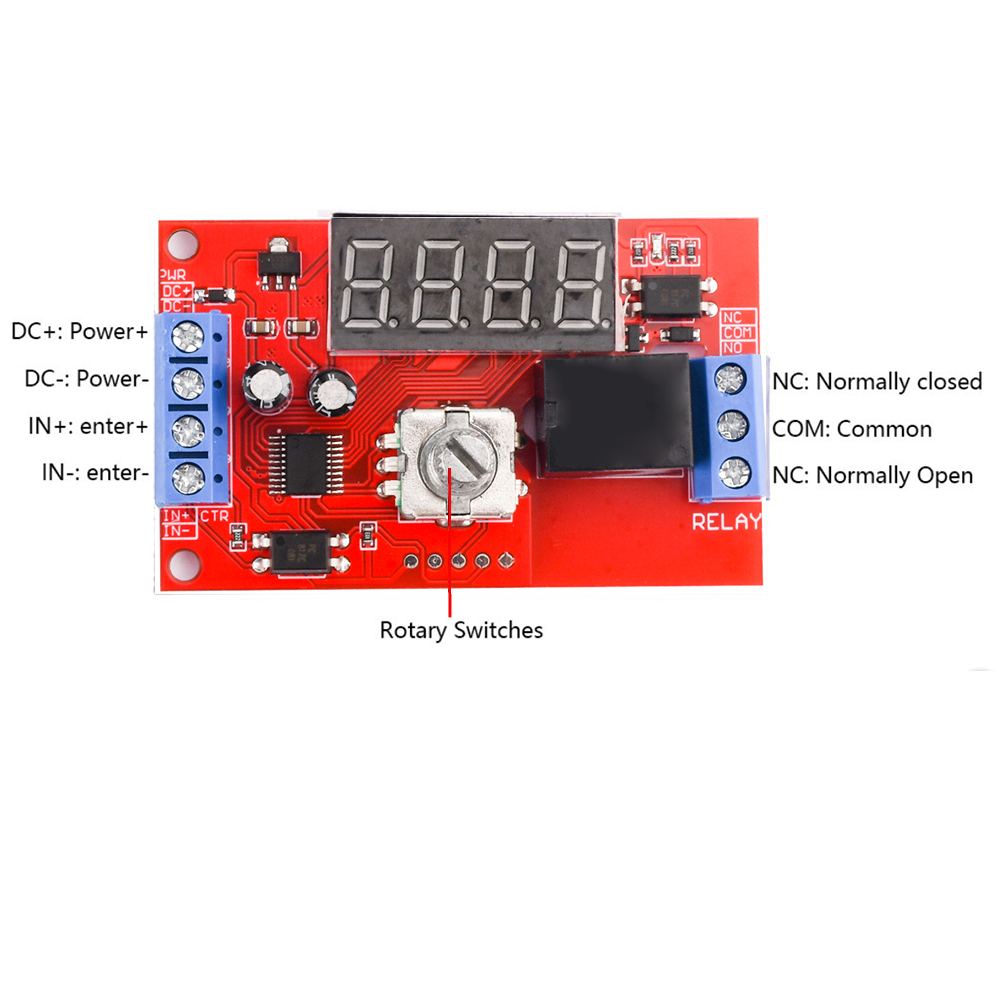

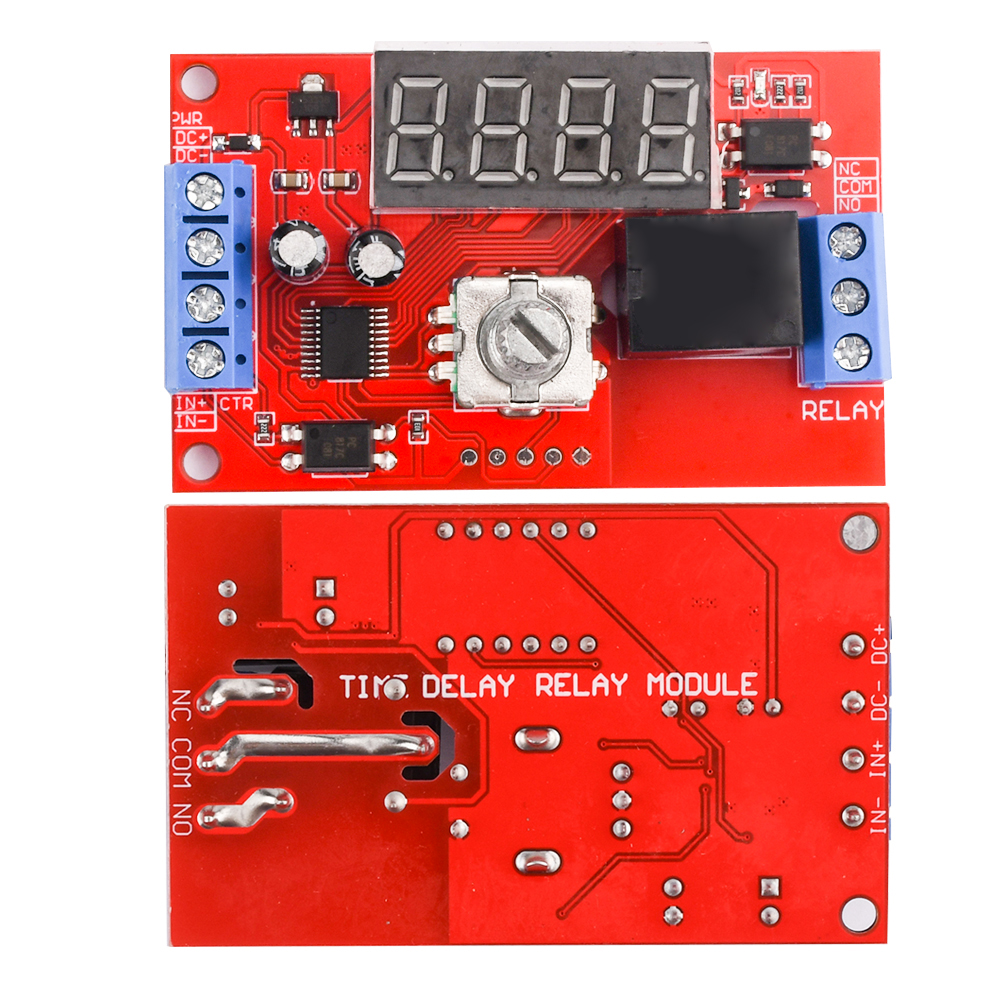

Terminal Port Description:
DC Power Input Positive: DC+
DC Power Input Negative: DC-
Signal Input Positive: IN+
Signal Input Negative: IN-
Relay Normally Open Terminal Interface: Shorted to COM when relay is energized; Floating when de-energized: NO
Relay Common Terminal Interface: COM
Relay Normally Closed Terminal Interface: Shorted to COM when relay is de-energized; Floating when energized: NC
DC Power Input Positive: DC+
DC Power Input Negative: DC-
Signal Input Positive: IN+
Signal Input Negative: IN-
Relay Normally Open Terminal Interface: Shorted to COM when relay is energized; Floating when de-energized: NO
Relay Common Terminal Interface: COM
Relay Normally Closed Terminal Interface: Shorted to COM when relay is de-energized; Floating when energized: NC
Operating Modes (32 Types)
P-11: Momentary Mode: Engages when signal is present, disengages when signal is absent.
P-12: Self-Locking Mode: Relay state toggles once per trigger.
P-13: After trigger, relay engages and disengages after delay A; triggers during delay period are ignored.
P-14: After triggering, the relay energizes and de-energizes after delay time A; triggers during delay restart the timing.
P-15: After triggering, the relay energizes and de-energizes after delay time A; triggers during delay accumulate the timing.
P-16: After triggering, the relay energizes and de-energizes after delay time A; triggering during delay resets (relay de-energizes).
P-17: After triggering, the relay remains energized while the signal persists. When the input signal disappears, it de-energizes after delay time A. If triggered again during delay, the relay stays energized, timing stops, and de-energizes after delay time A when the last signal disappears.
P-18: Upon power-up, the relay immediately energizes and de-energizes after delay A seconds; remains active until next power-up.
P-21: Upon signal input, the relay energizes after delay A.
P-22: Upon continuous signal input exceeding delay A, the relay energizes; de-energizes upon signal disappearance.
P-23: If signal absence exceeds time A, the relay energizes; if a signal is present, the relay de-energizes.
P-24: Upon receiving a continuous signal exceeding time A, the relay energizes; if signal absence exceeds time A, the relay de-energizes.
P-25: Upon receiving a continuous signal exceeding time A, the relay energizes; upon receiving another continuous signal exceeding time A, the relay de-energizes.
P-26: When a signal is applied, the relay closes for time A and then opens; after the signal disappears, the relay closes again for A seconds and then stops.
P-27: When a pulse signal (rising edge or falling edge) is present, the relay opens; when no pulse signal is present, the relay closes after a delay of time A (both continuous high level and continuous low level are considered no pulse).
P-28: After power-up, the relay energizes after delay A and remains energized until power-down.
P-31: After power-up, the relay energizes for duration A, de-energizes for duration B, and repeats indefinitely; cycle stops upon power-down.
P-32: With a continuous signal, the relay energizes for duration A, de-energizes for duration B, and repeats indefinitely; cycle terminates when signal disappears.
P-33: Upon receiving a single signal, the relay energizes for time A, de-energizes for time B, and repeats indefinitely; another signal terminates the cycle.
P-34: After power-up, the relay energizes after delay time A, de-energizes after holding for time B.
P-35: Upon receiving a single signal, the relay energizes after delay time A, de-energizes after holding for time B.
P-36: Upon continuous signal input exceeding duration A, the relay energizes for duration B before de-energizing. Signal disappearance resets the timer, causing the relay to de-energize.
P-37: With signal input, the relay energizes for duration A before automatically de-energizing. After de-energizing, it timers for duration B. Signal triggers are invalid during the combined A+B time period.
P-38: With signal present, relay energizes for duration A then automatically de-energizes. After de-energizing, a delay of duration B occurs before re-energizing for duration A, then automatically de-energizes.
P-41: No action with signal present; triggers upon signal disappearance. Relay energizes and de-energizes after delay duration A.
P-42: When signal disappears, relay engages after delay A; disengages after delay B.
P-43: When signal disappears, relay engages after exceeding delay A; disengages after delay B.
P-44: After power-up, relay engages for duration A, disengages for duration B; repeats C cycles before disengaging permanently.
P-45: Does not operate after power-up; when signal is applied, relay energizes for time A, de-energizes for time B; cycles C times before relay de-energizes and stops; signal reapplication restarts operation.
P-46: Relay energizes after signal is applied more than A times; remains energized; stops upon power-off.
P-47: After receiving a signal more than A times, the relay energizes; remains energized for duration B before de-energizing.
P-48: Within duration C, after receiving a continuous signal more than A times, the relay energizes for duration B before de-energizing and stopping.
P-11: Momentary Mode: Engages when signal is present, disengages when signal is absent.
P-12: Self-Locking Mode: Relay state toggles once per trigger.
P-13: After trigger, relay engages and disengages after delay A; triggers during delay period are ignored.
P-14: After triggering, the relay energizes and de-energizes after delay time A; triggers during delay restart the timing.
P-15: After triggering, the relay energizes and de-energizes after delay time A; triggers during delay accumulate the timing.
P-16: After triggering, the relay energizes and de-energizes after delay time A; triggering during delay resets (relay de-energizes).
P-17: After triggering, the relay remains energized while the signal persists. When the input signal disappears, it de-energizes after delay time A. If triggered again during delay, the relay stays energized, timing stops, and de-energizes after delay time A when the last signal disappears.
P-18: Upon power-up, the relay immediately energizes and de-energizes after delay A seconds; remains active until next power-up.
P-21: Upon signal input, the relay energizes after delay A.
P-22: Upon continuous signal input exceeding delay A, the relay energizes; de-energizes upon signal disappearance.
P-23: If signal absence exceeds time A, the relay energizes; if a signal is present, the relay de-energizes.
P-24: Upon receiving a continuous signal exceeding time A, the relay energizes; if signal absence exceeds time A, the relay de-energizes.
P-25: Upon receiving a continuous signal exceeding time A, the relay energizes; upon receiving another continuous signal exceeding time A, the relay de-energizes.
P-26: When a signal is applied, the relay closes for time A and then opens; after the signal disappears, the relay closes again for A seconds and then stops.
P-27: When a pulse signal (rising edge or falling edge) is present, the relay opens; when no pulse signal is present, the relay closes after a delay of time A (both continuous high level and continuous low level are considered no pulse).
P-28: After power-up, the relay energizes after delay A and remains energized until power-down.
P-31: After power-up, the relay energizes for duration A, de-energizes for duration B, and repeats indefinitely; cycle stops upon power-down.
P-32: With a continuous signal, the relay energizes for duration A, de-energizes for duration B, and repeats indefinitely; cycle terminates when signal disappears.
P-33: Upon receiving a single signal, the relay energizes for time A, de-energizes for time B, and repeats indefinitely; another signal terminates the cycle.
P-34: After power-up, the relay energizes after delay time A, de-energizes after holding for time B.
P-35: Upon receiving a single signal, the relay energizes after delay time A, de-energizes after holding for time B.
P-36: Upon continuous signal input exceeding duration A, the relay energizes for duration B before de-energizing. Signal disappearance resets the timer, causing the relay to de-energize.
P-37: With signal input, the relay energizes for duration A before automatically de-energizing. After de-energizing, it timers for duration B. Signal triggers are invalid during the combined A+B time period.
P-38: With signal present, relay energizes for duration A then automatically de-energizes. After de-energizing, a delay of duration B occurs before re-energizing for duration A, then automatically de-energizes.
P-41: No action with signal present; triggers upon signal disappearance. Relay energizes and de-energizes after delay duration A.
P-42: When signal disappears, relay engages after delay A; disengages after delay B.
P-43: When signal disappears, relay engages after exceeding delay A; disengages after delay B.
P-44: After power-up, relay engages for duration A, disengages for duration B; repeats C cycles before disengaging permanently.
P-45: Does not operate after power-up; when signal is applied, relay energizes for time A, de-energizes for time B; cycles C times before relay de-energizes and stops; signal reapplication restarts operation.
P-46: Relay energizes after signal is applied more than A times; remains energized; stops upon power-off.
P-47: After receiving a signal more than A times, the relay energizes; remains energized for duration B before de-energizing.
P-48: Within duration C, after receiving a continuous signal more than A times, the relay energizes for duration B before de-energizing and stopping.

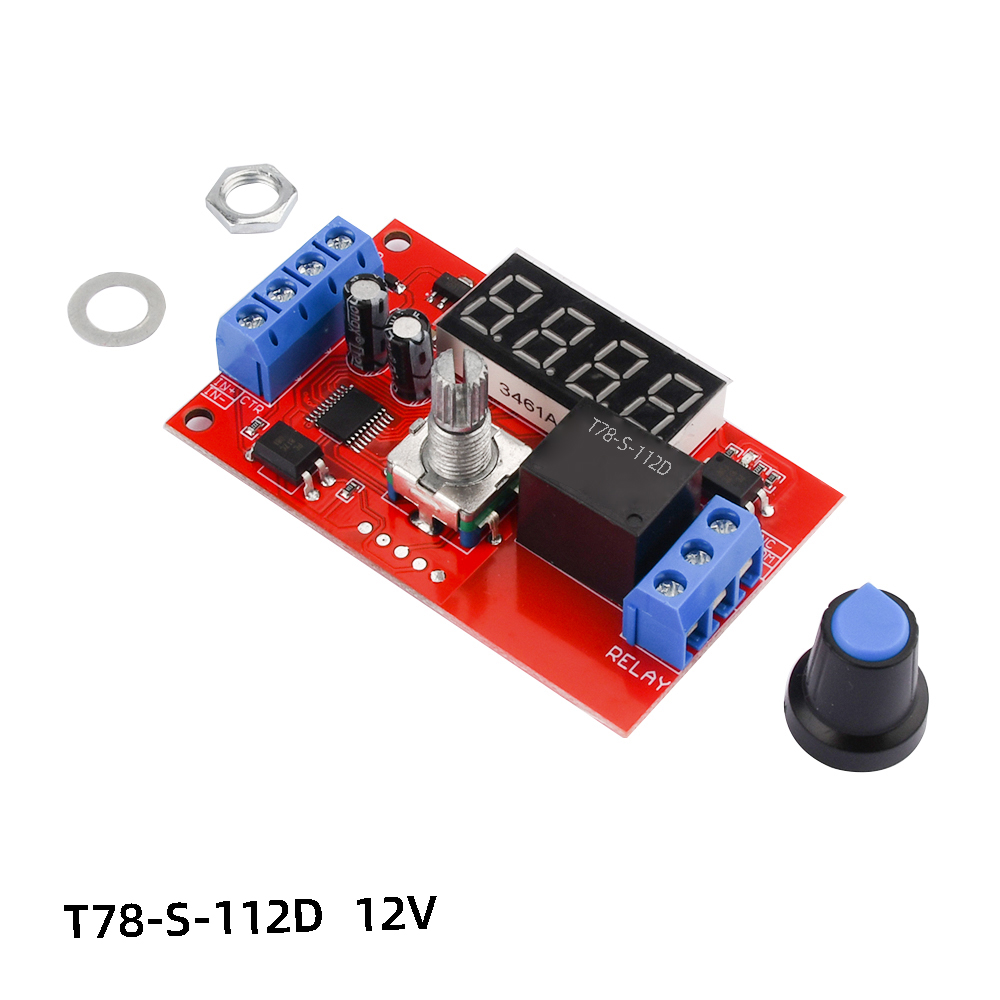

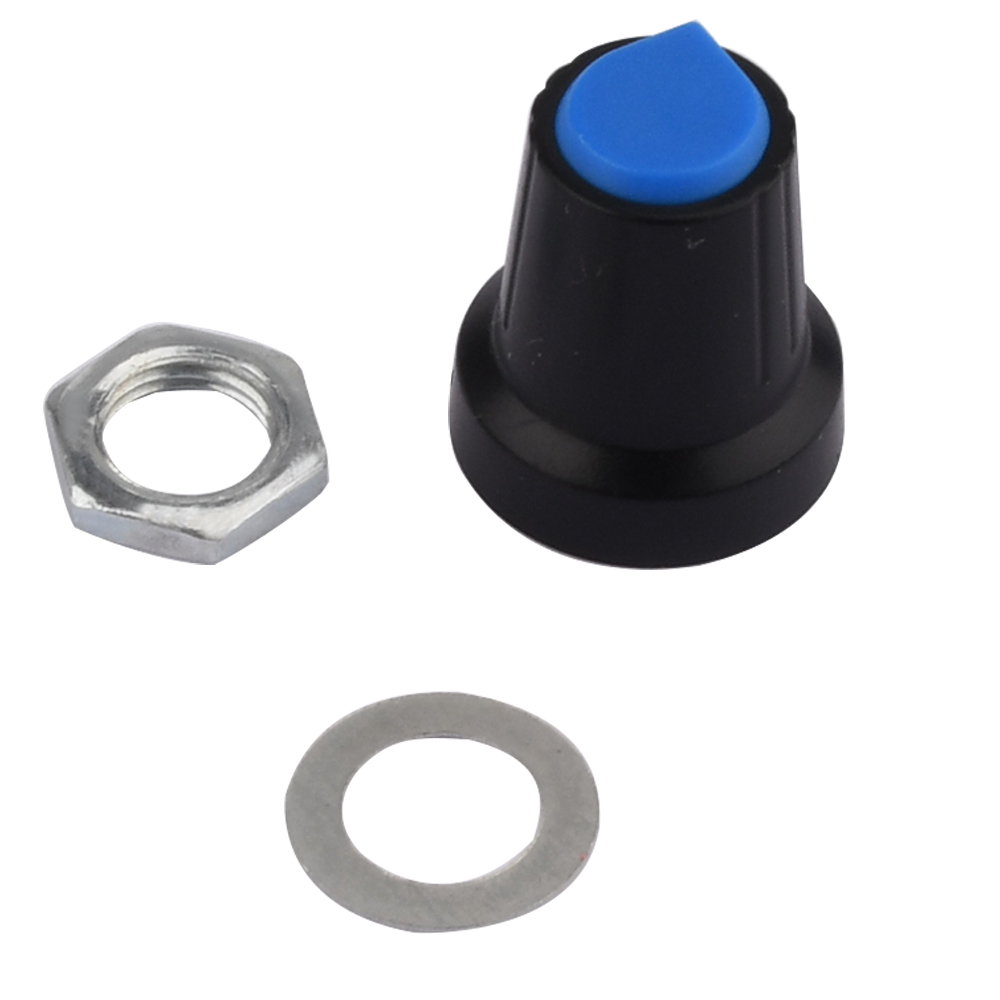

Shipping List
Relay*1
Button cap*1
Screw plate*2
Relay*1
Button cap*1
Screw plate*2
