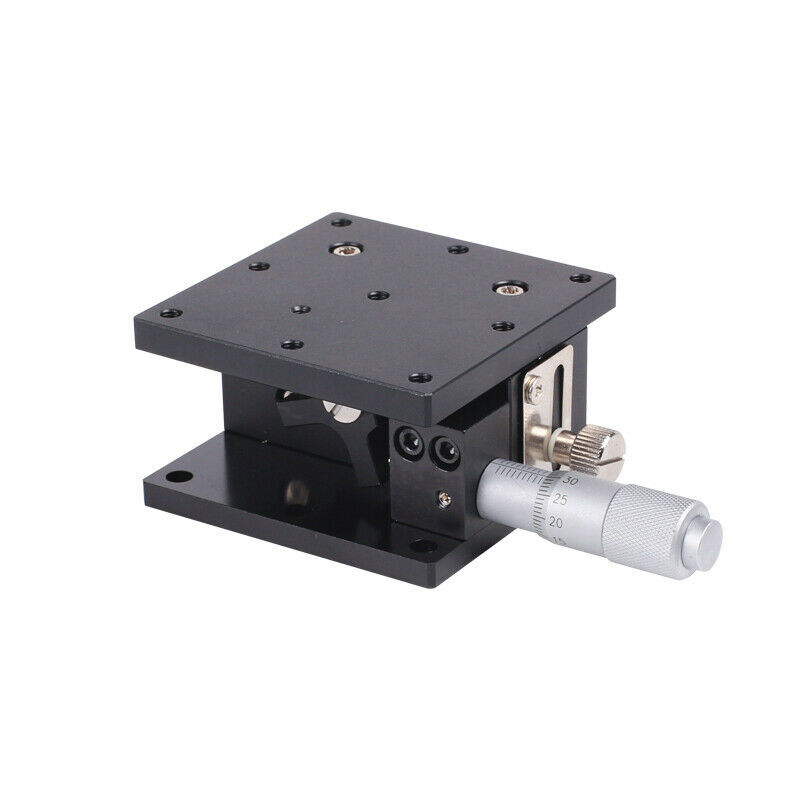

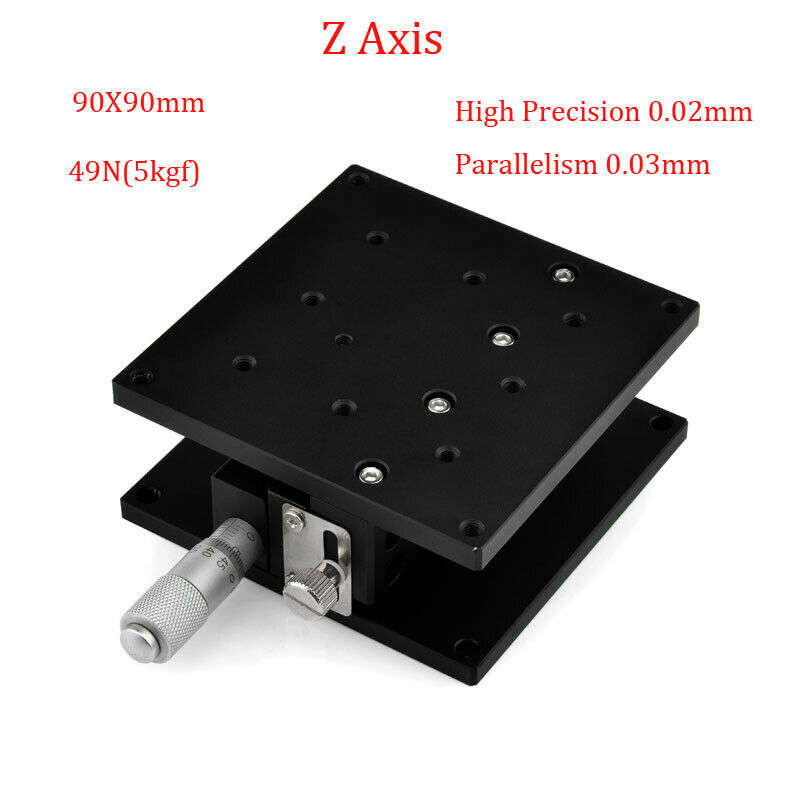

Z-Axis Trimming Platform Manual Slide Table Displacement Precision Linear Stage


1. Using cross roller guide can achieve high precision, smooth movement
2. Main material for aluminum, light weight, suitable to be built in other devices

Model LZ40 LZ60 LZ90
Table size 40*40mm 60*60mm 90*90mm
stroke 10mm
Load 19.6N(2kgf) 20.4N(3kgf) 49N(5kgf)
Material aluminum alloy
Min Scale 0.01mm
Accuracy 0.02mm
Parallelism 0.02mm 0.02mm 0.03mm
Weight 0.17kg 0.27kg 0.45kg

Package included:

1 x Linear Stage platform
