Feature:

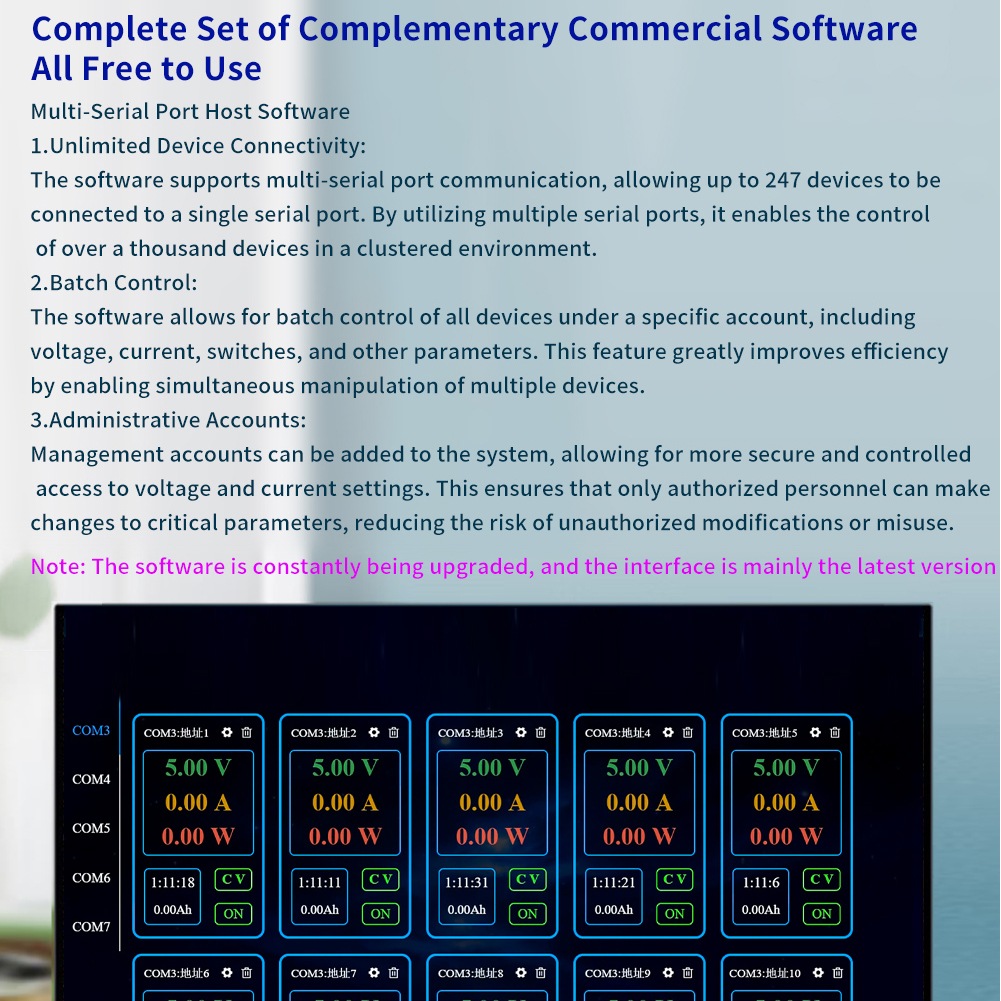

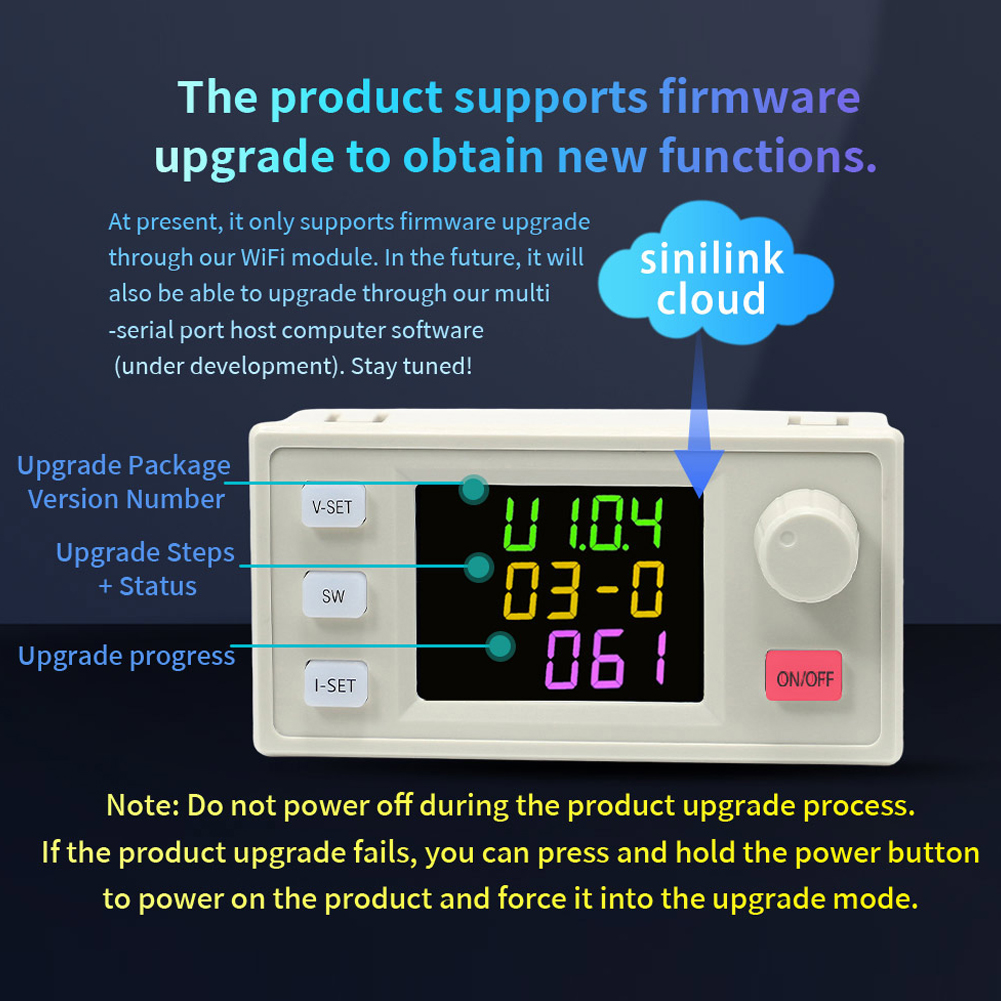

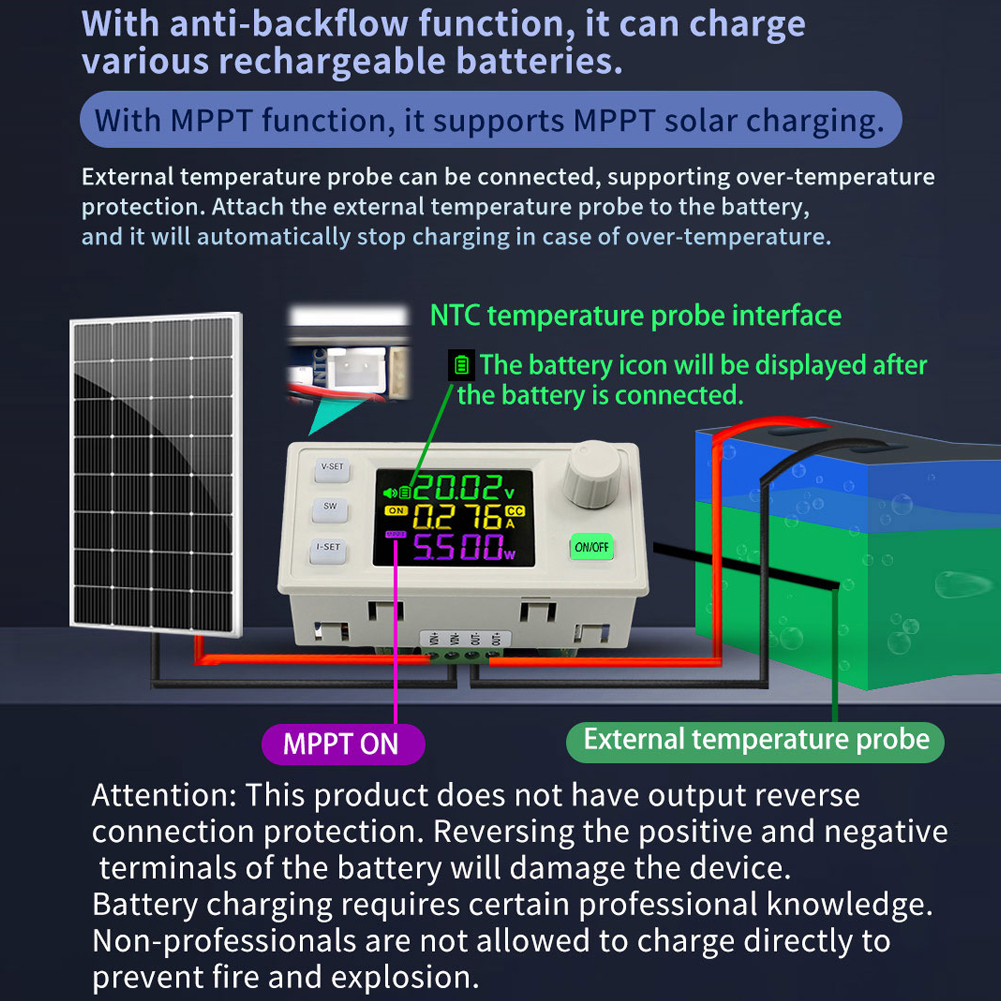

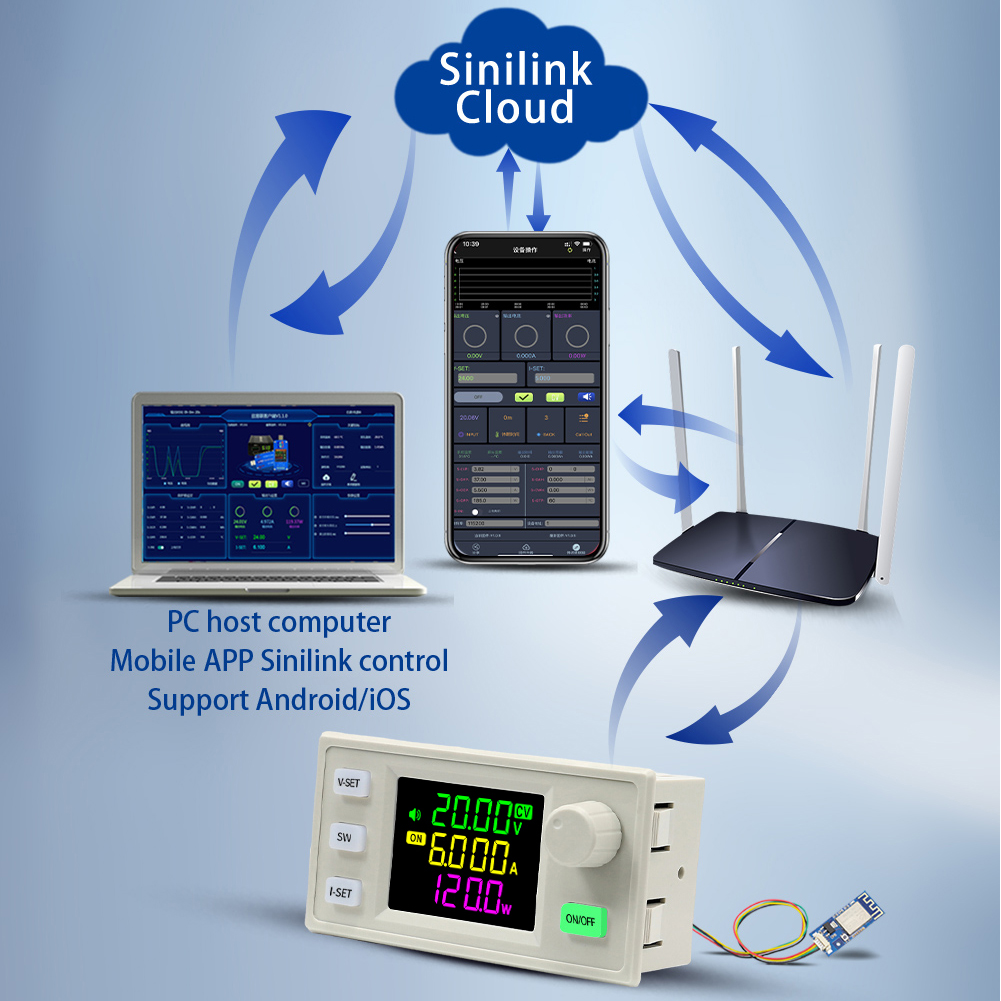

1. Support firmware upgrade, antiBackflow, support solar recharging, support serial communication, standard MODBUSprotocol.
2. The display panel adopts a gold-plated design, which is resistant to oxidation, has fine conductivity, and is more wear-resistant.

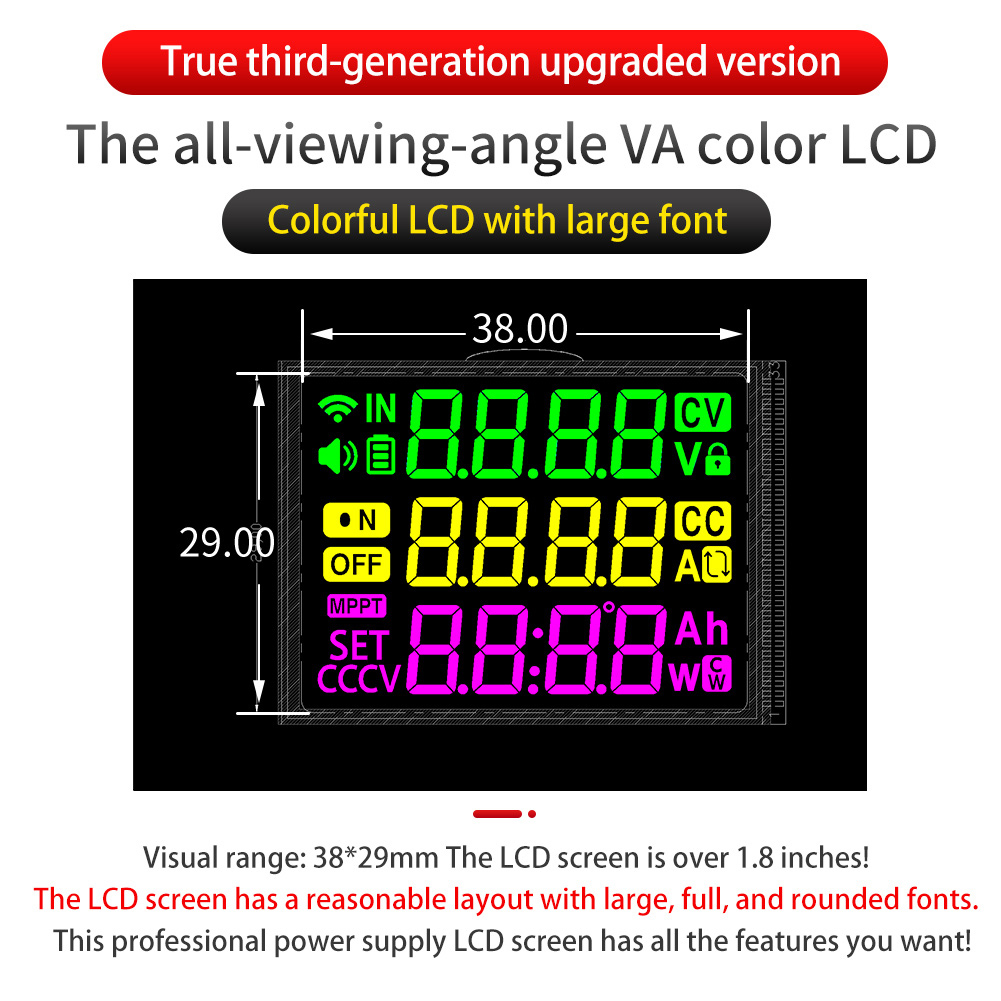

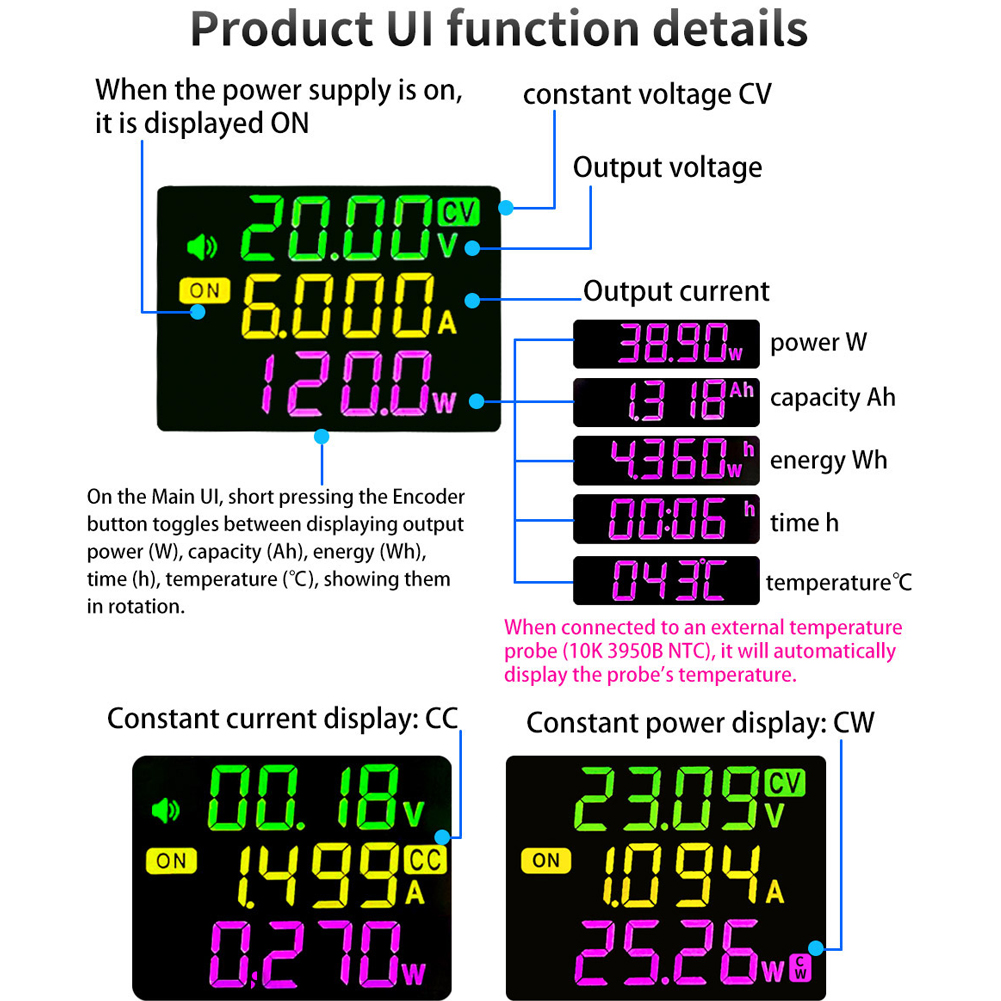

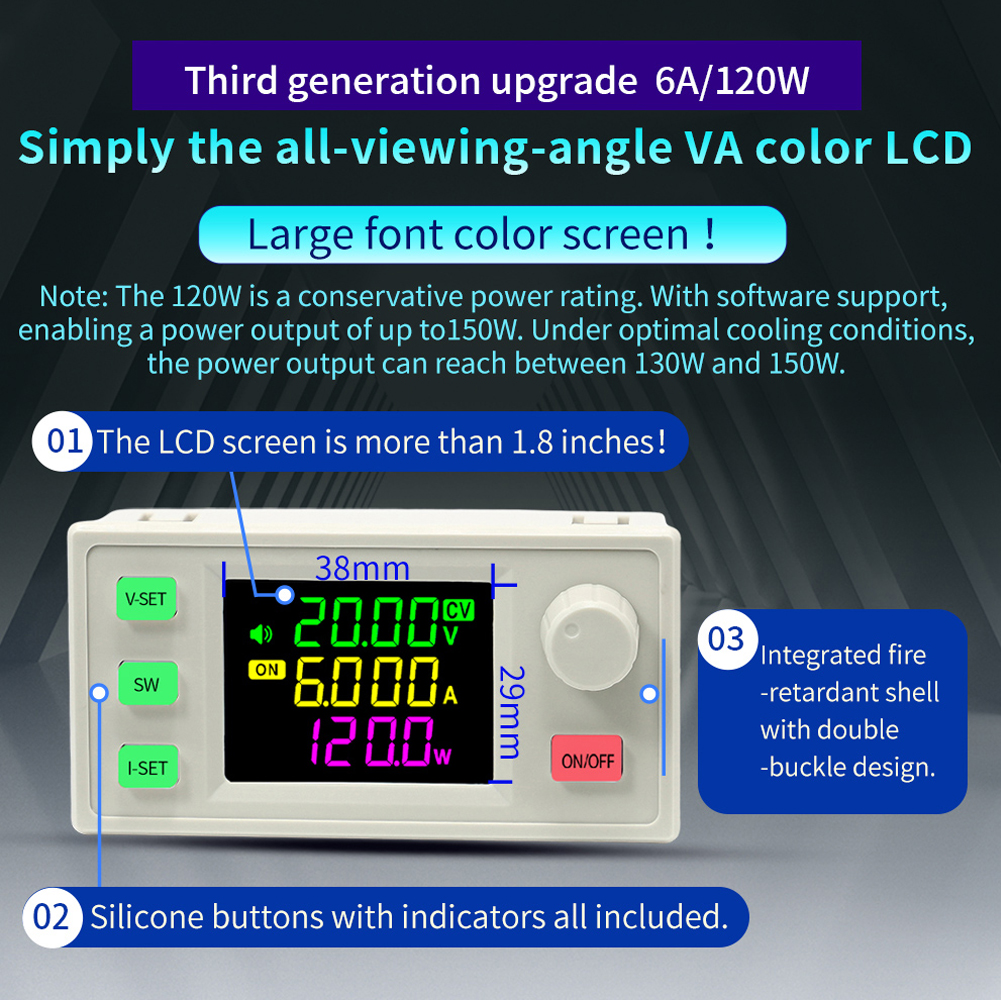

3. Reasonable 38*29mm LCD screen layout and large font size for convenient reading and operation.

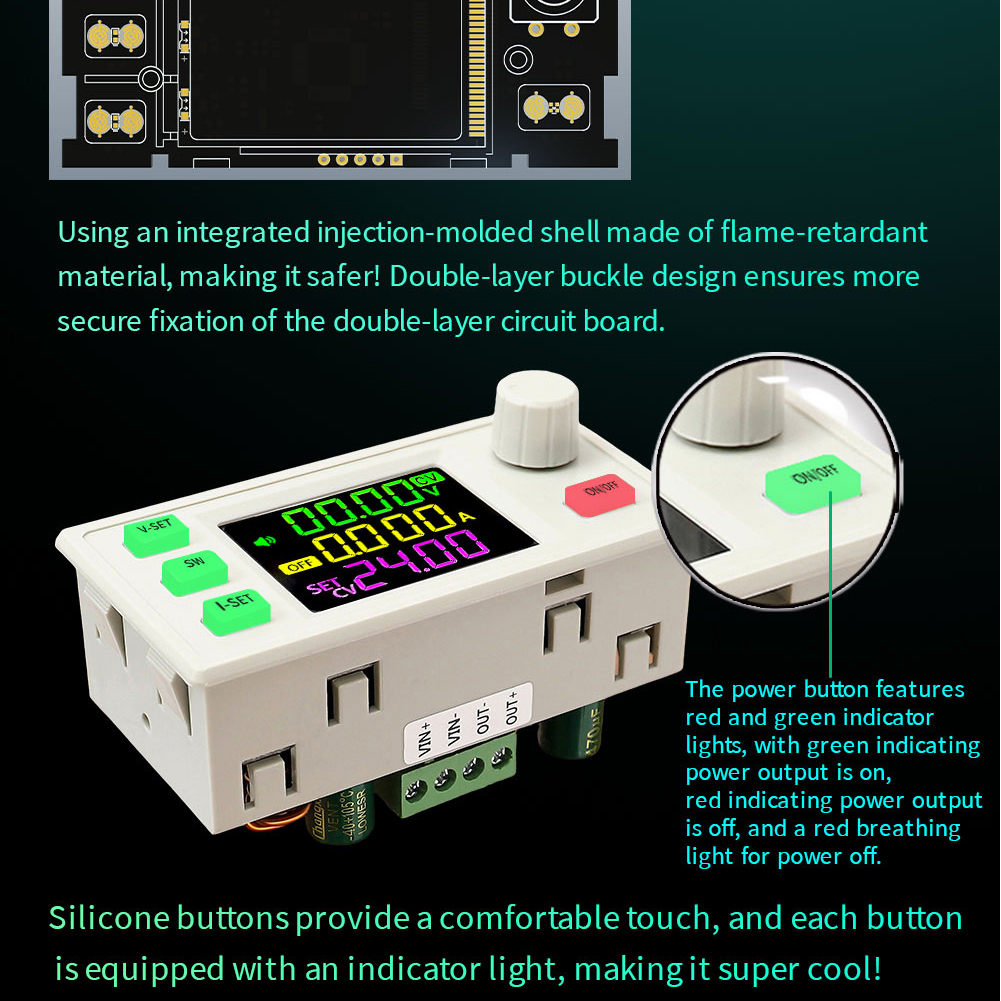

4. Adopting an integrated injection molded shell made of flameretardant material for safety.

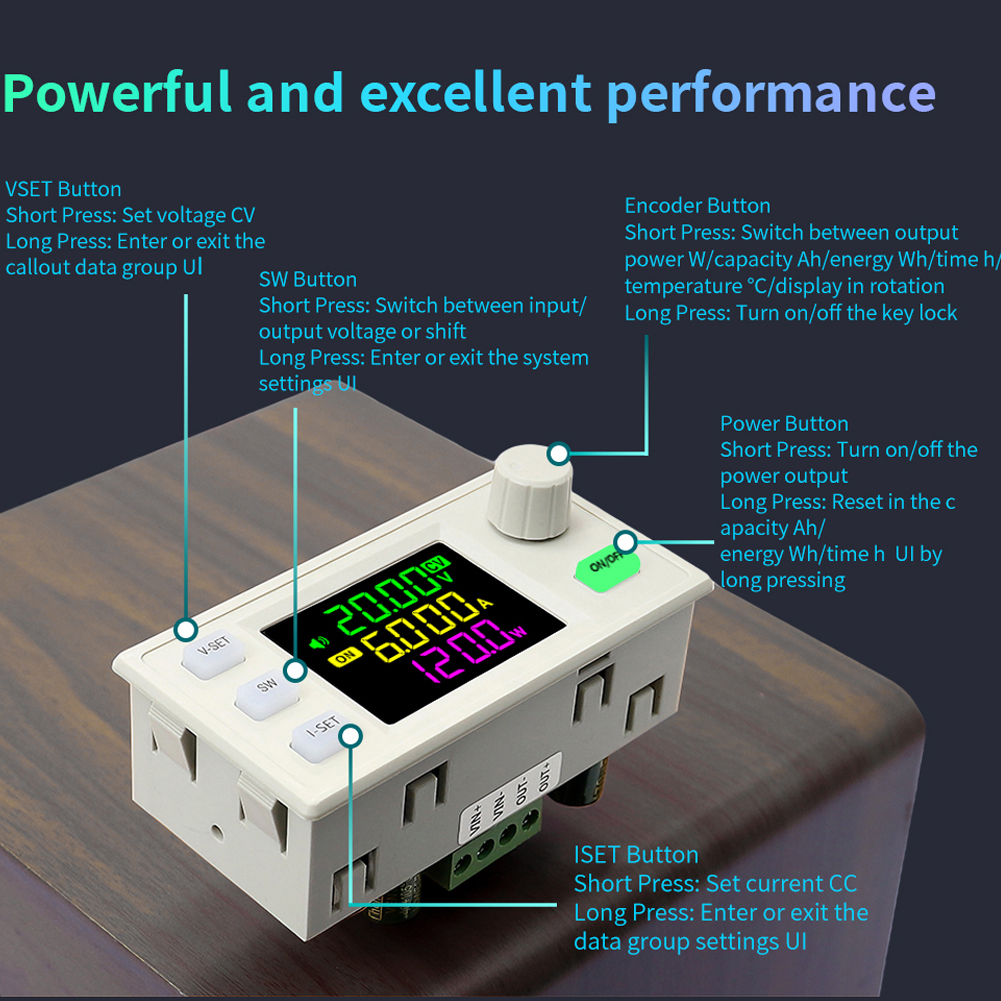

5. Double layer buckle design ensures a safer fixation of the double-layer circuit board.
6. Silicone buttons, comfortable to the use, each button comes with an indicator light.

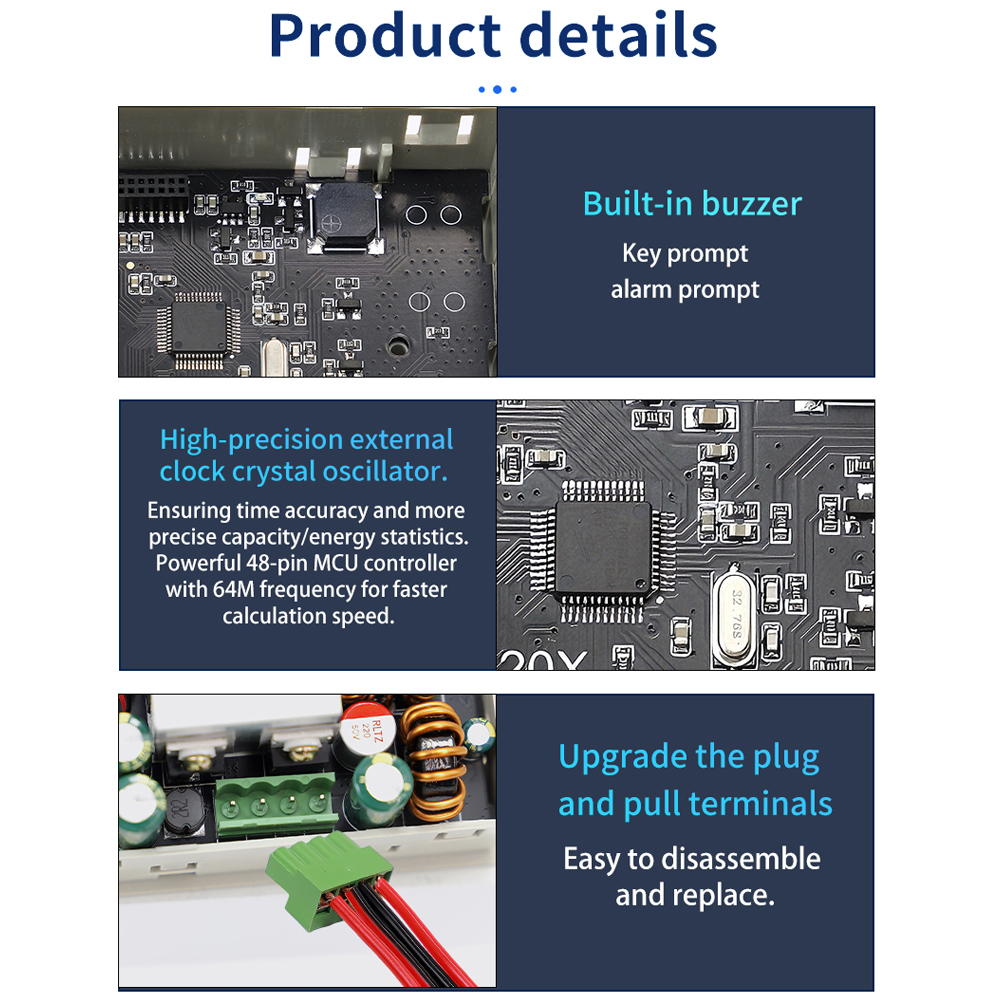

7. Built in buzzer: button prompts, alarm prompts.
8. High accurate external clock crystal oscillator ensures time accuracy, more accurate capacity/energy statistics, powerful 48 pin MCU controller, 64M frequency, computation speed.
9. Upgrade plug-in terminals for easy disassembly and replacement.

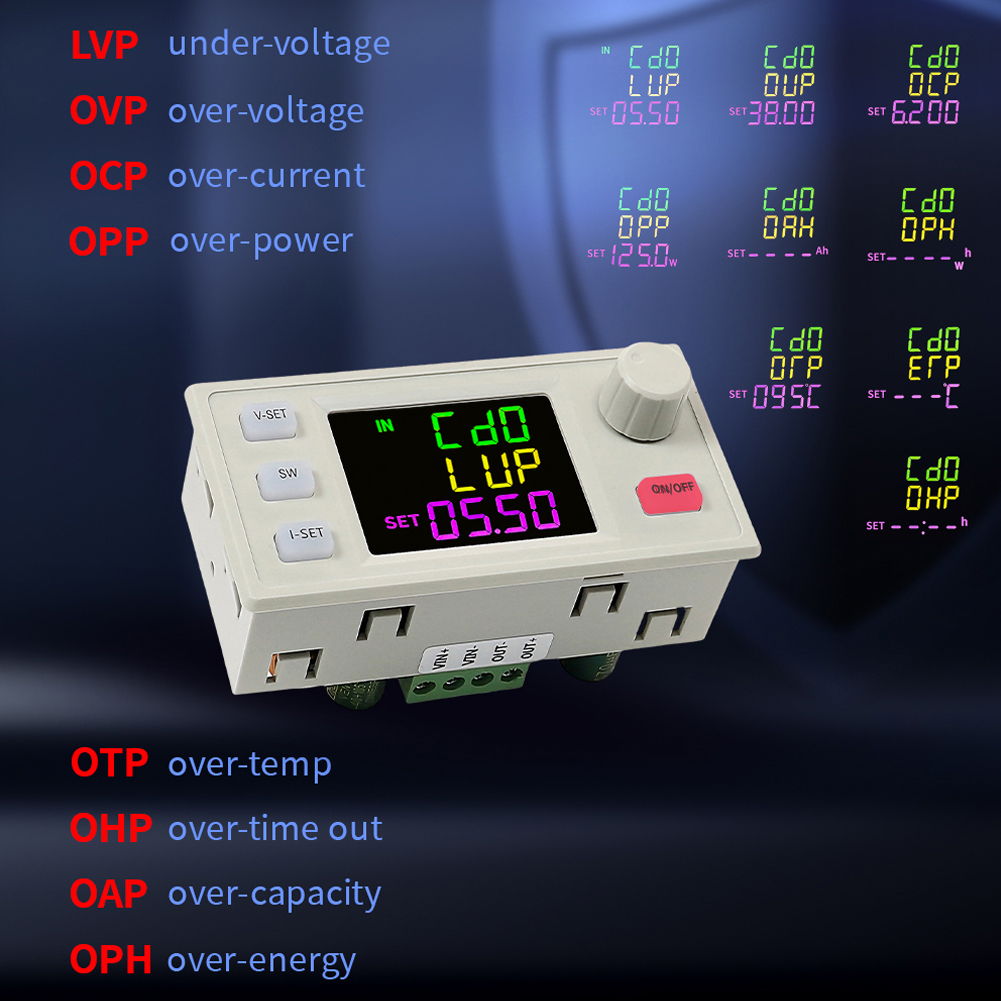

10. Input antiReverse protections, output antiBackflow protections, input undervoltage protections, output over-voltage protections, output over-current protections, output over-power protections, over temperature protections, timeout protections, over capacity protections, and over energy protections.

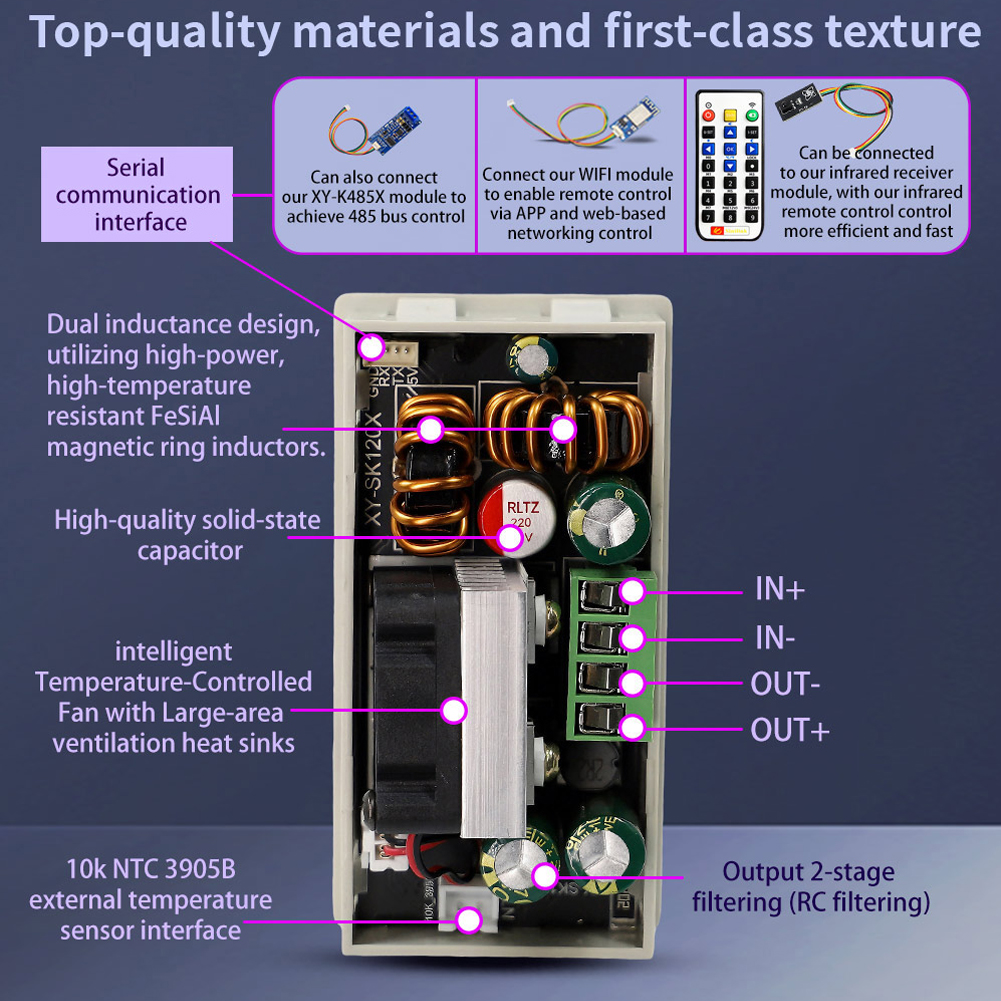

11. Dual inductance design, using high-power high-temperature resistant iron silicon aluminum magneticRing inductance.
12. Fine quality solidstate capacitors, large-area ventilated heat sinks.

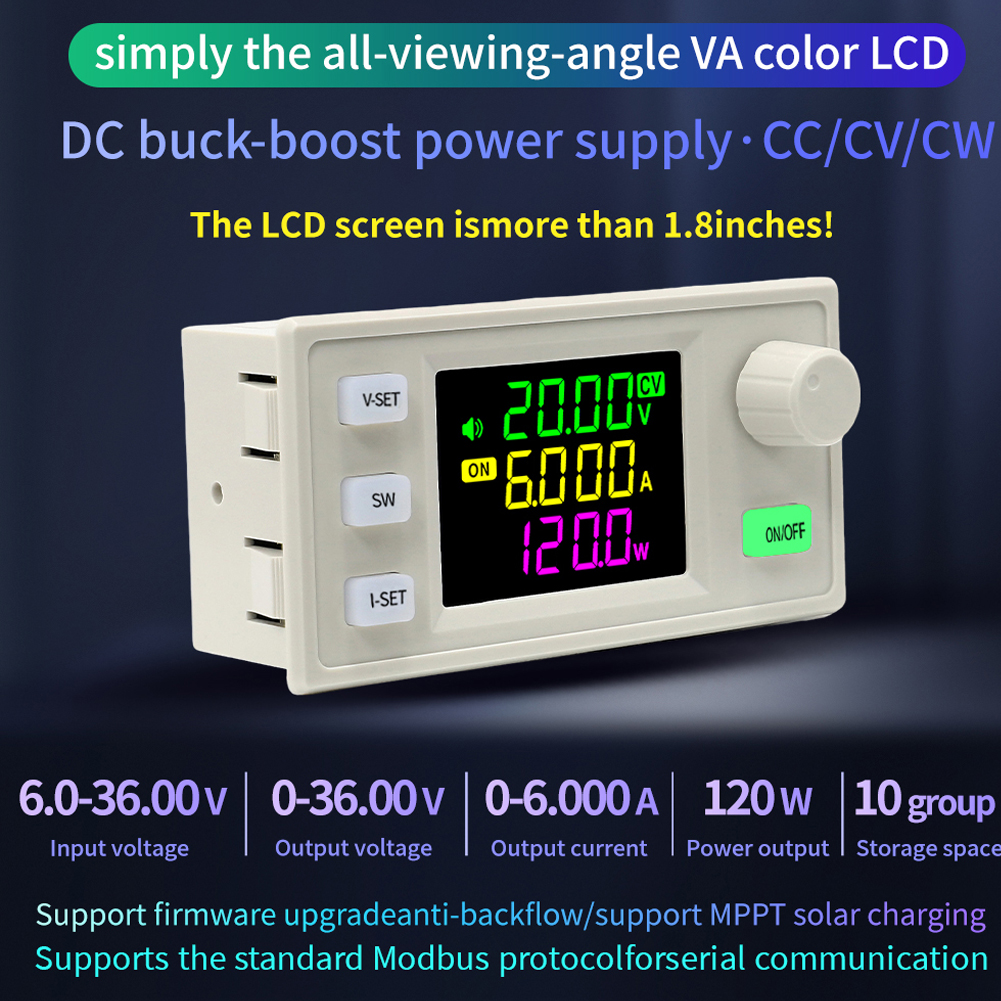

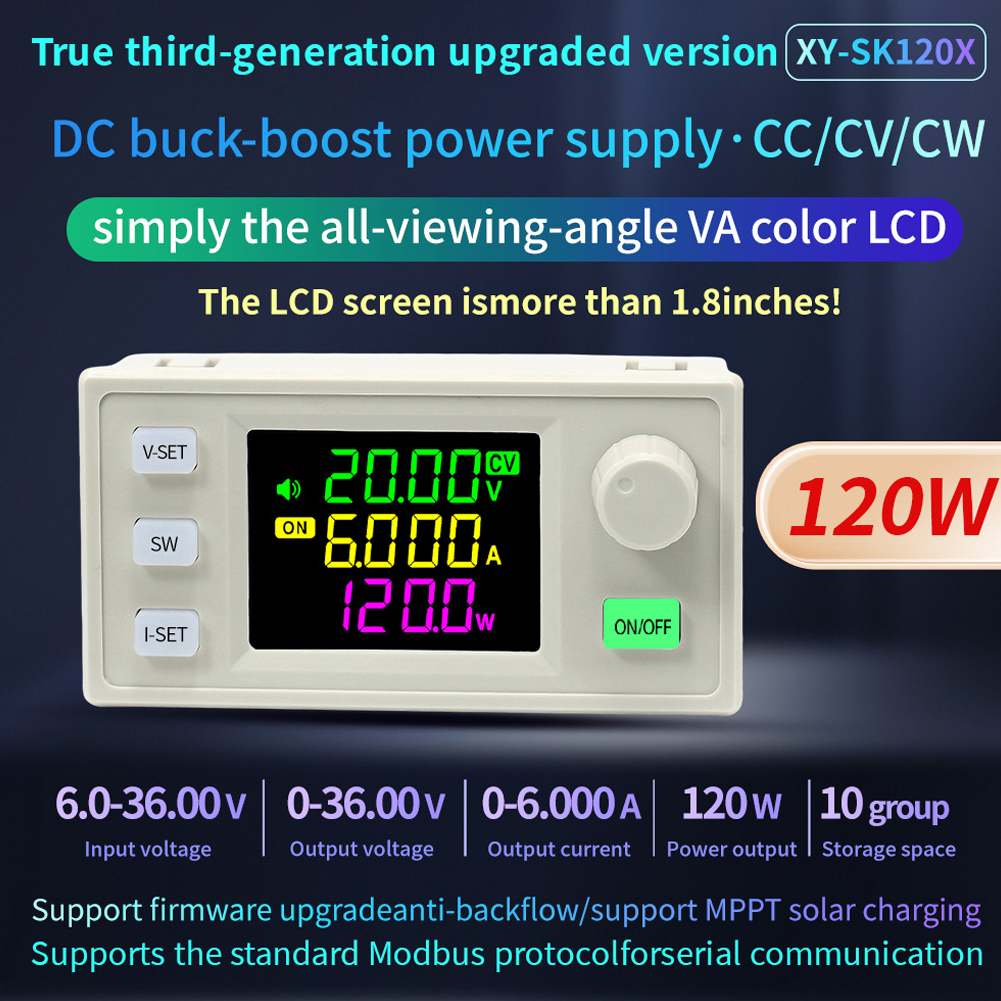

Specification:

Main color: white
Input voltage: 6.0-36.00V
Output voltage: 0-36.00V
Output current: 0-6.000A
Voltage accurancy: ±0.5％
Output power: 120W
Current accurancy: ±0.5％
Voltage resolution: 0.01V
Current resolution: 0.001A

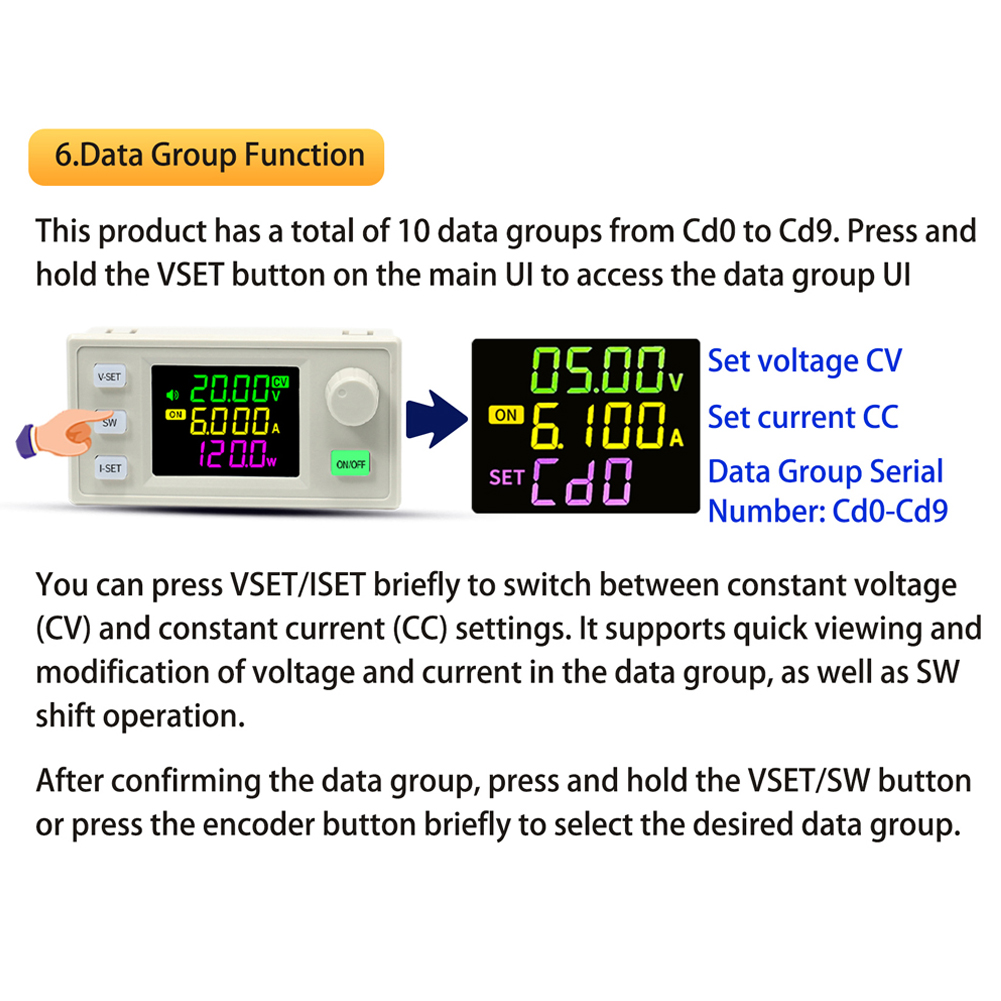

Storage data group: 10 group
Screen size: 38 * 29mm
Conversion efficiency: 88％

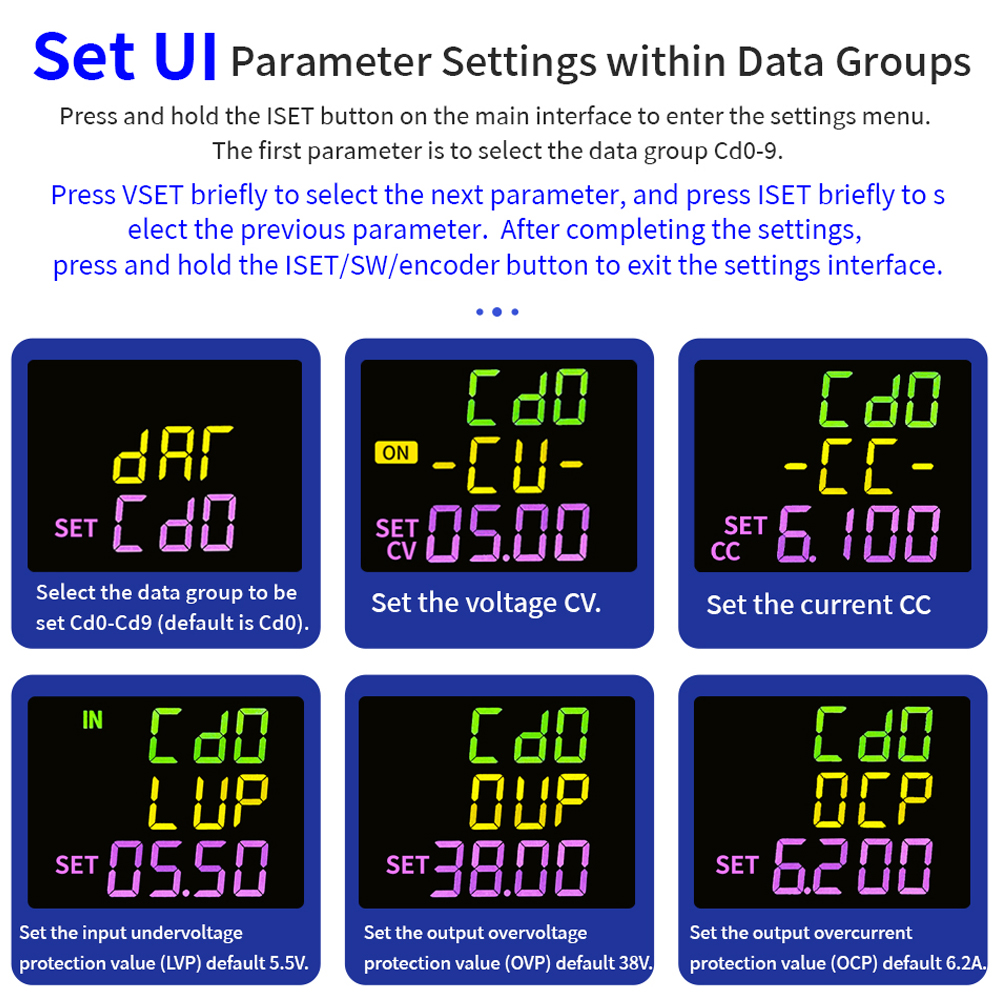

Input undervoltage protections: 5.5-36Volt adjustable, default 5.5V
Output over-voltage protections: 0-38Volt adjustable, default 38V
Output over-current protections: 0-6.2A adjustable, default 6.2A
Output over-power protections: 0-150W adjustable, default 125W
Over temperature protections: 0-110℃ adjustable, default 95℃
Timeout protections: 1min-99h59min, default turn off
Over capacity protections: 0-9999Ah adjustable, default turn off
Over energy protections: 0-4200KWh adjustable, default turn off

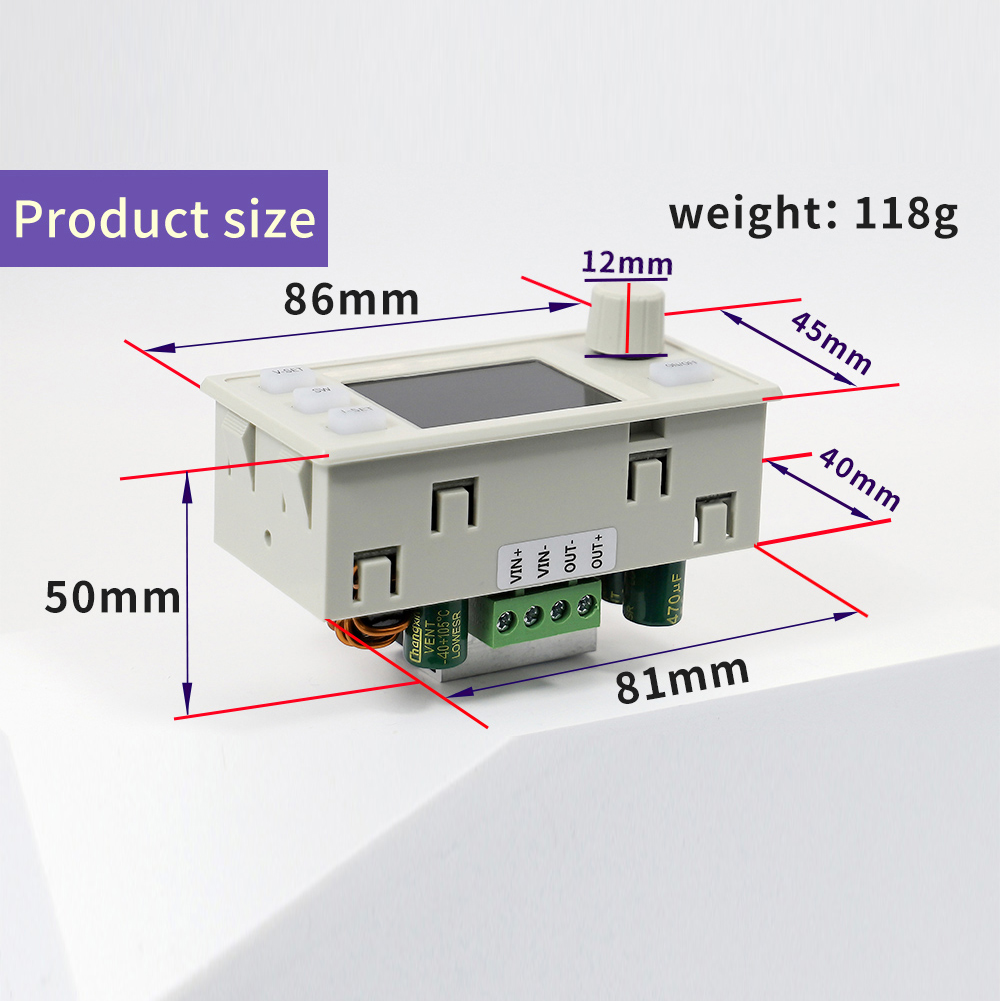

Item size: 86 * 50 * 45mm / 3.4 * 2.0 * 1.8in
Item weight: 118g / 4.2ounce

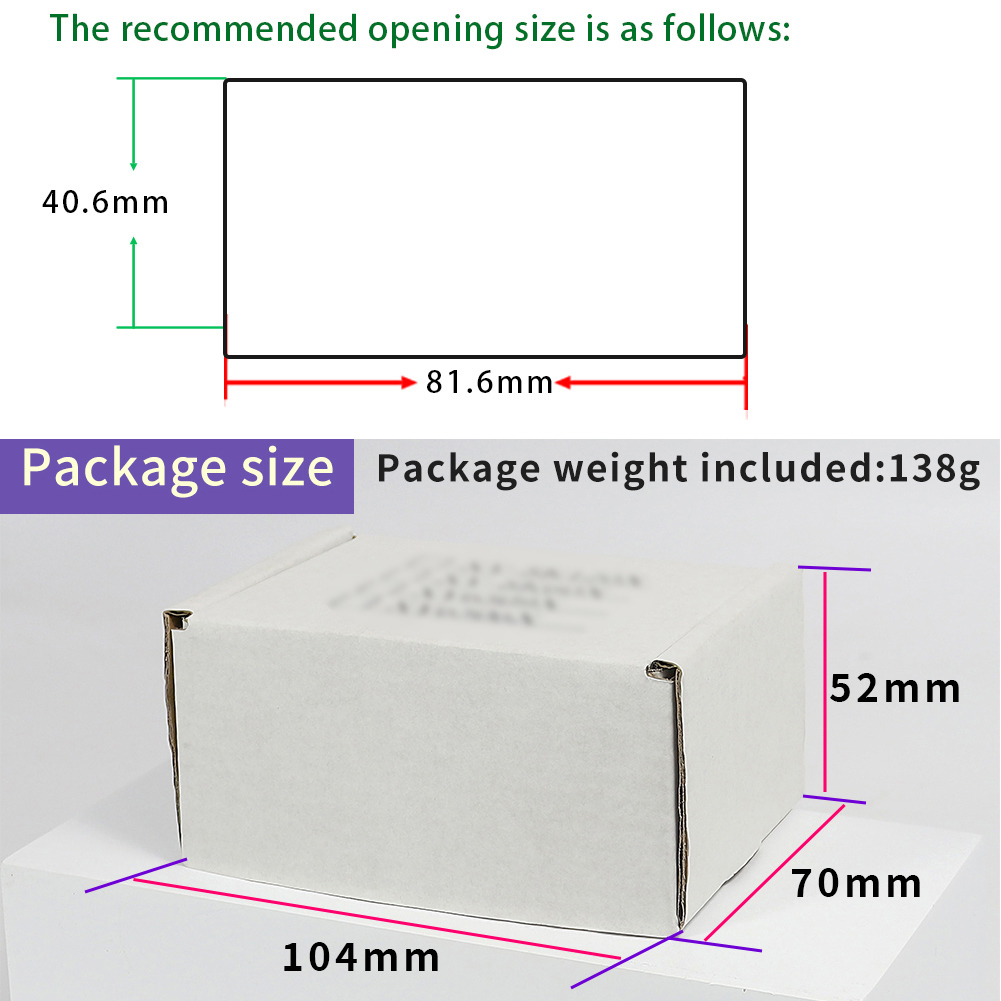

Package size: 104 * 70 * 52mm / 4.1 * 2.8 * 2.0in
Package weight: 138g / 4.9ounce


Package List:

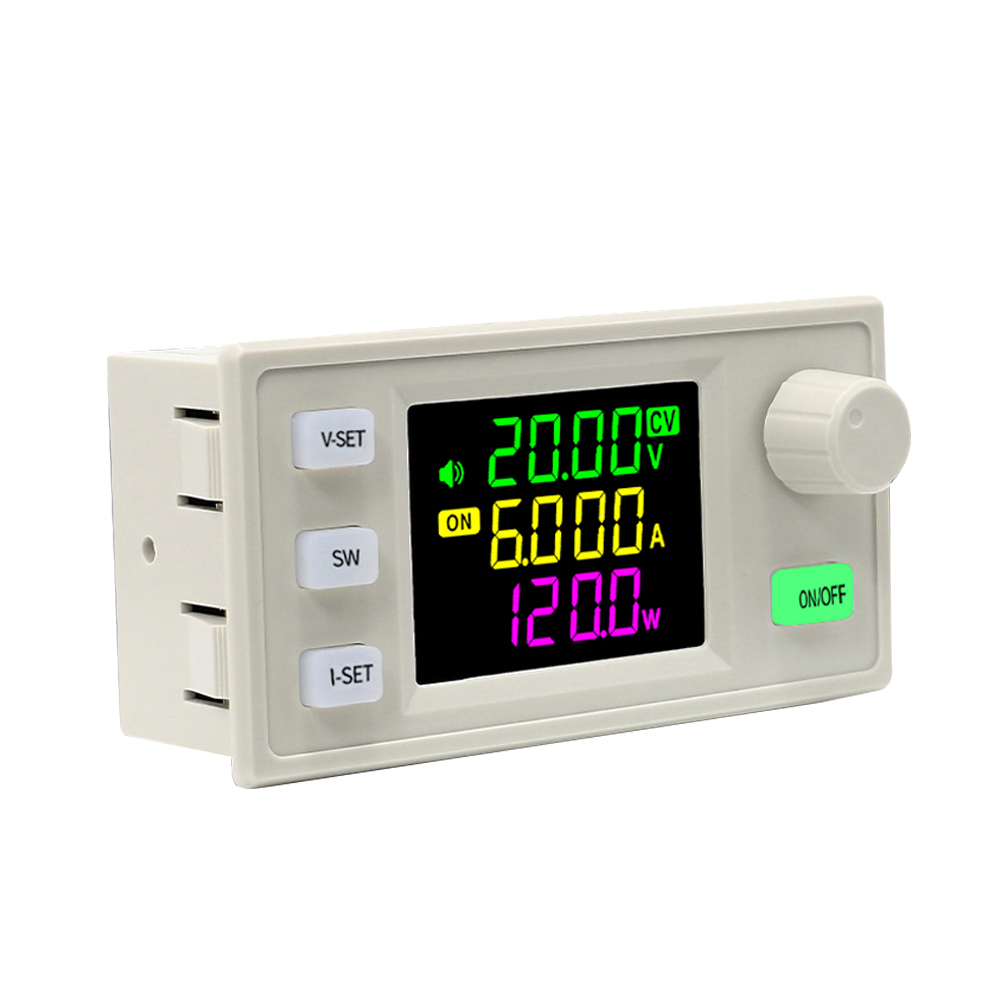

1 * PowerSupply Module
