Features:
High-precision multi-axis linkage: The controller supports up to 4-axis linkage control, and the 4th axis can be flexibly set as a driven axis to meet complex machining needs. Using the minimum error interpolation algorithm, combined with the maximum step pulse frequency of up to 100KHz, no matter the servo motor or the stepper motor, high precision machining can be achieved to ensure the ultimate machining accuracy.
Wide Compatibility and convenience: The controller is equipped with USB interface, plug and play, and is compatible with a wide range of PC devices with USB interface, including netbooks, notebooks, desktops and tablets. Driver-free design makes it easy to install and use on a variety of operating systems, greatly improving work efficiency and user experience.
Intelligent automatic operation: Integrated automatic return to the origin (return to zero) function, the driven shaft is automatically leveled when returning to the origin, ensuring a smoother processing process. At the same time, it supports intelligent functions such as automatic tool setting, emergency stop input and limit switch access, which effectively improves the safety and accuracy of processing and reduces the difficulty of operation.
Flexible expansion and powerful control: provides 4 digital signal inputs with optical coupling isolation, which can meet the basic requirements under the default configuration, and supports expansion to up to 12 inputs to meet the diversified processing needs of users. 4 channels with optocoupler isolated relay output, can control spindle start, forward and reverse rotation, pump and other equipment, support PWM and relay two spindle control mode, to provide users with more flexible and powerful control capabilities.
High reliability and stability: Equipped with 0-10V output port, it can accurately control the spindle motor speed, achieve more precise machining control, and achieve the best machining effect. And the use of anti-interference design and high-quality imported industrial components to ensure that the equipment is still stable and reliable under long-term, high-load operation.
Specifications:
Number of control axes: 4-Axis linkage (The 4th axis can be driven)
Pulse frequency: Maximum 100KHz
Interface type: USB
System support: For WinXP, for Win7
Input/output: 4 optocoupler isolation inputs (Expandable to 12), 4 optocoupler isolation relay outputs

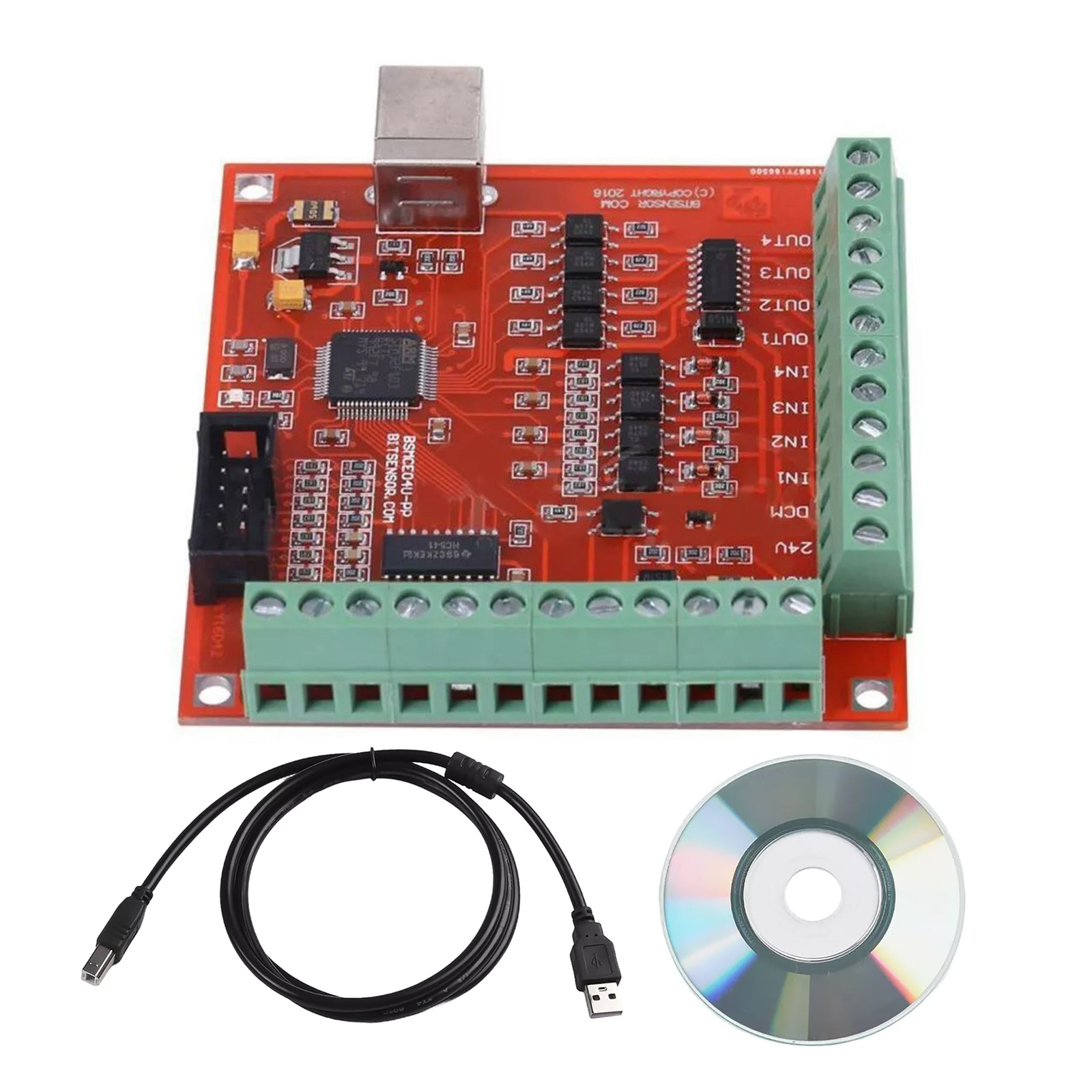

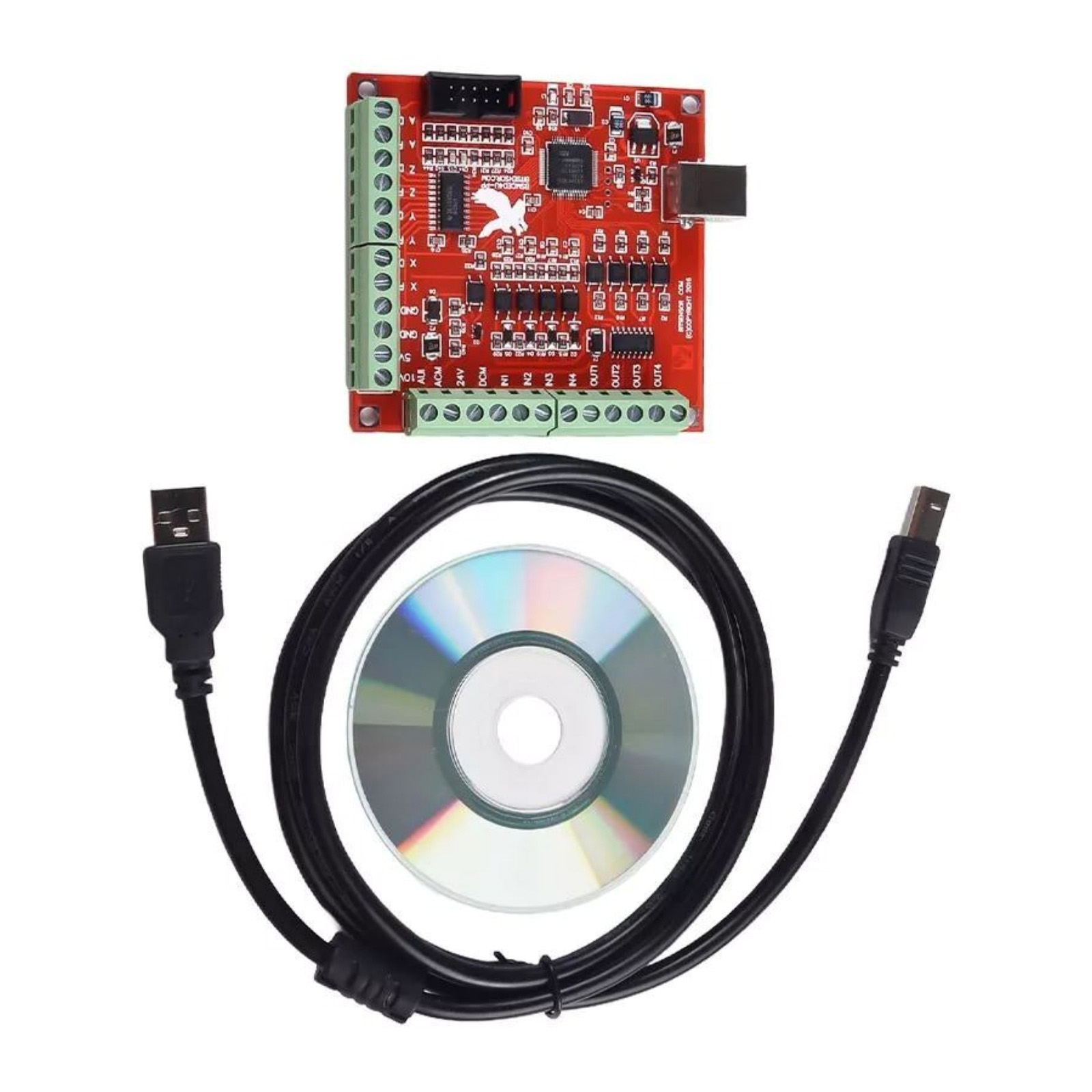

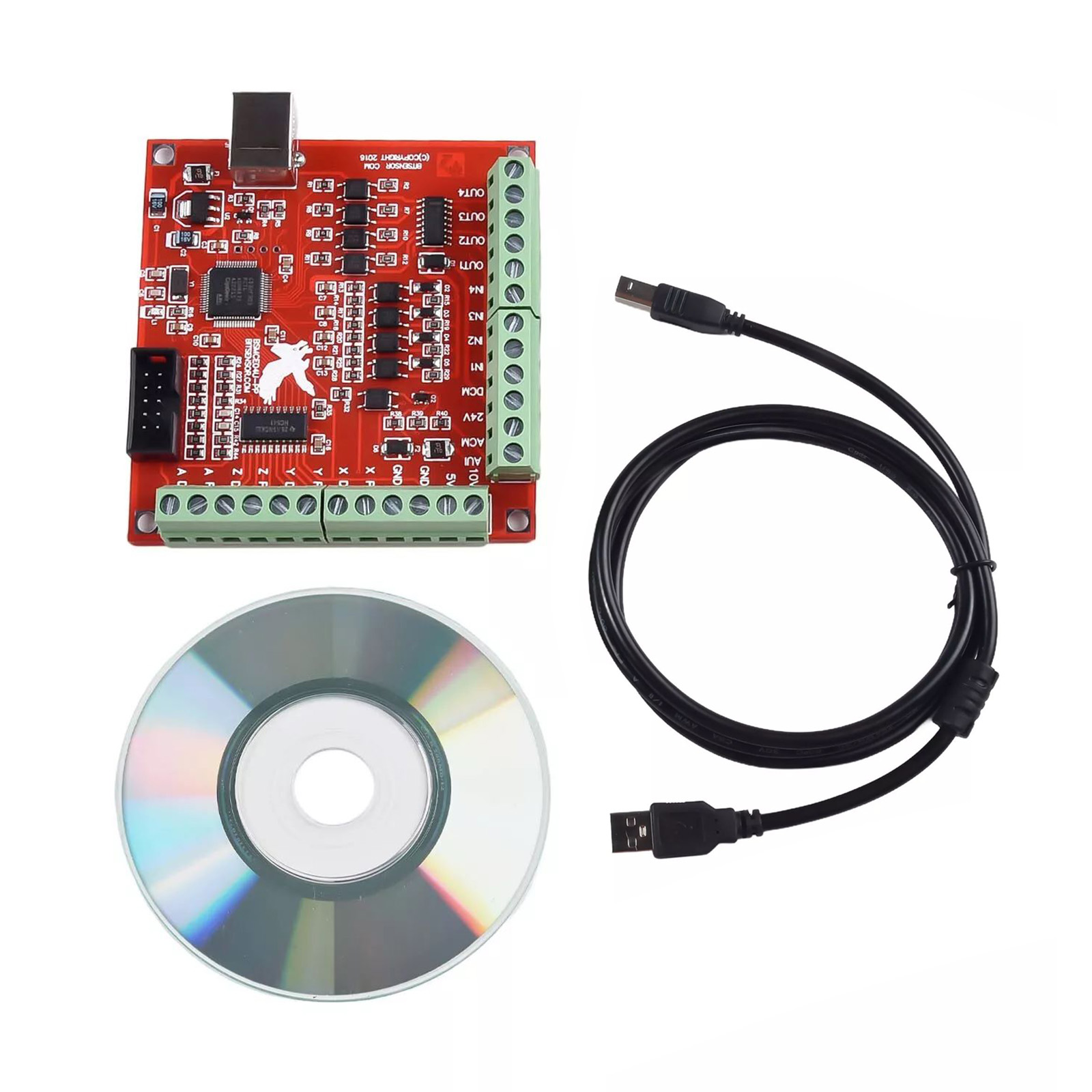

Package Included:
1 x USB CNC controller card
1 x USB cable
1 x CD
