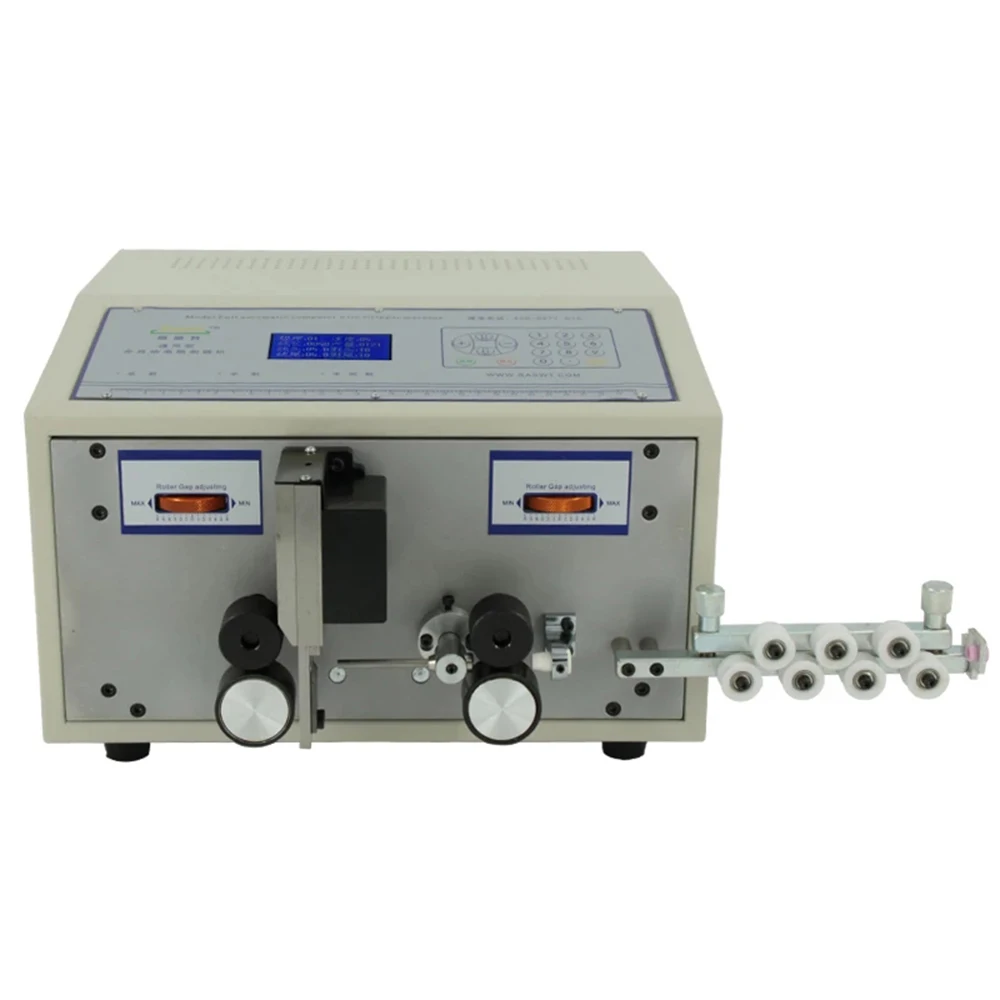

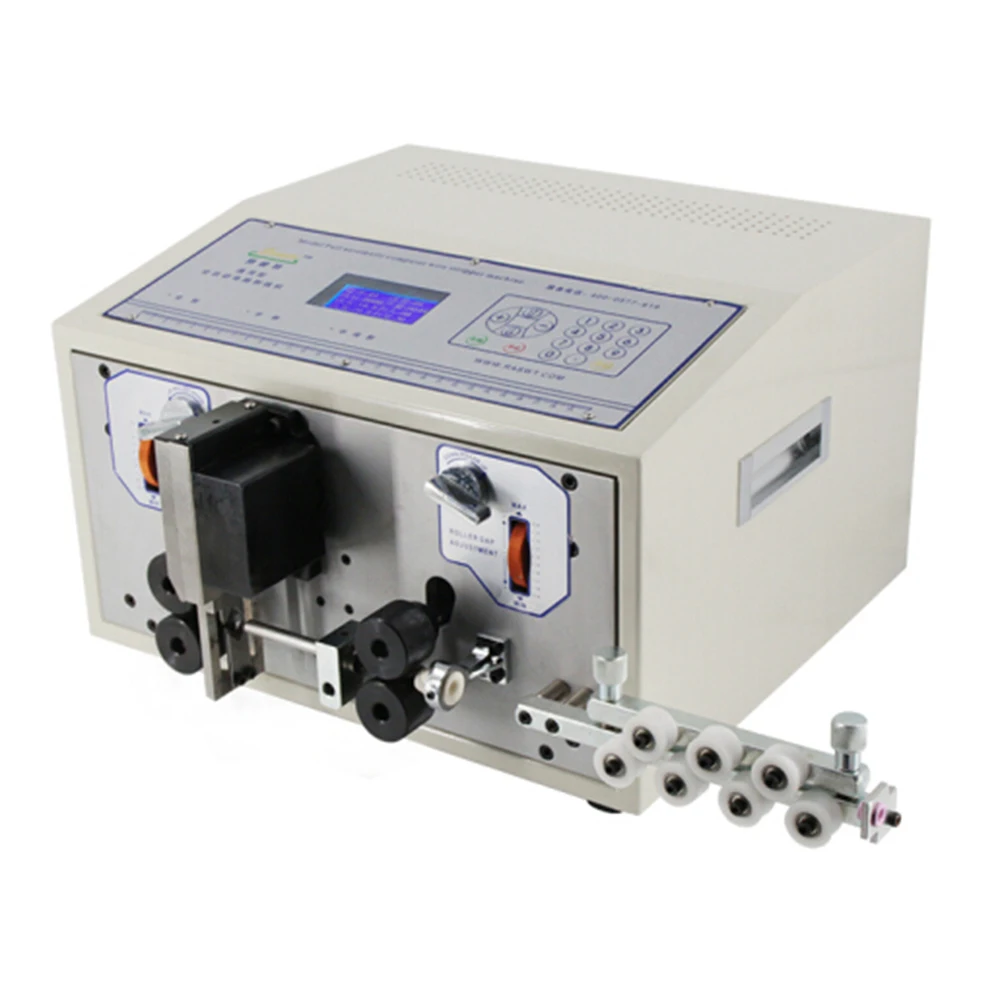

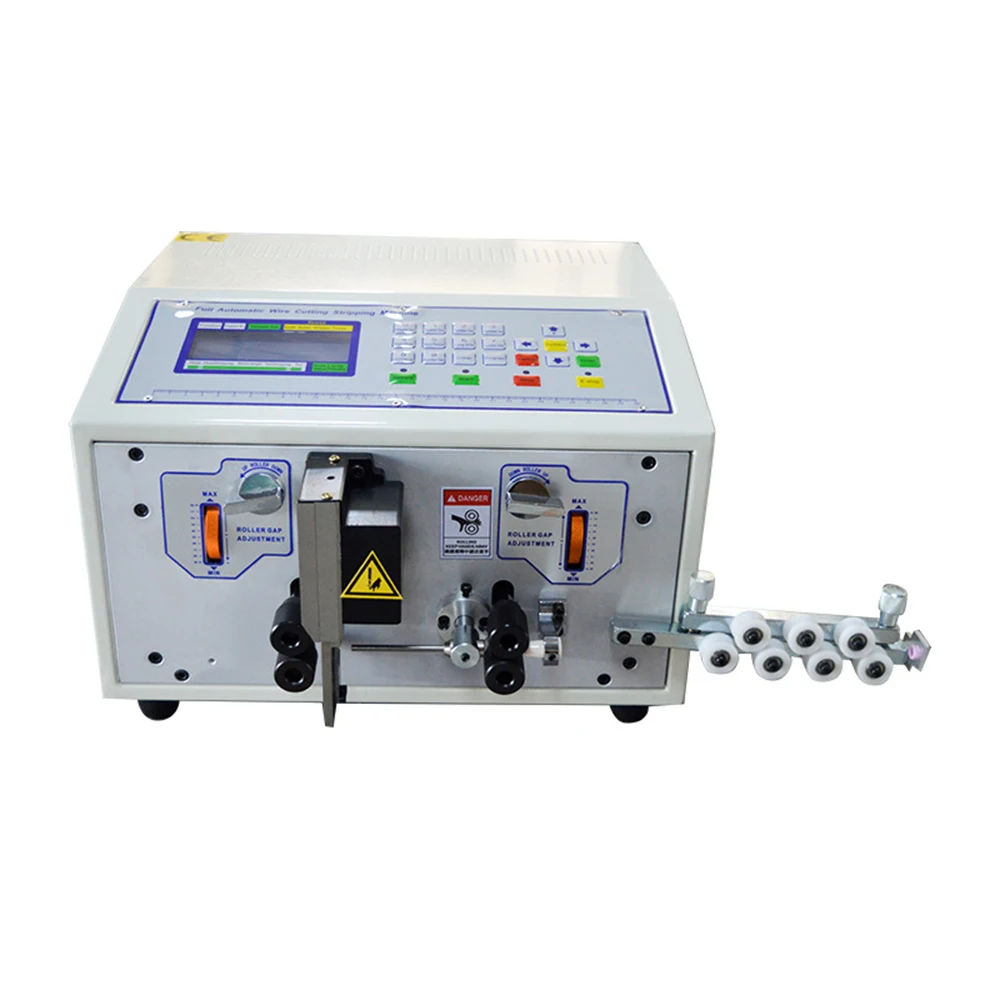

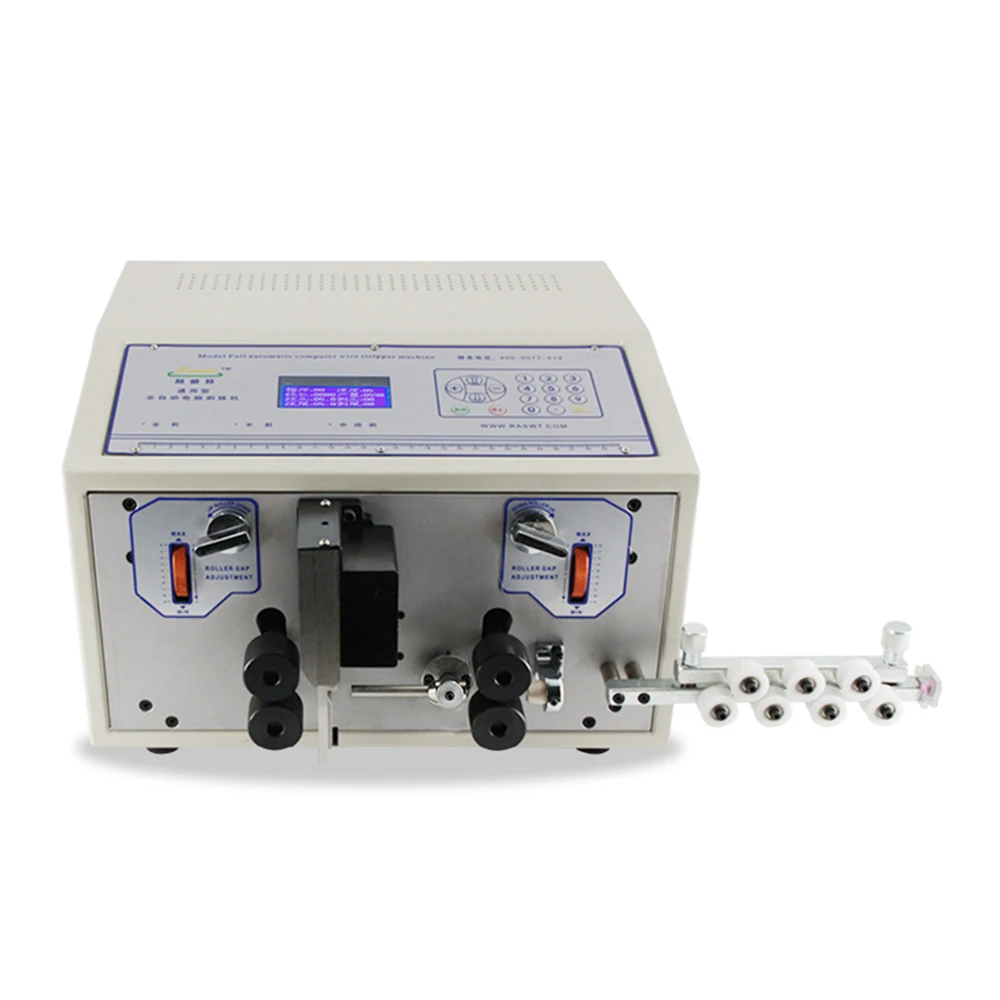

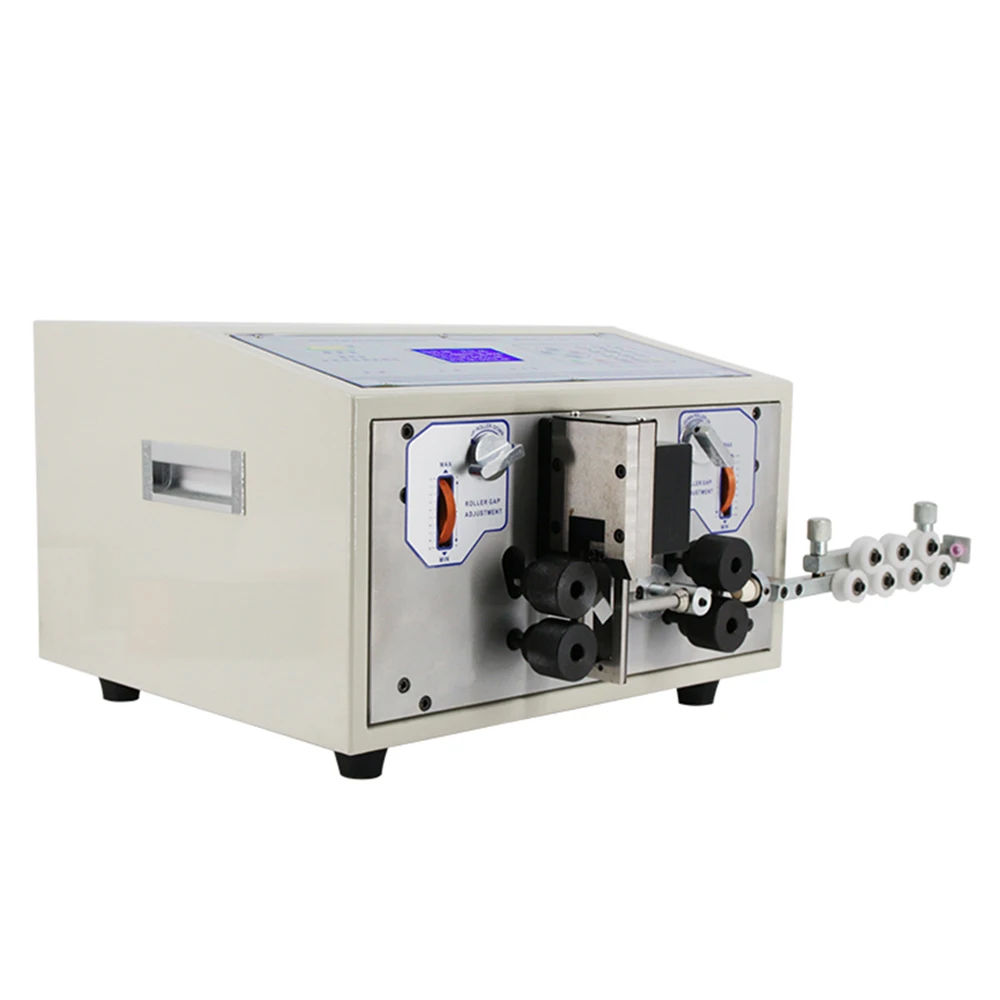

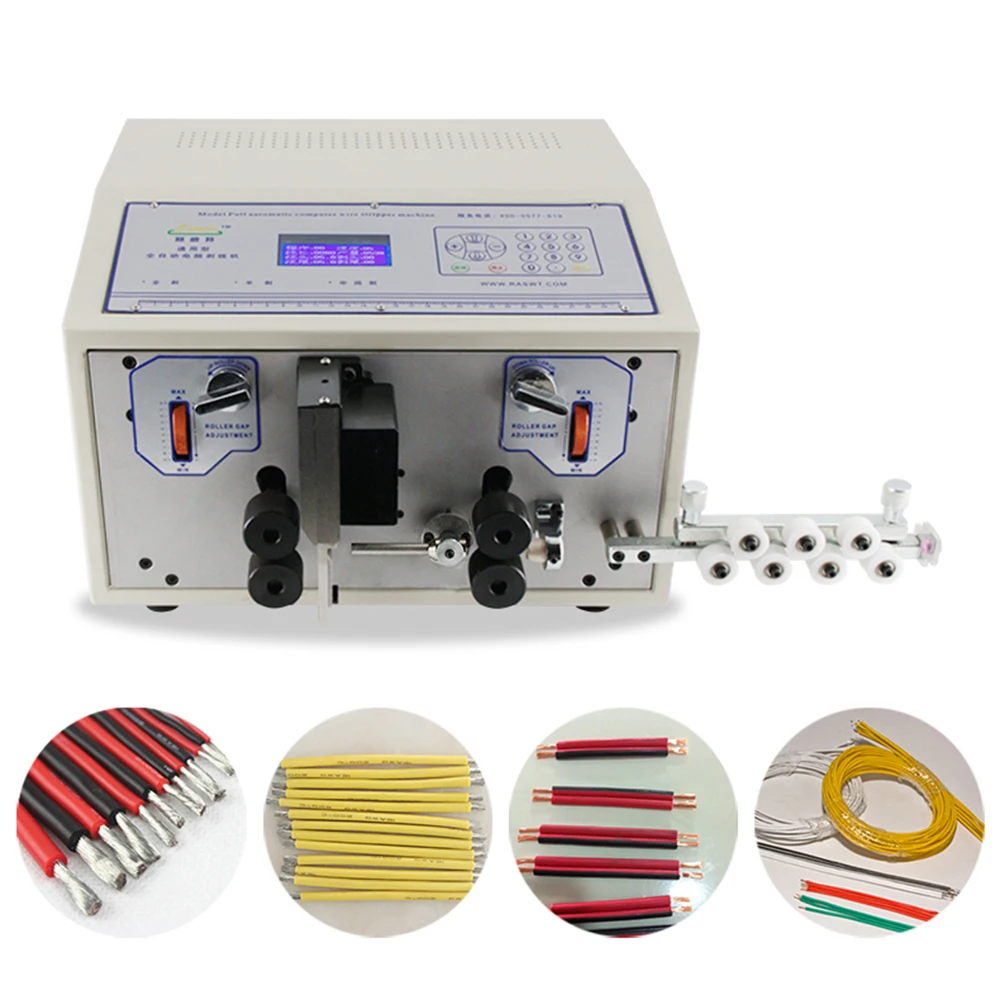

Hot Automatic Wire Stripper 220V Fast Speed Wire Stripping Machine

Model: SWT508C

Available Wire Cross-Section Range: 0.1 - 2.5mm2 Conduit Diameter: Ø6mm Cutting Length: 1 ~ 9999mm Cutting Tolerance: ±(0.002×L) (L=Cutting Length) Stripping Length: 0~35mm Max. Middle Stripping Section: 11 Speed: L=100mm, 3000-8000pcs/h(High quanlities) Display Way: English LCD dispaly Drive Mode: 2 Drives Blade Material: Hard tungsten steel Appropriate Wire: PVC/teflon/silica gel line /. Glass fiber cables, etc Power Rating: 120W-200W

Operation:

1.Press the up or down arrow to move the cursor to select a program (01 - 89 for routine procedures, and 90 - 99 for ultra short wire programs) 2.Set the length of wire stripping (Unit: mm) 3.The value of the stripping is set on the end of the wire, and the stripping value at the back is greater than the end of the line, that is, full stripping, and less than is half stripping 4. 3 is also for the start of the wire
