Features:

• The RF24L01P PA LNA is a high-power and high-sensitivity wireless data transmission module specifically developed for ultra-long-distance data transmission.
• The NRF24L01P PA LNA wireless module operates in the unlicensed 2.4G ISM band, allowing for point-to-point applications and the formation of star networks.
• The core of the NRF24L01P PA LNA wireless module is the latest high-performance wireless data transmission chip NRF24L01 from the Norwegian company NORDIC, combined with our professional design that adds a high-power PA and LNA chip, RF switch, and band-pass filter, forming a professional full-duplex RF amplifier that greatly extends the effective communication distance.
• In the RF section, we have made extensive optimization and matching adjustments to achieve the highest transmission efficiency and minimal harmonics, allowing the NRF24L01P PA LNA wireless module to have the least RF interference from external devices and to be less susceptible to interference from other devices, significantly improving operational stability.

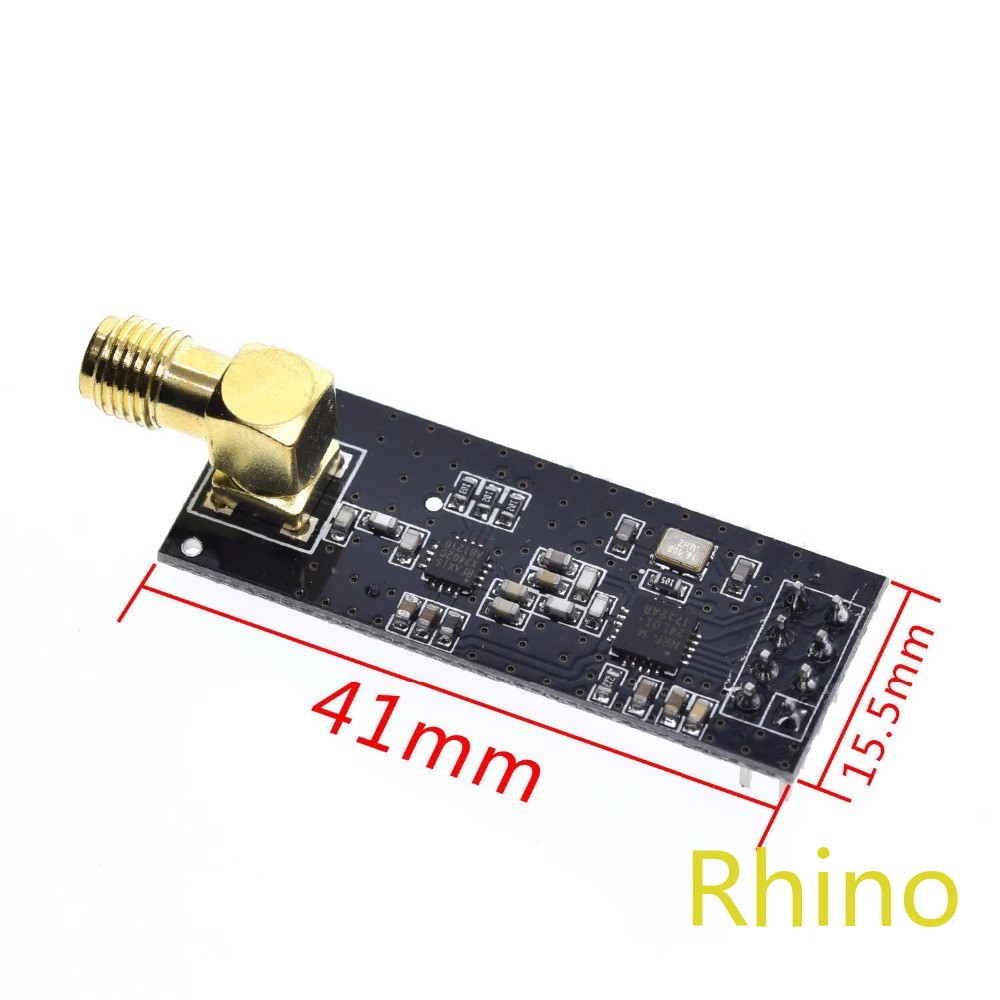

• The NRF24L01P PA LNA wireless module features high integration and measures only 41mm x 15.5mm, making it convenient to embed in any space-constrained product. Customers only need to add an MCU that controls the NRF24L01P PA LNA wireless module through the SPI interface to complete the design of an ultra-long-distance wireless data transmission system, eliminating concerns about the research and development of the RF section, drastically reducing development costs and shortening the development cycle.

Specification:

• Frequence: 2.4GHz~2.5GHz
• Operating voltage: 3 ~ 3.6V
• Max Current: 115mA
• Multi-frequency: 125 frequency
• Support up to six channels of data reception

Package included:

• 2 x NRF24L01
