Item Description
Description:
100% brand new and high quality
Higher reliability and durable quality.
0802 LCD display, low-power consumption.
Standard interface for easy connections with other tests or antennas.
Input is via an SMA jack (female).
100% brand new and high quality
Higher reliability and durable quality.
0802 LCD display, low-power consumption.
Standard interface for easy connections with other tests or antennas.
Input is via an SMA jack (female).
Specifications:
Color: Dark Green
Material: PCB + FR4
Power Mode: 9V Battery (Not Included)
Display: 38 * 16mm LCD Display

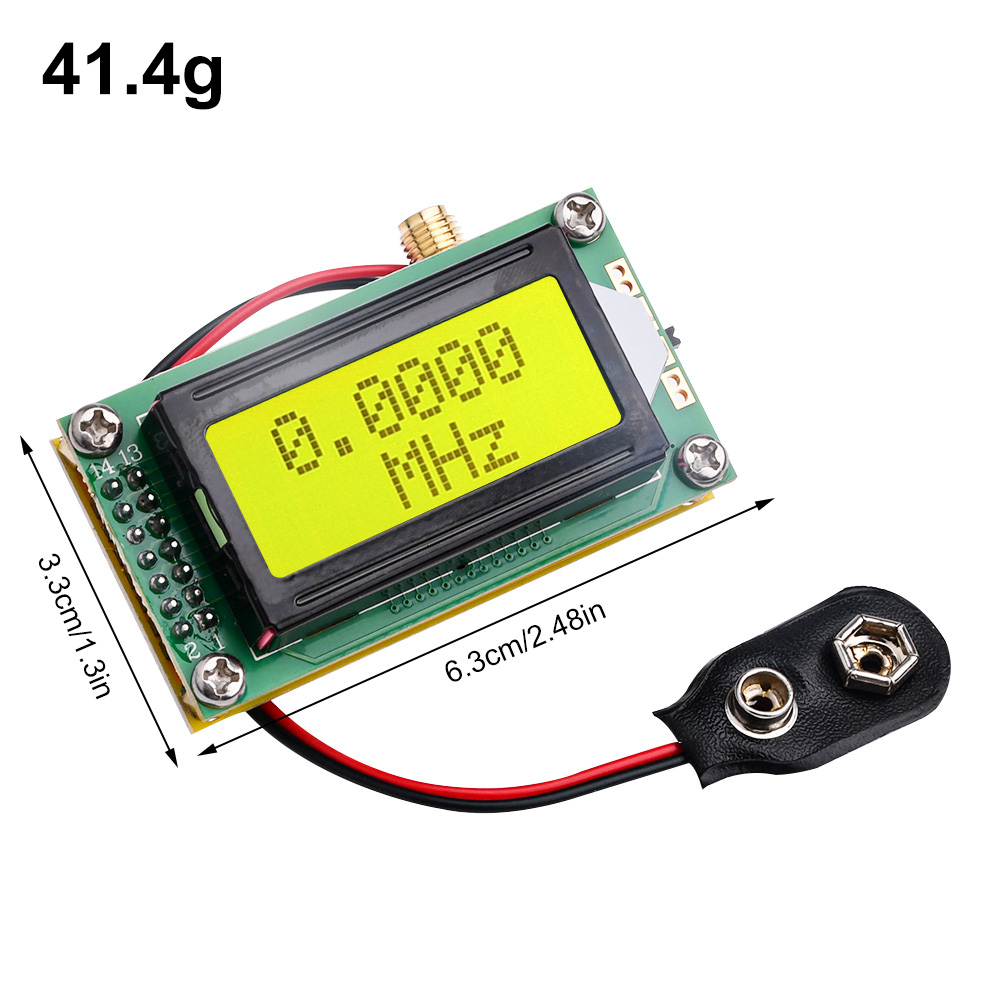

Item Size: 60 * 33 * 26.5mm / 2.36 * 1.30 * 1.04in
Item Weight: 45g / 1.54oz
Package Size: 11 * 6 * 3cm / 5.91 * 4.72 * 1.18in
Display: Digital 0802 LCD
Temperature: When operating: 0~40°C, when stored: -30~60°C
Working elevation: 0 to 2000 meters
Relative humidity: non-condensing <10 ° C
Type of battery : 6F22 type 9v
Working power: DV=9V
Working current: typical working current 30mA
Test frequency: 1 ~ 500 MHz, the limit is 640M, the accuracy of the over-range part will be lower
Resolution: 100Hz
Note:Accuracy can only be adjusted to the second digit of the decimal point, less than one-tenth of the precision
Color: Dark Green
Material: PCB + FR4
Power Mode: 9V Battery (Not Included)
Display: 38 * 16mm LCD Display
Item Size: 60 * 33 * 26.5mm / 2.36 * 1.30 * 1.04in
Item Weight: 45g / 1.54oz
Package Size: 11 * 6 * 3cm / 5.91 * 4.72 * 1.18in
Display: Digital 0802 LCD
Temperature: When operating: 0~40°C, when stored: -30~60°C
Working elevation: 0 to 2000 meters
Relative humidity: non-condensing <10 ° C
Type of battery : 6F22 type 9v
Working power: DV=9V
Working current: typical working current 30mA
Test frequency: 1 ~ 500 MHz, the limit is 640M, the accuracy of the over-range part will be lower
Resolution: 100Hz
Note:Accuracy can only be adjusted to the second digit of the decimal point, less than one-tenth of the precision
Instructions:
Connect to the 6F22 9v battery, toggle the switch, and connect to the signal source under test after power on.
This frequency meter interface is SMA.
Connect to the 6F22 9v battery, toggle the switch, and connect to the signal source under test after power on.
This frequency meter interface is SMA.
Package Included:

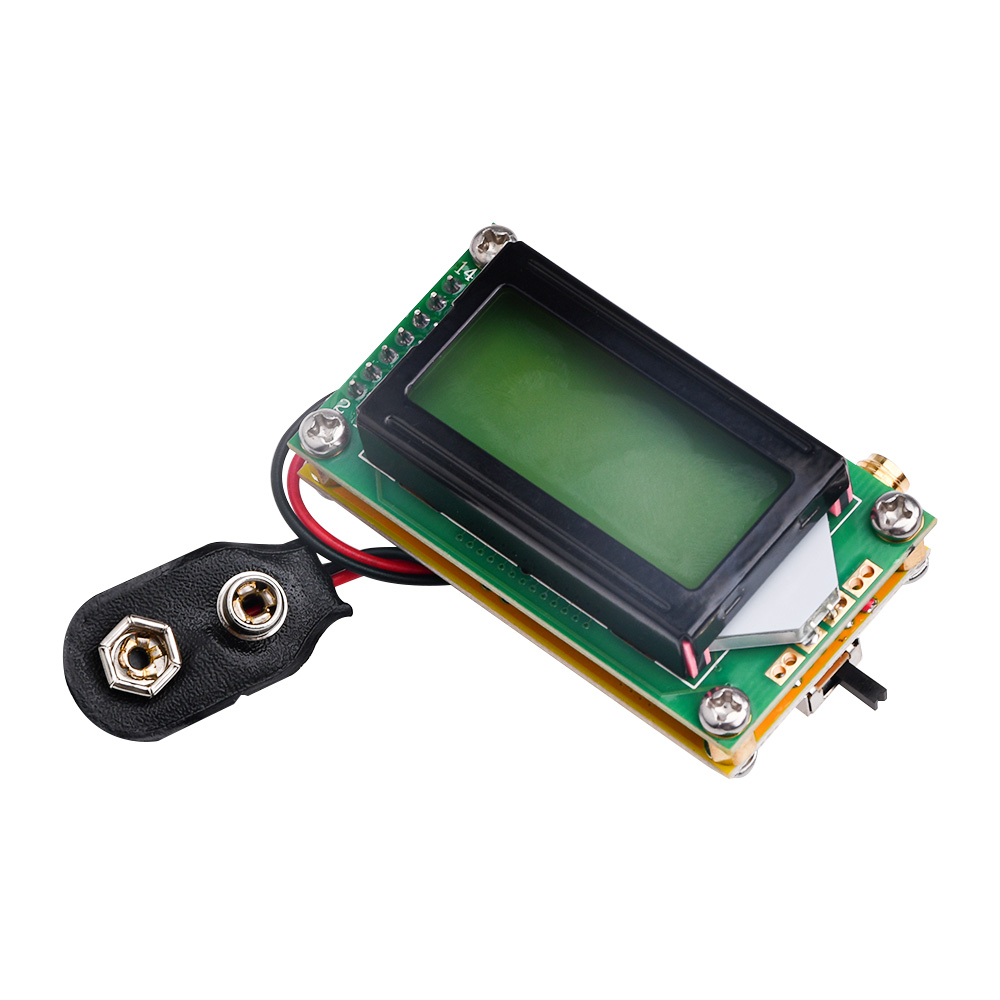

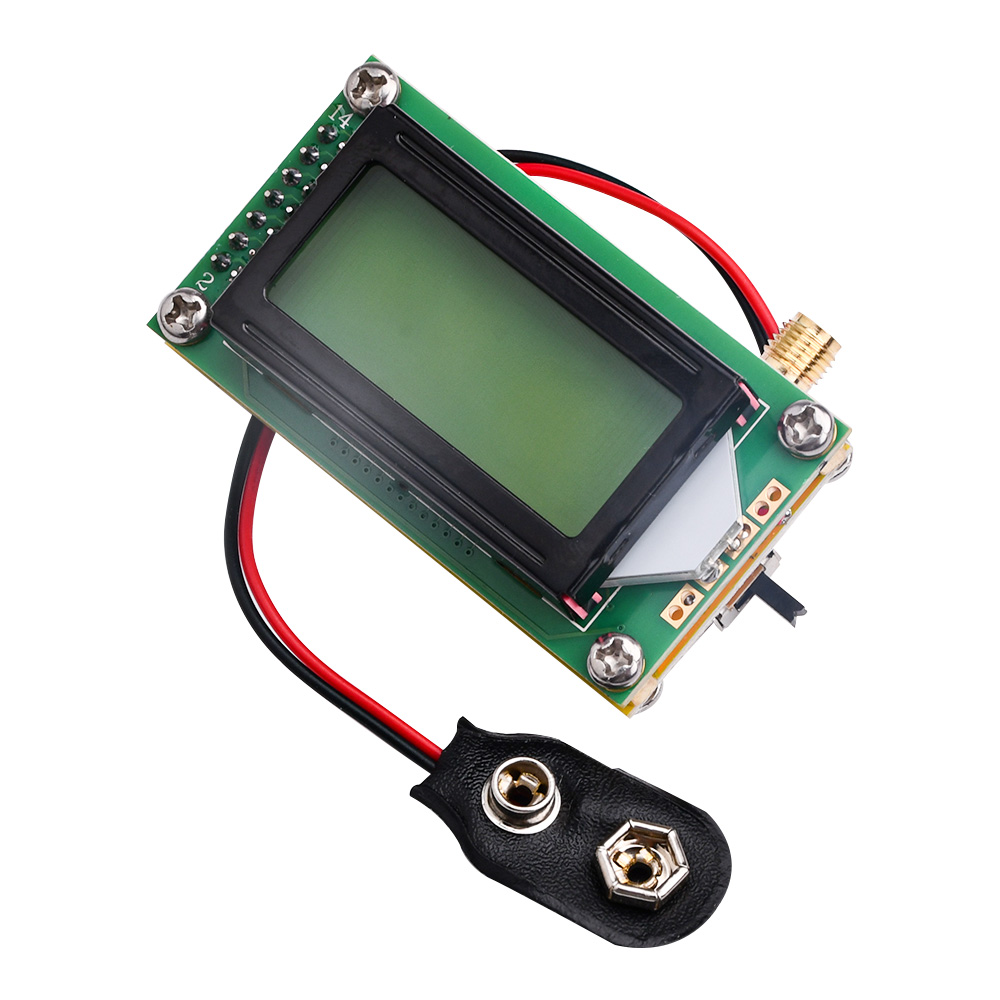

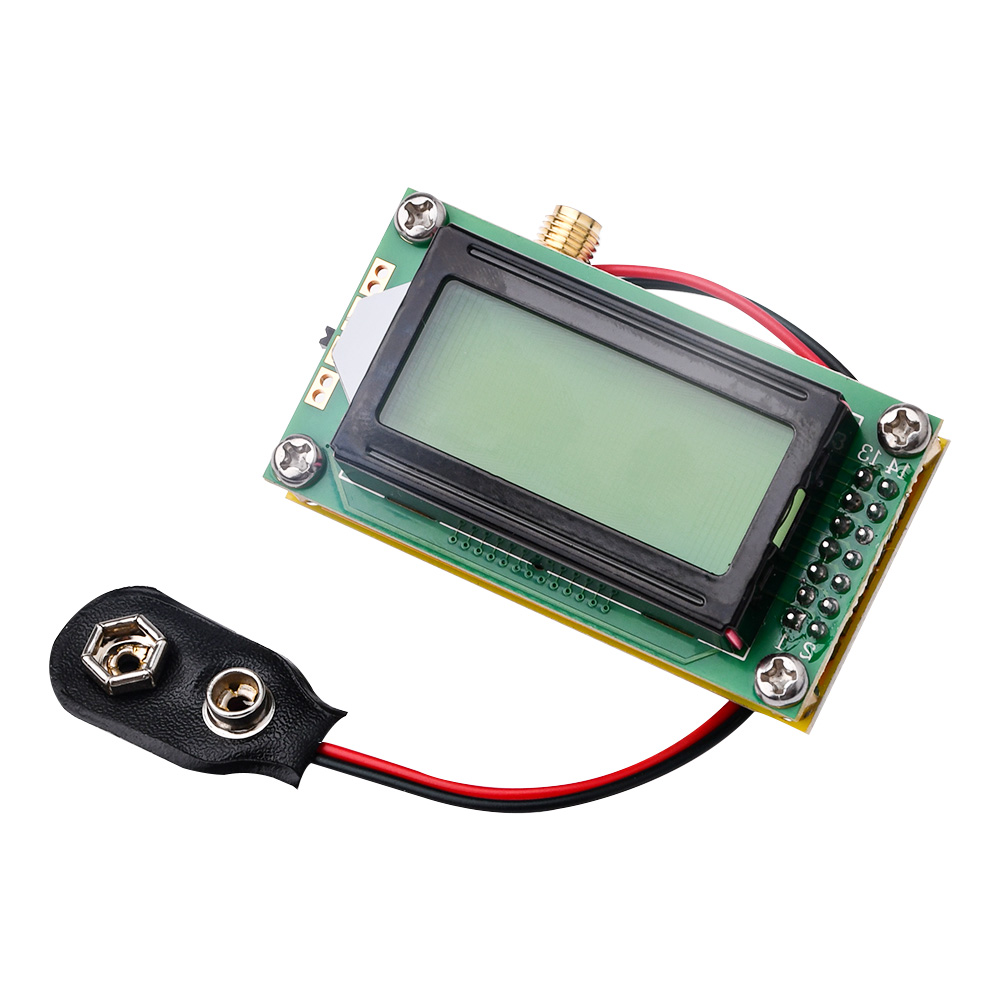

1PC*High Accuracy RF Frequency Counter Meter 1~500 MHz Tester Module For Ham Radio
1PC*High Accuracy RF Frequency Counter Meter 1~500 MHz Tester Module For Ham Radio
