Display
|
Panel
|
|
|
|
10.1"LED IPS panel
|
|
|
|
||||||
|
|
Resolution
|
|
|
|
1280*800
|
|
|
|
||||||
|
|
Aspect Ratio
|
|
|
|
16:10
|
|
|
|
||||||
|
|
Touch Screen, Non-Airgap Technology
|
|
|
|
10-Point capacitive touch
|
|
|
|
||||||
|
System
|
CPU
|
|
|
|
RK3566, 4*Cortex-A55,up to 1.8GHz
|
|
|
|
||||||
|
|
RAM
|
|
|
|
4G
|
|
|
|
||||||
|
|
Internal memory
|
|
|
|
32G
|
|
|
|
||||||
|
|
Operation System
|
|
|
|
11.00
|
|
|
|
||||||
|

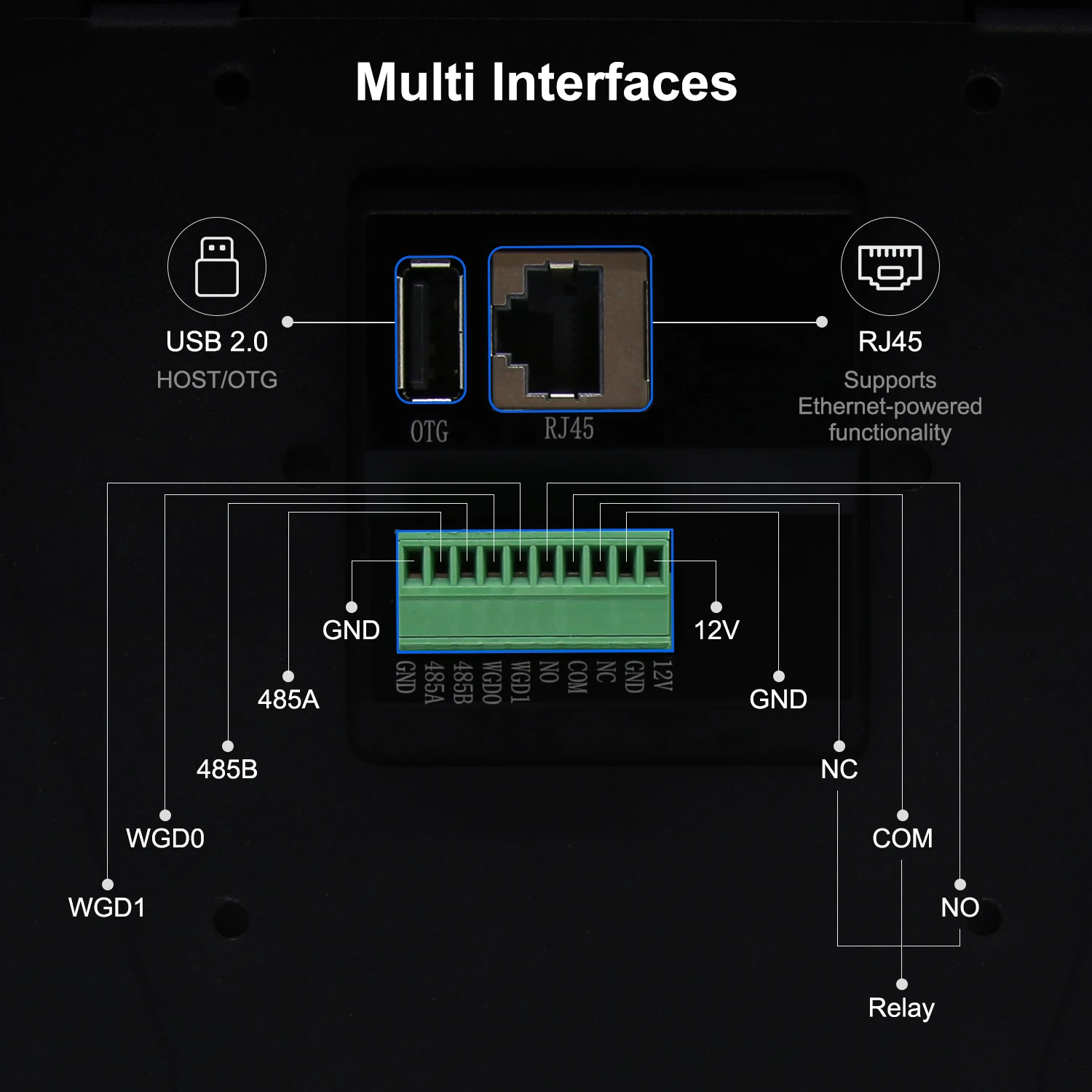

Interface
|
RJ Port
|
|
|
|
RJ 45 Port*1
|
|
|
|
||||||
|
|
USB Host/OTG
|
|
|
|
USB-A 2.0*1
|
|
|
|
||||||
|
|
Phoenix Terminal*10 PIN
|
|
|
|
DC 12V *2 PIN
|
|
|
|
||||||
|
|
|
|
|
|
Relay *3 PIN
|
|
|
|
||||||
|
|
|
|
|
|
Wiegand *2 PIN
|
|
|
|
||||||
|
|
|
|
|
|
RS-485 *3 PIN
|
|
|
|
||||||
|
Connection
|
WI-FI
|
|
|
|
IEEE 802.11 b/g/n
|
|
|
|
||||||
|
|
Ethernet
|
|
|
|
Support 100M Ethernet
|
|
|
|
||||||
|
|
Bluetooth
|
|
|
|
Bluetooth 4.0 Module
|
|
|
|
||||||
|
POE
|
POE POWER
|
|
|
|
Support
|
|
|
|
||||||
|
NFC
|
NFC
|
|
|
|
Optional(extra cost)
|
|
|
|
||||||
|
Camera
|
Front Camera, Portrai or Landscape
|
|
|
|
2.0 Mega for option
|
|
|
|
||||||
|
Others
|
Speaker
|
|
|
|
1*1W
|
|
|
|
||||||
|
|
Microphone
|
|
|
|
Optional(extra cost)
|
|
|
|
||||||
|
|
OSD language
|
|
|
|
Support multi-languauge
|
|
|
|
||||||
|
|
Operating temperature
|
|
|
|
0-50℃
|
|
|
|
||||||
|
Accessories
|
Adapter
|
|
|
|
Adapter, 12V 2A
|
|
|
|
||||||
|
|
Stand
|
|
|
|
Optional(extra cost)
|
|
|
|
||||||
|
|
Wall bracket
|
|
|
|
YES
|
|
|
|
||||||
