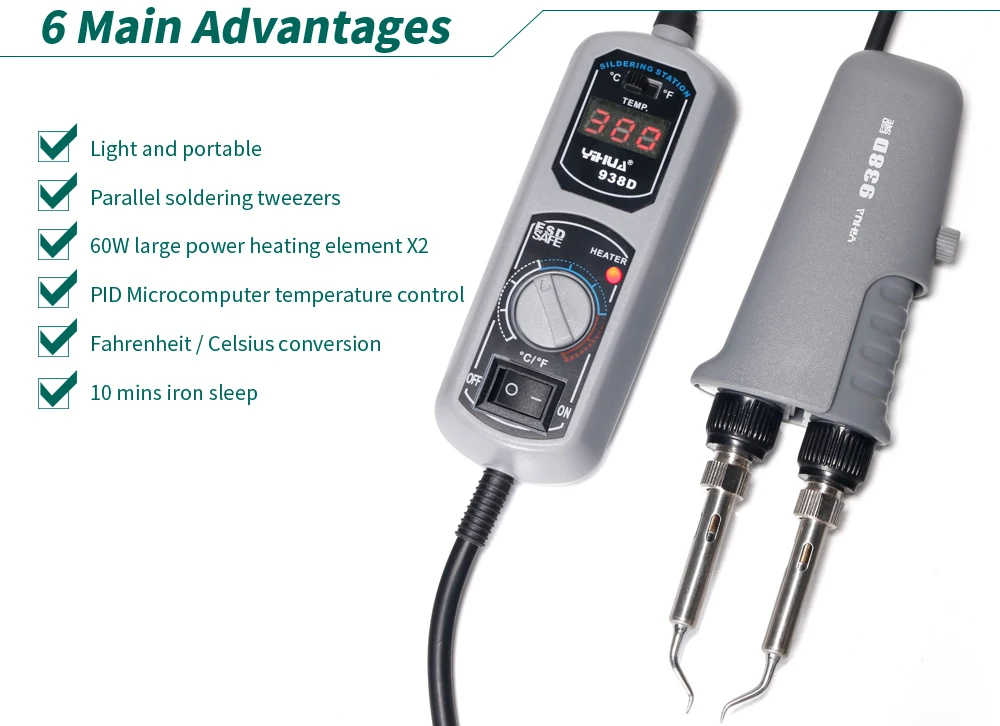

938D SMD Soldering Tweezer Repair Rework Station Electric heating pliers Constant temperature heating 110V/220V EU/US PLUG

Features



1.High-power heater, tweezers parallel design. When need to remove the electronic components, you can use the parallel tweezers to heating the components and weld joints. It is easily and quickly to removed element without prejudice to the case of peripheral devices. It is used for different weld joints de-soldering ,more suitable for large joints, especially for factory batch job, one time can weld two points, it’s high efficiency.

2.Programmable temperature control, PID technology, the most high-precision PID implant procedures, tracking and detection of high-speed machine tweezers actual temperature and corrected. Magic temperature compensation speed so that the temperature error is small, temperature stability and temperature compensation is much faster than the same type of product.

3.10 minutes fixed sleep function, up to 10 minutes without the use of iron, automatically enter sleep mode, energy and prolong tip life.



Technical data



Model	938D
Voltage	AC  220V±10% 50Hz/AC 110V±10% 60Hz
Power	120W

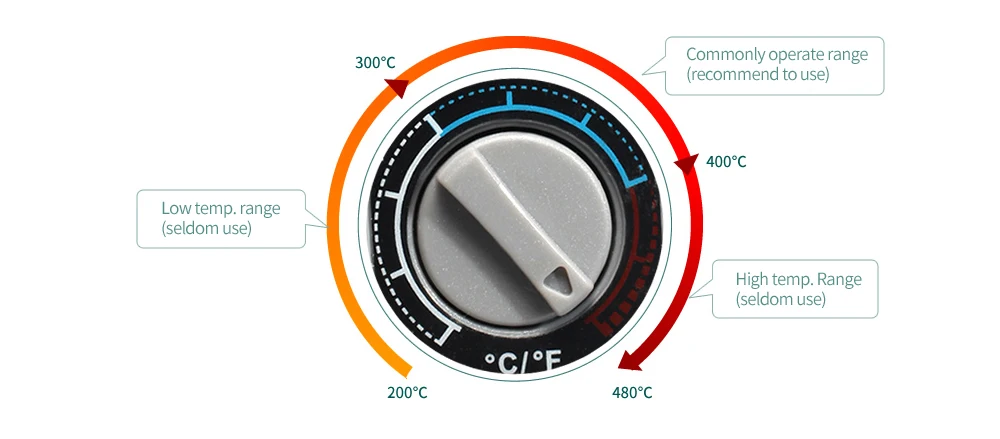

Temperature Range	200~480°C
Stability of temperature	±2°C(static state)
Work temperature	0~40°C
Storage temperature	-20°C~80°C
Storage humidity	35%~45%
Tip of ground Resistance	<2Ω
Tip of ground Voltage	<2mV
Temperature display	LED digital display
Celsius/Fahrenheit Display Temperature conversion mode	Yes
10 minutes fixed sleep mode	Yes
