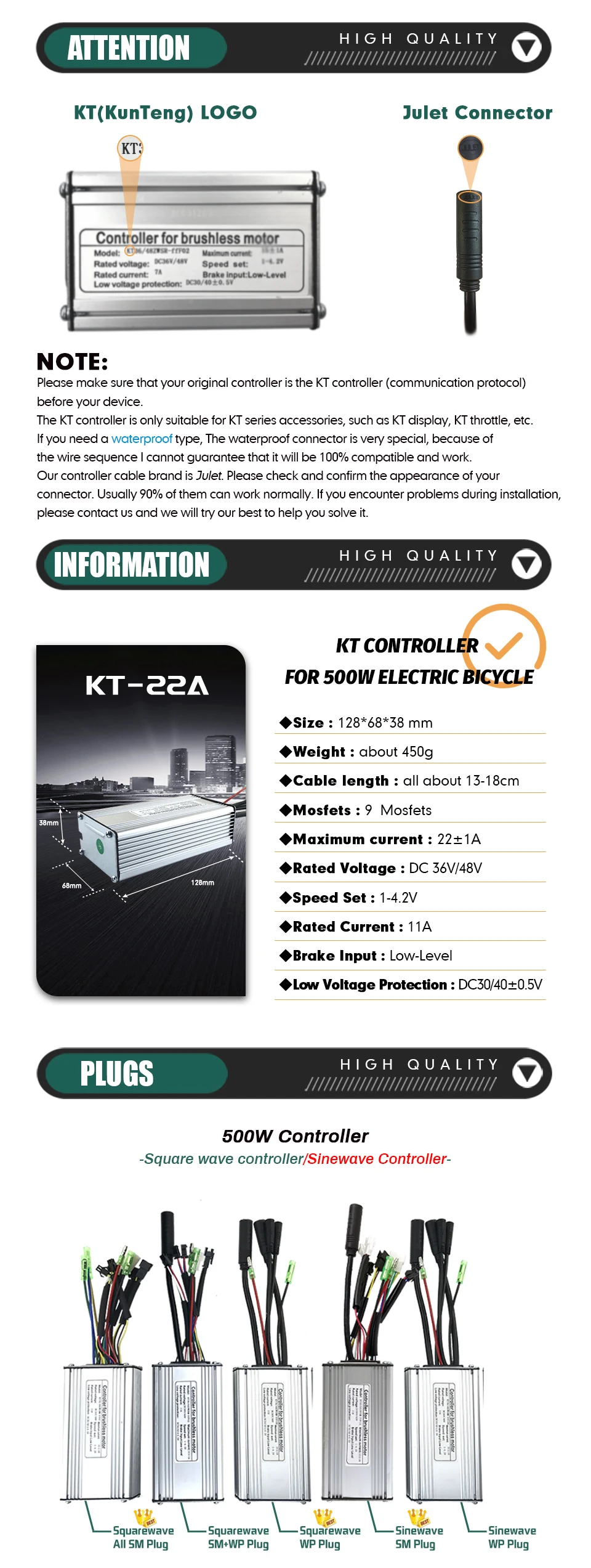

【Parameter】

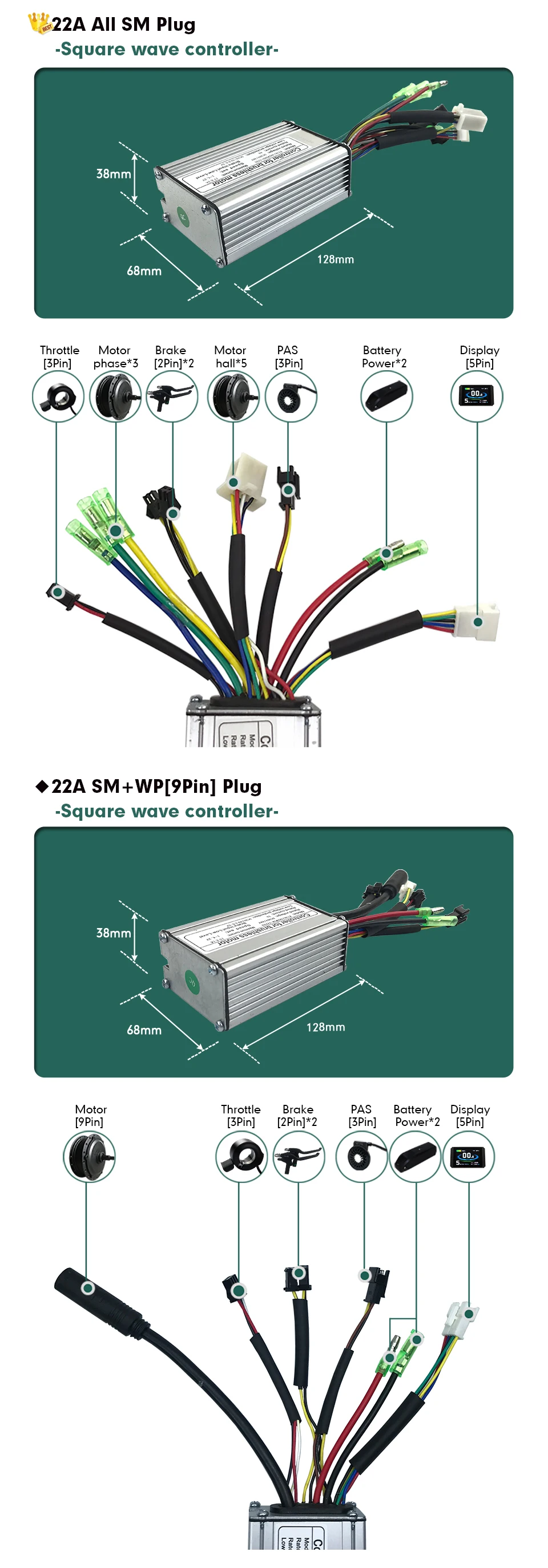

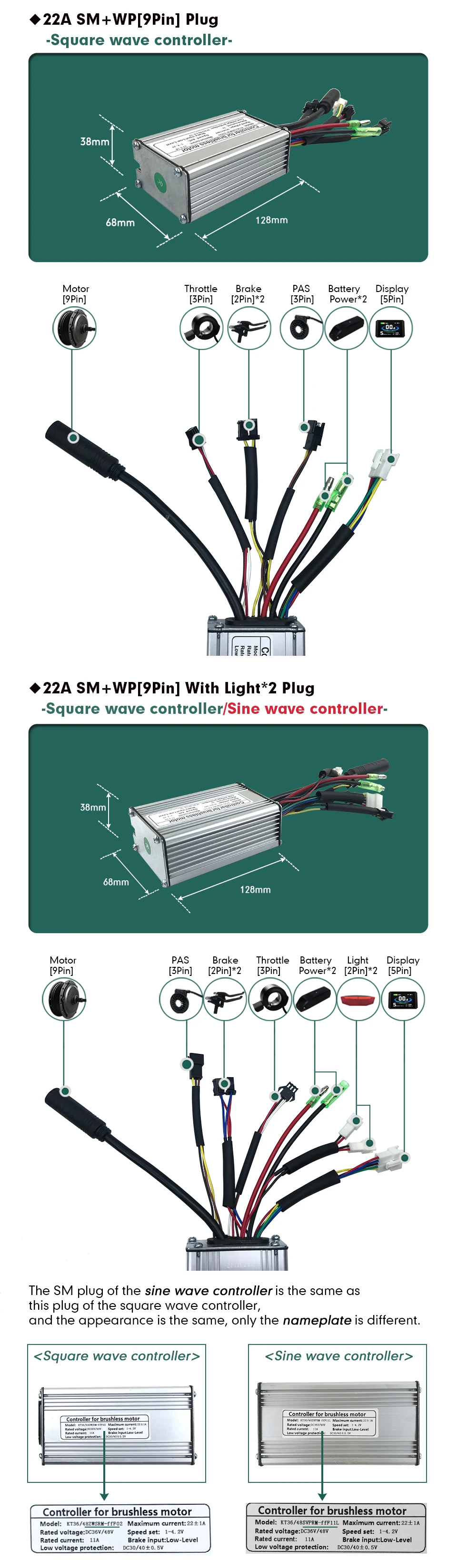

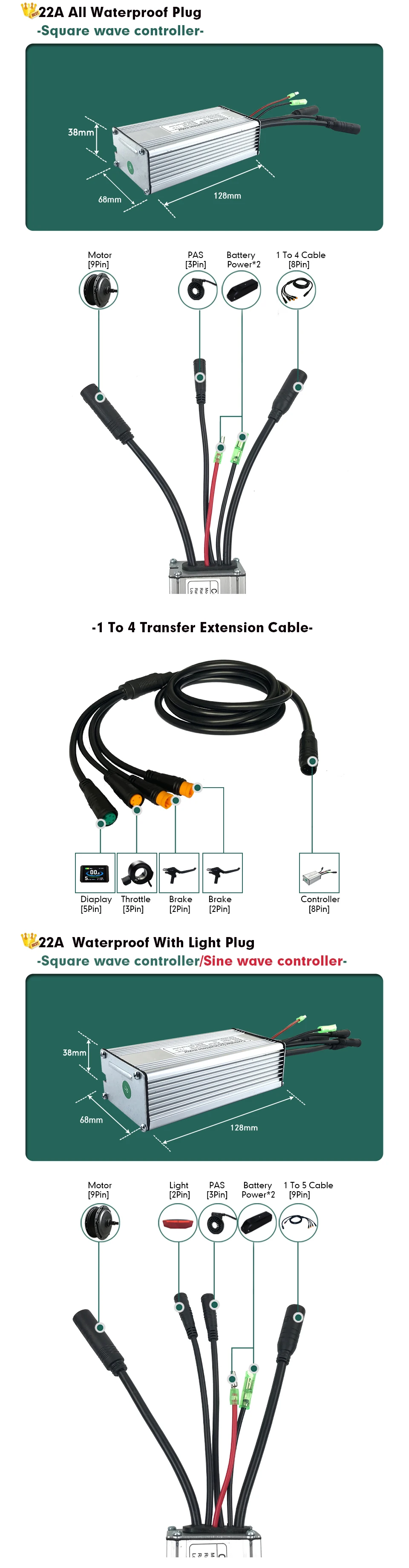

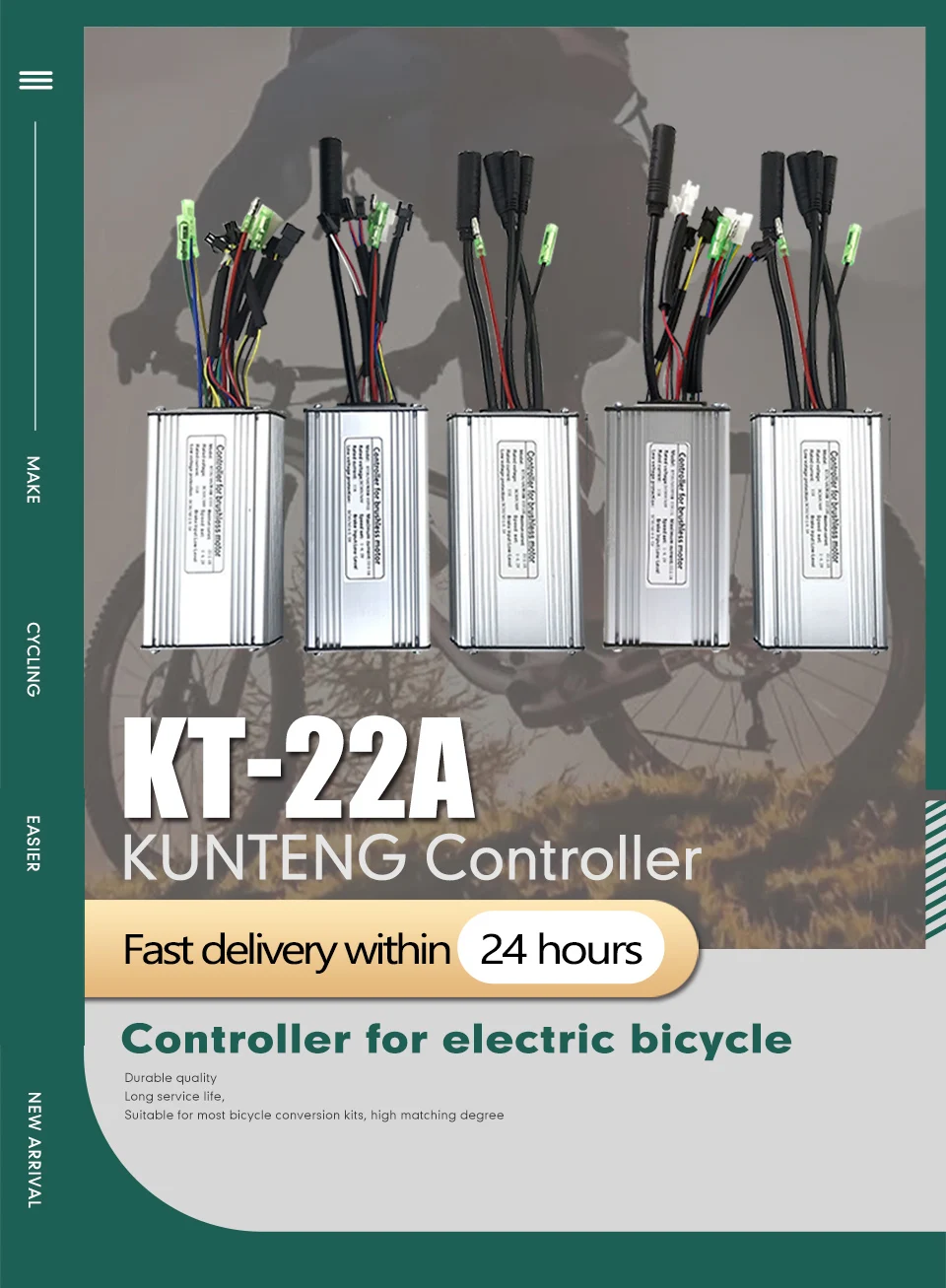

KT 22A Controller(Square wave/Sine wave)

Brand :KT（KUNTENG）

Color :Silver

Dimension :about 128 * 68 * 38 mm

Mosfet :9 Mosfets

Maximum current :22±1A

Rated current :11A

Rated voltage :DC36V/48V

Speed set :1-4.2V

Brake input :Low-Level

Low voltage protection :DC30/40±0.5V

Cable Length :all about 13-18cm

Weight:about 450g

Wave:Square wave/Sine wave

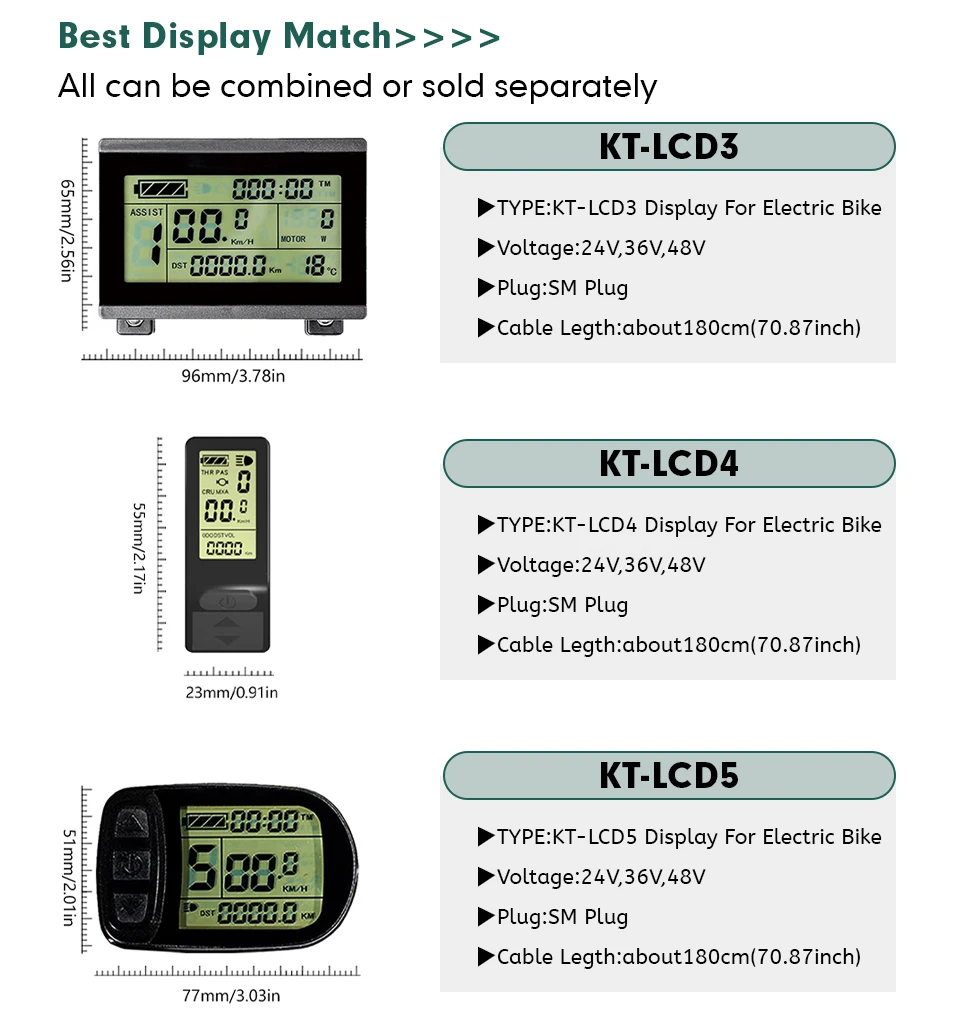

Selectable display>>>

◆Type:KT(Kunteng)-LCD3 Display

◆Voltage:24V/36V/48V

◆Color:Black

◆Weight:about 250g

◆Handlebar size for holding:Φ22.2mm/25.4mm/31.8mm

(With 2 version gaskets in the package for choose)

◆Display Cable Length:SM connector ,about 180cm ,Switch button length about 27cm

◆Type:KT-LCD4 Display

◆Voltage:24V,36V,48V

◆Color:Black

◆Weight:about 200g

◆Handlebar size for holding:Φ22.2mm

◆Display Cable Length:SM connector ,about 180cm

◆Type:KT-LCD5 Display

◆Voltage:24V,36V,48V

◆Color:Black

◆Weight:200g

◆Handlebar size for holding:Φ22.2mm

◆Display Cable Length:SM connector ,about 180cm

【Packing List】

1.KT(KunTeng)-22A Controller
