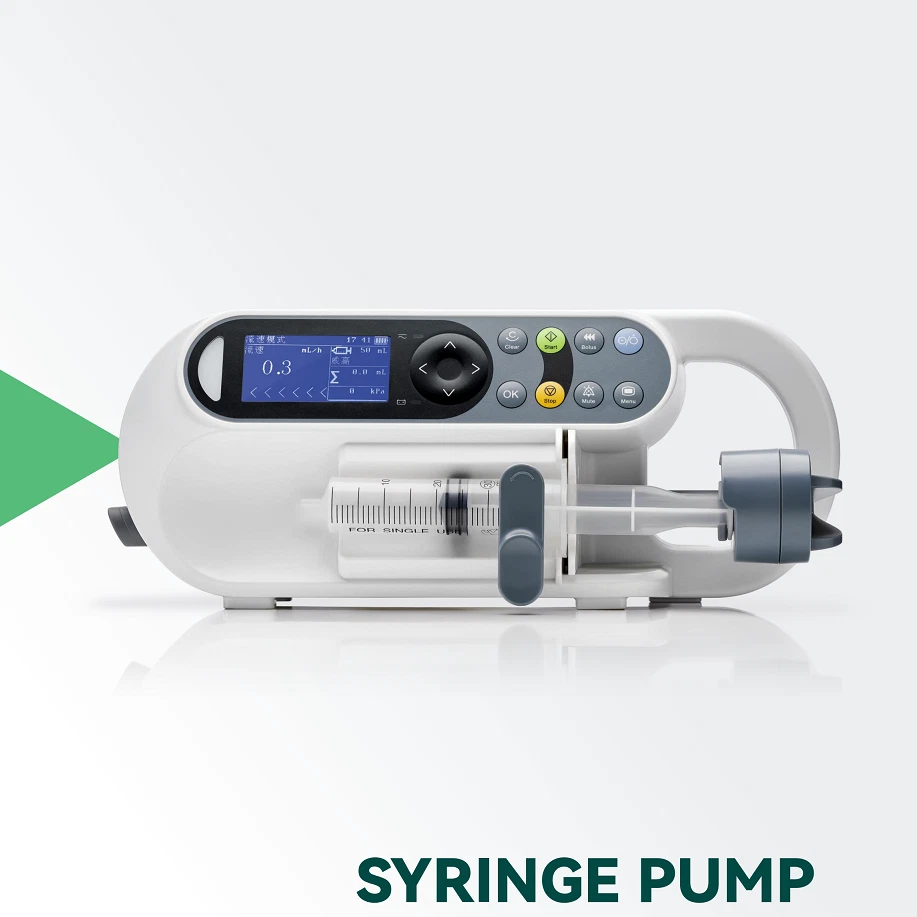

Syringe Pump

Features

3.5-inch color touch screen for clear visibility.

Simple rate mode with one-key start, easy to operate.

Compatible with various brands of syringes.

Multiple infusion modes to meet different clinical requirements.

User-friendly interface with audible and visual alarm system.

Rechargeable lithium battery provides approximately 5 hours of continuous operation.

Specifications

Model SP02

Applicable Syringe Various brands of sterile syringes: 5ml, 10ml, 20ml, 30ml, 50ml/60ml

Infusion Mode Rate mode, Rate-time mode, Rate-VIBI

Flow Rate Range 5ml syringe: 0.1-150ml/h; 10ml syringe: 0.1-300ml/h; 20ml syringe: 0.1-600ml/h; 30ml syringe: 0.1-900ml/h; 50ml (60ml) syringe: 0.1-1500ml/h

Volume Range 0.1ml-9999ml

Flow Rate Step 0.1-100ml/h, increment 0.1ml/h; 101-1500ml/h, increment 1ml/h

Time Preset 1min-99:59 min

Accuracy ±2% (after syringe calibration)

Alarm Syringe not inserted, No operation, Infusion complete, Battery empty, Occlusion, Battery low, Parameter not confirmed, AC power failure, Syringe install error, etc.

KVO Rate 2.5ml/h

Power Supply AC power supply: 100-240V, 50/60Hz; External DC power supply: 7.4V

Battery Internal rechargeable lithium battery, 1800mAh

Battery Working Time Approximately 5 hours

Screen 3.5" LCD touch screen

Dimensions 220*180*80mm

Operating Environment Temperature: +10~+30°C; Relative Humidity: ≤70%; Atmospheric Pressure: 86-106 kPa

Storage Environment Temperature: -10~+55°C; Humidity: ≤80%

Packaging Single package size: 290*270*216mm; Single gross weight: 2.5kg; 4 units per carton, package size: 565*310*480mm, total gross weight: 11kg
