Feature：

◆Electric bicycle rear wheel conversion kit features 48V 750W brushless and gear hub motor for efficient and noiseless running; can easily convert your bicycle to electric bike and reach the maximum riding speed of 40KM/H, suitable for regular bicycles and mountain bikes that are used on commuting and short journey

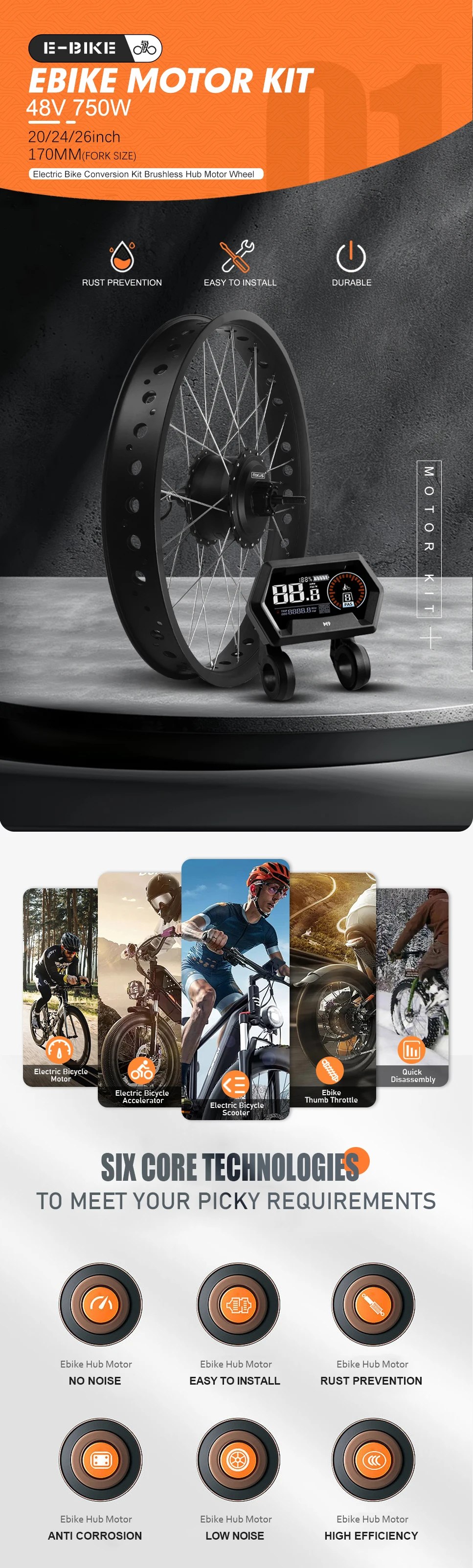

◆Ebike Conversion Kit includes all necessary components for installation; Motor/Wheel,controller, LCD display, throttle, brake levers, pedal assist sensor, torque arm, and cable ties. Tire/battery is not included.

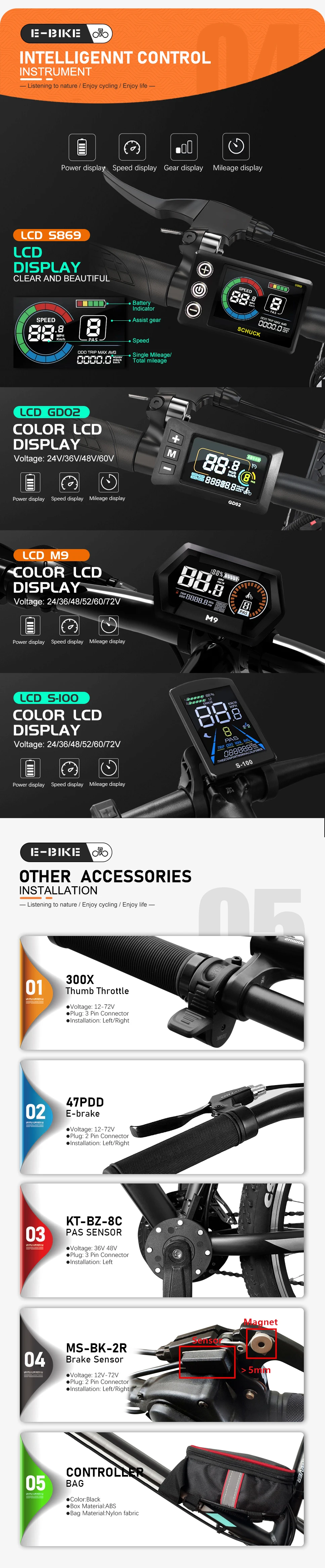

◆Aluminum alloy frame for durability and stability, can support a heavy weight up to 220 Lbs; drive system without moving chains or gears for anti-friction; HD LCD display shows all the essential information such as battery percentage, speed, total and single trip distance, wattage, PAS levels, and error codes for easier troubleshooting.

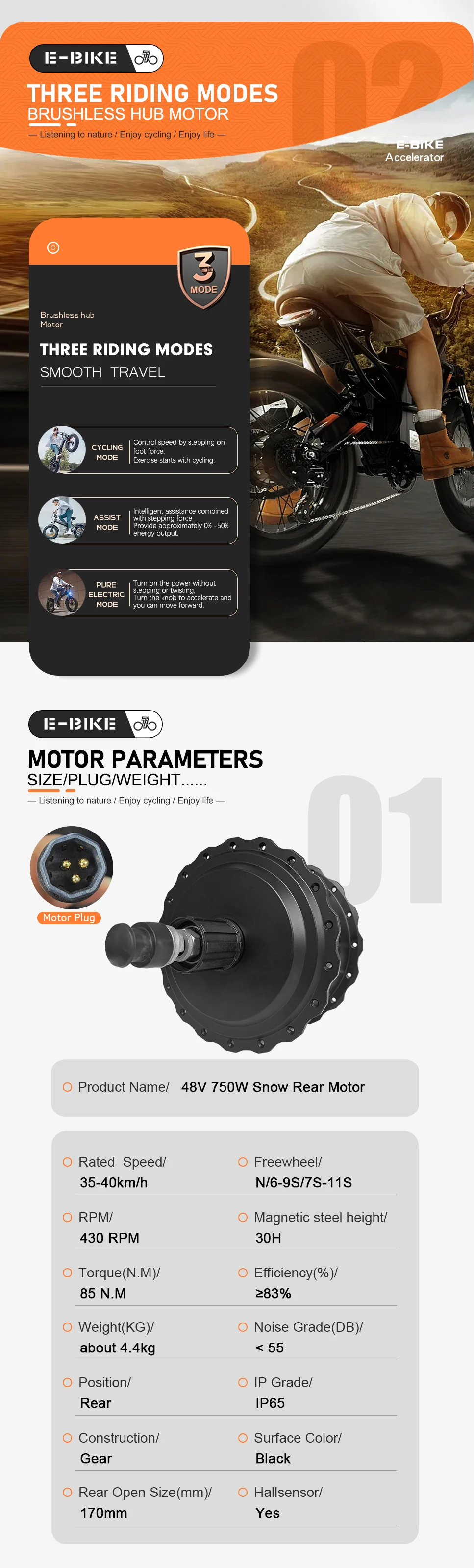

  48V 750W Rear Hub Motor

◆Construction:Gear drive

◆Rated Speed(KM/H): 35-40km/h

◆Rated Speed(rpm): 430RPM

◆Torque(N.m): 85N.M

◆Fork size(mm):170mm

◆Installation: Rear

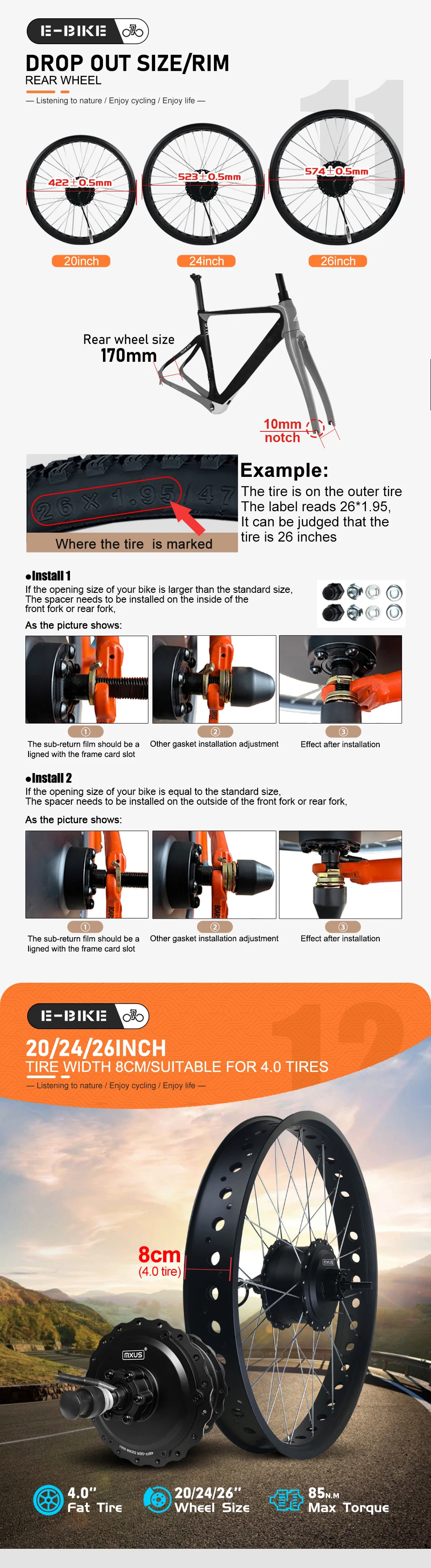

◆Wheel Diameter (Inch): 20/24/26inch---Optional

  30A Three-Mode controller detail:

◆Size(L*W*H):About 145*61*38mm

◆Speed Set:1.1-4.2V

◆Mosfet:12Mosfet

◆Booster:1:5

◆Brakes:Low-Level

◆Rated Voltage:DC36/48V

◆Compatible with motors with or without Hall

◆With motor forward and reverse learning function

  Packaging List

Noted:Conversion Kit not include Battery

●1 PCS * 750W Rear Hub Motor with Rim and Spokes

●1 PCS * Motor Controller

●1 PCS * Display(option)

●1 PCS * Throttle (We default to ship thumb throttle, it can be changed to twist throttle if you need)

●1 PCS * PAS Sensor

●1 Pair * Brake Lever Cut Off Power

●1 Pair * Brake Sensor

Gifts: 1 * Controller Bag+1*Install cable ties and stretch film+1*Installation Manual+1*gloves+1*glasses+1*masks
