Description
Features

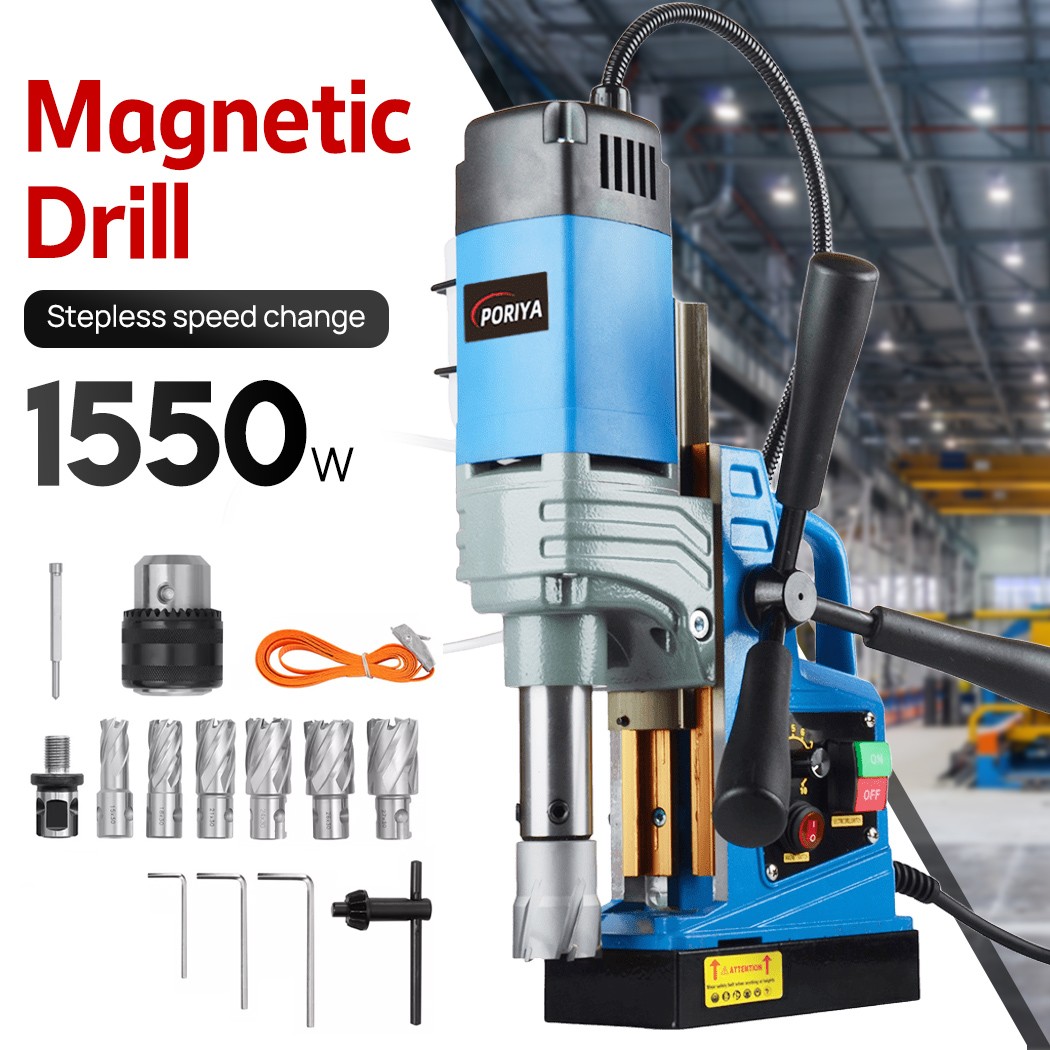

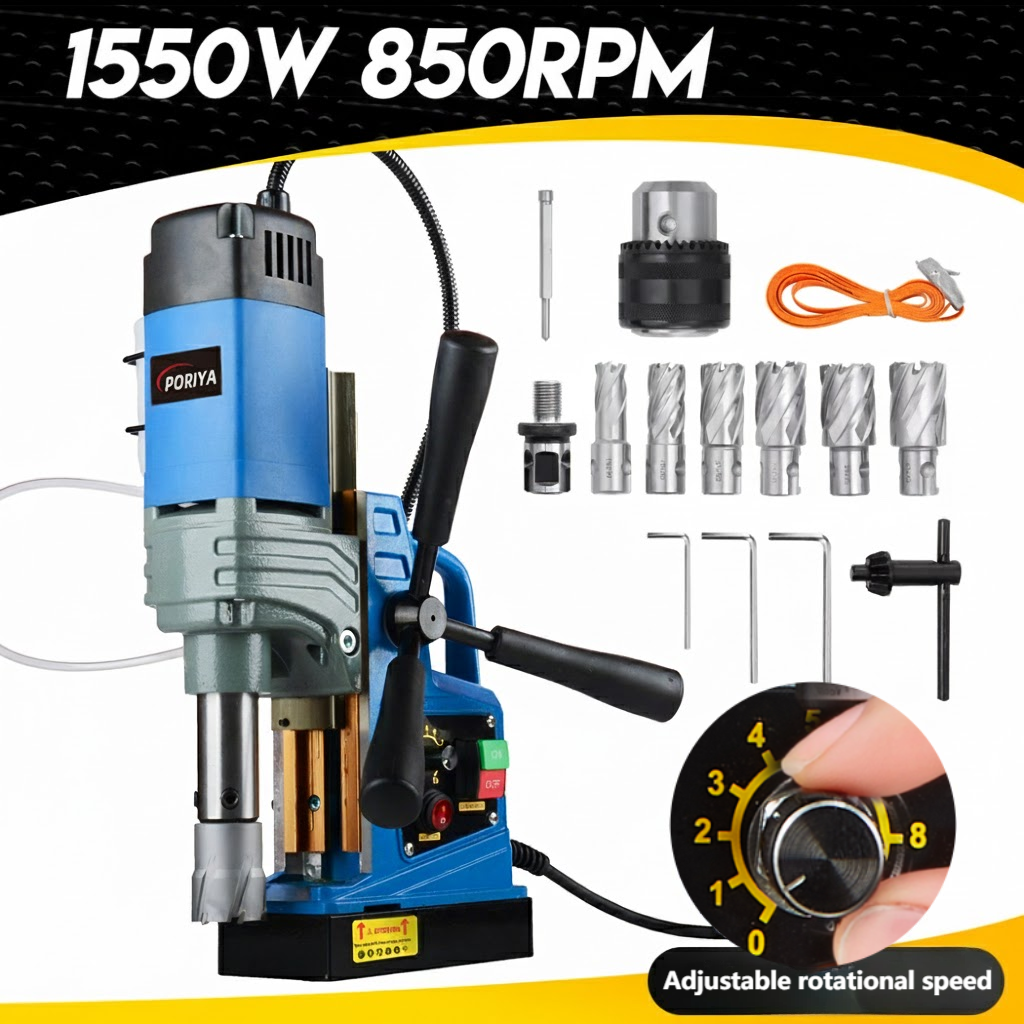

- Top-level Magnet: Get ready for unstoppable power! Our electric magnetic drill generates exceptionally powerful driving force with its 1550W copper motor. It is capable of drilling into the toughest material at 850 RPM. Max. Boring Diameter (Coring Drill): 50mm; Max. Coring Depth: 50mm.

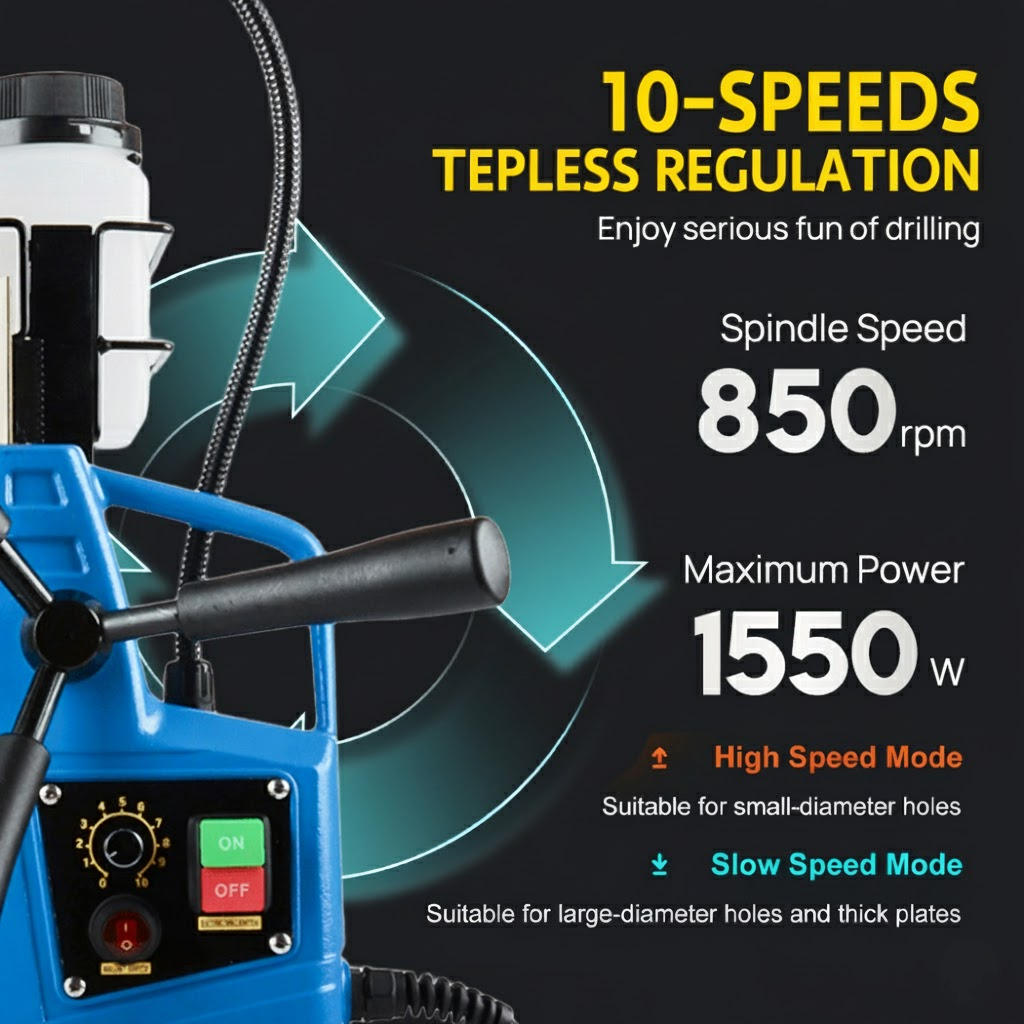

- Understand the Power: 2922lbf / 13000N robust force created by the electromagnetic base on the two ends anchors the mag drill press solidly to avoid movement during the drilling process. Adjustable 10-speed gears achieve accurate and efficient operation according to different drilling diameter.

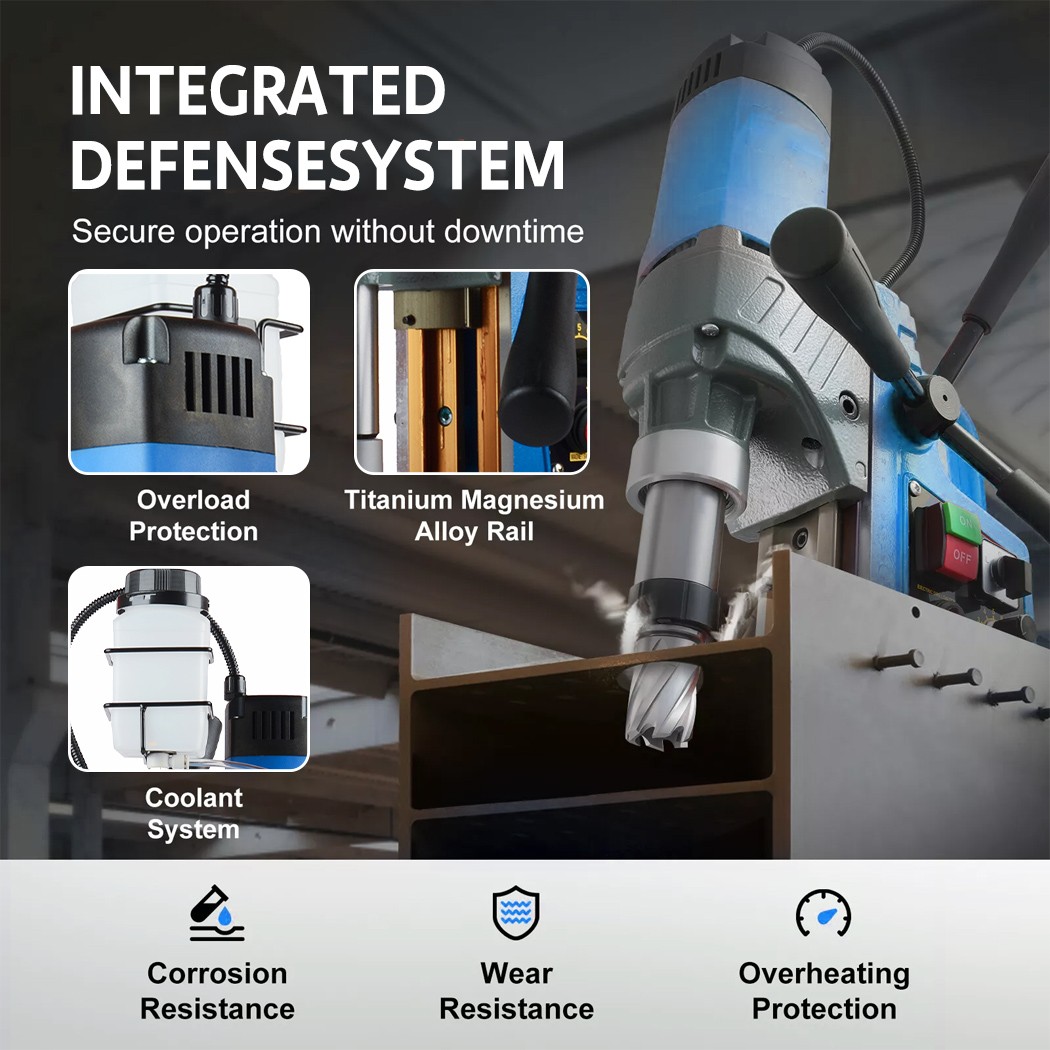

- Security and Durability: Your security comes first! That is why the combined overload protection features are in place. The cooling system features fast heat dissipation to protect operators from being hurt by instantaneous overpowering and high temperatures during drilling. Besides, the titanium magnesium alloy guide rail has corrosion & wear resistance characteristics, significantly improving the device's service life.
- User-friendly design: A scale has been added to the machine's frame to help users pinpoint the distance between the drill bit and the drilled material in millimeters. Even a novice can bore accurate and neat holes. In addition, the ergonomically designed handle and 3 extended cranks provide a comfortable grip during handling and moving, saving great effort.

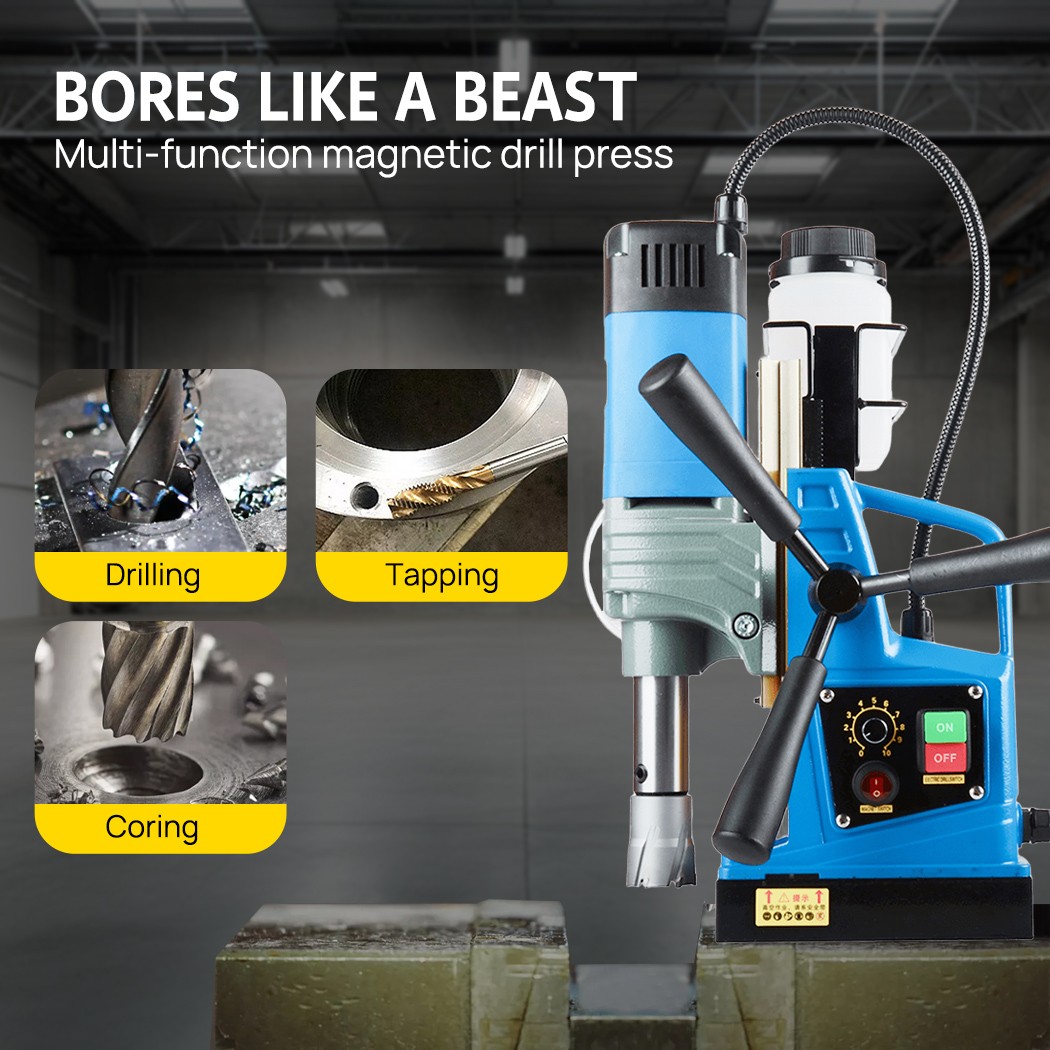

- Wide Applications: This versatile magnetic drill plays a vitally important role in home improvement, equipment installation, industrial and steel fabrication, ship and bridge building, railway manufacture, windmill & power-plant construction, and many other fields.
Specifications
| Color: Blue |
| Maximum Load Power: 1550W/220-240V/60HZ |

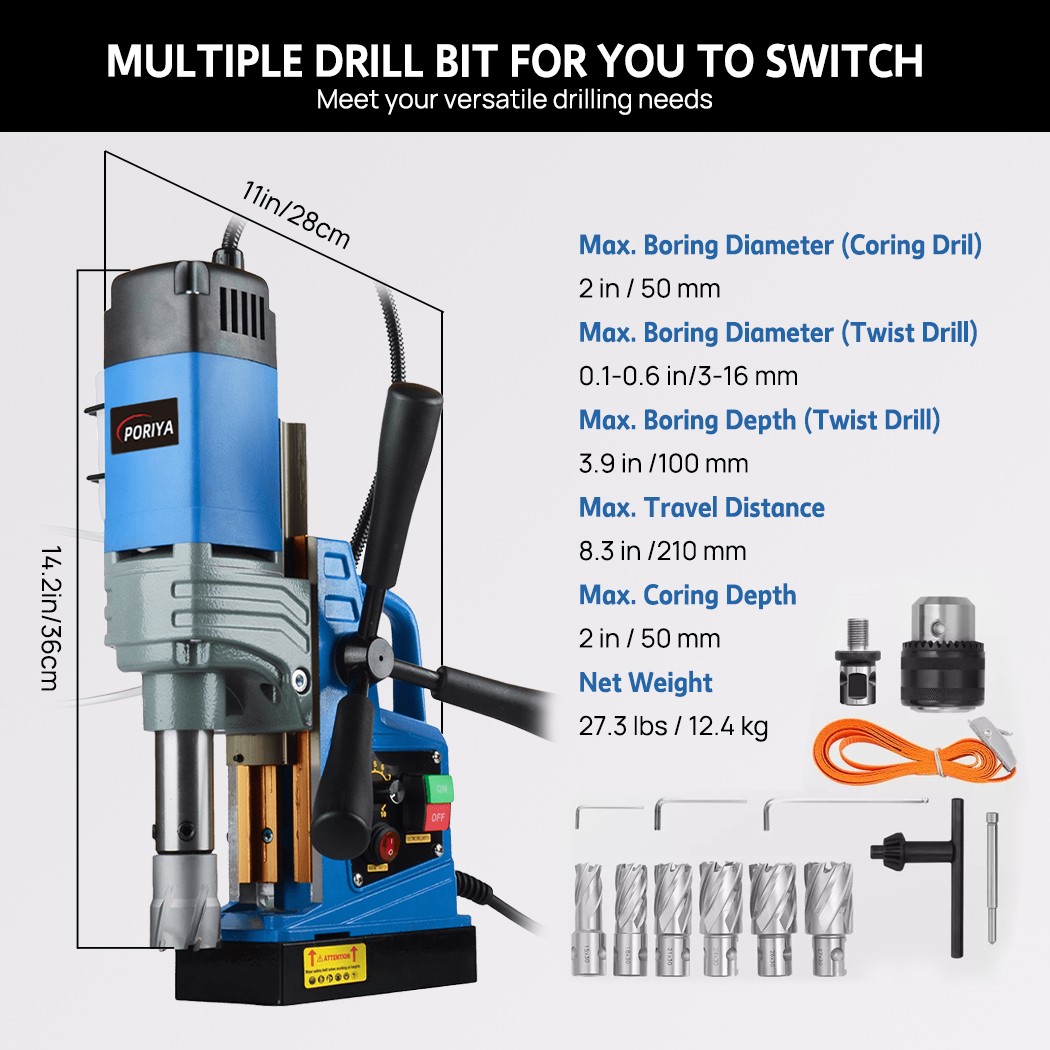

| Max. Boring Diameter (Coring Drill): Φ2 in/Φ50 mm |

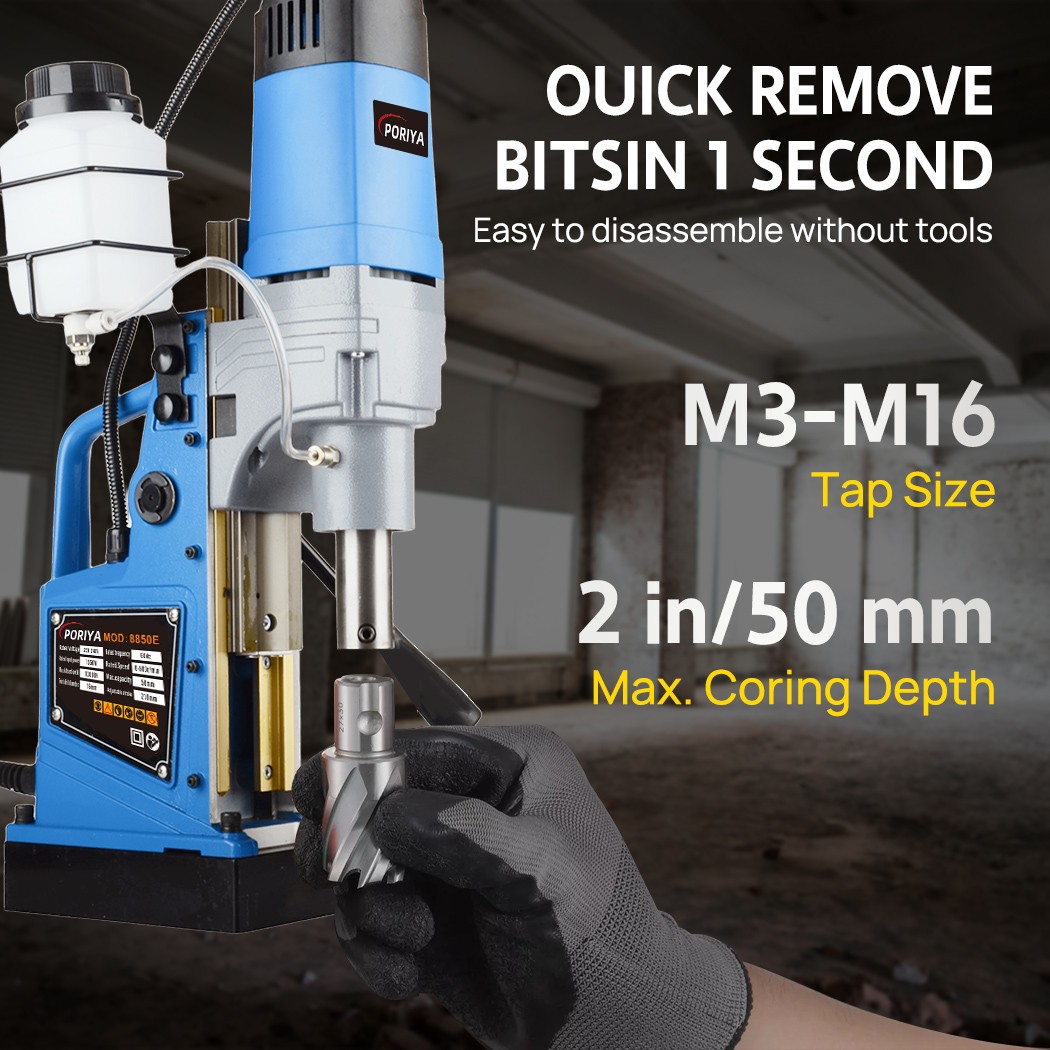

| Max. Coring Depth: 2 in / 50 mm |
| Max. Boring Diameter (Twist Drill): Φ0.63in/Φ16 mm |
| Boring Diameter (Twist Drill): Φ3-16 mm |
| Max. Boring Depth (Twist Dril): 3.9 in /100 mm |
| Max. Travel Distance: 8.3 in /210 mm |
| Maximum Magnetic Force: 2922 lbf /13000 N |
| No-Load Speed: 0-850 rpm |
| Magnetic Drill Bits: |
| Cutting Diameter:1/2", 9/16", 11/16", 13/16", 15/16", 1-1/16" |
| Material: High-Speed Steel M2AL |
| Hardness: HRC62.5-67.5 |
| Blade Length (Include Shank): 2.42" / 61.5 mm |
| Cutting Depth: 1'' |
| Product Weight: 13.8kg |
| Dimensions:325 × 155 × 410 mm |

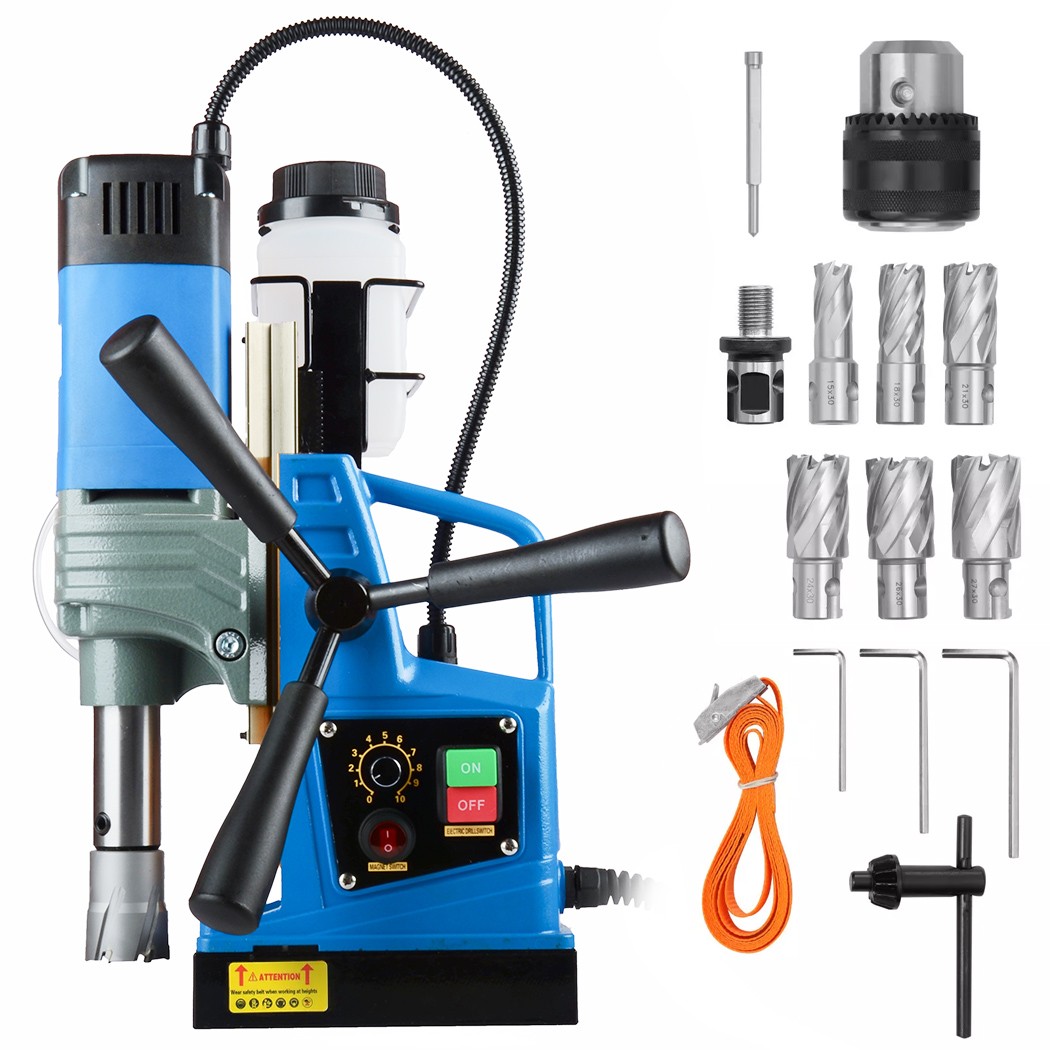

Package Content
| Item Description: | Quantity: |
| Drill Chuck Key | x 1 |
| Twist Drill Chuck | x 1 |
|
Coolant Tank + Stand
|
x 1 |
| Coolant Tube | x 1 |
| Rope | x 1 |
| Hex Keys | x 3 |
|
Weldon Shank
|
x 1 |
| Hand Cranks | x 3 |
|
Magnetic Drill Bits
|
x 6 |
| User Manual | x 1 |
