• pecifications:

  Material: ABS

  Cable Type: CAT5/CAT6

  Voltage: 60V

  Package Weight: 586g / 20.67oz

  Package Size: 24 * 16.5 * 5.5cm / 9.45 * 6.50 * 2.17in




  Transmitter:

  Wiremap Port: RJ45

  Remote Continuity: ≥300m

  Cable Sequence and Fault Test: Yes

  STP/NTP: Yes

  Short Circuit Reminder: Yes

  Anti-jamming and Normal Mode: Yes

  Audio Transmission Frequency: 455KHz

  Audio Transmission Distance: RJ45 300m

  NVL: 10mW

  Power Meter: 850/1300/1310/1490/1550/1625nm (wavelength)

  Crimping: RJ45-8 cores, min length is ≥10cm

  Low Voltage Prompt: <3.5V±0.1V, power indicator flashes

  Power Supply: 3.7V 1500mAh polymer lithium battery

  Size: 148 * 70 * 32mm / 5.83 * 2.76 * 1.26in




  Receiver:

  Scan Current: ≤300mA

  Remote Continuity: ≥300m

  NCV Detection: Yes

  Lamp: Yes

  Low Voltage Prompt: Yes

  Power Supply: 3.7V 1500mAh polymer lithium battery

  Size: 198 * 50 * 28mm / 7.80 * 1.97 * 1.10in

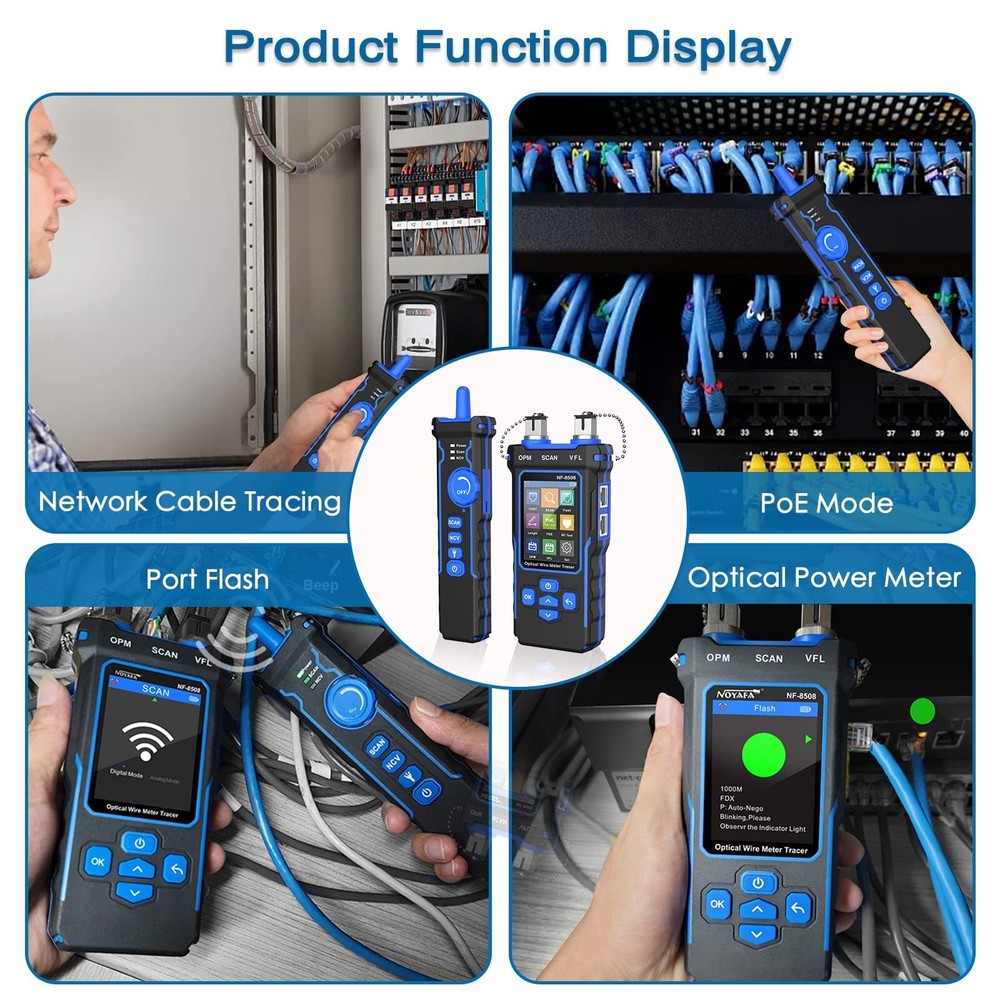

Poe Test Quickly Identify Poe cable tester can test the information of standard Poe device such as POE voltage, power supply polarity power supply mode and also the type of PSE	NcV Induction Pen One-click identification of live equipment can detect wires and sockets to avoid the danger caused by strong electricity during construction	Optical Power Meter Test Automatic identification of fiber frequency.6 wavelengths , high precision testing

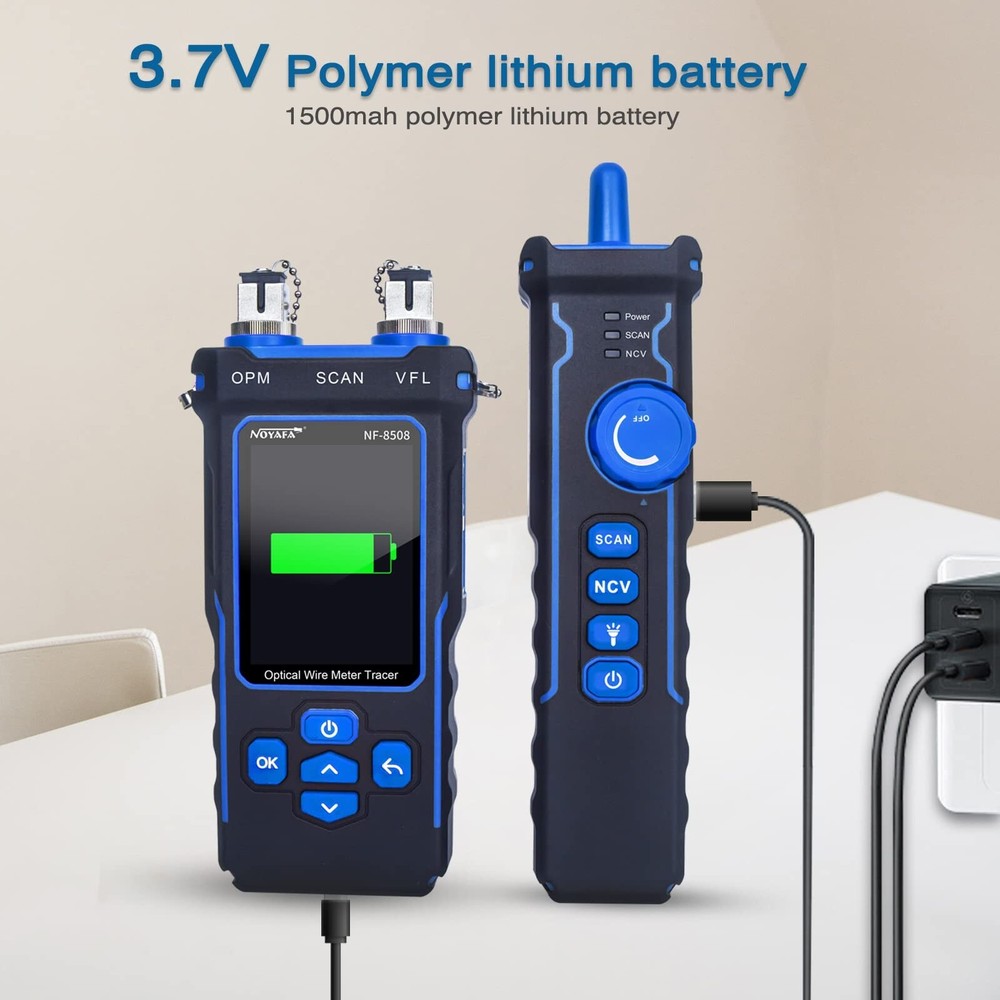

LENGTH MEASUREMENT Connect the cable to the "LENGTH/FLASH" port on the transmitter and the indicator on the port will flash. The measurement range of cable length is 2.5m to 200m	Port Flash Quickly & Exactly find out the target cable port to improve work efficiency	1500mah 3.7V Lithium Battery Long Battery Life + Type-C Charging: running time of 10 hours, Type-C charging is more convenient.

Why Choose Us?

Our multifunctional, high performance network tester can quickly detect the wiring of telephone lines, network cables, BNC cables and other network cables. Safe and powerful tool for any professional electrician.

Contact NOYAFA

NOYAFA products enjoy full customer support. If you have any questions about the product, please feel free to contact NOYAFA. Try us today, you won't be disappointed.

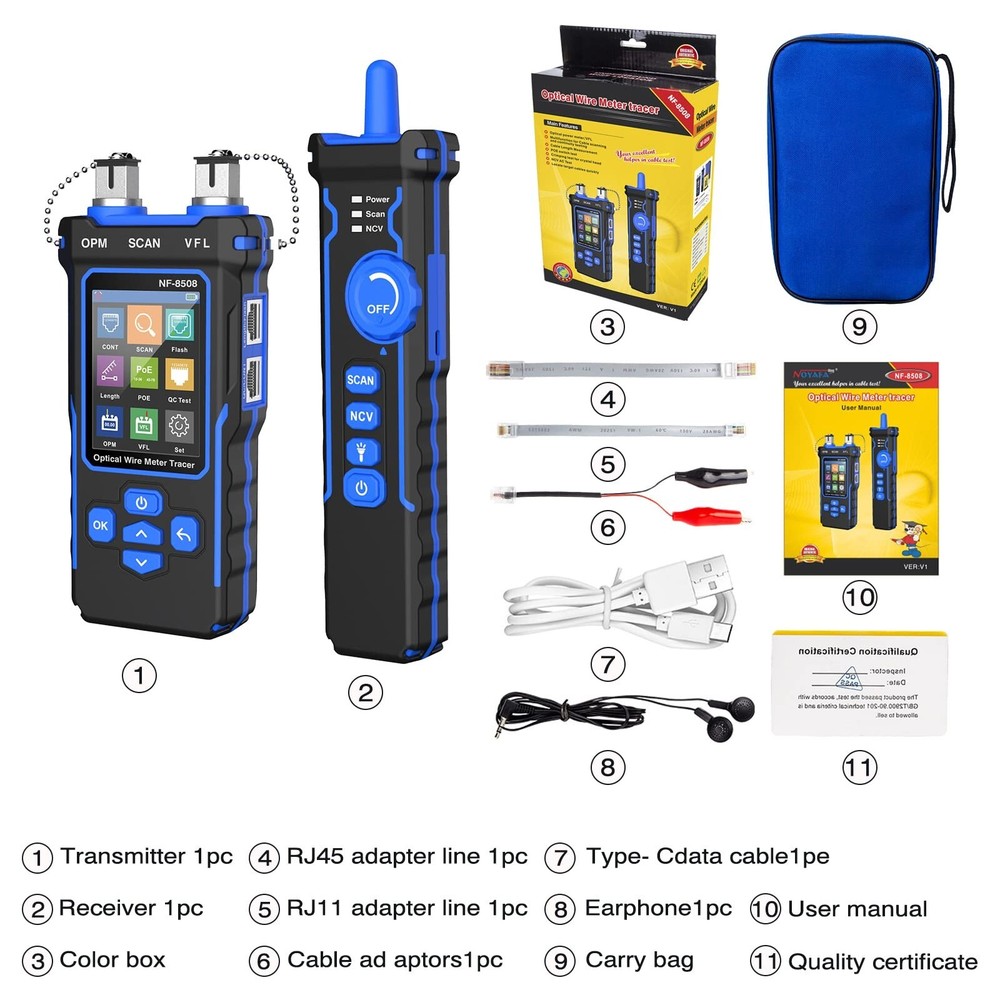

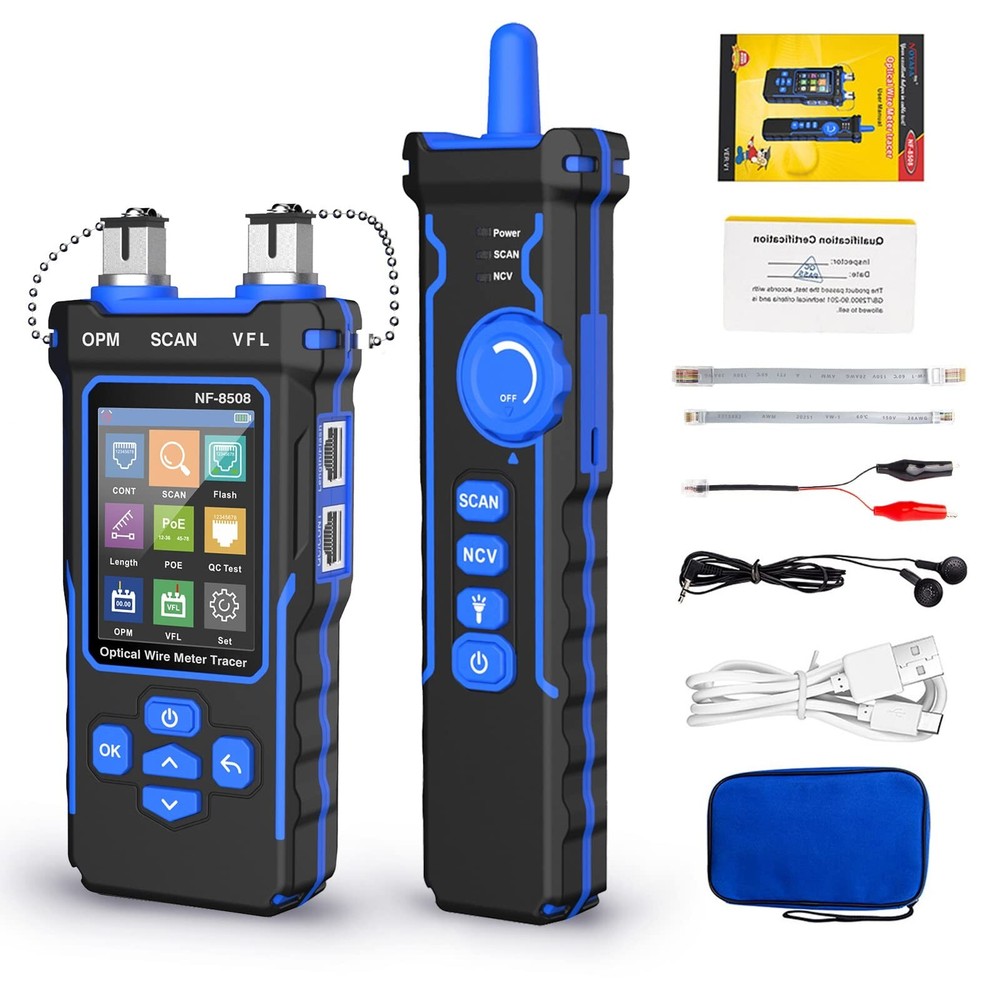

What Can You Get？

• 1x Transmitter
• 1x RJ11 interface telephone cable
• 1x Earphone Cable
• 1x Receiver
• 1x RJ11 alligator clip cable
• 1x R45 interface network cable
• 1x Type-C charging cable

Transmitter

CONT	Wiremap Port --RJ45
CONT	MAX range--300m
CONT	STP/NTP

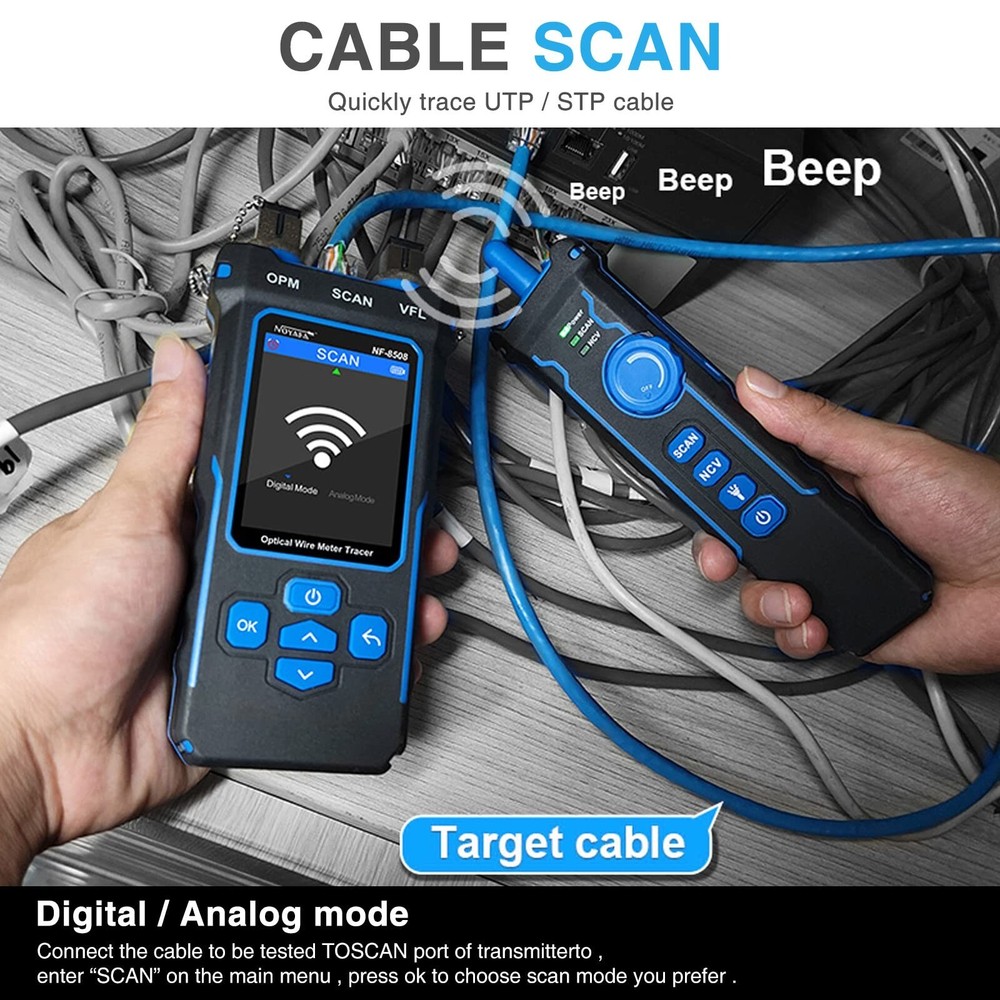

Scan	Digital/Analog mode
Frequency--455KHz	Frequency--455KHz
Port Flash	Full duplex / Half duplex
Port Flash	10m/100m/1000m
Length	≤20M+/-1.6M, 20M~100M+/-2.4M,≥100M+/-3.2M

PoE	End connection /Middle jumper / Powered by 8 cores
PoE	PoE Power supply--Voltage detection
NVL	10mW
Power meter	850/1300/1310/1490/1550/1625 ( Wavelength )
Crimping	RJ45 -8 Cores,Min length is ≥10 cm
Lower voltage warning	< 3.5V ± 0.1V
Power supply	3.7V 1500mAh Polymer lithium battery
Transmitter size	148 X 70 X 32 mm

Receiver

Sensitivity adjustable	YES
MAX range	300m
Digital/nalog mode	YES
MAX working current	≤300mA
NCV	YE
