Wiring and Installation

• "ACC": Connect the car ignition detection cable

• "B +": Connect it to the positive terminal of the car battery.

• "GND": Ground / Iron / Negative battery.

• "KEY1/ KEY2": Only one of the cables is selected for wiring depending on the compatibility of the model and the steering wheel control system. If you use two steering wheel controllers, you need to connect 2 cables.

• "BACK": Connects to the rear camera input port.

• "Lamp Control": Connect it to the small lamp in the front of the car to turn on the button backlight.

• "ANT CONT": Connect the car radio antenna (no antenna, no wiring).

• Signal Input: Connect to the input port of the reversing camera.

• "Audio / Video": See wiring diagram (Note: "AMP-CON" cable has no output voltage and must supply the amplifier or subwoofer via the car's ACC ignition cable).

How to connect power cable:

• Red wire connects to ACC (ignition switch)

• Yellow wire connects to 12V battery positive

• Black wire connects to 12V battery negative

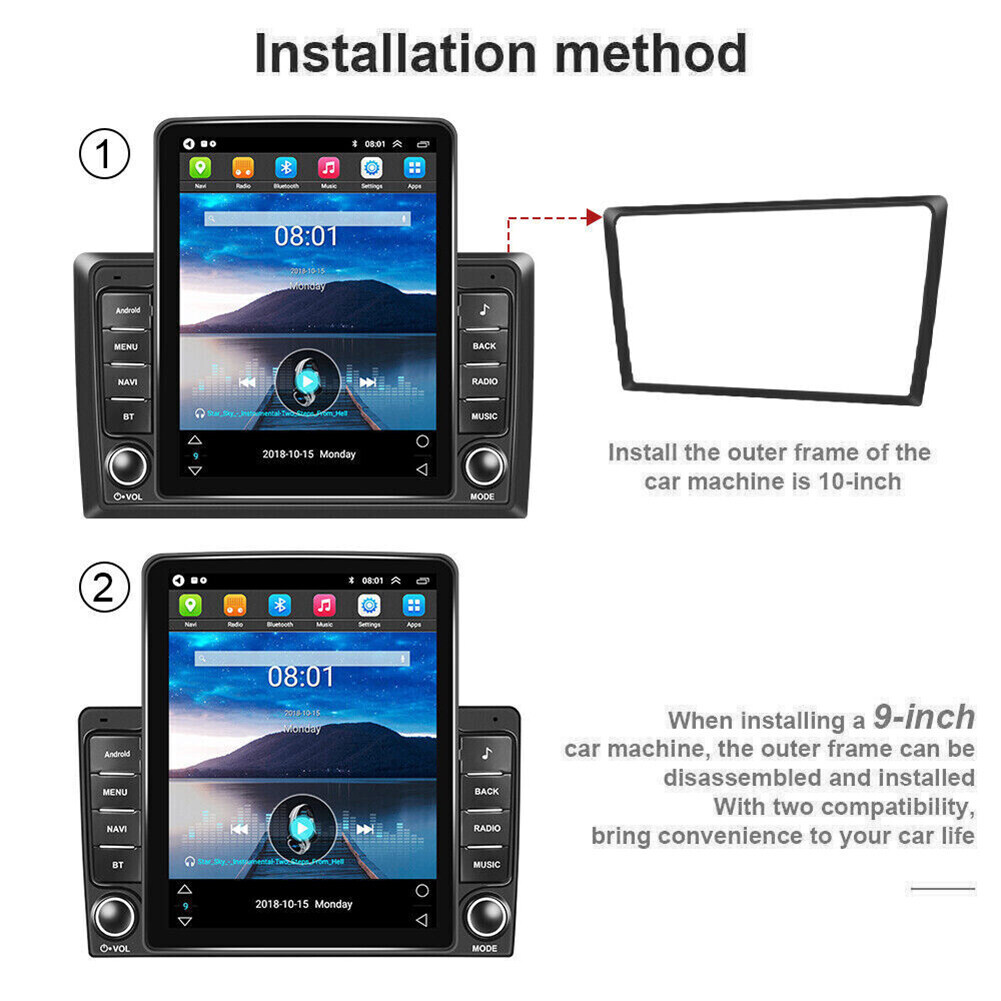

Note: The Installation size of this car radio is 180(W)*75(H)*70(D)mm, Please compare the size with your car dashboard.

Features:

●HD 9.7" 2.5D Capacitive touch screen

●Wireless & Wired Carplay: wired or wireless Carplay in-vehicle system can closely integrate the user's iOS device and iOS experience with the dashboard system. Users who use wireless Carplay can connect to the car system via Bluetooth to realize voice-controlled navigation, make calls, send and receive messages, and listen to music. It is only available for iPhone（ZLINK5 APP） .

● Wireless & Wired Android auto: wired or wireless Android auto in-vehicle system can closely integrate the user's Android device and Android experience with the dashboard system. Users who use wireless Android auto can connect to the car system via Bluetooth to realize voice-controlled navigation, make calls, send and receive messages, and listen to music. It is only available for Android phone（Android phones need to download android auto APP） .

●Built-in GPS Navigation: Users can purchase directly from play store for offline navigation. With wifi connected, Google Maps can be used perfectly, you can go anywhere you want and never get lost again.

●High definition 1080P: Full capacitance touch screen for easy operation, well designed user interface for car only.

●Built-in WIFI: Connect to WIFI, and you will find a new world，the most convenient one is the online map.

●Rear camera: support AHD high-definition 1080P camera image input.

●Hi-Fi function: High fidelity, reproduced sound highly similar to your original sound

●Steering wheel control: Through it you can control the functions you need by steering wheel, more convenient

●Built-in Bluetooth with A2DP/Hands Free/Phone book:Bluetooth hands-free calls,Bluetooth music player,Auto loading phonebooks

●Double USB adapter input

●Support file manager: Support download, install and delete over thousands of android apps

●Support multilanguage: Support languages, up to 40 national languages

●You can enjoy music from you mobilephone without any cables, and also support USB connetion.

●FM Radio: Online music you can transfer the music to the car stereo by FM to enjoy the original car stereo sound,with 18 preset stations

●Time Setting:You can use the network or GPS to open the date and time automatically, or you can adjust it manually.

●Support external microphone

Specifications:

System:Android 13

Screen size: 9.7''

Memory: 2GB (RAM)+32GB (ROM)

Screen Resolution:1024*768

CPU: 4 cores

Bluetooth Version:4.0

Power output:4*45W

Voltage:DC 12V

Work temperature:-20℃-70℃

Apple CarPlay: Support Wireless/Wired Connection

Android Auto: Support Wireless/Wired Connection

Wifi:Support

GPS:Support

Steering wheel control function:Support

camera: support

Reversing input: AHD/CVBS

Video output:Support

Maps:Built-in offline maps(requires internet to download data)

USB:Double USB interface

Radio Band:FM

Audio format:APE/FLAC/WAV/MP3/WMA etc

Video format:MKV/RMVB/AVI/MP4/MDV etc

Picture format:PNG/JPEG/JPG/GIF/WBMP/BNP etc

Bluetooth keyword:0000

Factory setting keyword:8888/3368

Language:English,  Arabic,  Russian, Hebrew, Spanish, Italian, French, Thai, German, Japanese, Korean, Turkish,

 Czech, Hungarian, Dutch, Polish, Swedish, Ukrainian,  Romanian, Greek, Danish, Finnish

Package Included:

1 x Car MP5 Player

1X Rear Camera
1 x Power Cable
1 x GPS Antenna
1 x Camera Input
1 x RCA Input and Output
2 x USB Cable
2 x Metal Frame
4 x Screw
1 x  Instruction manual
