【E-bike Conversion Kit Paramater】

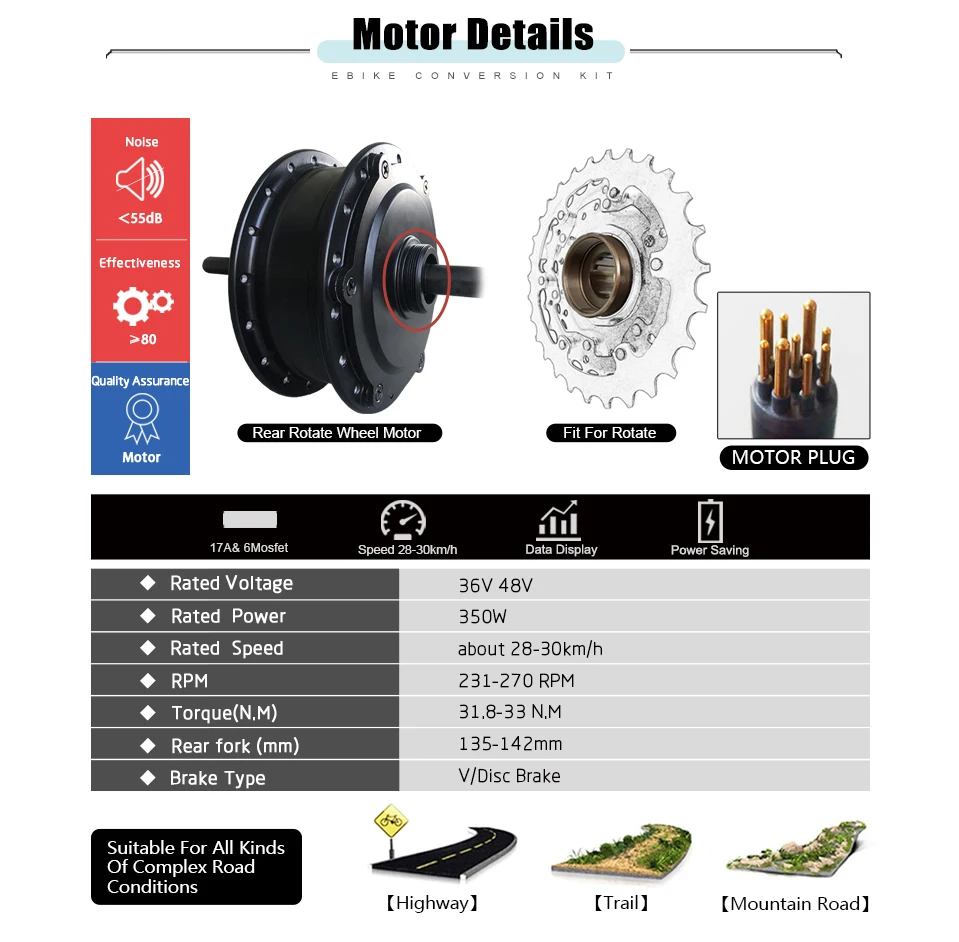

Motor：

●Rated Voltage：36V48V

●Rated Power：350W

●Rated Speed：about 28-30km/h

●RPM：231-270 RPM

●Torque(N.M)：31.8-33 N.M

●Rear Fork(mm)：135-142mm

●Brake Type：V/Disc Brake

●Type：Brushless gear hub motor

●Installation location:Rear wheel

●Spokedwith double-wall Aluminum alloy rim with 36 eyelets,stainless steel spokes

●Load≤200KG

●Motor cable length：200mm

Display（Opition):

●Type :KT LCD/LED/Colourful Display

●Color :Black

●Voltage :36V 48V universal

●Cable length :About 21cm(WP)

●Plug :5 Pin WP plug

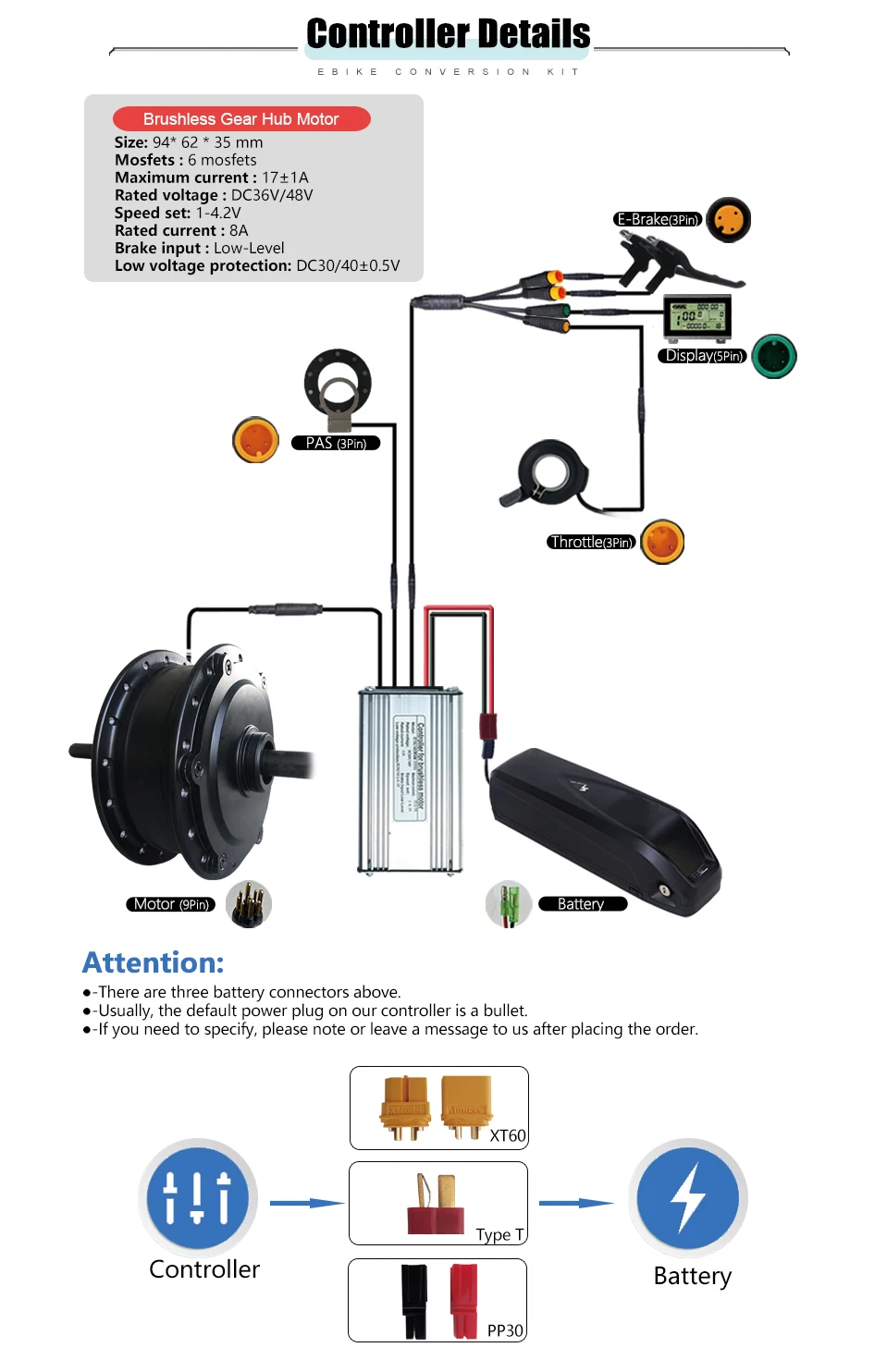

Controller:

●Dimension :94 * 62 * 35 mm

●Weight :350g

●Cable length :all about 10-13cm

●Mosfets:6 mosfets

●Maximum current :17±1A

●Rated voltage :DC36V/48V

●Speed set :1-4.2V

●Rated current :8A

●Brake input :Low-Level

●Low voltage protection :DC30/40±0.5V

130X Throttle (Default):

●Type:130X Thumb Throttle

●Voltage:12V 24V 36V 48V 52V 60V 72V

●Wire length:21cm(WP)

●Weight :100g

●Waterproof :IP76

●Plug Type:3 Pin WP plug

●Color :Black

●Installation:Right

●Apply to:E-bike, E-Scooter, Ebike Conversion Kit

●Function:E-bike accelerator Finger Thumb Throttle

115PDD E-Brake (Default):

●Type:115PDD E-brake Cut Off Power

●Voltage:12V 24V 36V 48V 60V 72V

●Cable Length:21cm (WP)

●Weight :300g

●Waterproof :IP76

●Material:Aluminum Alloy

●Installation:Left/Right

●Size:L156mm W105mm H34mm

●Plug :2 pin WP plug

PAS KT-BZ-10C(Default):

●Type:KT-BZ-10C Pulse assist sensor

●Voltage:36V/48V

●Cable Length:21cm including the connector

●Magnet :10 Magnets

●Weight :100 g

●Plug Type:3 Pin WP plug

●Color :As pictures shown

●Material:Plastic

●Installation:Left

●Adaptation:Ebike Electric Bike Bicycle

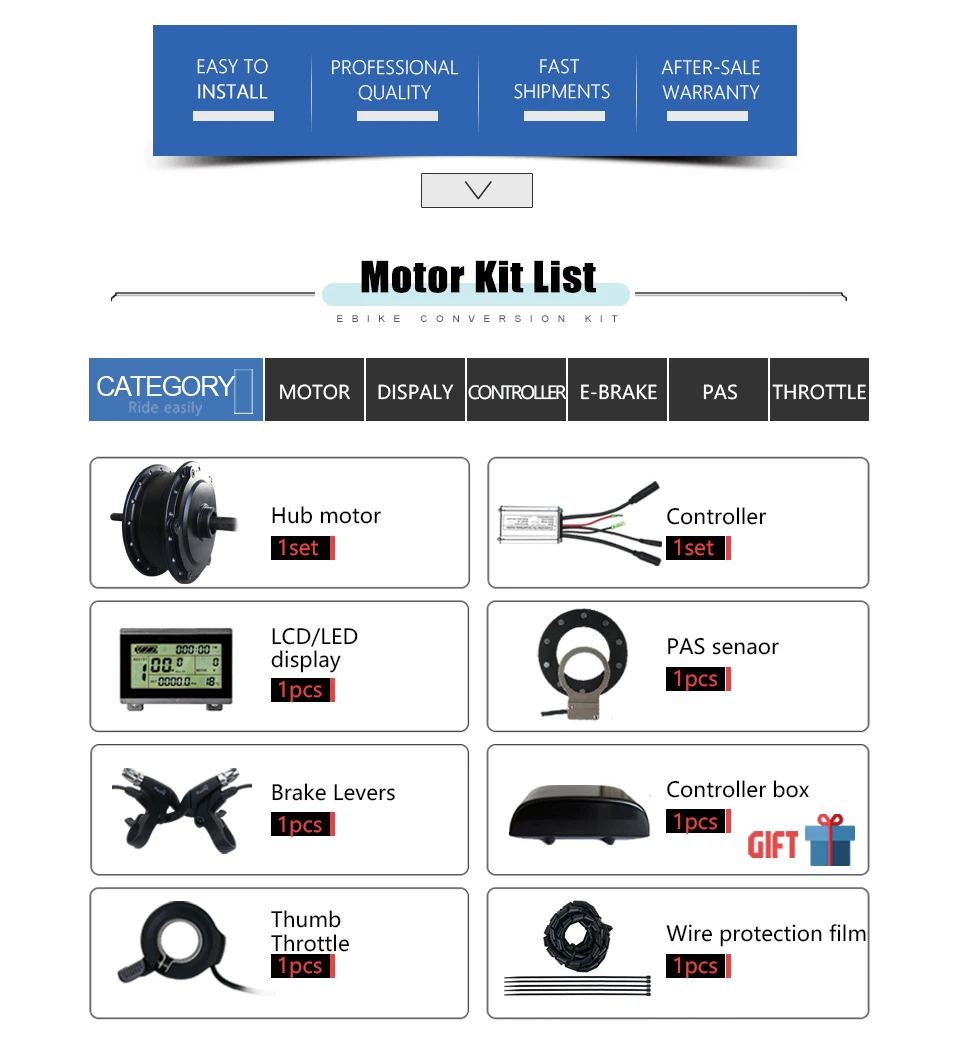

【Packing List】

①350W Rotate motor x1（No wheel）

②17A controller x1

③Display and manual x1

④Throttle x1

⑤Power Cut-off Brake Levers x1

⑥PAS sensor x1

⑦Zip ties and Protection line x1

⑧Motor extension cable x1

⑨Gift!Controller box x1
