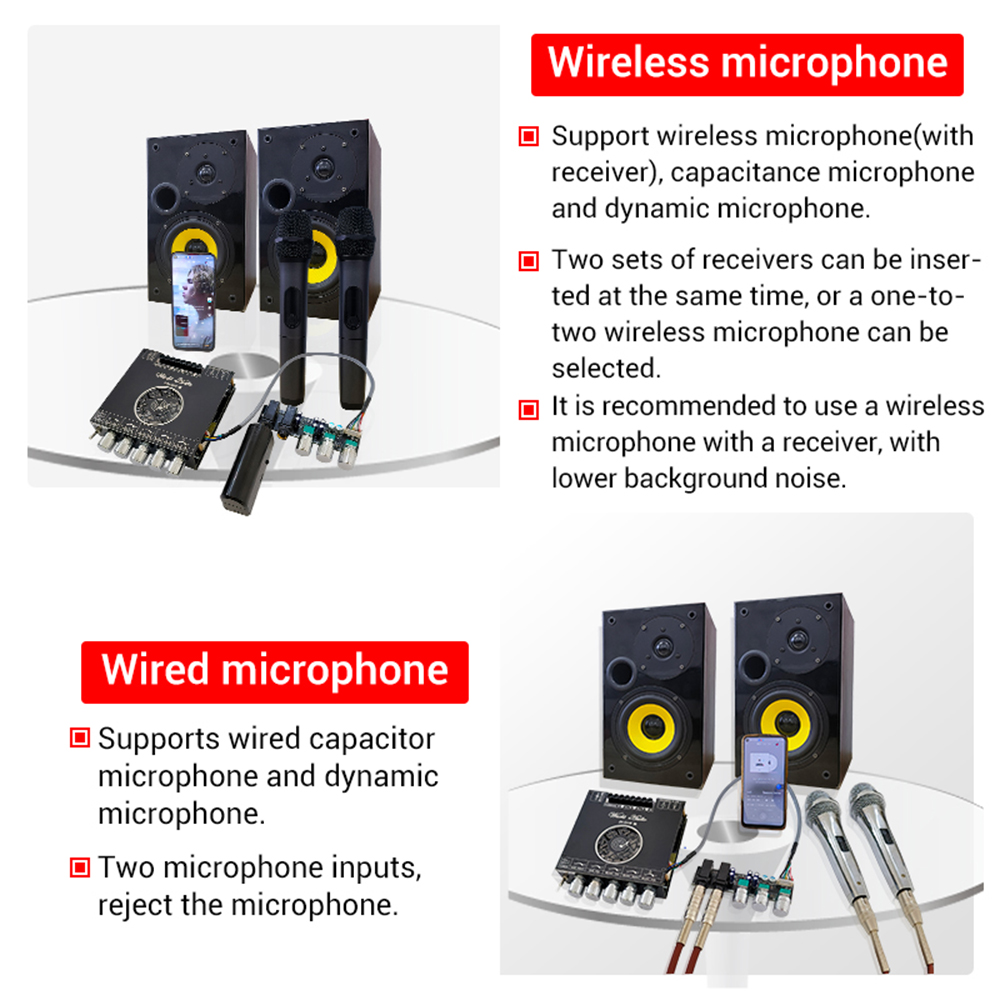

Features1. Support wireless microphone (need to bring receiver), condenser microphone, moving coil microphone.
2. Can be inserted into two sets of receivers at the same time, or choose one tow two wireless microphone.
3. Recommended to use the wireless microphone with receiver, the bottom noise is smaller.
4. Two-way microphone input.
5. Support wired capacitive microphone, moving coil microphone.
6.U disk support format:MP3\WAV\SBC\WMA\AAC\APE\FLAC.
Specification
Model:ZK-DAM L1
Name:220W+220W+350W amplifier board
Amplifier chip:TPA3251D2
Bluetooth version:5.0
Bluetooth transmission distance: 15 meters
Audio Input.

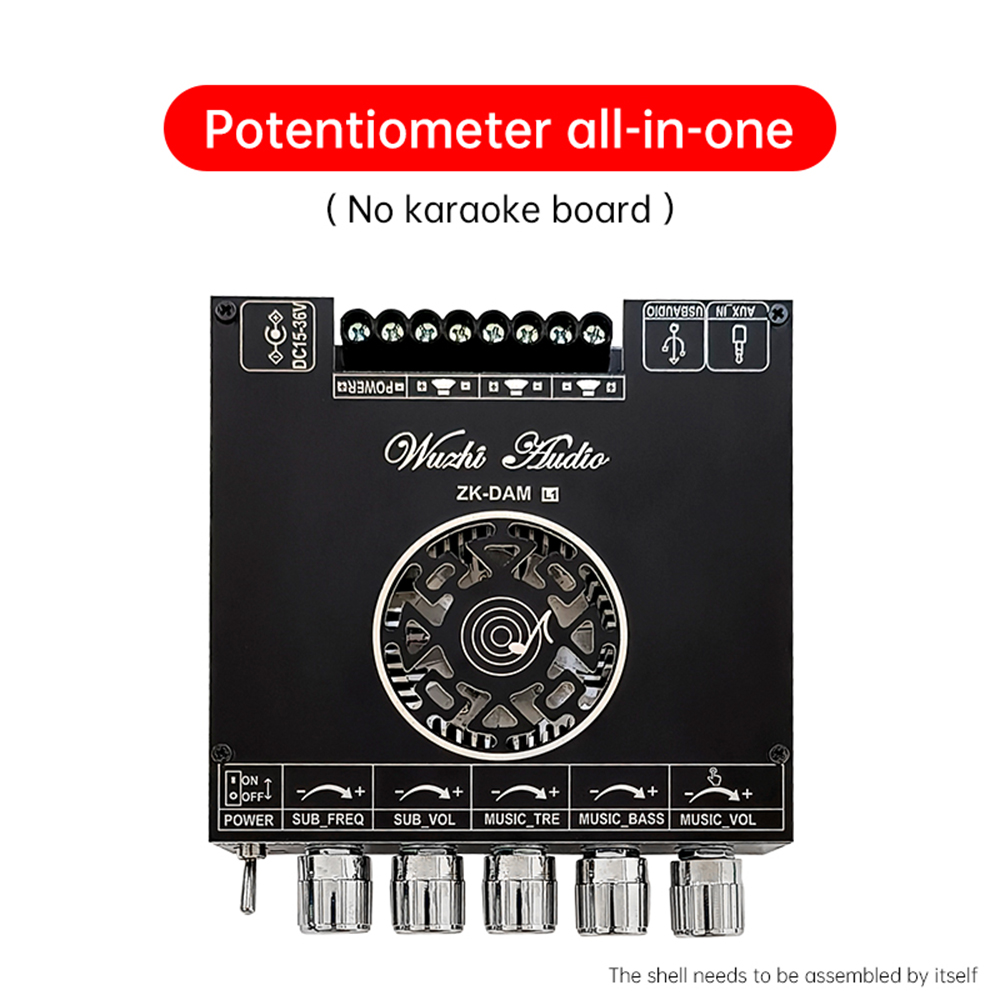

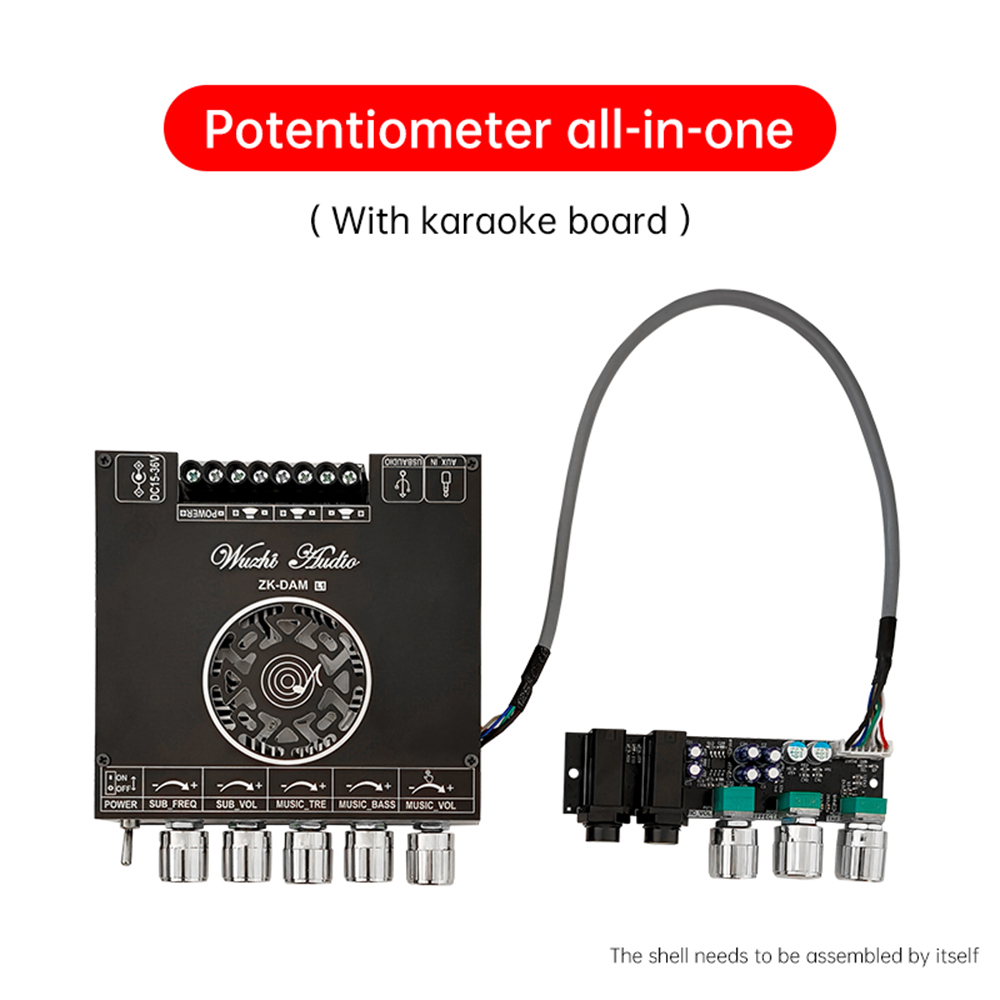

Potentiometer integrated type: Bluetooth+AUX+U disk+USB sound card+MIC

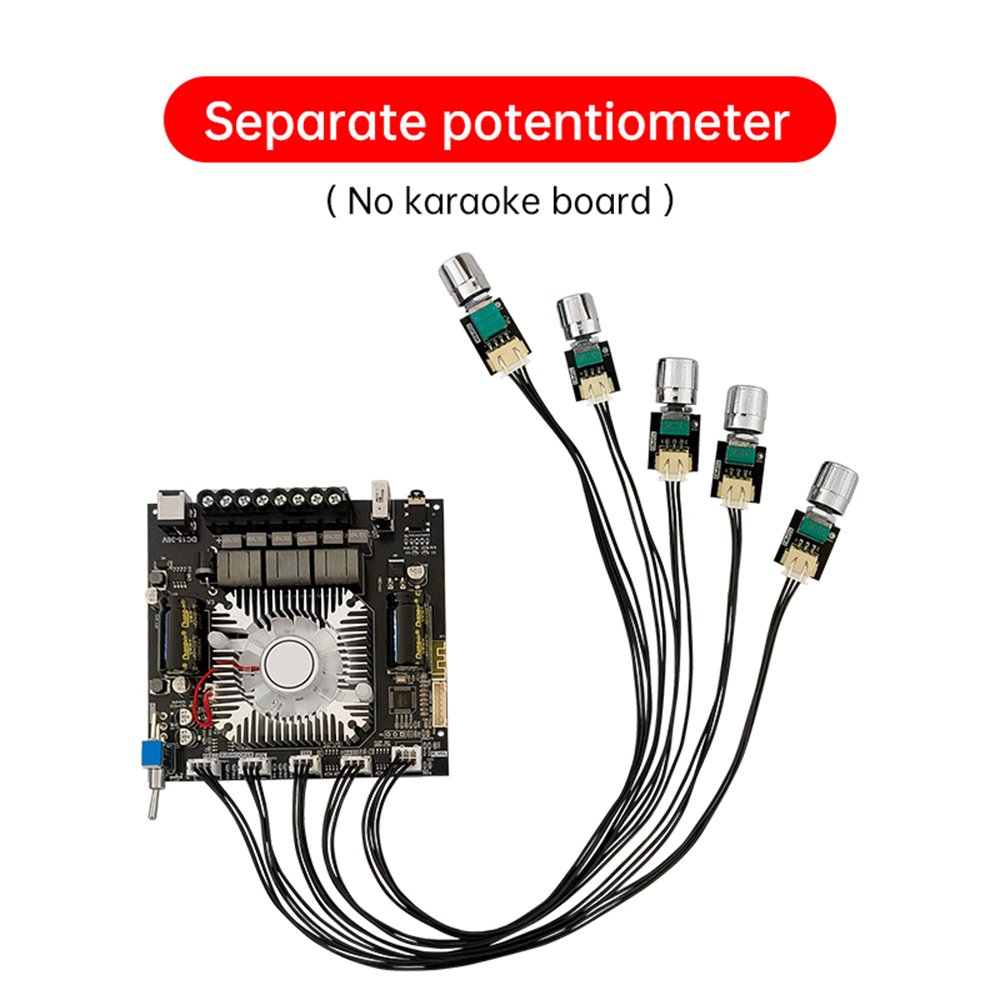

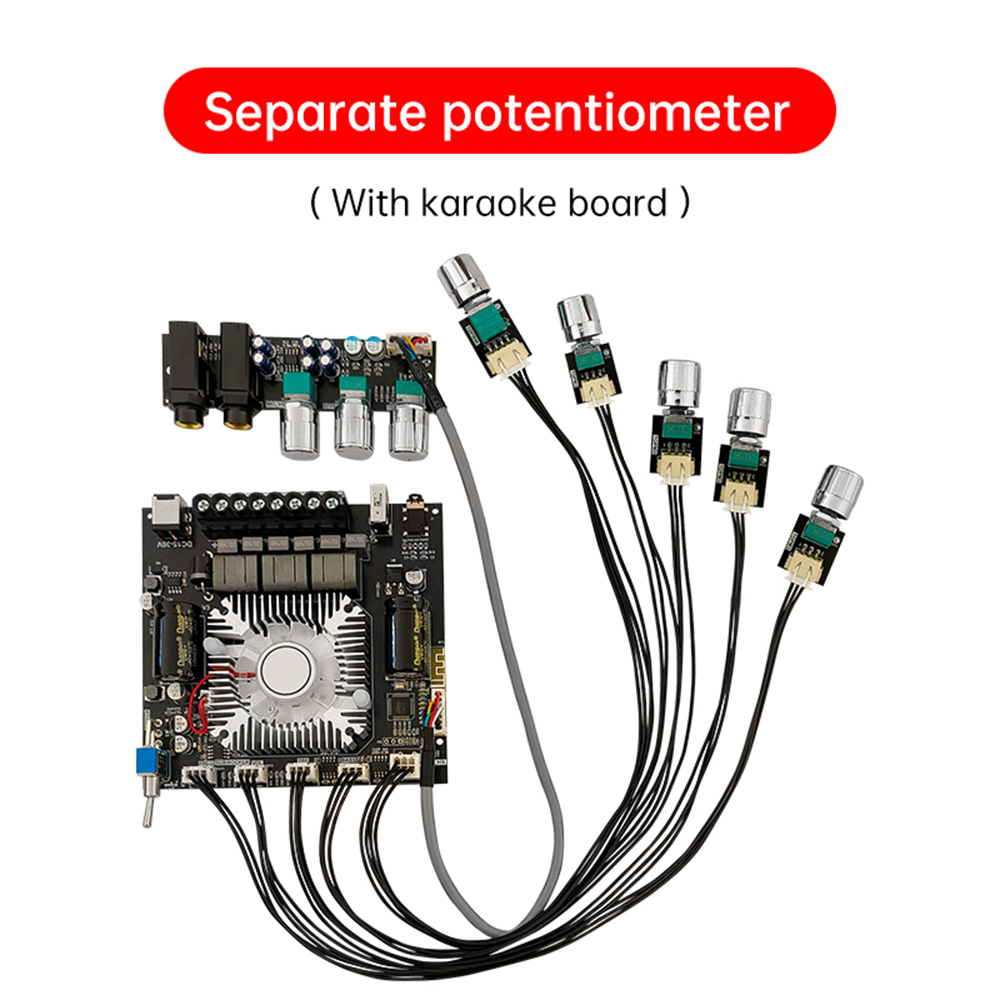

Potentiometer Separate Type: Bluetooth + AUX + U disk + PC sound card + MIC
Audio output: 220W for left channel + 220W for right channel + 350W for subwoofer
Adaptive power supply: DC15-36V, ≥8A (not connect to AC)
Adaptable speakers: left and right channel 50-200W, 3-8Ω; subwoofer 50-300W, 2-8Ω

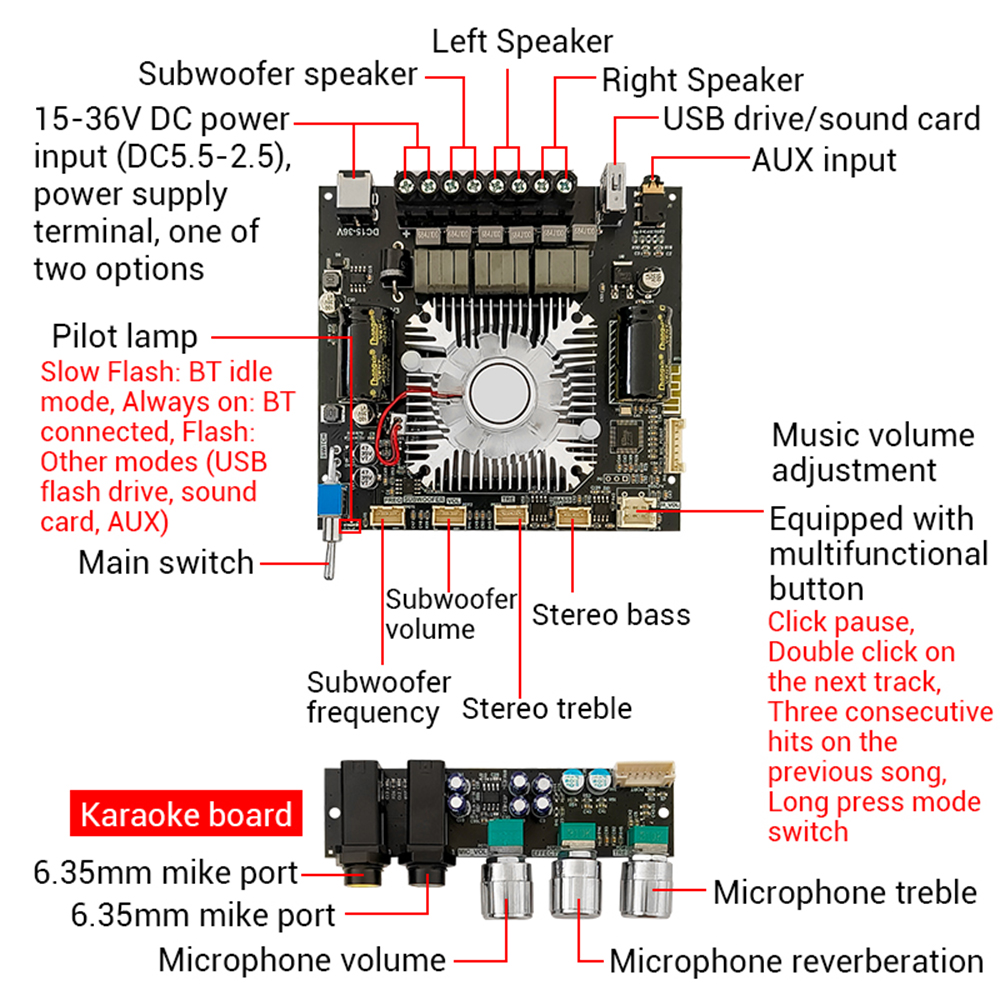

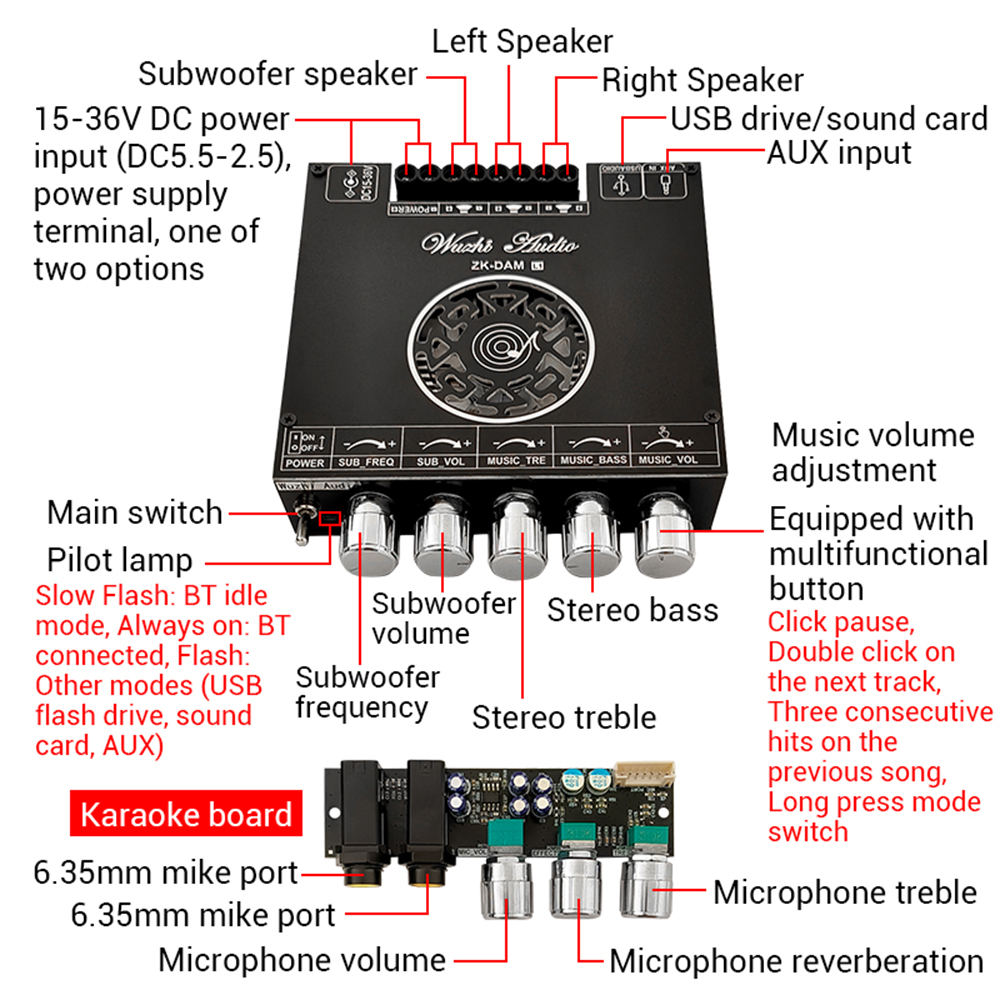

Dual-channel volume adjustment: 1. background music volume adjustment, with multi-function buttons (single-click pause, double-click the next song, triple-click the previous song, long-press mode switch)
2. microphone volume adjustment
Protection mechanism: input anti-reverse, over-temperature, over-current, short-circuit, overload.

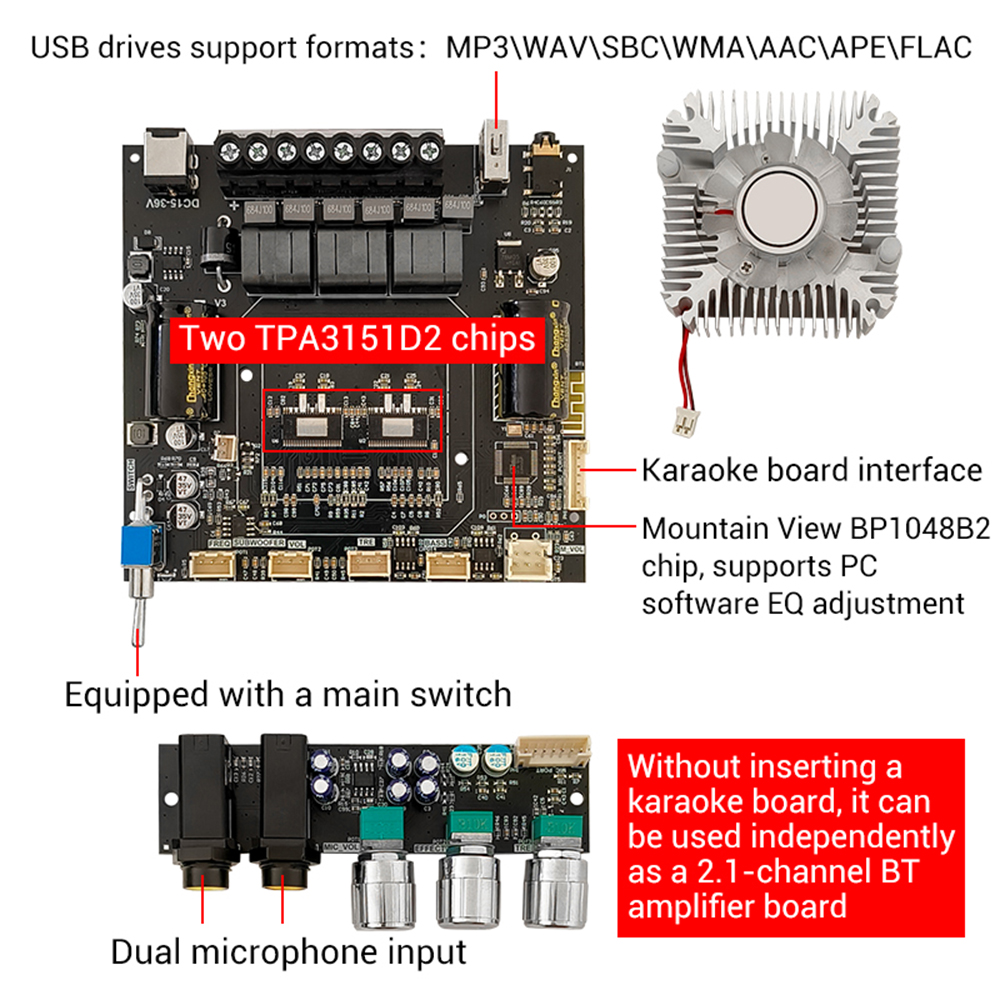

Features: Dual microphone input, support the upper computer EQ adjustment, remove the microphone board can be used independently as a 2.1 amplifier board, a variety of ways to play.
Product Dimensions.

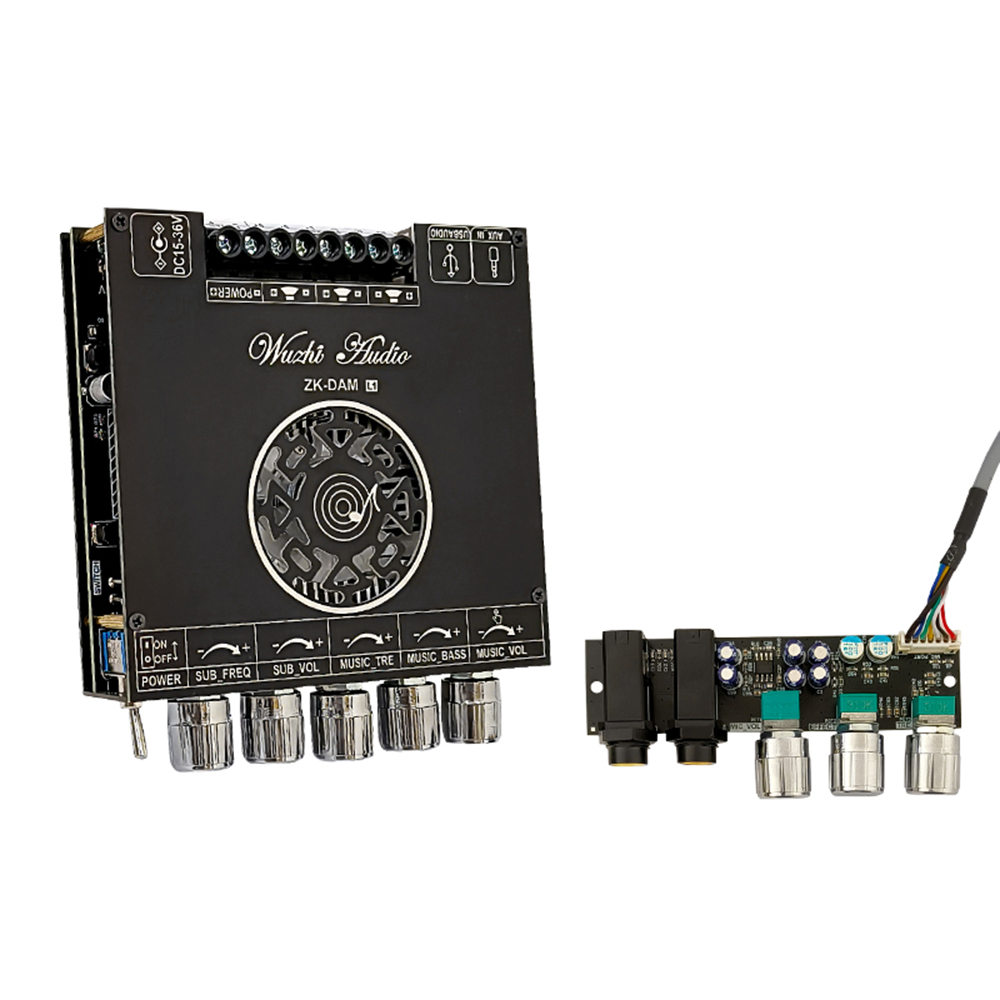

Potentiometer integrated amplifier board: 122x110x27mm
Separate potentiometer amplifier board: 103x110x23.7mm
karaoke board: 100x44x14.7mm
List
1 x Amplifier board
1 x Enclosure kit (enclosure needs to be installed by yourself, according to your choice)
1 x Karaoke board (according to your choice)
