Note: The product is not currently compatible with AMD processors

Compatible With:

Not suitable for HP/Lenovo laptop

Not support Win 7/8, and Not support M.2 CNVI.

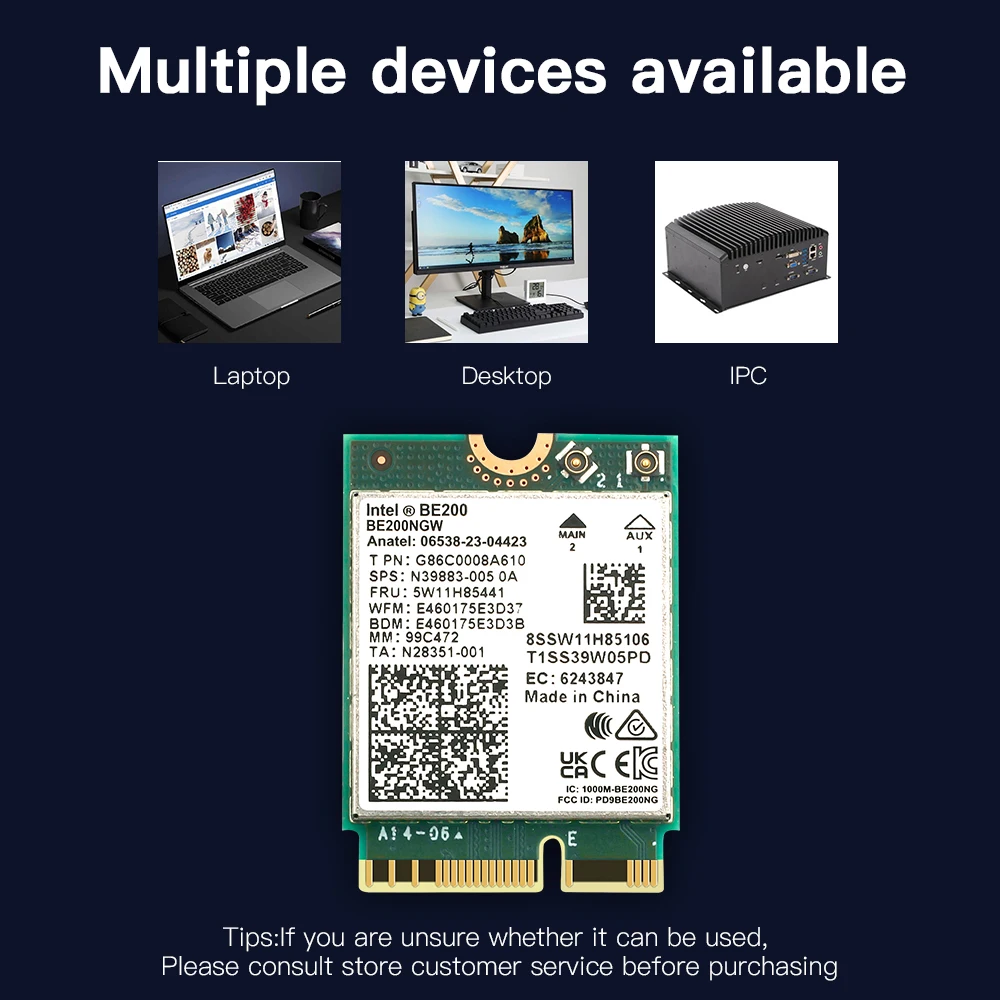

Support almost laptop with NGFF(M.2) interface, such as Asus, Acer, Dell, Samsung, Toshiba, Sony; ect.



Notice:
1, This Intel Wi-Fi 7 BE200 features are not currently available because of pending OS support. As a result,after installing the drivers, the Intel® Wi-Fi 7 products function with Wi-Fi 6E capabilities on Windows 11*.
2, Intel Wi-Fi 7 BE200 will support Wi-Fi 6E + 320 MHz/4K QAM When connecting to a Wi-Fi 7 wireless router/AP.

3, When you need the Driver,please contact with the customer service or check:https://www.intel.com/content/www/us/en/products/sku/230078/intel-wifi-7-be200/downloads.html

Specifications:

Product Collection: Intel Wi-Fi 7 Series

Weight (in grams): 2230: 3.07+/-0.15G

Operating Temperature Range: 0 °C to 80 °C

Operating Temperature (Maximum): 80 °C

Operating Temperature (Minimum): 0 °C

Supported Operating Systems: Windows 11*, Windows 10*, Linux*(Currently, the driver only supports Windows 11)

Not support Win 7/8, and Not support AMD

Antenna: 2x2



Networking Specifications:

TX/RX Streams: 2x2, 320 MHz, 4K QAM

Bands: 2.4, 5, 6 GHz

Max Speed: 5.8 Gbps

Wi-Fi CERTIFIED*: Expected to align with official WFA certification availability

Compliance: FIPS

Bluetooth Version: 5.4



Package Specifications:

Board Form Factor: M.2 2230

System Interface Type: M.2: PCIe*, USB

Not compatible with M.2 CNVI



Advanced Technologies:

MU-MIMO: Yes

Orthogonal Frequency-Division Multiple Access (OFDMA): Yes

Intel® Smart Connect Technology: No

Supported Under Intel vPro® Technology: Yes

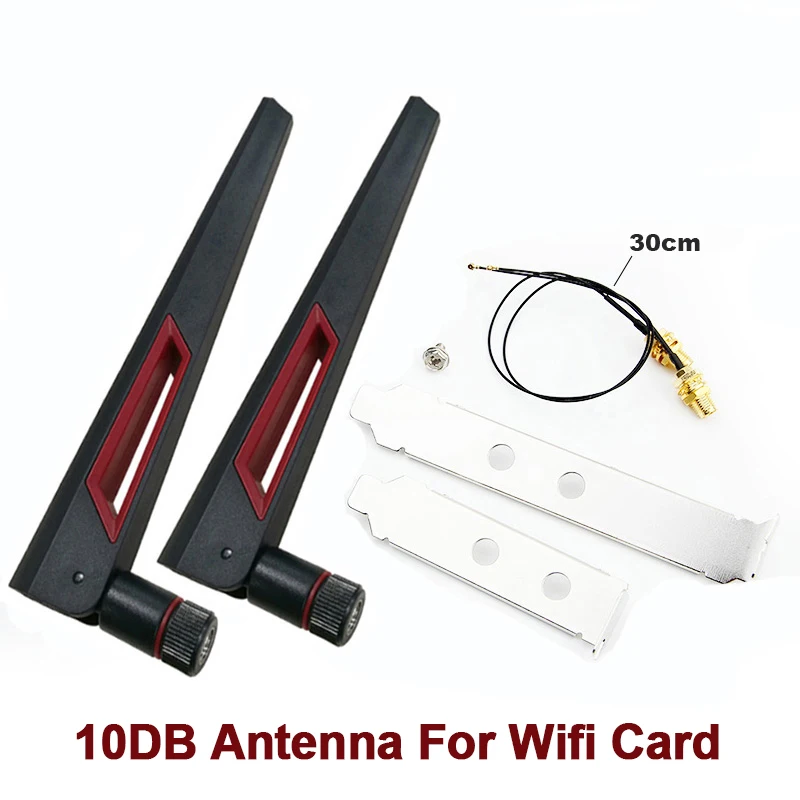

High Gain Antenna Covers Wide Coverage
