Specifications:

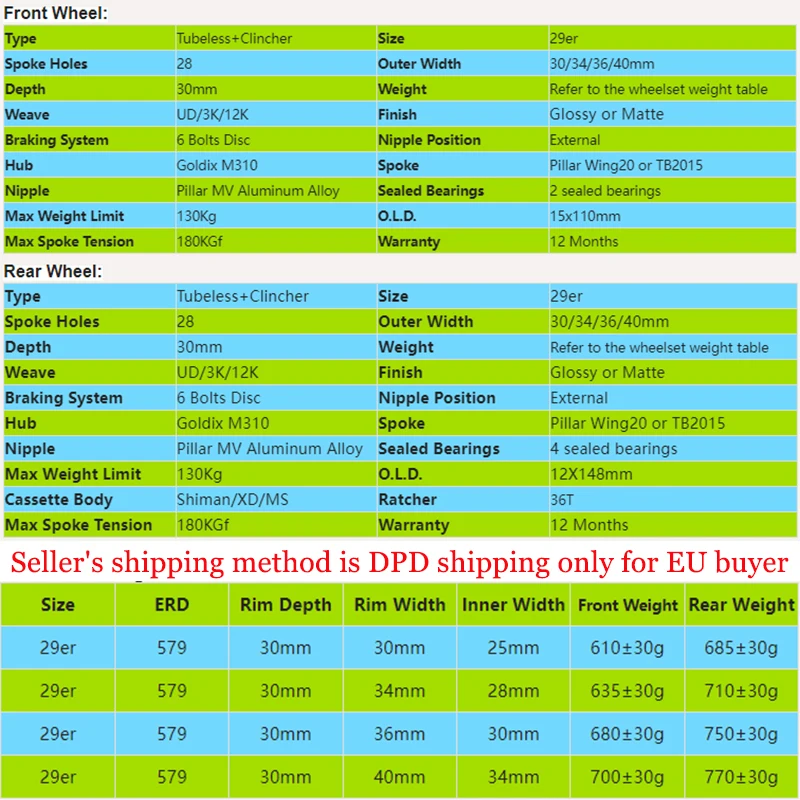

Front Wheel:

Type

Tubeless+Clincher

Size

29er

Spoke Holes

28

Outer Width

30/34/36/40mm

Depth

30mm

Weight

Refer to the wheelset weight table

Weave

UD/3K/12K

Finish

Glossy or Matte

Braking System

6 Bolts Disc

Nipple Position

External

Hub

Goldix M310

Spoke

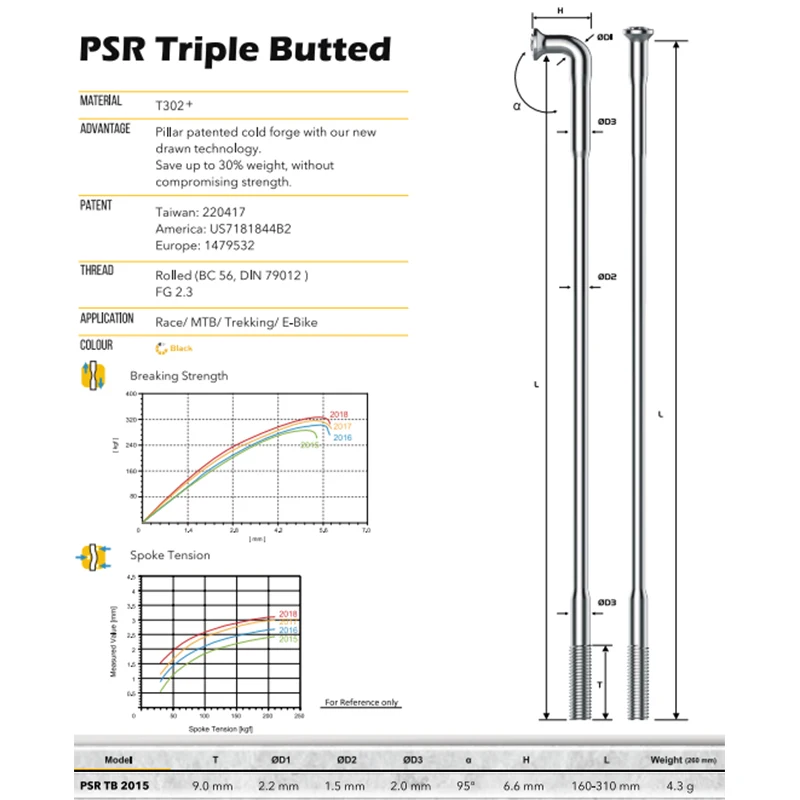

Pillar Wing20 or TB2015

Nipple

Pillar MV Aluminum Alloy

Sealed Bearings

2 sealed bearings

Max Weight Limit

130Kg

O.L.D.

15x110mm

Max Spoke Tension

180KGf

Warranty

12 Months


Rear Wheel:

Type

Tubeless+Clincher

Size

29er

Spoke Holes

28

Outer Width

30/34/36/40mm

Depth

30mm

Weight

Refer to the wheelset weight table

Weave

UD/3K/12K

Finish

Glossy or Matte

Braking System

6 Bolts Disc

Nipple Position

External

Hub

Goldix M310

Spoke

Pillar Wing20 or TB2015

Nipple

Pillar MV Aluminum Alloy

Sealed Bearings

4 sealed bearings

Max Weight Limit

130Kg

O.L.D.

12X148mm

Cassette Body

Shiman/XD/MS

Ratcher

36T

Max Spoke Tension

180KGf

Warranty

12 Months


Wheelset Weight:

Size

ERD

Rim Depth

Rim Width

Inner Width

Front Weight

Rear Weight

29er

579

30mm

30mm

25mm

610±30g

685±30g

29er

579

30mm

34mm

28mm

635±30g

710±30g

29er

579

30mm

36mm

30mm

680±30g

750±30g

29er

579

30mm

40mm

34mm

700±30g

770±30g


Others:

Outer packing:

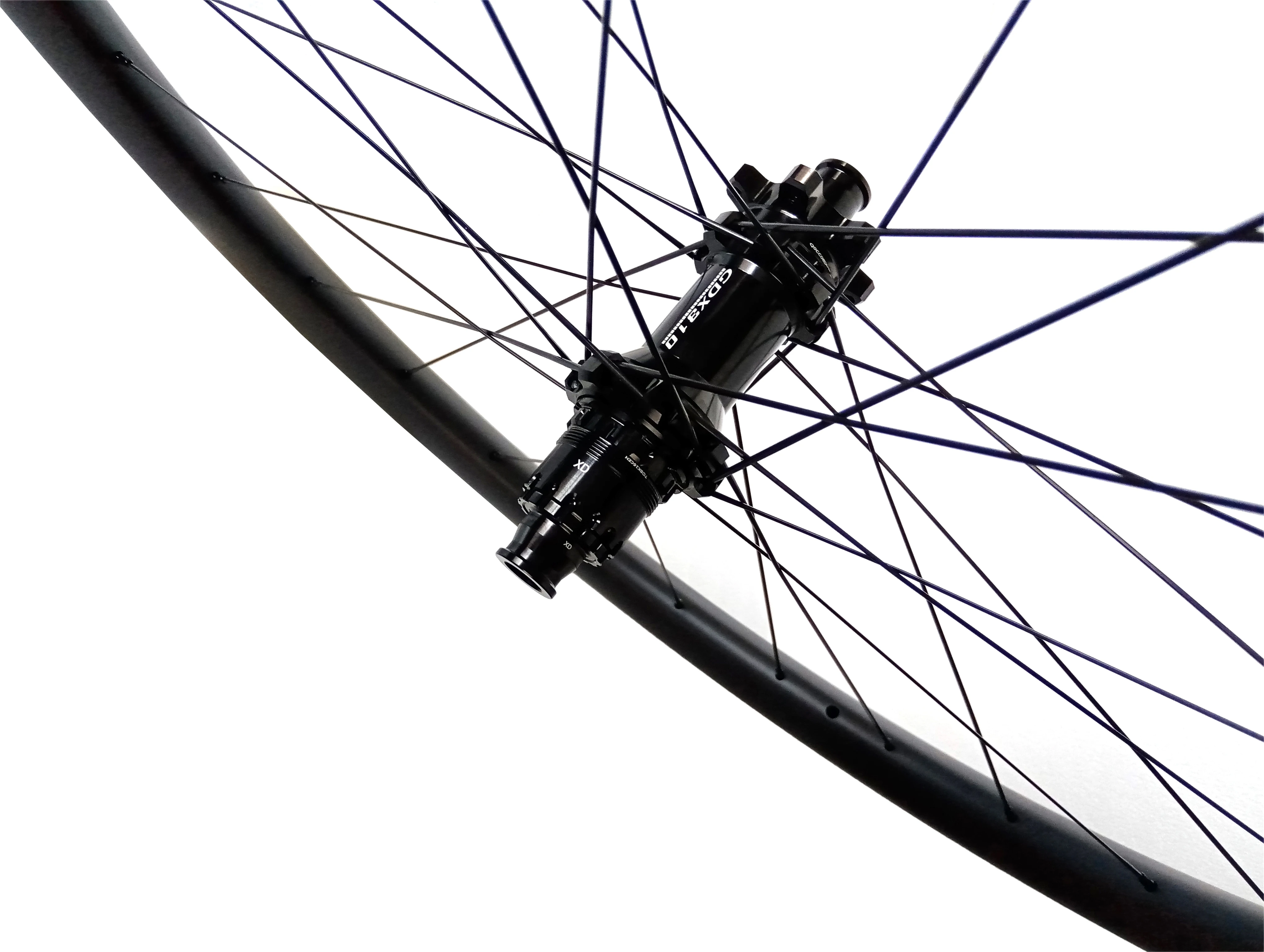

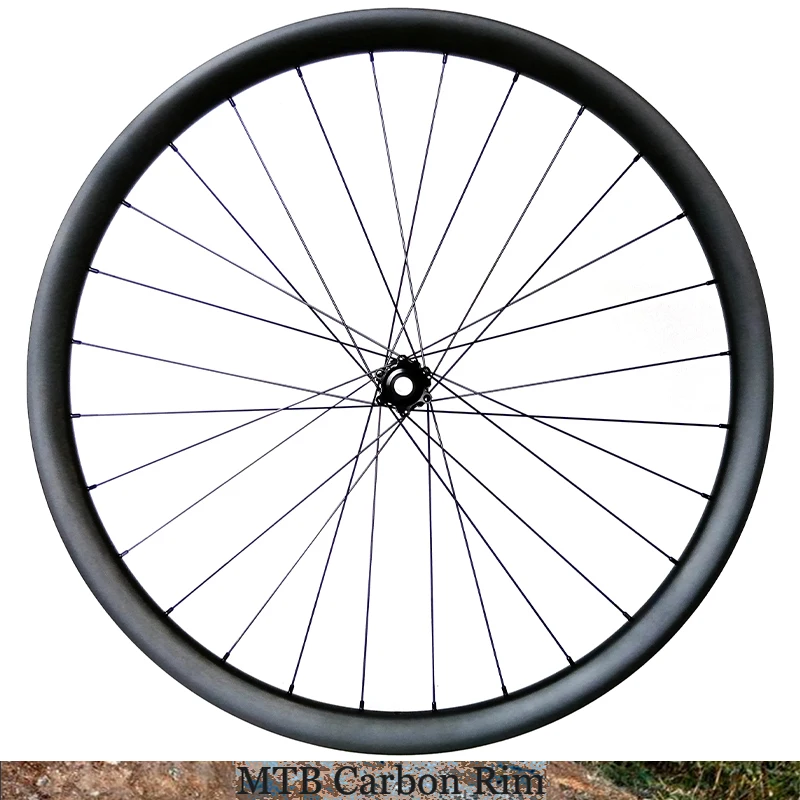

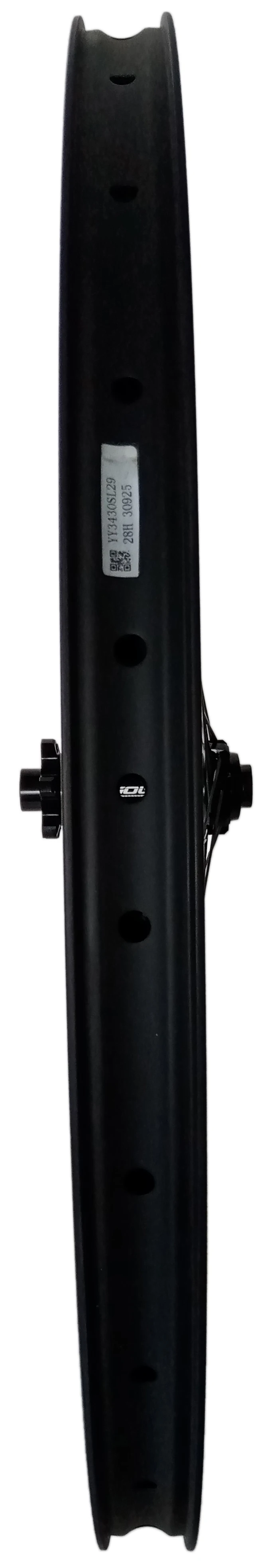

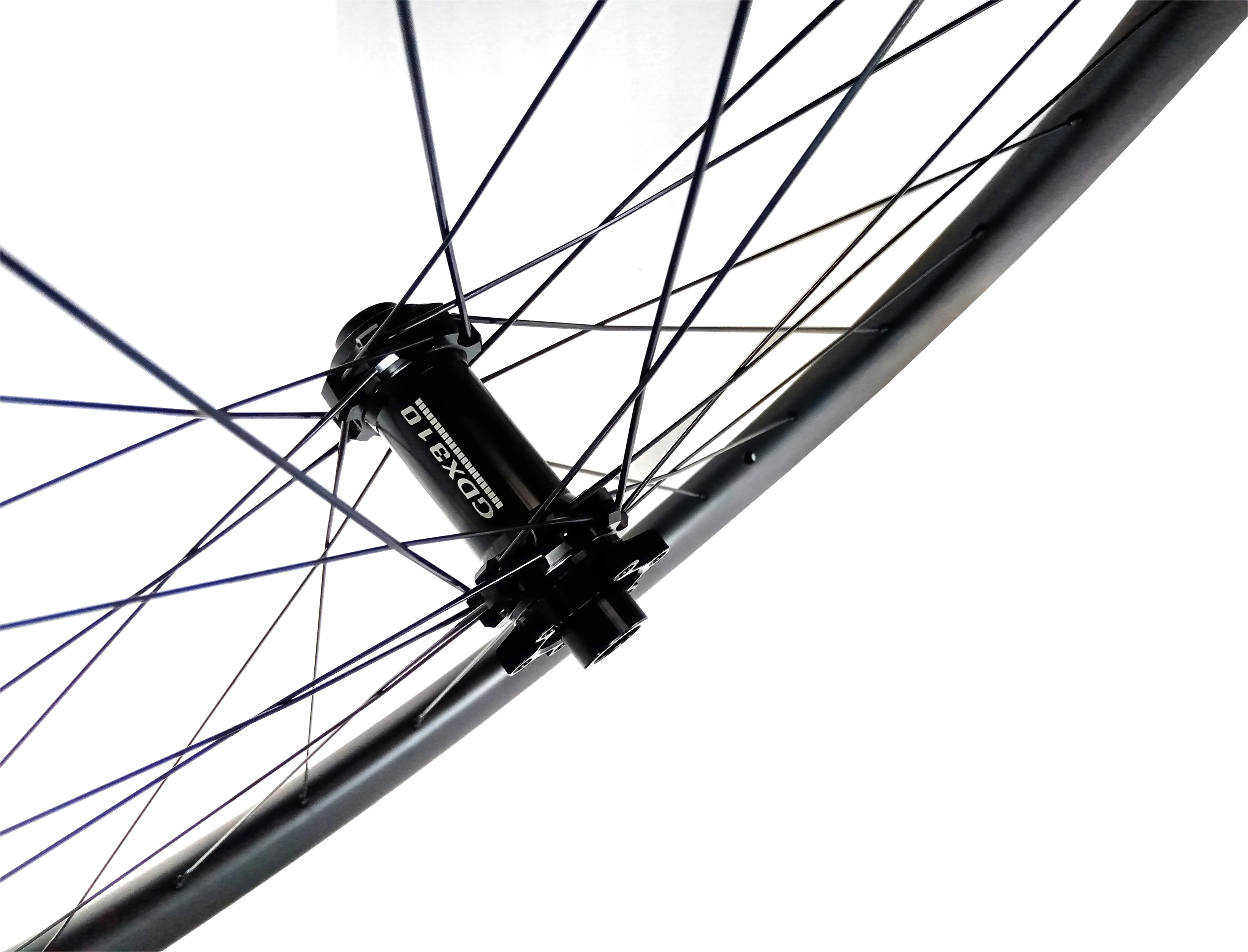

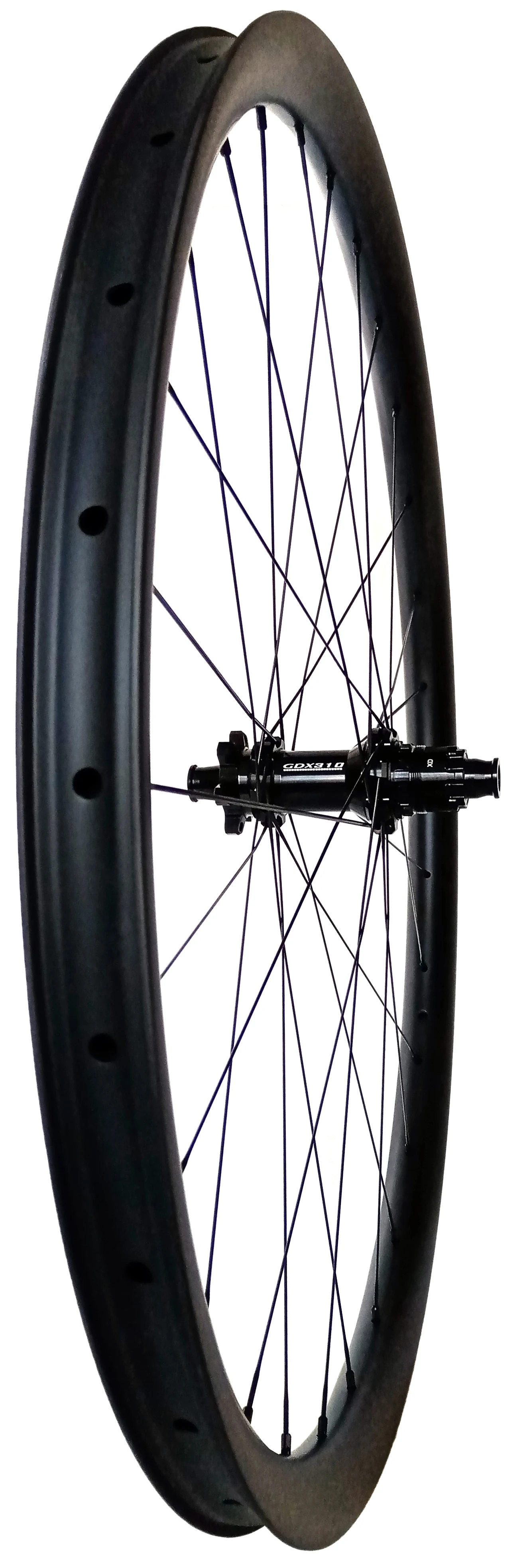

Detailed Pictures:
