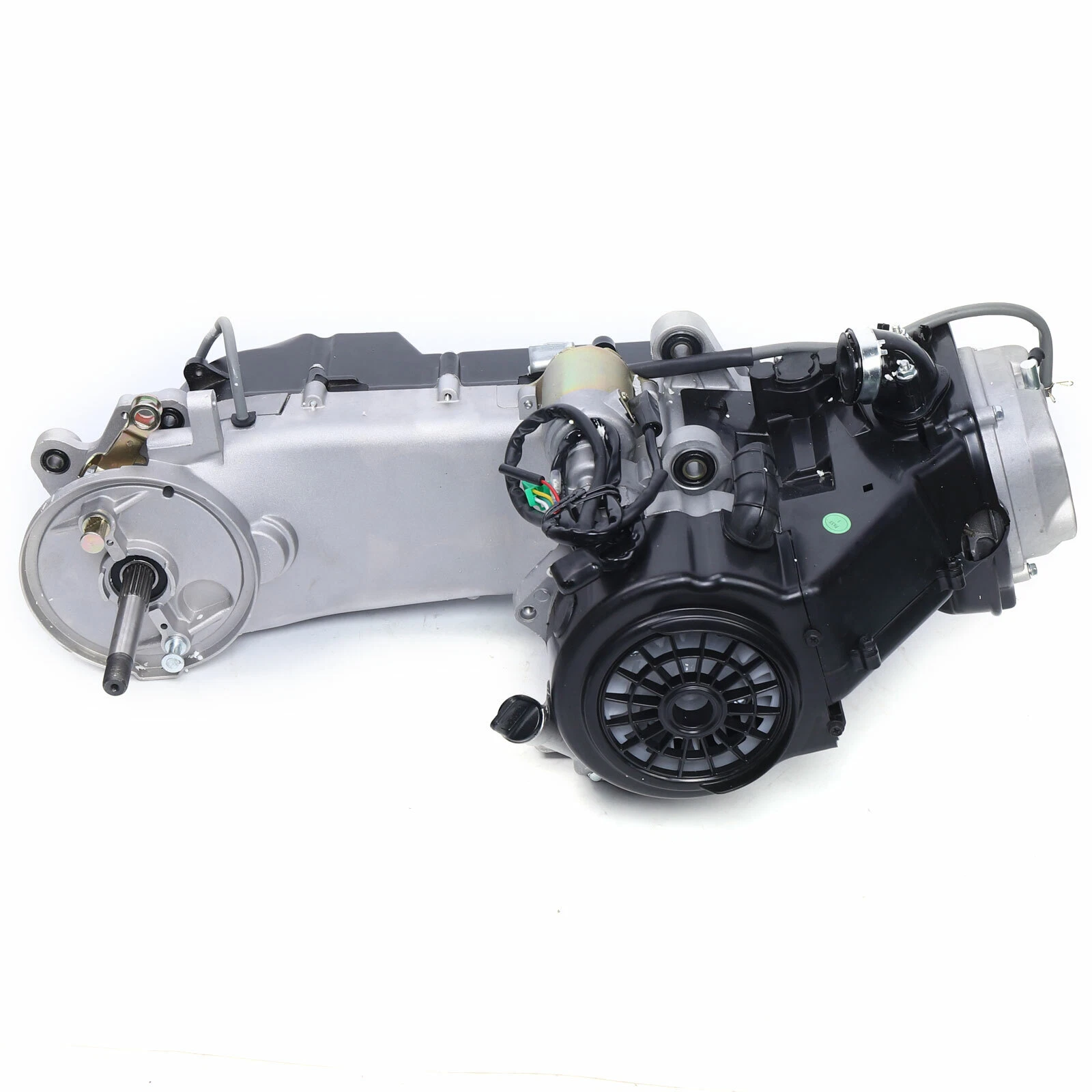

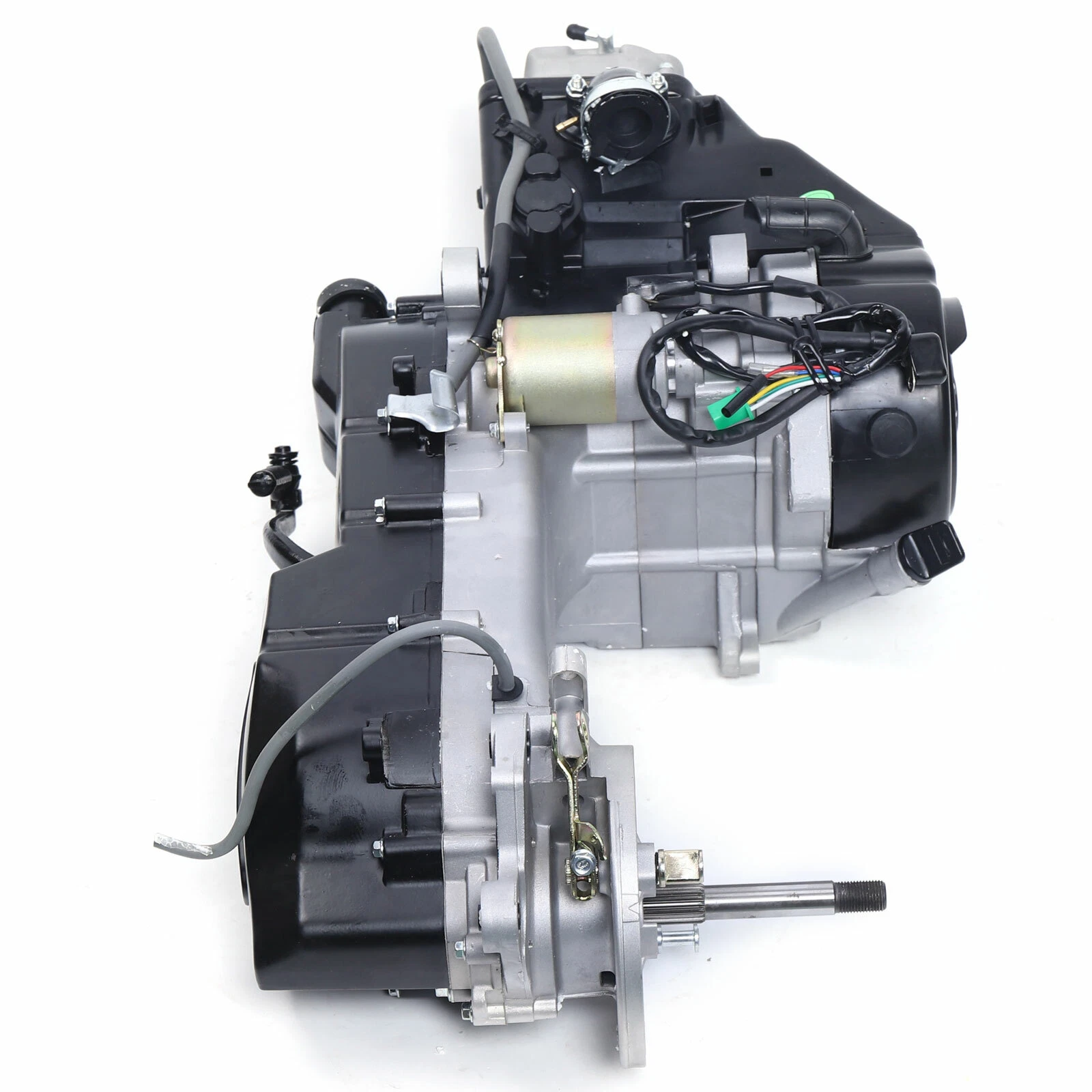

11" Long Case 150cc Gy6 Single Cylinder 4-Stroke Scooter Complete Engine Motor Cvt
Condition:new
Engine Type: Gy6 Single Cylinder 4-Stroke
Engine Oil Type: Sf15w-40 Not Come with Oil.
Carburetor Model：pd24j
Carburetor Type：horizontal Vacuum Carburetor
Spark Plug Model：a7tc
Ignition Type：cfw
Cooling: Air Cooled
Displacement: 150cc
Max Power(Kw/R/Min): 6kw/7500r/Min
Rated Power(Kw/R/Min): 5.2kw/7000r/Min
Max Torque(N.m/R/Min):7.6n.m/6500r/Min
Min. Stable Idle Speed1600±150r/Min
Piston Diameter:57.4mm
Piston Stroke: 57.8mm
Bore & Stroke2.26" X 2.28" (57.4mm X 57.8mm)
Compression Ratio: 9.2:1
Fuel No.：>=87#
Lubrication Capacity：0.26 Gallon (1200ml)
Clutch：shoe-type Automatic Centrifugal Dry Clutch
Cylinder Working Volume：0.03 Gallon (149.6ml)
Transmission:cvt
Speed: 8 Poles
Ignition System: Cdi
Start Method: Electric/Kick
Installation Instructions:not Included
Brand: Unbranded
Kick Start Lever: Included
★ High-flow Oil Pump: Reduces the Wear of Friction Pairs and Prolongs the Engine Service Life.
★ Aluminum Cylinder Head & Body: Improves the Heat Dissipation Capability, Cuts the Weight and Increases the Torque of the Engine.
★ Crank Shaft: the Engine Is Low Speed with High Torque and Has Large Diameter Bearings for Crankshaft Connecting Rod, Increasing the Reliability of the Bearings.
★ Lubricating Oil Strainer: Helps Removing Solid Contamination from Lubricating Oil, Largely Reducing the Wear of Friction Pairs and Prolonging the Engine Service Life.
★Cvt: Cvt Consist Mainly of 2 Transmission Pulleys and 2 Transmission Belts. It’s Compact, Simple Design Offers Seamless Shifting Between an Unlimited Amount of Varying Gear Ratios, Allowing a Smooth Rate of Acceleration.
★ Forced Air-cooled Engine: There Are Metal Fins Covering the Outside of the Cylinders and the Heat Generated by the Engine Is Released Directly into the Air When the Cooling Fan Blows Air over Fins. It Has the Advantages of Simple Structure, Light Weight, Wide Adaptability to Climate Change, Rapid Start up and No Need of Radiator.
2.110cc-150cc Atvs and Go Karts with Gy6 Engines Are Compatible with This Item. It Also Fits for Most China Made 150cc Vehicles.

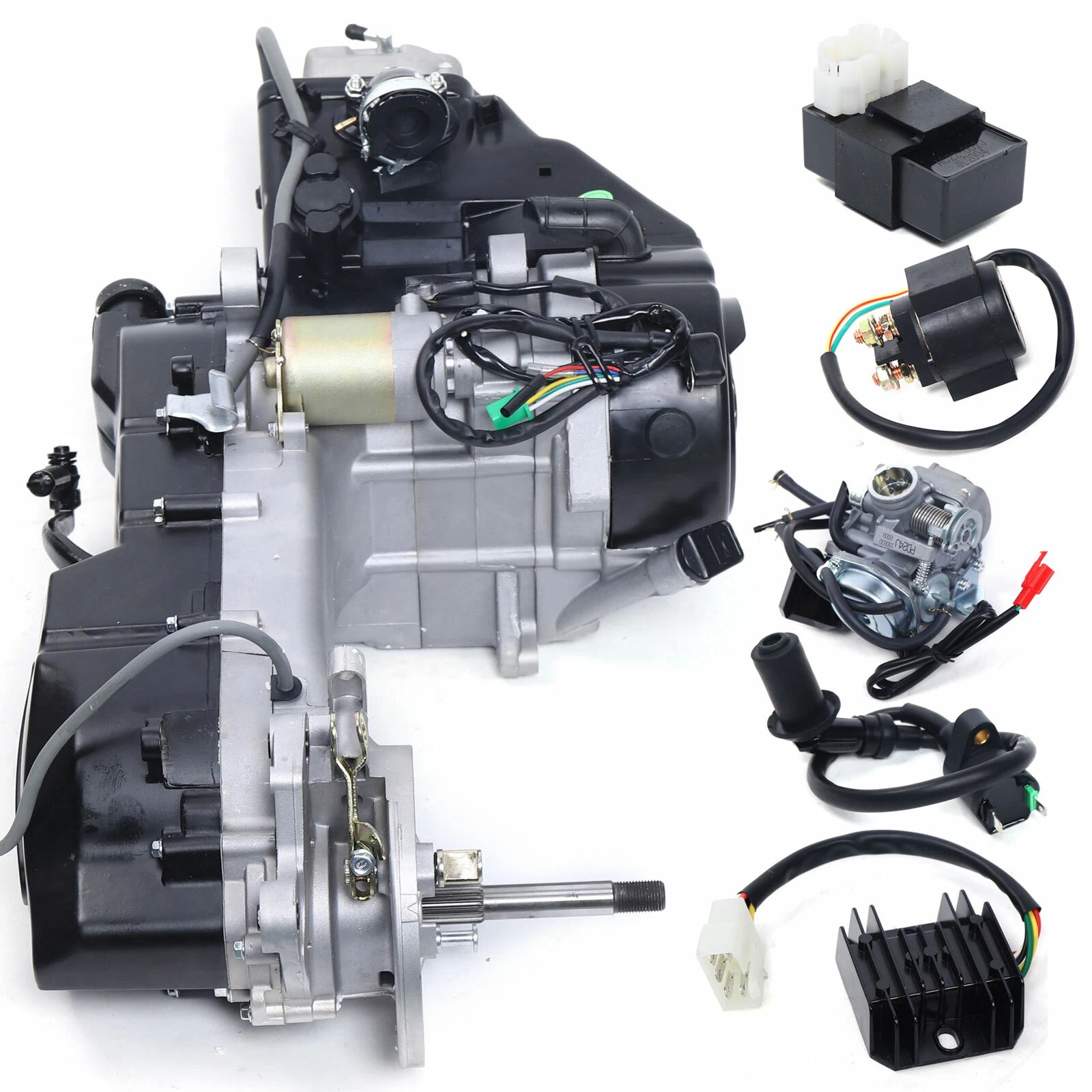

· 1x Complete Engine
(Carburetor, Cdi, Starter Solenoid, Coil,Kick Start Lever )
1.Installation Manual Is Not Included
2.Professional Installation Is Highly Recommended
3.Add Engine Oil Before Use！This Machine Is 11" Long Case！
