Description:

Usage：

Some players pick up the ESC and install it directly on the aircraft, but after hearing the ticking sound,

the motor just doesn't turn or the speed doesn't rise.

The operation method is as follows:

The first time to use ESC need to determine the maximum travel and minimum travel of the remote control;.

1.Connect the ESC to the motor

2.Connect the ESC to the receiver

3.Turn on the remote control and push the throttle to the highest point

4.Insert the ESC into the batteries

5.Listen to the sound - Music (123)

6.When hear the Didi sound (confirmation sound of the highest throttle point)

7.confirmation sound of the lowest throttle point, two beeps and then pull the throttle lever to the lowest point

8. Hear three beeps (confirmation sound of the lowest throttle point, 2S two beeps, 3S three beeps

(Lowest throttle confirmation, 2S two beeps, 3S three beeps)

9.Finished

1.Please note that this is not ordinary DC power and cannot be connected directly to the positive and negative terminals

of the battery or the positive and negative terminals of the power supply, otherwise it may directly cause the motor to burn out.

2. The three wires of the brushless electric regulator can be connected in any direction.

If the steering direction is not correct, simply switch any two of them.

3. If the three wires are soldered backwards, just need to switch any two of them.

Motor Dimensions: 25 x 27mm

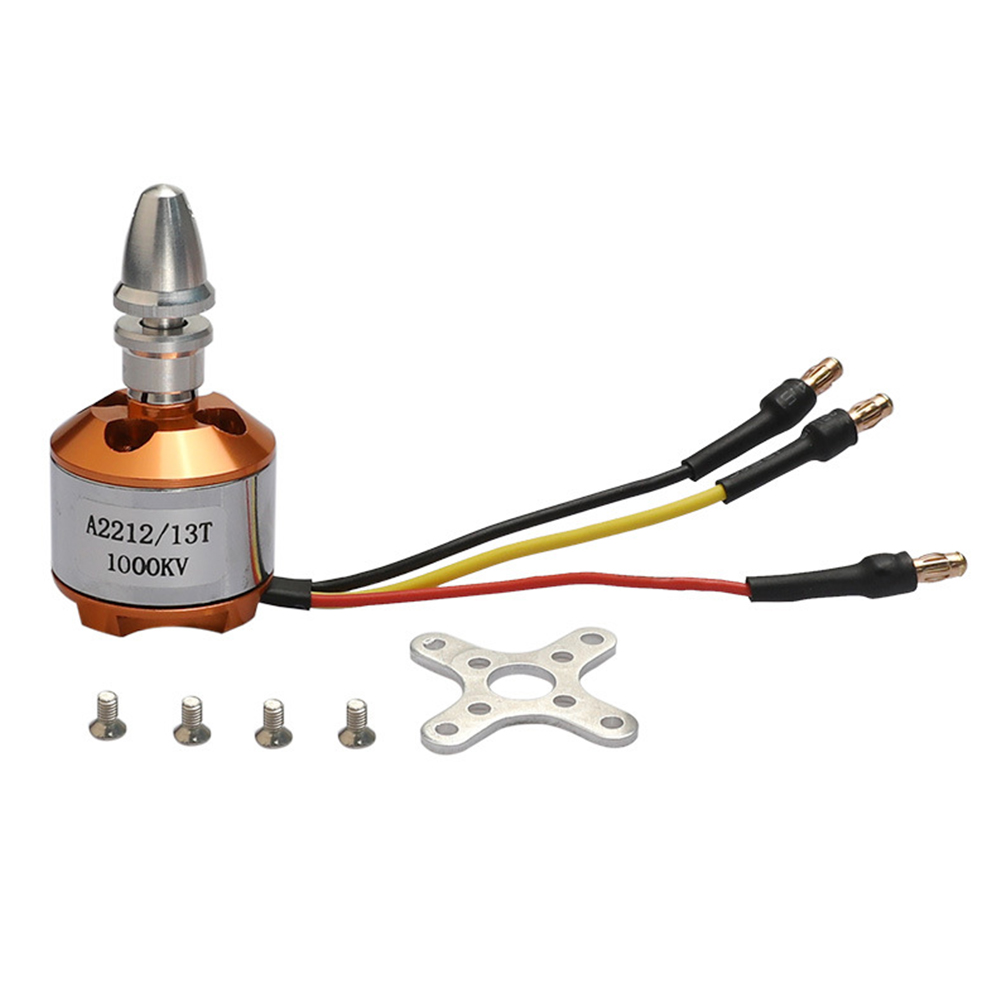

A2212 1000Kv Motor

KV: 1000
- Efficiency: 80%
- Efficiency Current: 4-10A (>75%)
- Current Capacity: 12A/60s
- No Load Current @ 10V: 0.5A
- Input: 2-3 Lipo
- Motor Dimensions: Φ27.5 x 30mm
- Shaft Diameter: Φ3.17mm
- Weight: 47g

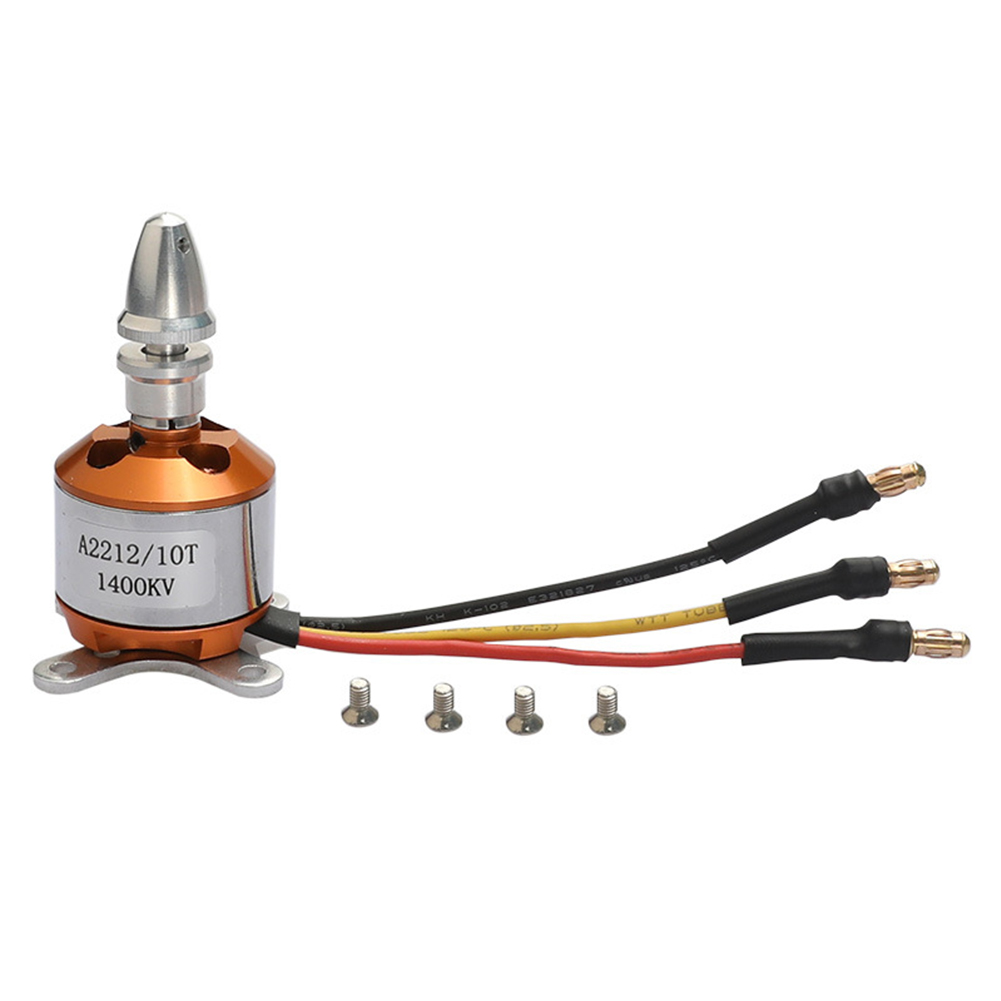

A2212 1400Kv Motor

100% new quality
quality, easy to install.
is a good helper your airplane or helicopter.
Type: Outrunner Motor
Mode: A2212
KV: 1400
Theme: Toy
Part: Hobby Parts
Fuel Source: Electric
Vehicle Type: Airplane, Helicopter
Efficiency: 80%
Efficiency Current: 4-10A (>75%)
Current Capacity: 12A/60s
No Load Current: 10V/0.5A
No Cells: 2-3 Li-Poly
Shaft Diameter: φ3.17mm
Motor Dimensions: 27 x 27mm
Color: As pictures shown
Quantity: 1 Set

A2212 2200Kv Motor

Type: Outrunner Motor
Mode: A2212
KV: 2200
Theme: Toy
Part: Hobby Parts
Fuel Source: Electric
Vehicle Type: Airplane, Helicopter
Efficiency: 80%
Efficiency Current: 4-10A (>75%)
Current Capacity: 12A/60s
No Load Current: 10V/0.5A
No Cells: 2-3 Li-Poly
Motor Dimensions: 26 x 27mm
Color: As pictures shown
Quantity: 1 Set

A2212 2700Kv Motor

Peak.Amps :14-22 A

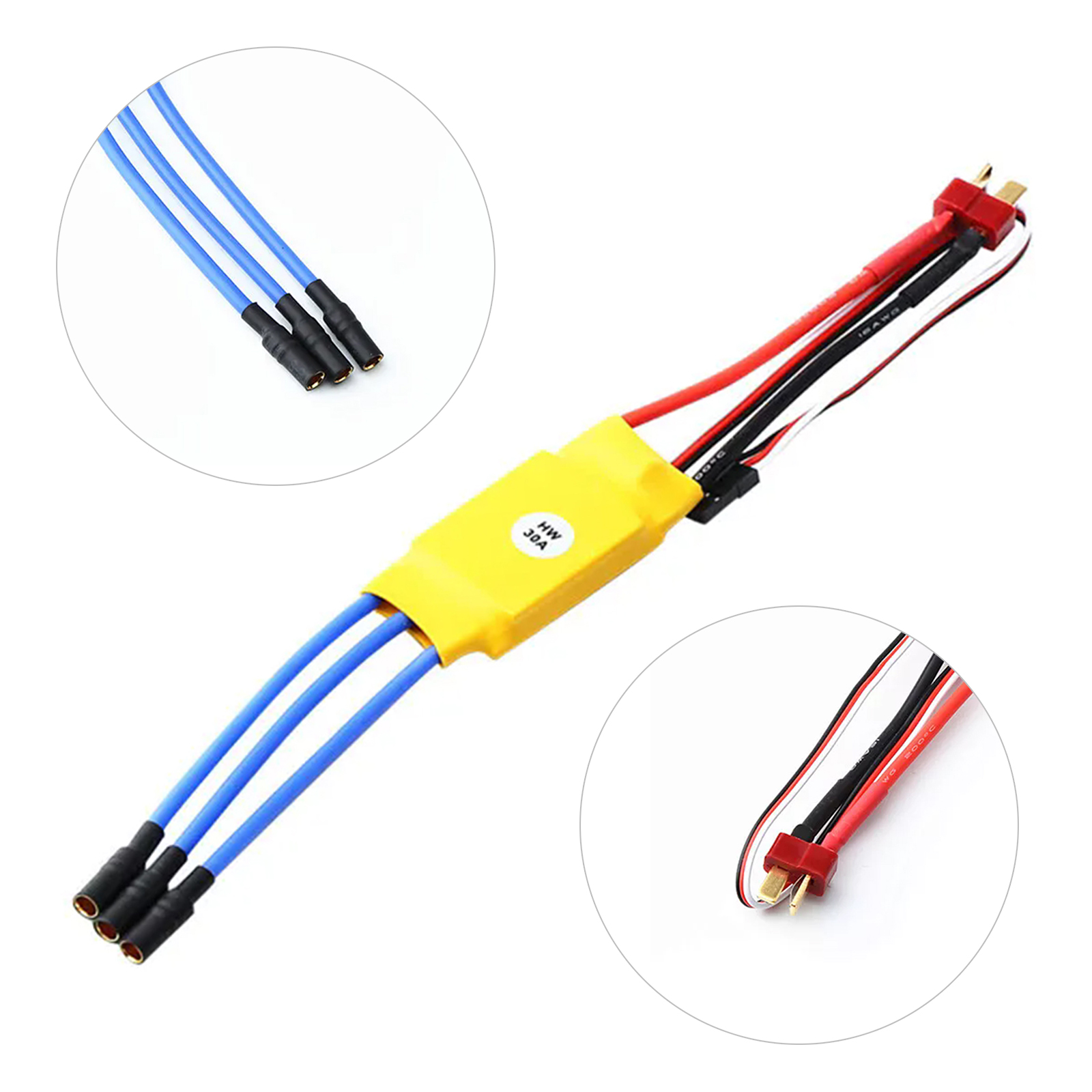

30A ESC
Output: Continuous 30A, Burst 40A to 10 Secs.
Input Voltage: 2-3cells lithium or 5-9 cells NiCd/NIMh
BEC: 2A / 5V (Linear mode).
Speed: 210,000rpm 2 Poles BLM, 70,000rpm 6 poles BLM, 35,000rpm 12 poles BLM.
(BLM: BrushLess Motor)
T plug and 3.5mm connectors
Note: This ESC is able to flash firmware.
