Product Feature
💖Multiple Functions: Except for charge, balance and discharge, it also has these functions, Terminal Voltage Control; Lithium Battery Capacity & Voltage Checking; Battery Internal Resistance Checking, Let you know when a cell is going bad; Data Storage and Memory Loading(Store up to 20 packs in memory); Digital DC Power. Automatically identify the cell counts of the lithium battery section. Support LiHV battery.
💖Wide Voltage Compatibility: Use the battery pack balance charger on LiPo/Li-ion 3.7V-22.2V(1-6 cell);LiFePO4 3.2V-19.2V (1S-6S);LiHv: 1-6 cell; NiMH/NiCd 1.2V-18V (1A-15S);PB: 2-20V; Smart Battery: I,II,III. So it is very useful.
💖High Quality & Safe: Using superior chip and materials to deliver quality performance, the charger is designed with Reverse Polarity Protection, Short Circuit Protection, Over-Charge Protection, Over-Current Protection and Over-Temperature Protection for safety.
💖Universal Voltage Compatibility: 80W high power, Max 6A charging current, this RC lipo balance charger can balance, fast charging, data storage, cyclic charging and discharging and much more for all of your battery packs.
⚠️Noticed: Power supply is not included in the package.
Product Specification
Type: Battery Balance Charger
Color: Brown
Input Voltage: DC
Charge Current: 0.1-6.0A
Discharge Current: 0.1-2.0A
Charge Power: Max.80W
Discharge Power: Max.5W
Temperature Sensor port: Yes
Built-in Balance: Yes
Current drain for balancing Li-Po: 300mAh/cell
NiCd / NiMH battery cell count: 1~15 cell
Li-Ion / Polymer cell count: 1~6 series
Pb battery voltage: 2V~20V
Dimension: 135 * 86* 32mm(L*W*H)
Package Included

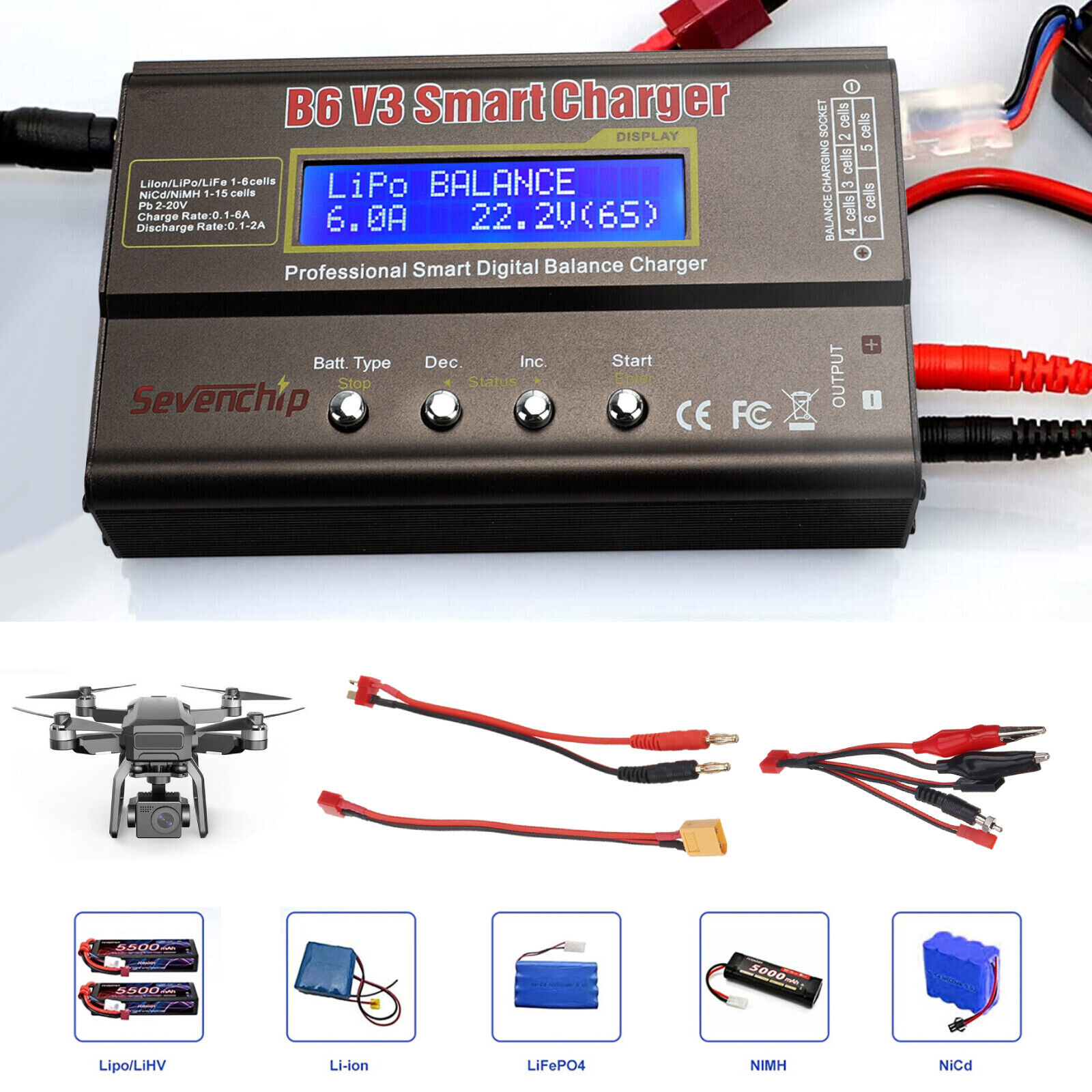

1 x B6 V3 Charger
1 x Charging Cable With XT60 and T-Plug
1 x Universal Crocodile Clip
1 x English User Manual
