Description:
【High Quality】:Compliance with all relevant European standards. The double-walled design (external polyolefin tube, internal hot melt adhesive and solder) ensures perfect insulation and waterproof performance, and can prevent wire corrosion even in humid environments.
【4 Sizes】: High quality solder seal connectors, Red size fits (0.5-1.5mm²), Blue size fits (1.5-2.5mm²), White size fits (0.25-0.34mm²), Yellow size fits (4 .0-6.0 mm²), melting point (138 ° C) shrinkage ratio 3: 1

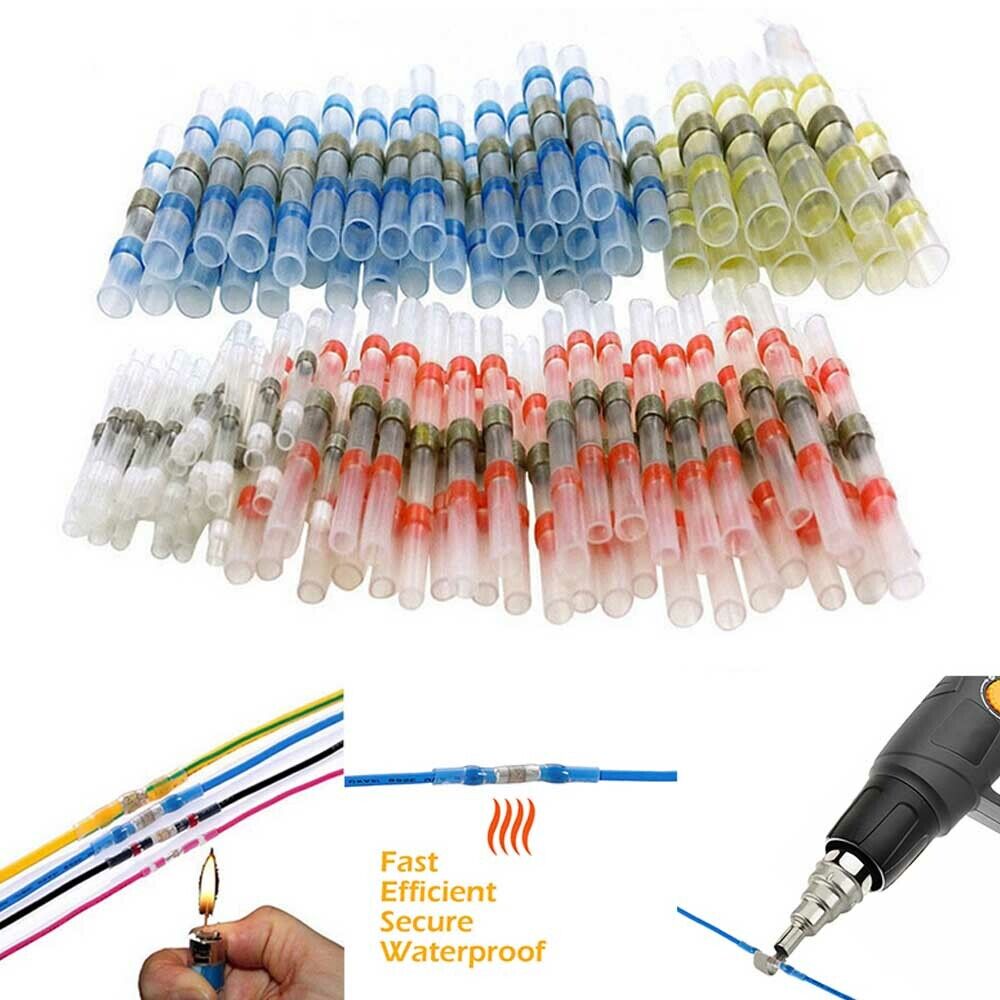

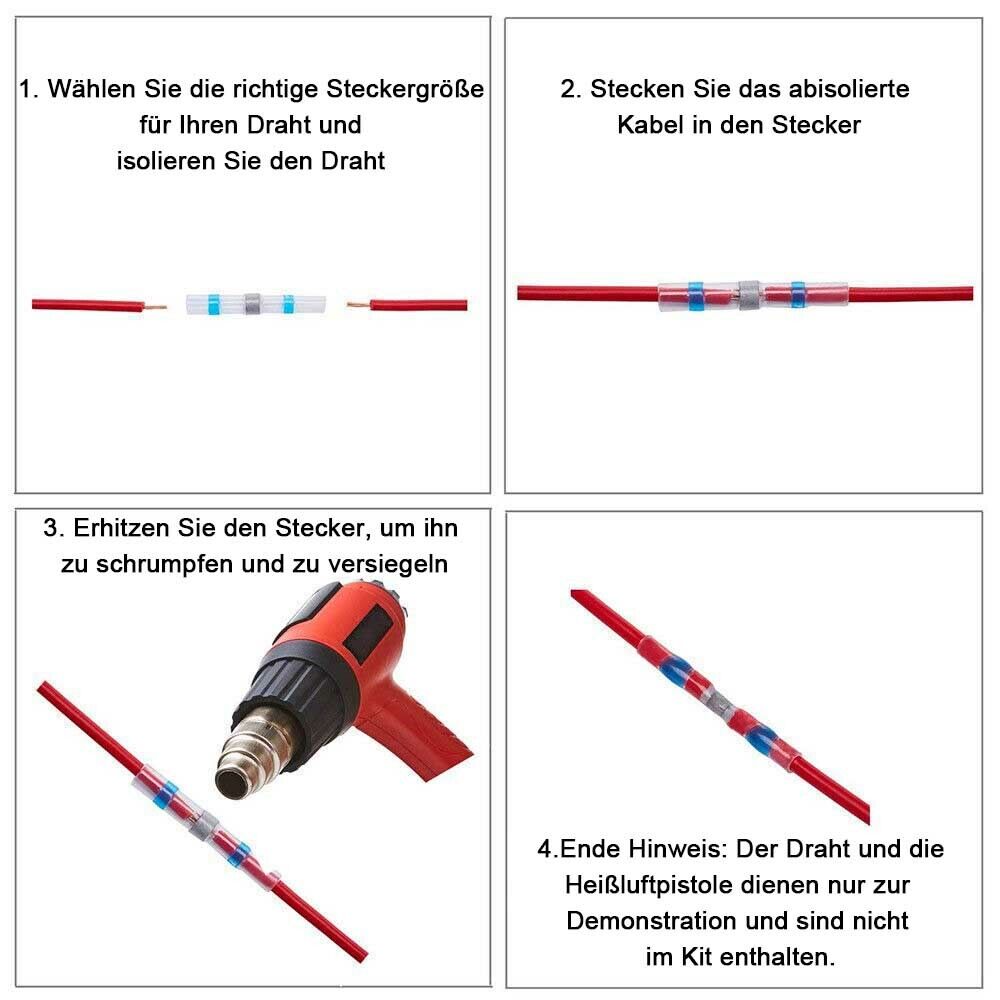

【Easy to Use】:Transparent sleeve ensures precise control when the strip and insert wires inside. A simple one step connection of wires, insulated and sealed.

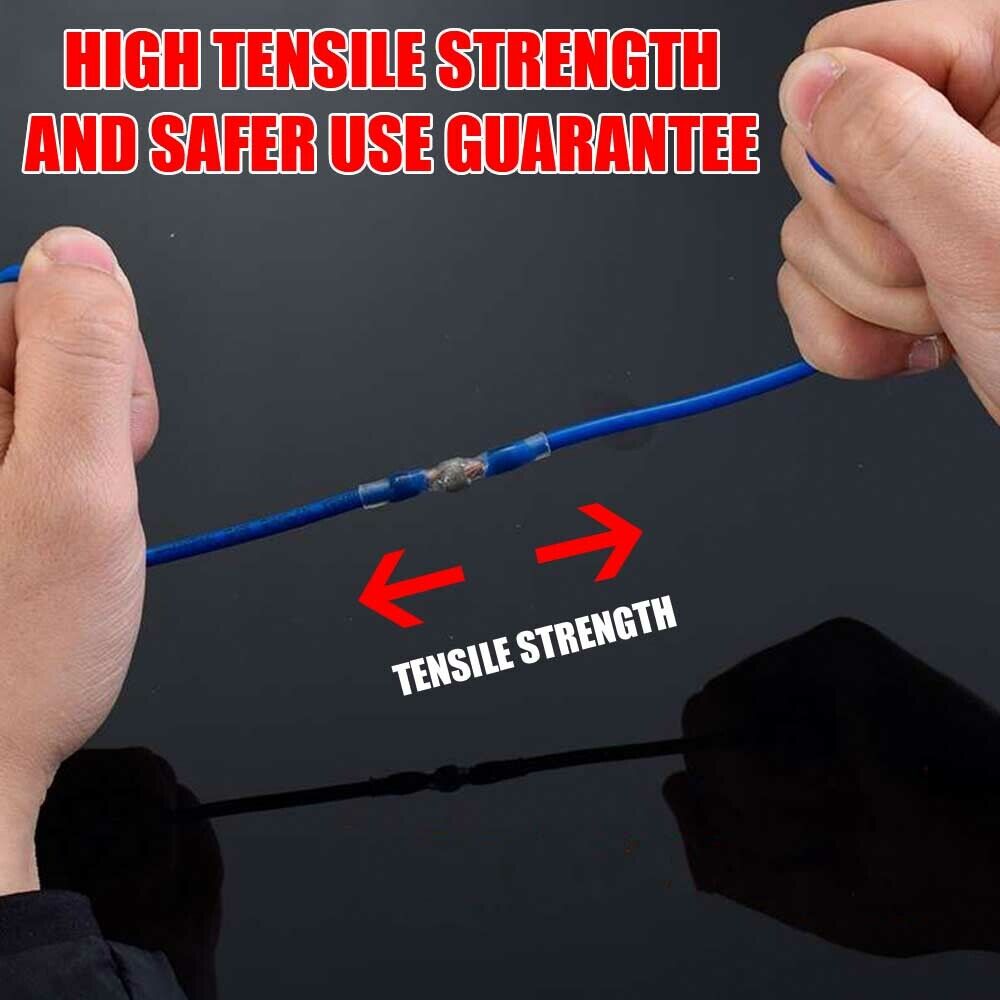

【No Slip Wire Contact】: Tubing is reduced in size and solder melts and flows through the stripped wires, ensuring strong hold Your wire will never slip out of the connector.
【Widely used】: For easy, durable and weather-resistant connection in the electrical field. It is used especially in lighting technology as well as in the car, truck, agricultural machinery and commercial vehicle sector and is safer than conventional connectors.

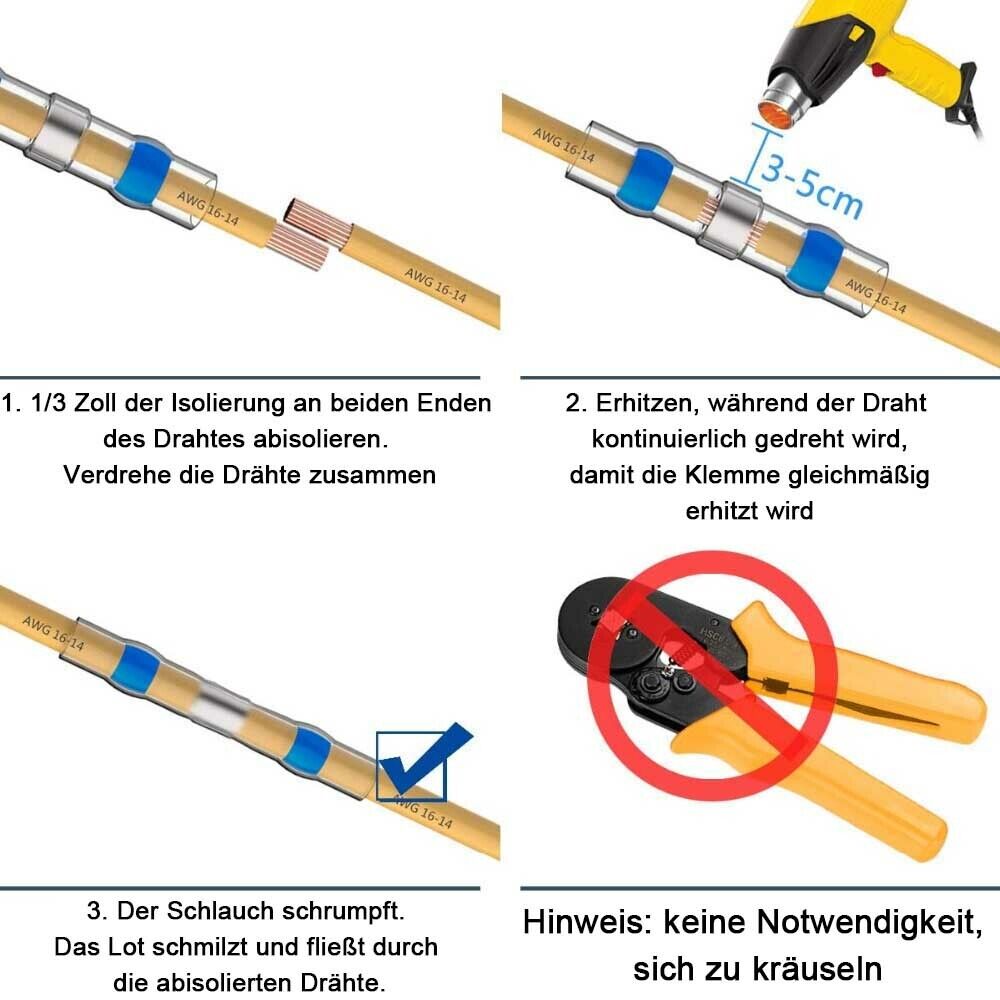

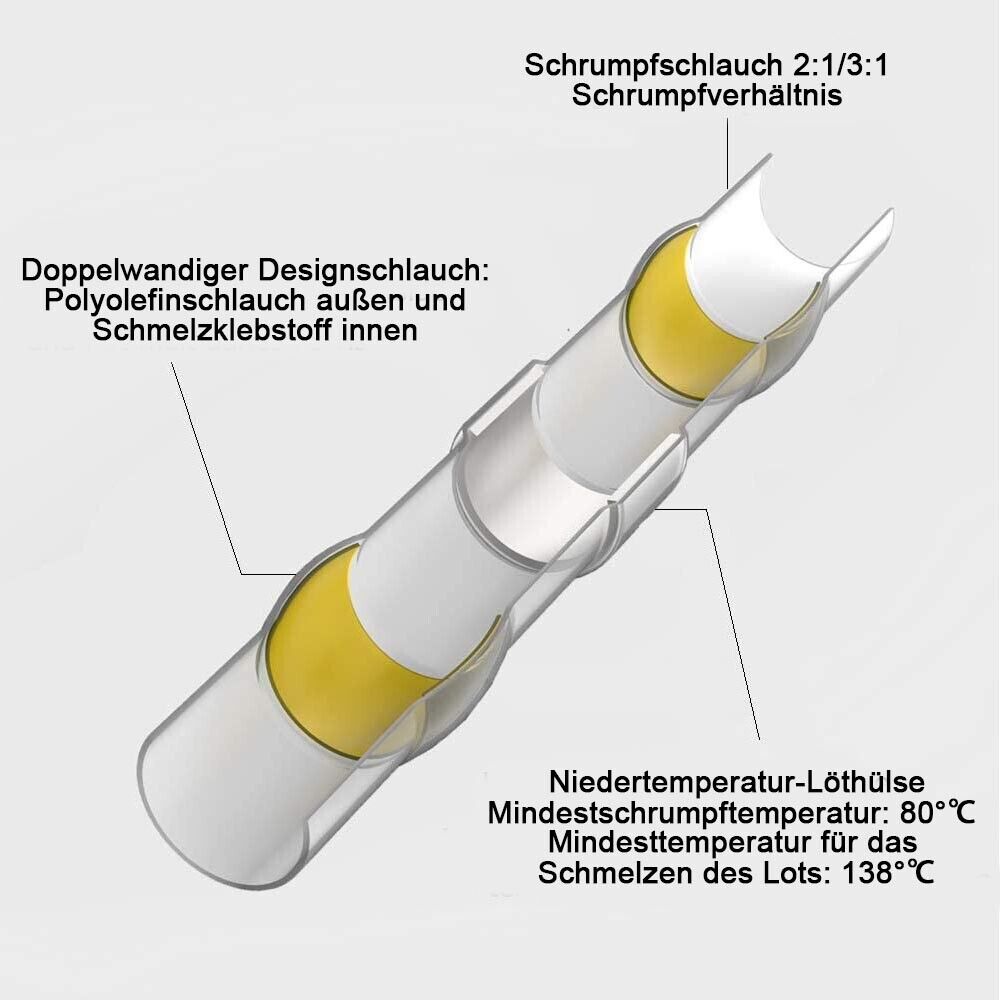

Strict production standards, industrial grade, high quality and durability. Comply with all relevant standards: ROHS, ISO 9001:2008, SGS and CE. Double Wall Design: Provide strong hold, polyolefin tubing on the outside and hot melt adhesive on the inside. Allows visual inspection，prevents corrosion. For best results, it is best to use a heat gun until reduced in size and firmly bonded with no gaps.
Specs:
Color: Multicolour
Material: PE insulation, tinned copper

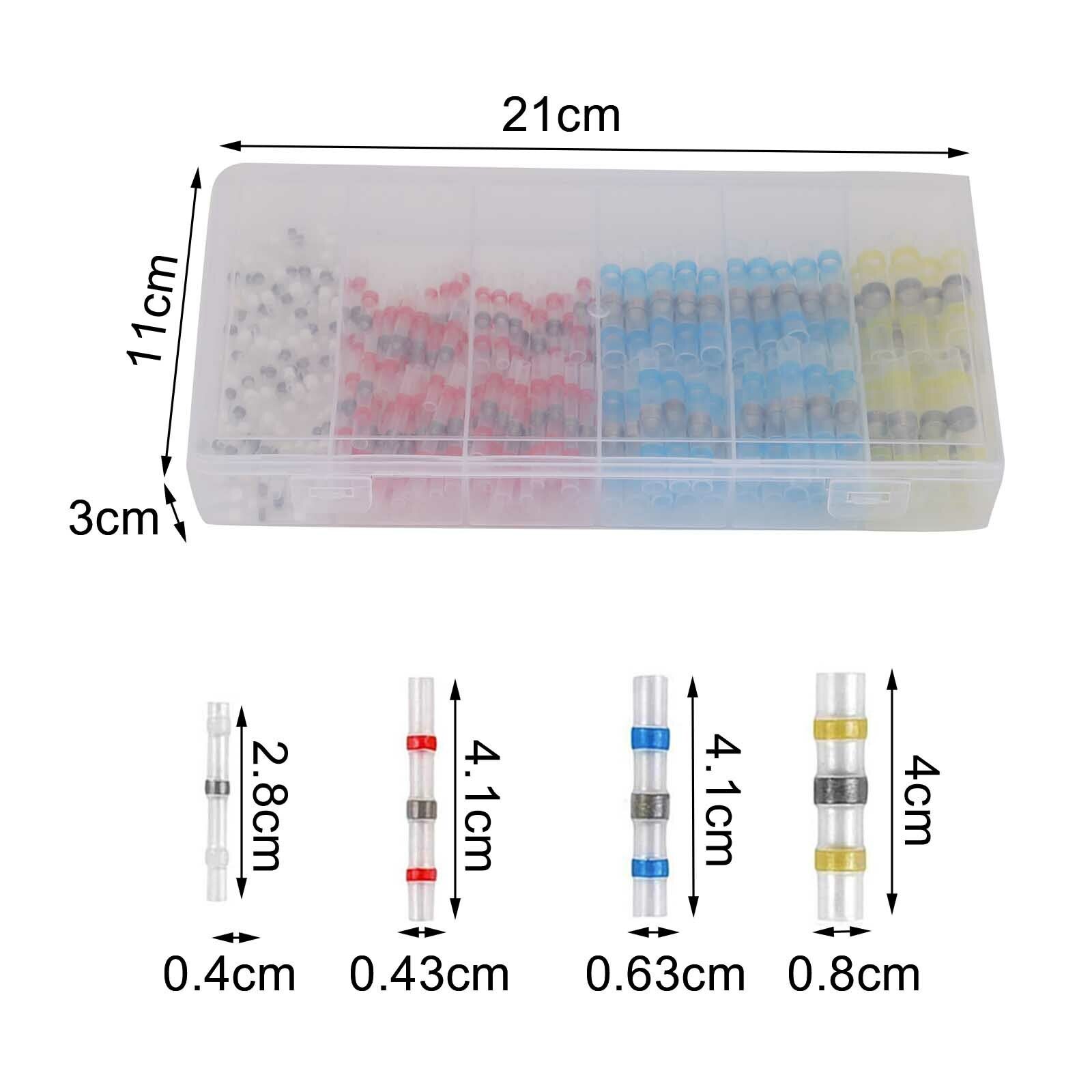

Size:
White Weld Terminal: Diameter: 4mm
Red Weld Terminal: Diameter: 4.5mm
Blue weld connection: diameter: 4.3 mm
Yellow welded connection: Diameter: 8mm
Model: Heat Shrink Wire Connector
Type: Heat Shrink Wire Connector
Working temperature: -55℃～125℃
Starting shrinkage temperature: 80°C
Solder begins to melt: 138°C
Fully welded melting temperature: 160°C
Dielectric strength: > 600V
Quantity: 240 pcs

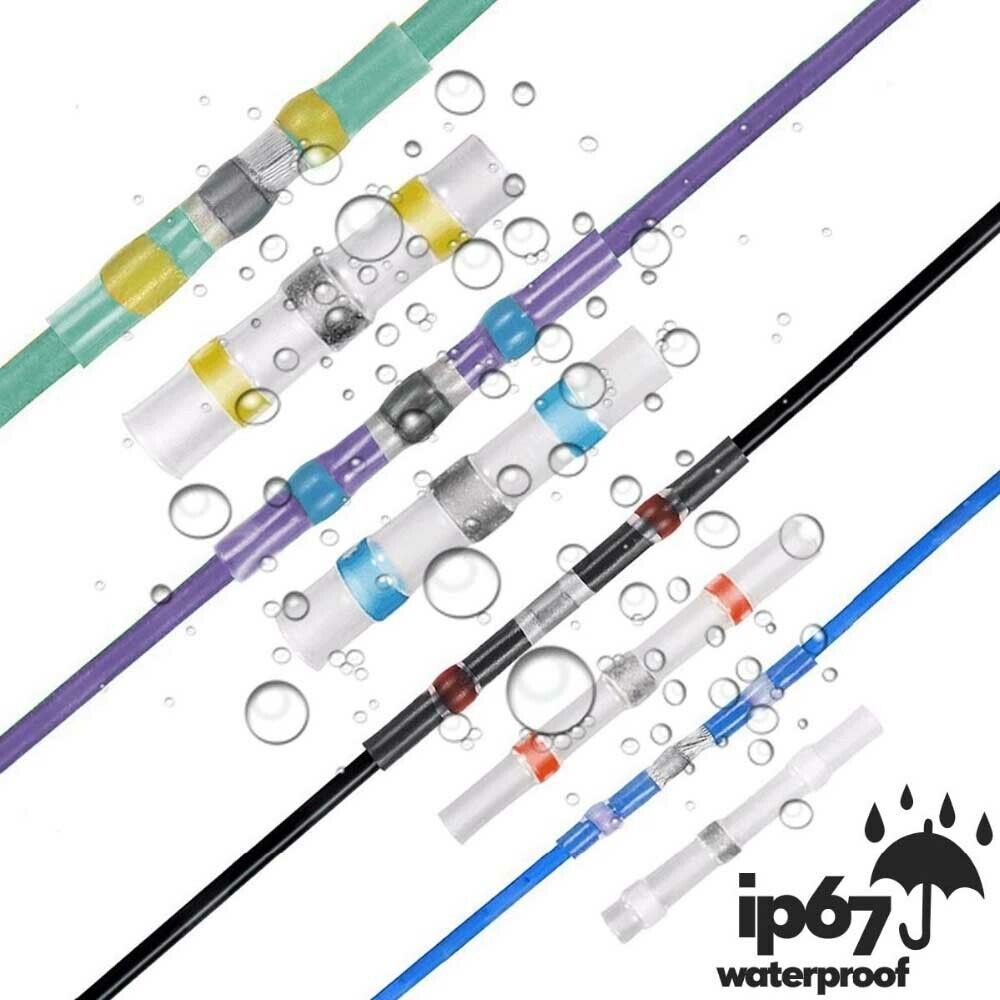

IP rating: IP67
Product type: butt connector, solder connector
Water Protection: Waterproof
Heat shrink ratio: 3:1
Contact material: copper
Solder Melting Range: 11-138°C

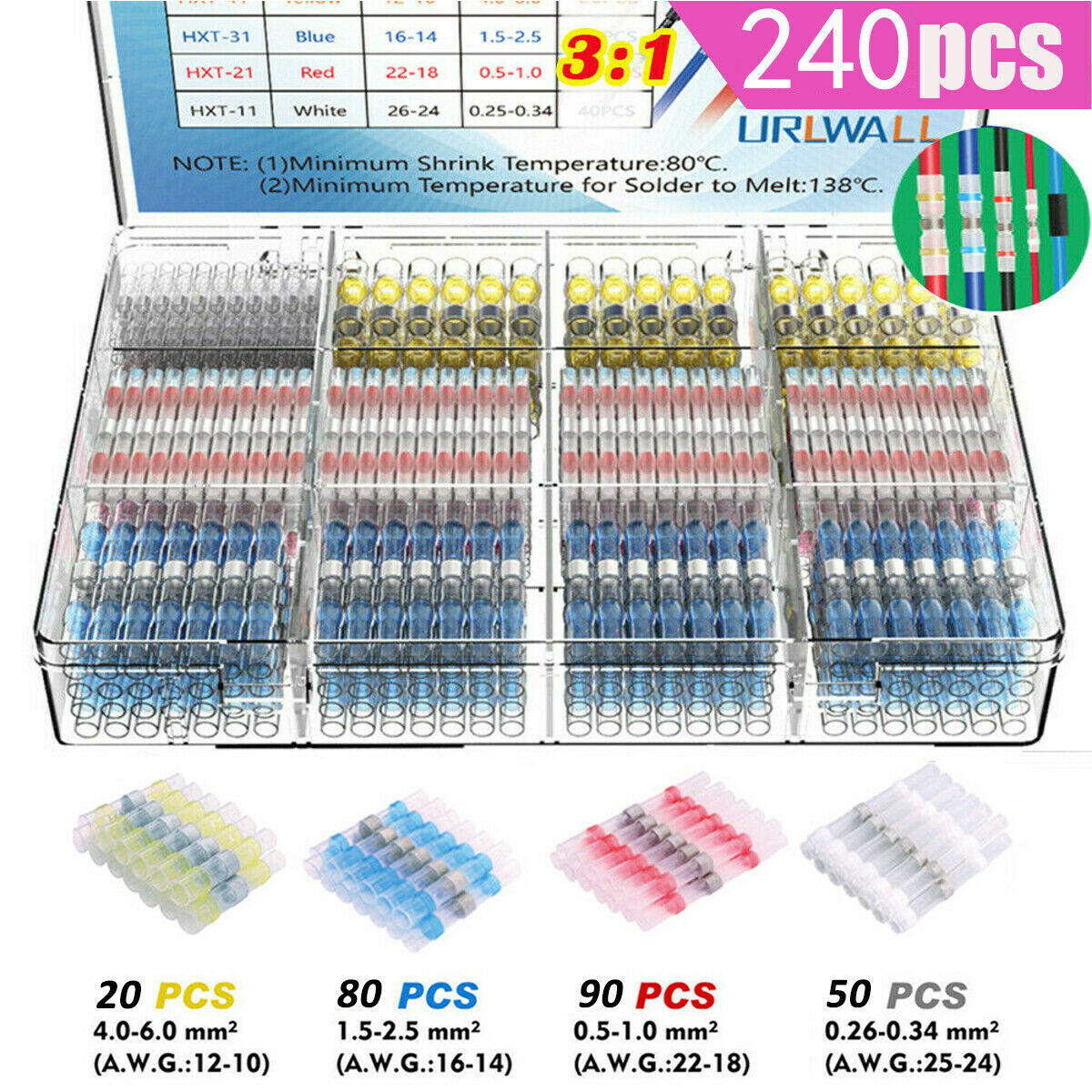

Yellow Weld Terminal: 12-10AWG (4.0-6.0mm²) 20pcs
Blue Solder Terminal: 16-14 AWG (1.5-2.5mm²) 80pcs
Red welding terminal: 22-18AWG (0.5-1.5mm²) 90pcs
White Solder Terminal: 26-24AWG (0.25-0.34mm²) 50pcs
Scope of delivery:
240pcs 3:1 Heat Shrink Wire Connector
