Product parameter
Name: Pneumatic cable crimping machine
Voltage: AC220V

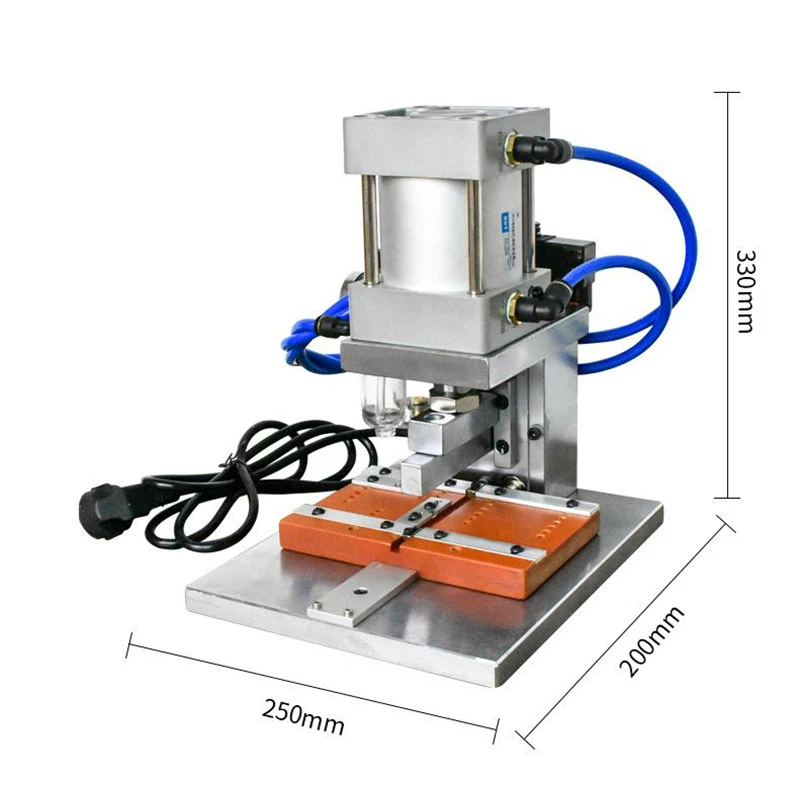

Appearance size: 250*200*330mm
Weight: 14KG
Number of crimping P: 4-40P a fixture, 40-64P a fixture



Features
1. Aiming at 8P-64P IDC cable pressing head machine instead of hand pressing pliers, the pressing efficiency is high quality and stable, and the operation is simple.
2. Low gas consumption, low failure rate and easy maintenance.
3. It is suitable for IDC product crimping cable.
4. It can be pressed 300 to 600 times per hour according to the type of product.
5. Use 6~8kg air pressure and 220V power supply.

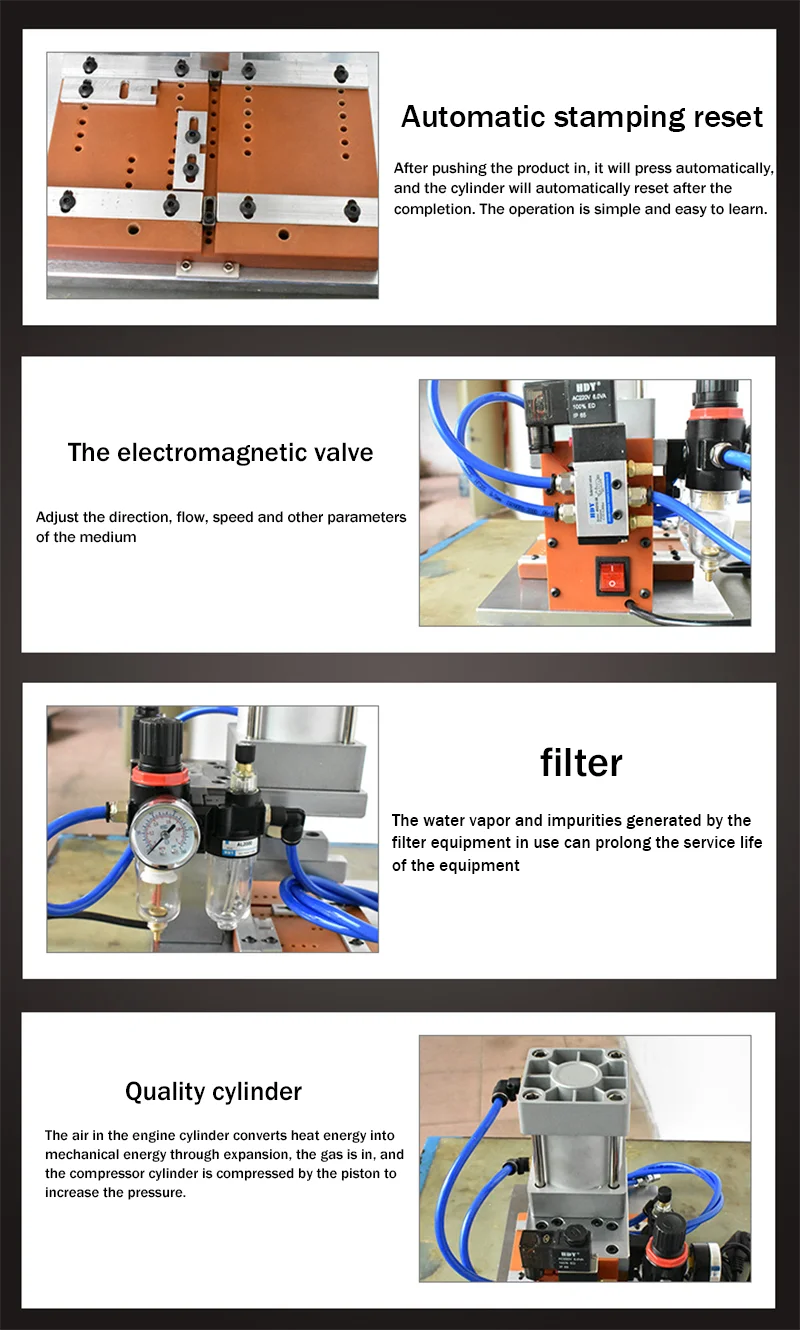

6. After the product is pushed in, the cylinder reset operation is simple and easy to learn after the automatic stamping is completed.
7. With the bakelite base, the operation is simple, and the accuracy of wear resistance is high.
8. The body is all made of steel, which is stable and durable, and the exterior is chrome-plated, which is beautiful and does not rust.
9. Deliver a set of bakelite crimp adjustable block 8~40P (designed and manufactured according to customer products)
