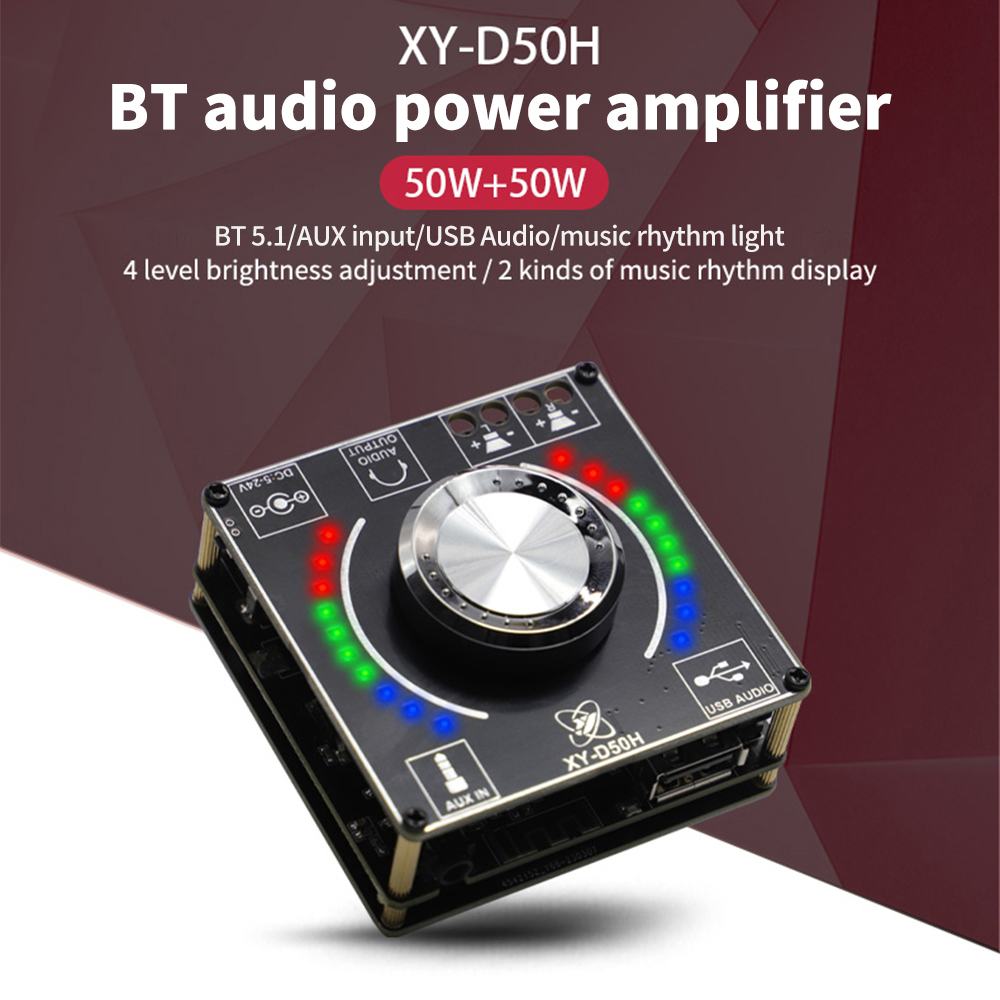

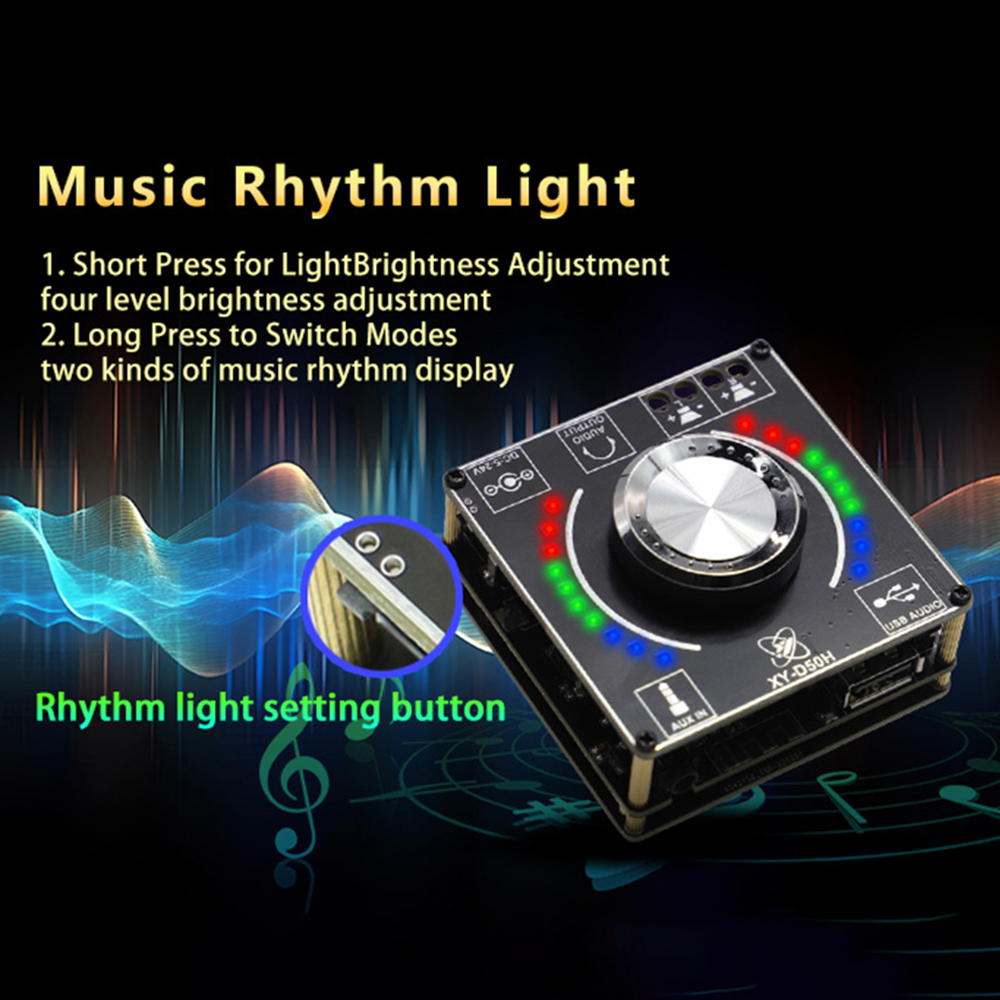

Features1.This amplifier board with music rhythm light, support 4 levels of brightness adjustment 2 rhythmic modes can be selected;
2. Support DC 5-24V/5A input, support 50W+50W high power;
3. With protection mechanism, with over-voltage, short-circuit, overheating, over-current protection;

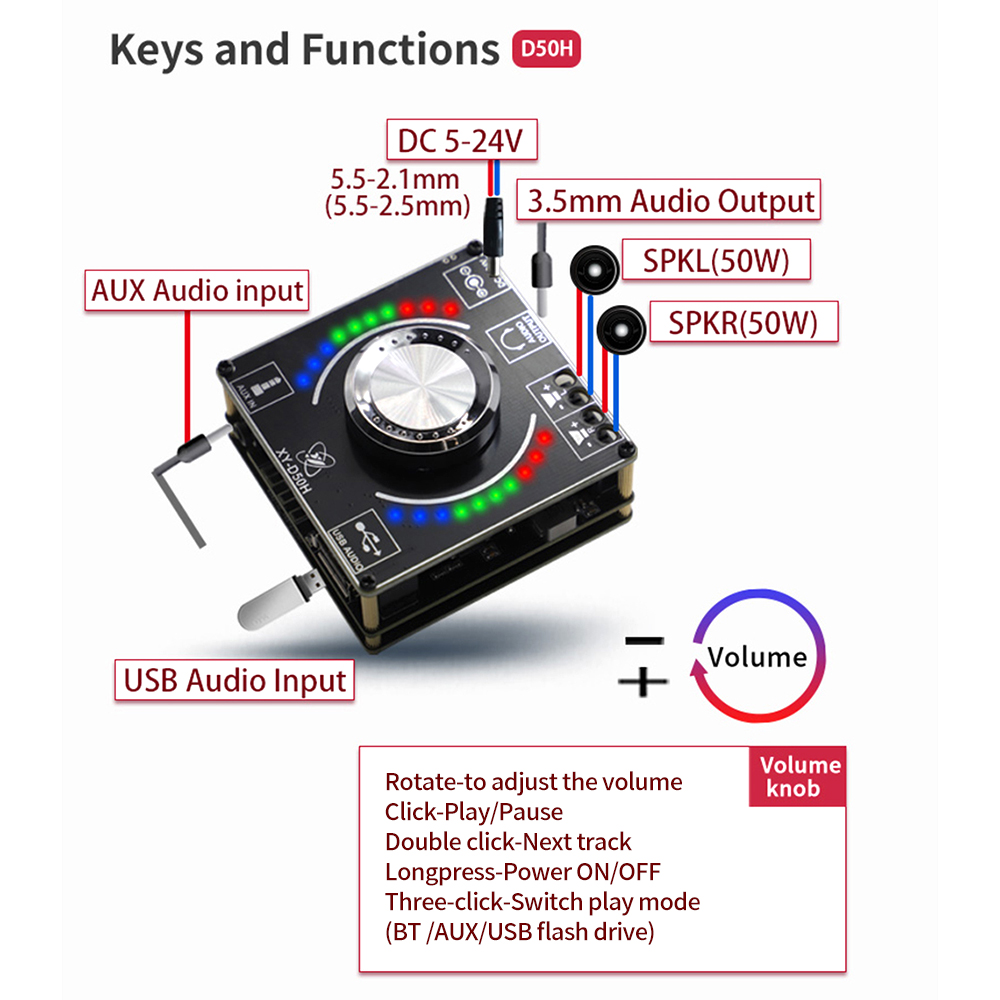

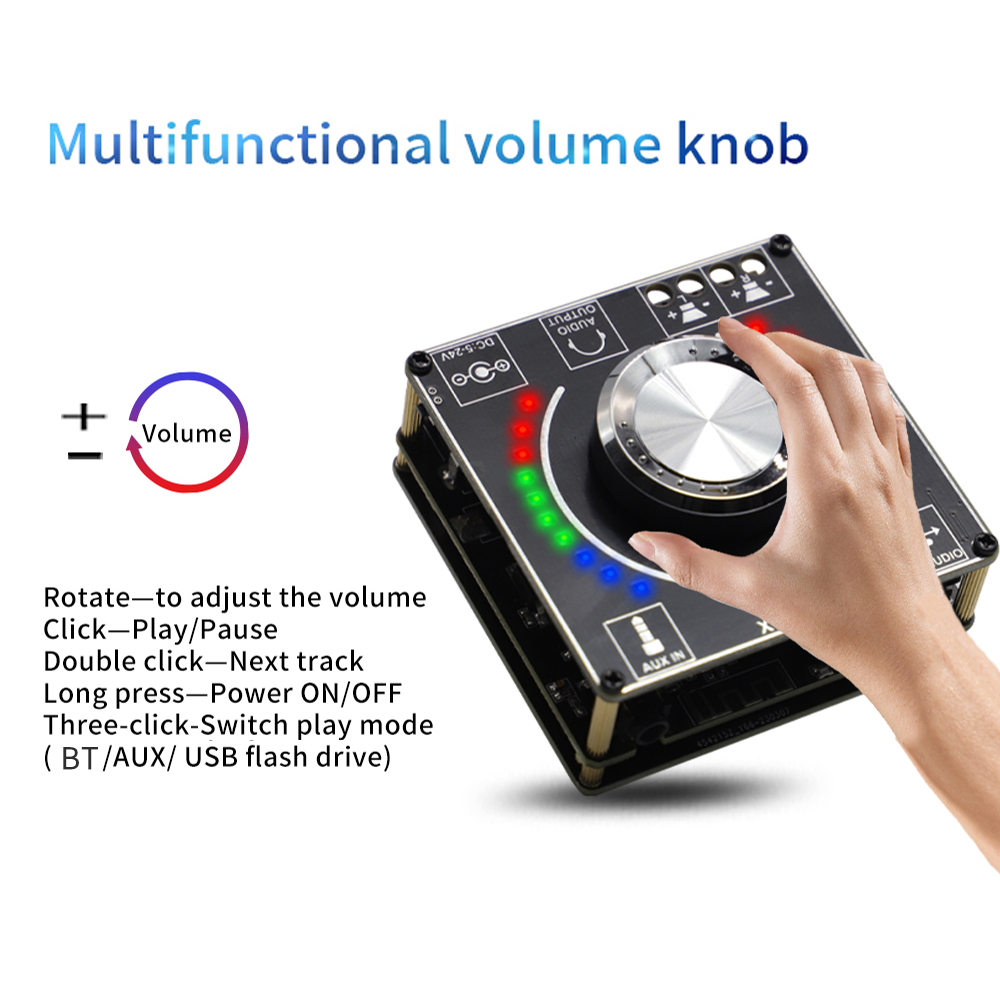

4. Multi-function volume knob, can adjust the volume level, switch playback mode, switch on/off and other operations;
5. Mobile phone APP control, download APP easy remote control, Bluetooth 5.1 version, transmission distance is farther.

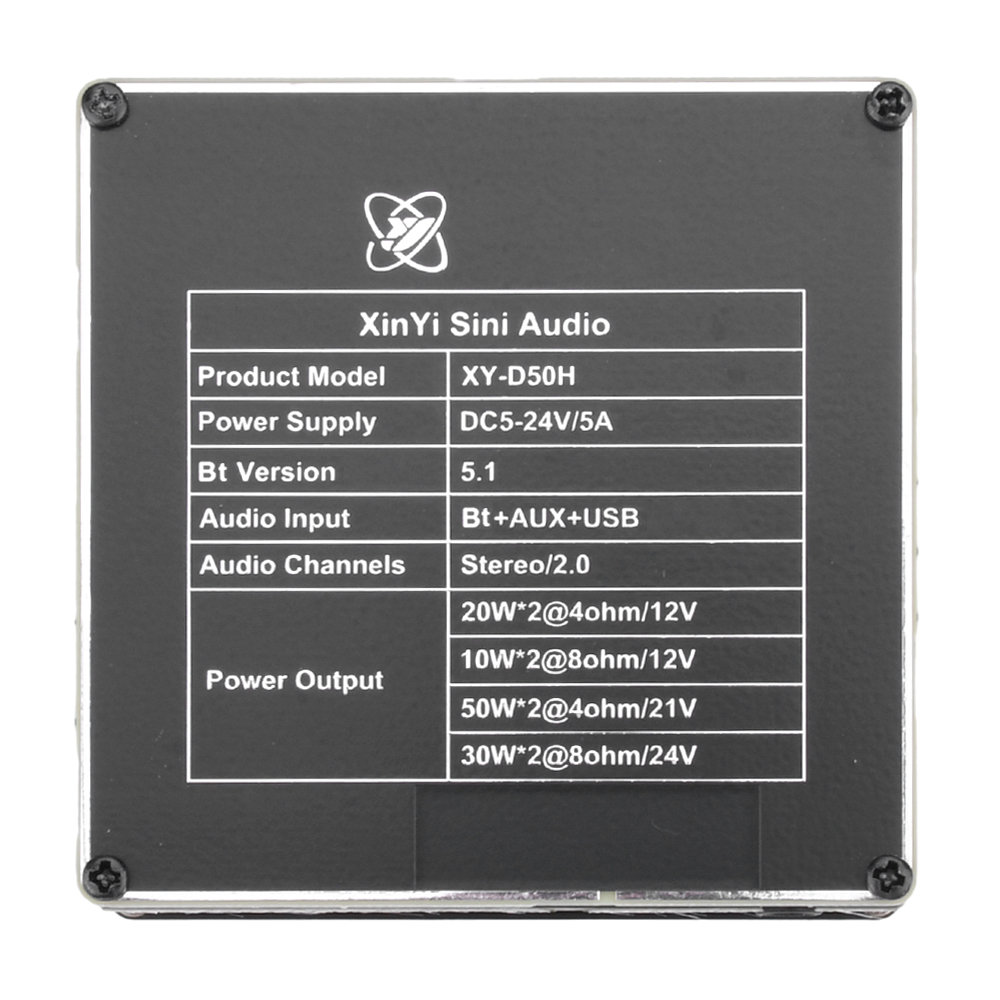

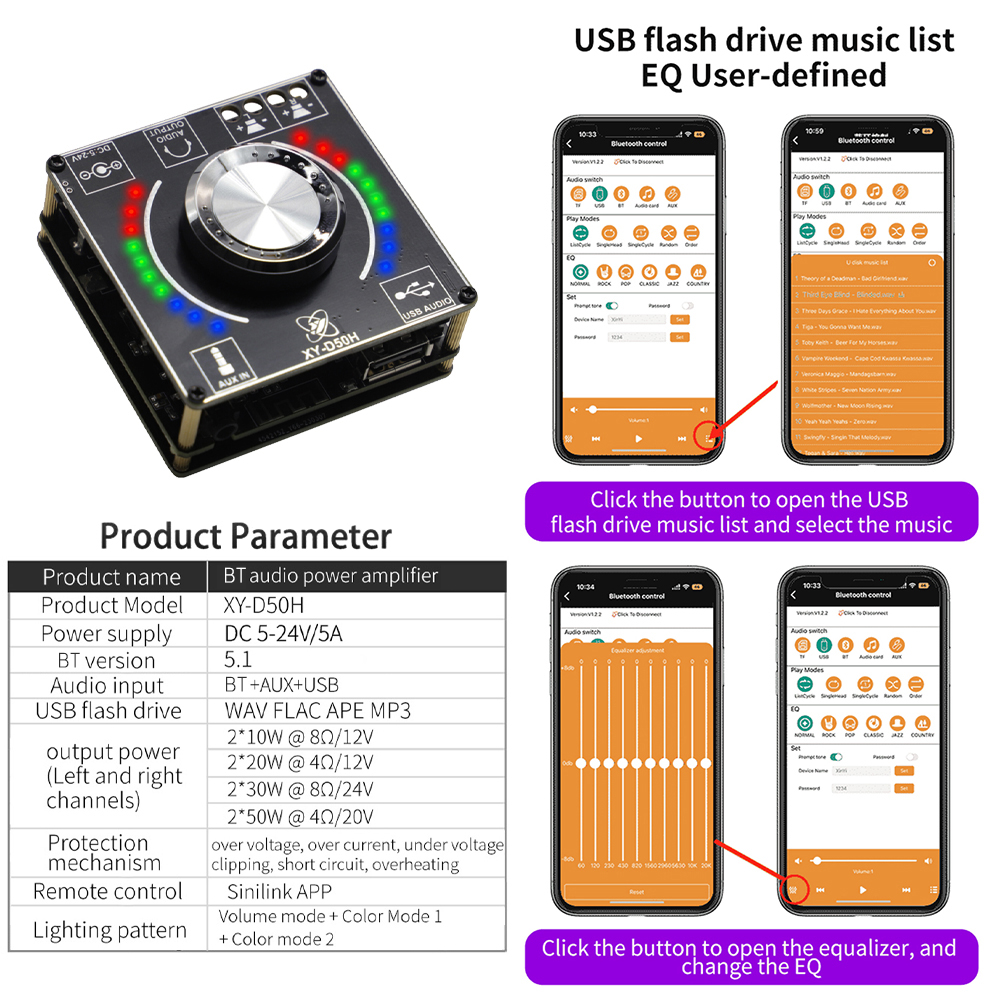

Specification
Product Name: Bluetooth Audio Amplifier
Product Model:XY-D50H
Power supply: DC 5-24V/5A

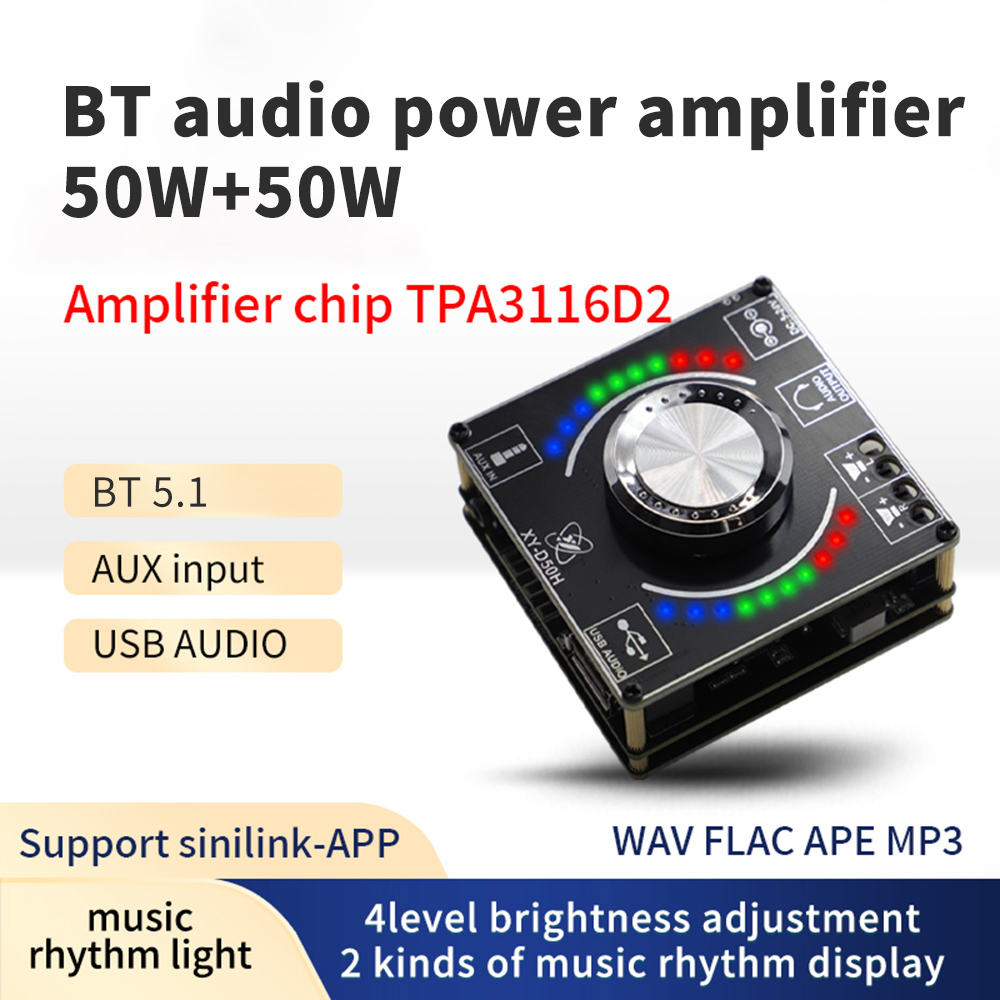

Amplifier chip: TPA3116D2
Bluetooth version: 5.1
Audio input: Bluetooth+AUX+U disk
U disk decoding: WAV FLAC APE MP3
Left and right channel output power:
2*10W @ 8Ω/12V
2*20W @ 4Ω/12V
2*30W @ 8Ω/24V
2*50W @ 4Ω/20V
Protection mechanism: over-voltage, short-circuit, overheating, overcurrent and other protection
Remote control function: Xinyilian APP
Lighting mode: volume mode + colorful mode 1 + colorful mode 2

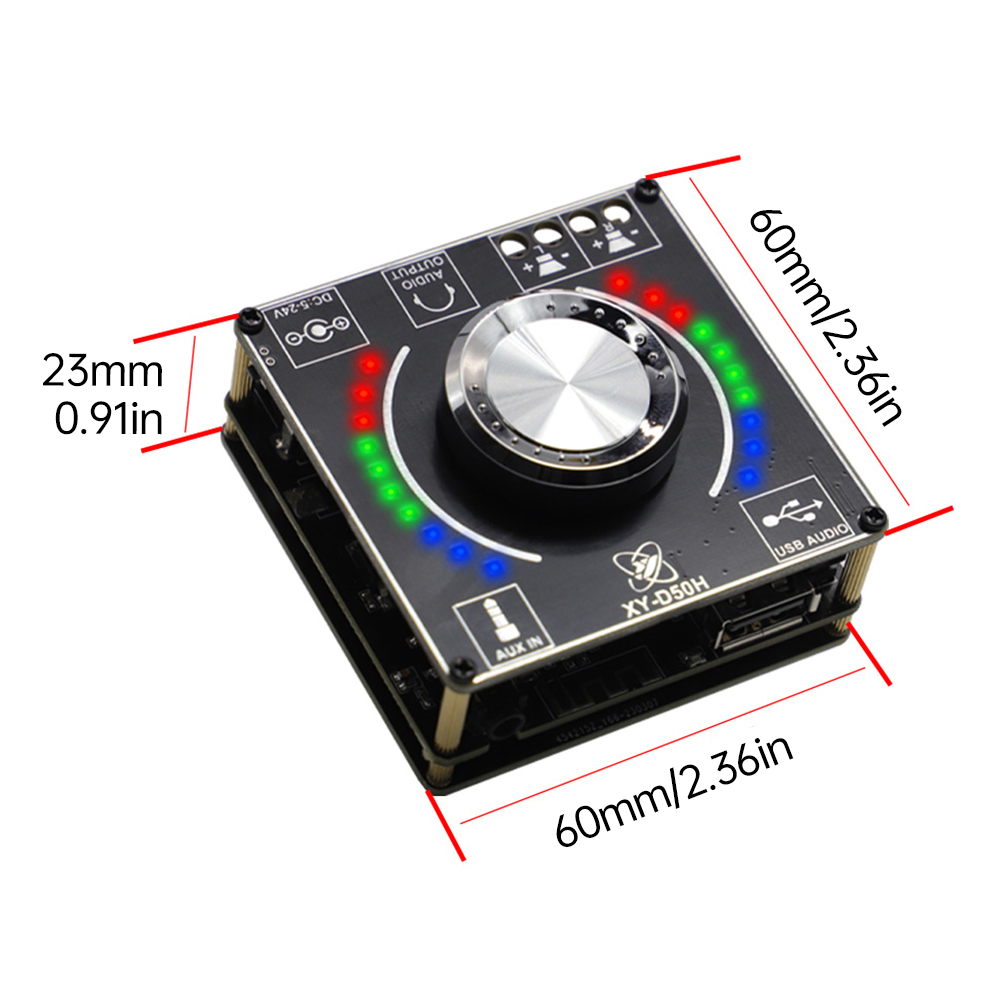

Product size: 60mm * 60mm * 23mm

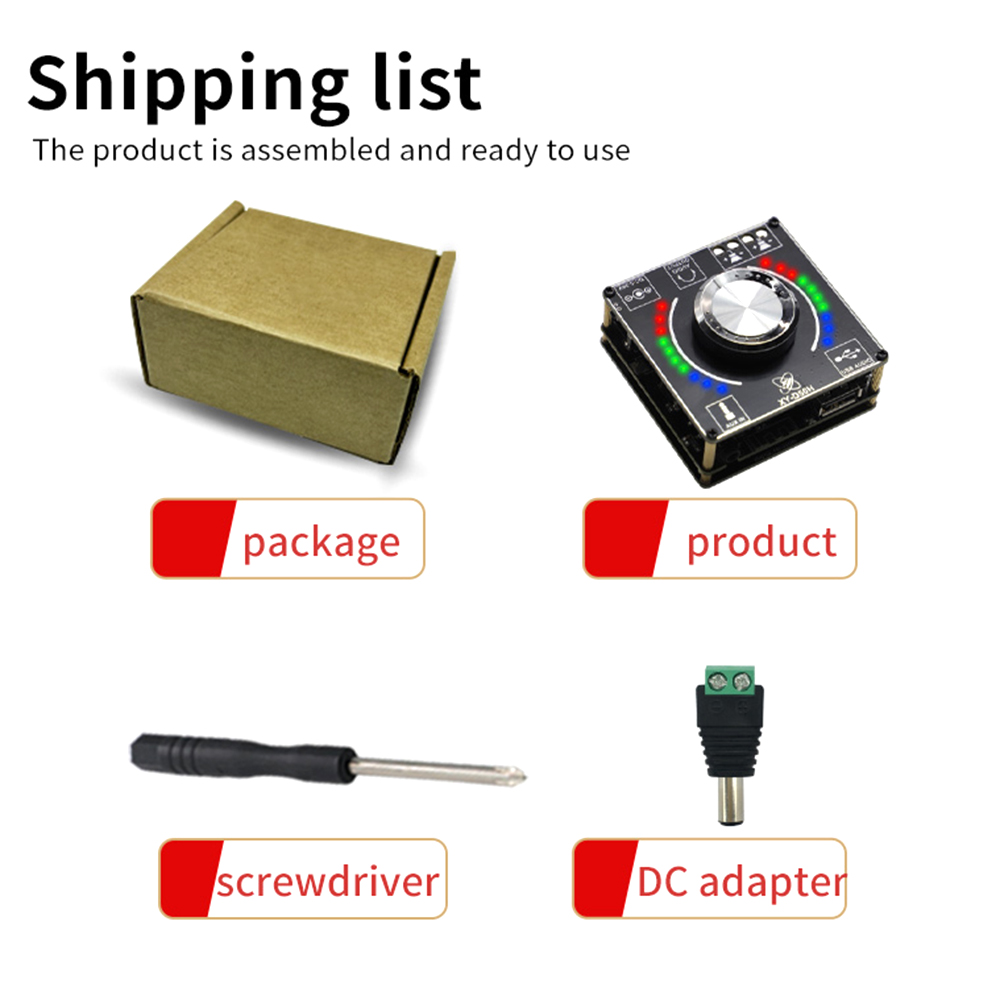

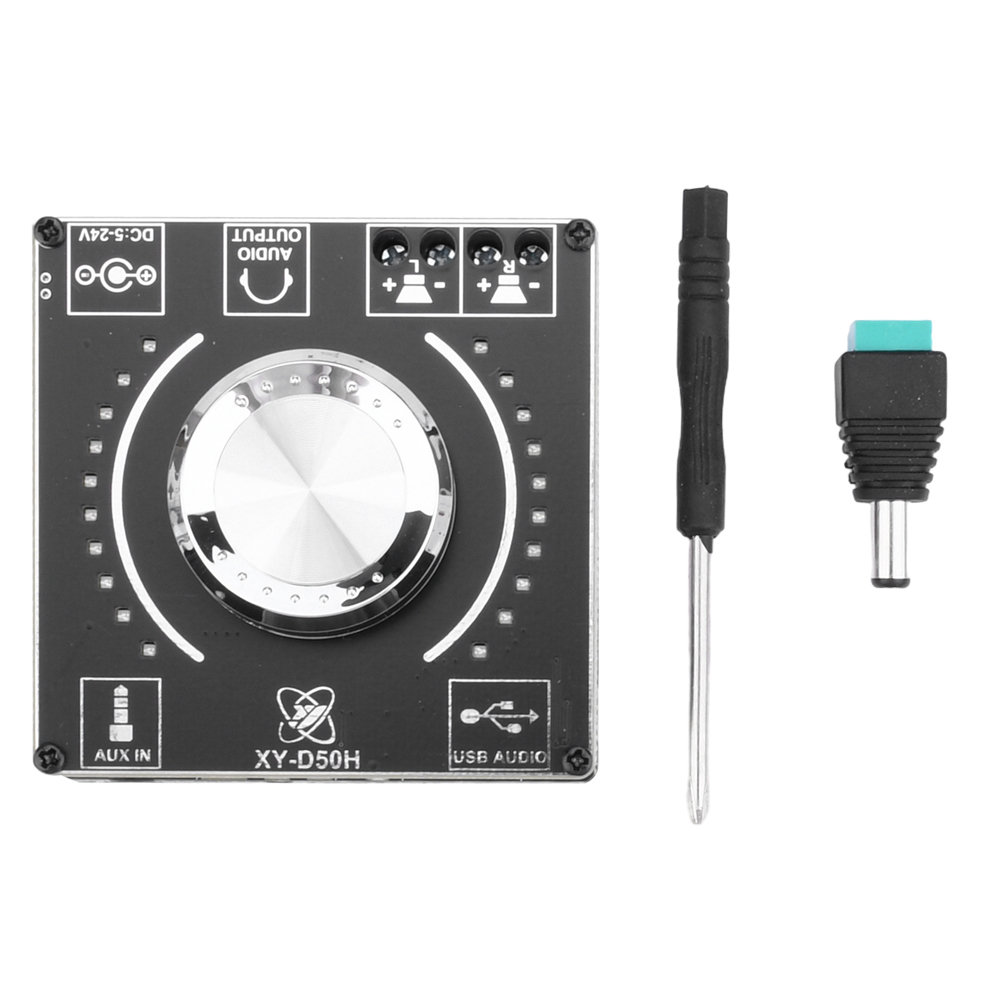

List
1 x Amplifier board
1 x Adaptor
1 x Screwdriver
