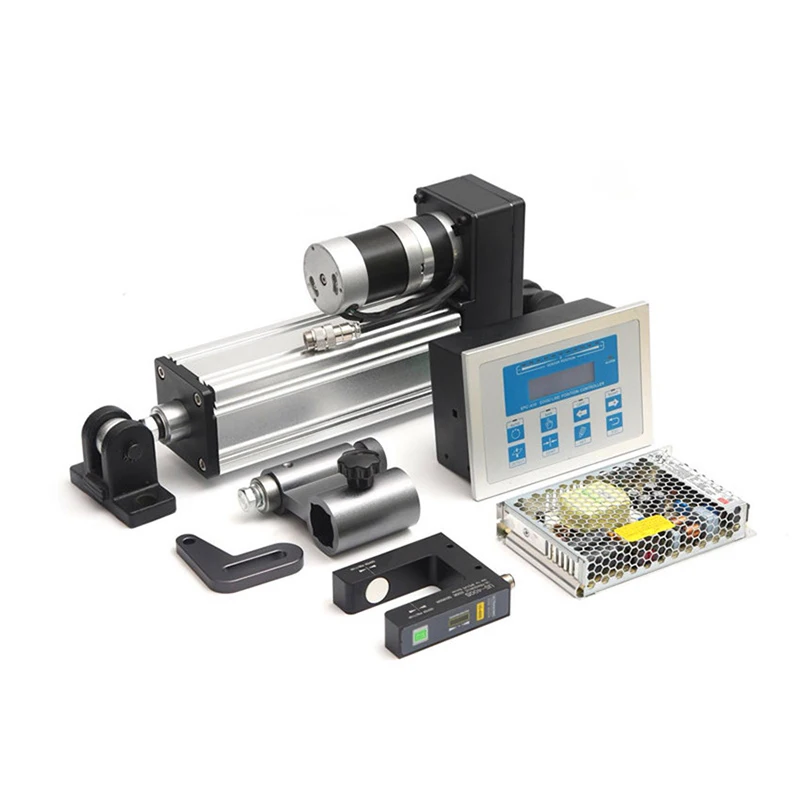

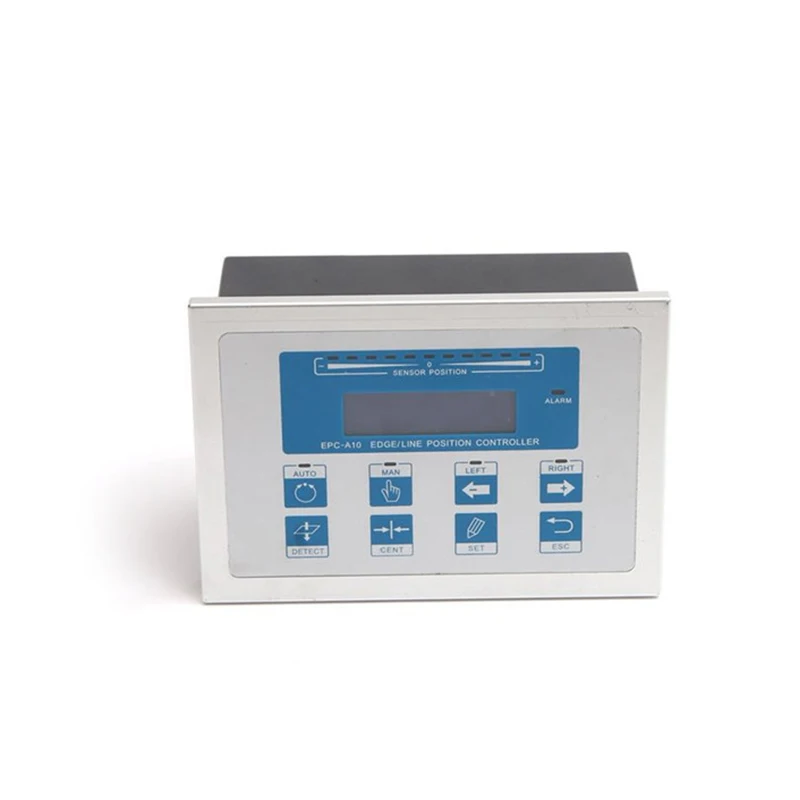

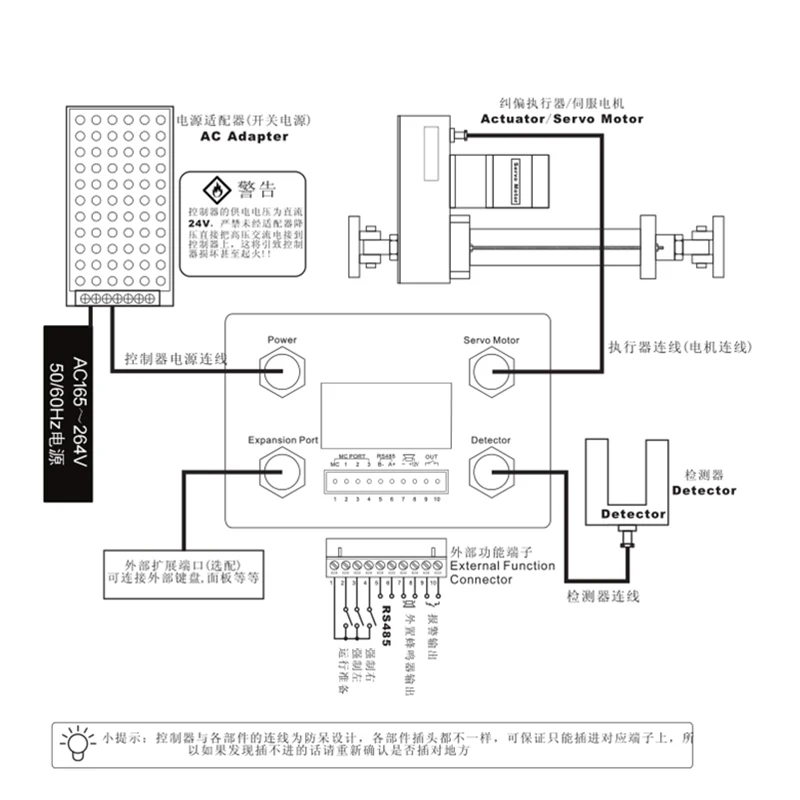

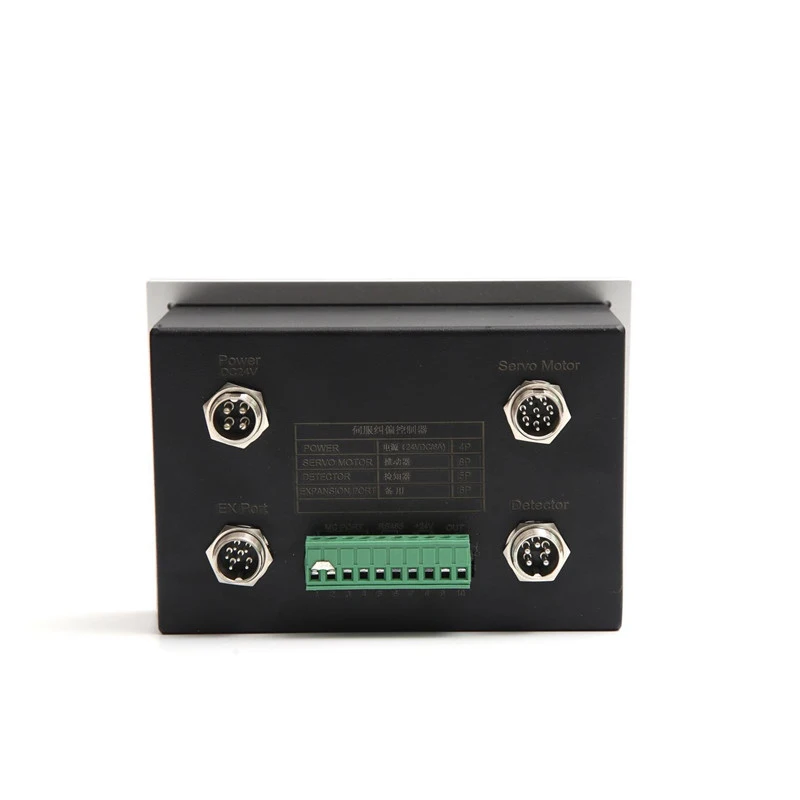

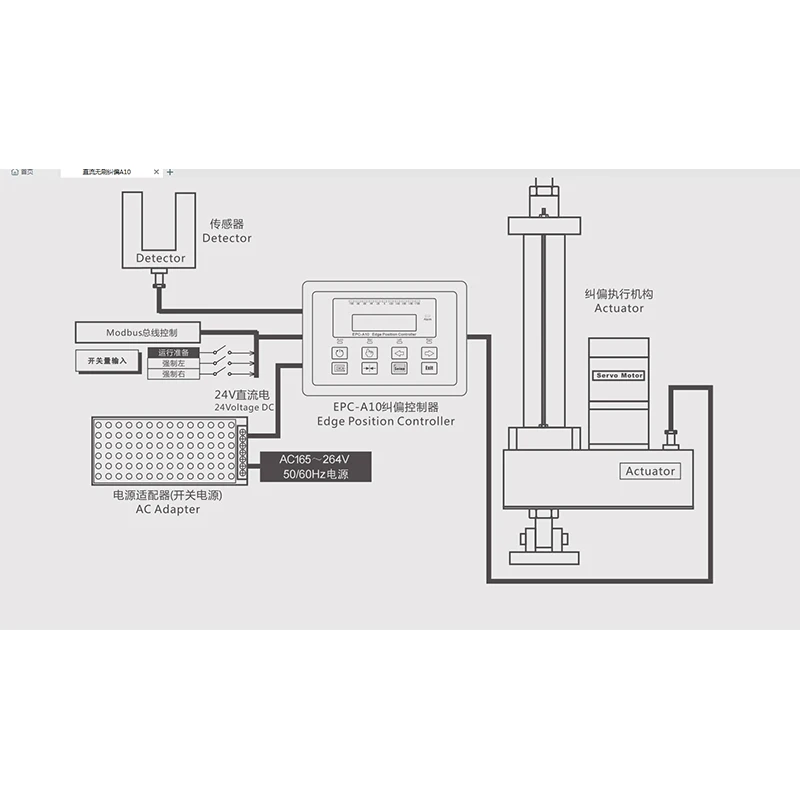

EPC-A10 Servo Edge Position Control System EPC Web Guide Control system

Description:

Servo web guide Controller EPC-A10 adopts the high-speed 32-bit CPU drive DC servo driver and no-overshot integral variable PI adjustable algorithm. It is of high deviation rectification and fast reaction. In addition, it supports three operation modes: the edge-following, line-following and centre-alignment mode

Feature:

1. Support three operation modes: edge-following, line-following and center-alignment.

2. Support photoelectric sensor, ultrasonic transducer and CCD Sensor

3. Detect sensor's parameters intelligently, no need to correct the sensor under most circumstances

4. Automatic travel measurement, no need to limit the switch mechanically.

5. No overshot integral variable PI algorithm, high accuracy, fast reaction and less error.

6. 0.5msec super-speed of responding

7. Analog quantity transducer signal 12bit AD sampling, 700,000 times of sampling per second

8. Adopt FIR digital filter and return difference filter, stronger anti-interference capability and more stable signal

9. DC servo motor to push the ball screw

10.Power-down memory of all the parameters at any states in the system

11.Store 10 groups of parameters from different material, convenient and efficient switchover of material

12.Simplified Chinese/ Traditional Chinese /English for menu operation

13.Humanized operation, fast, simple and convenient

14.Support Modbus and PLC/Human-computer networking control

Specification:

Correction controller:

Model No: EPC-A10

Control Method: DC Servo Driver

Power: DC 24V /5A

Control Input: DC 0~5A

Control output: 24V, PWM

Response time: 0.5 ms

Environment temperature: -10~60C, below RH90%

Weight: 1.2 kg

Sensor:

Color sensor: US-400S

Power supply: DC-12V

Power Output :DC 0-5V

Detective range : 5mm

Detective accuracy: 0.1mm

Detector methods: Ultrasonic exposure

Frequency : 100KHZ

Shell material :Aluminum alloy

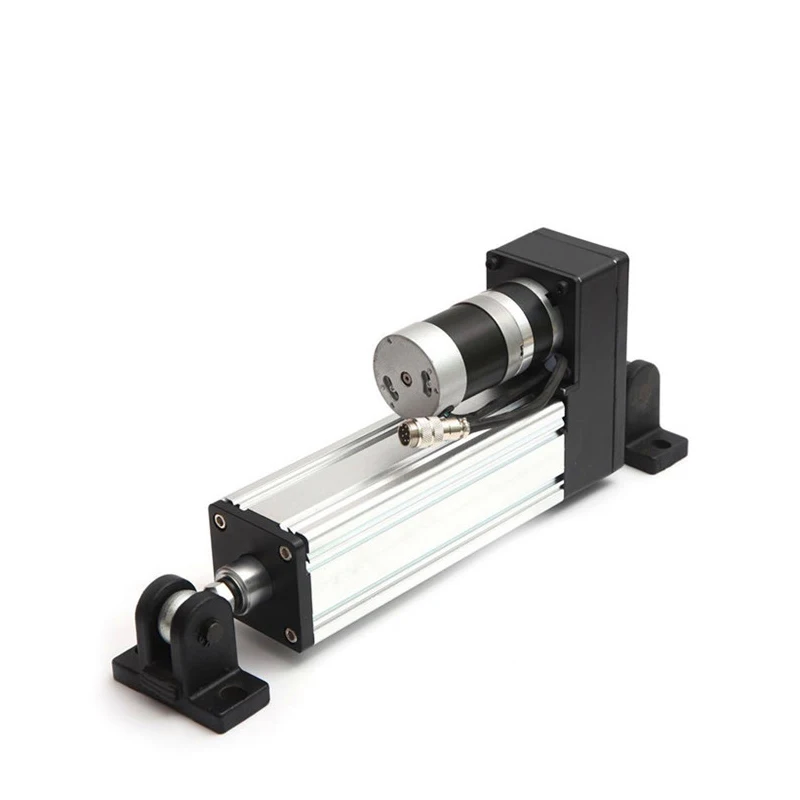

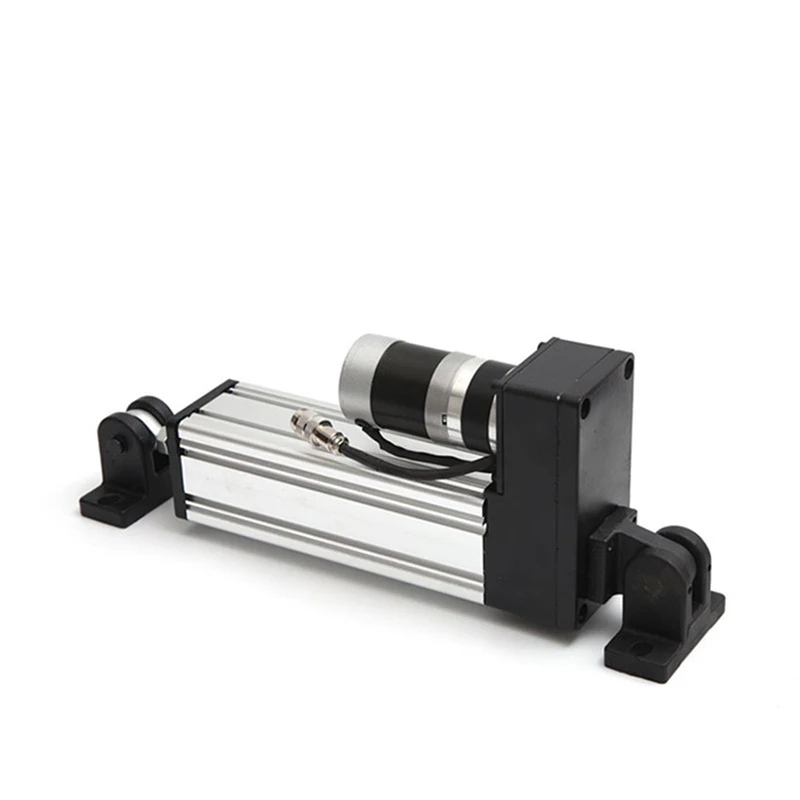

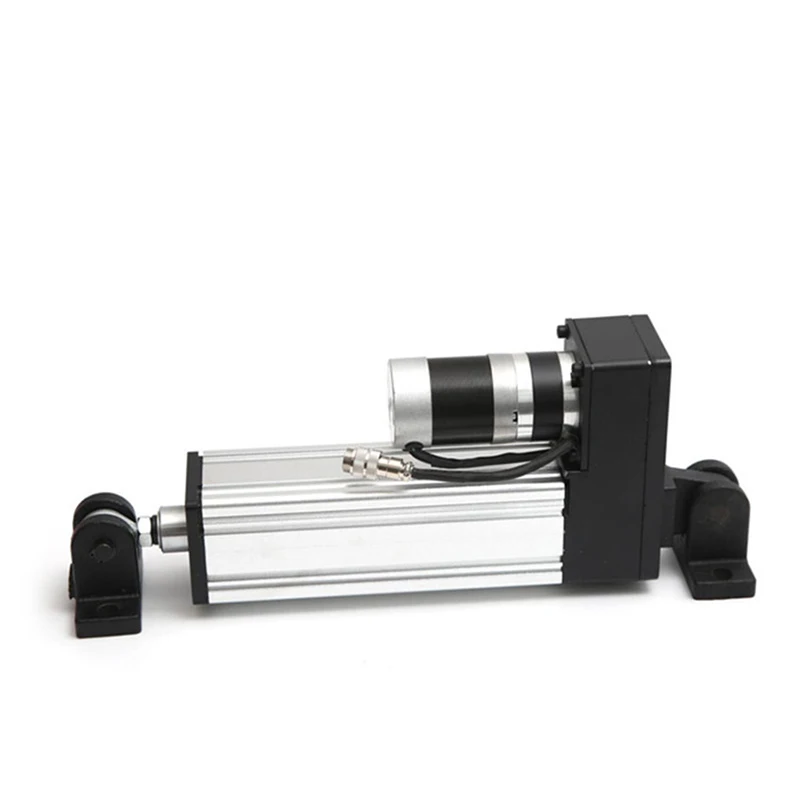

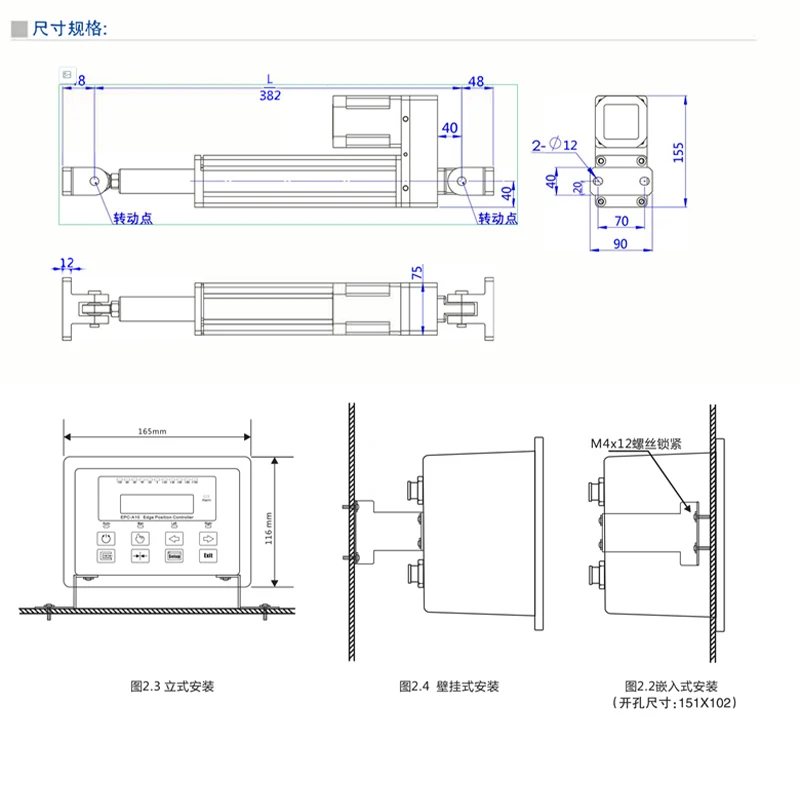

Servo Actuator:

Model No: PD-204L80/PD-204L150/PD-204L200

Max thrust :2000N

Driving load:2000KG

Stroke range: 80mm/150mm (+-75mm)/200mm

Max Driving Speed: 40mm/s

Application:

Textile machinery: fiber twisters, treatment machines, weaving machines

Metal fishing systems: extruders, wire stretchers, presses, welders, steel wire retractors, cutters, pipe makers, wire winding machines

Machine tool systems: lathes,

Millers, steel extruders, CNC lathes, specialized machinery

Transportation equipment: hoists, feeders, conveyors, rollers, winders

Paper- making systems: bag-making machines, box-making machines, slitters, book-making machinery, cutters, copy paper machines
